Best price driver tweeter diaphragm tweeter compression Driver
- Category: >>>
- Supplier: Guangzhou Panyu District Shiji Hiwell Audio Equipment Factory
Share on (60592855058):
Product Overview
Description

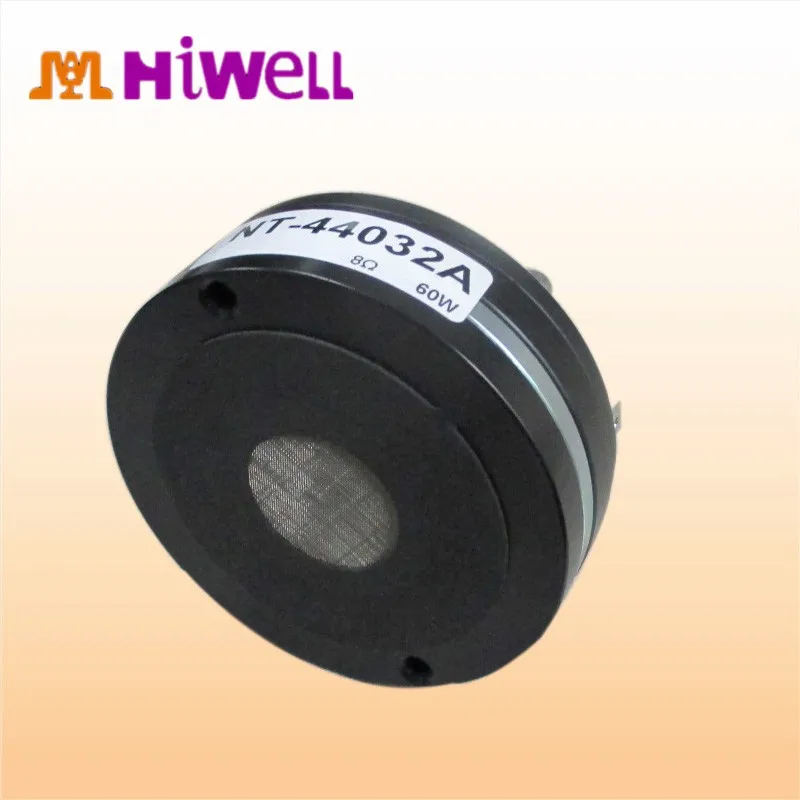

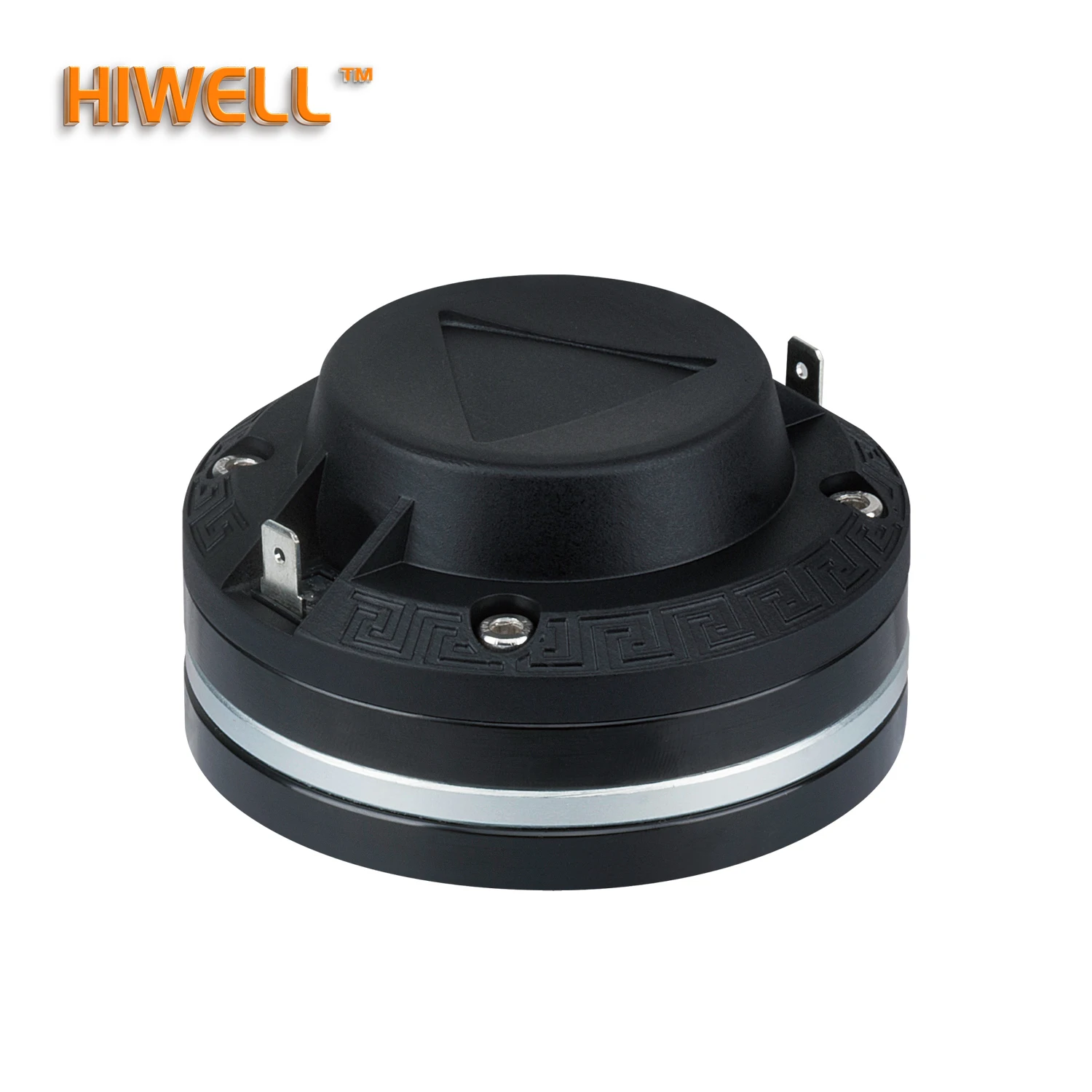

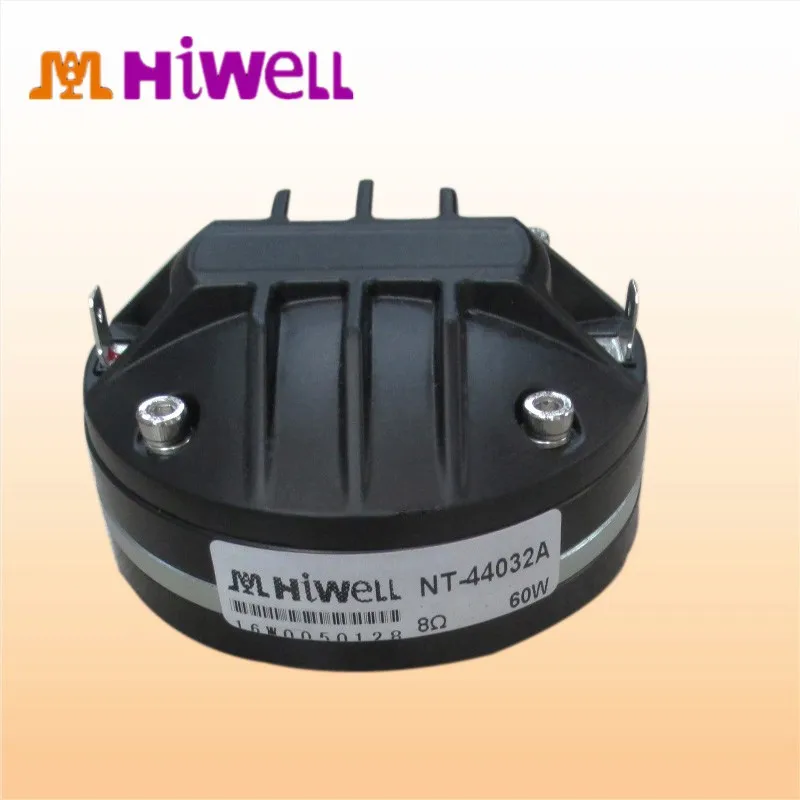

Best price driver tweeter diaphragm tweeter compression Driver
44mm Smaller Neodymium HF driver
106 dB SPL
60W AES,120W Peak
| Specifications | ||
| Nominal Diameter | 85/3.35 | mm/inch |
| Nominal Impedance | 8 | Ohm |
| Minimum Impedance | 6.8 | Ohm |
| Power handling | ||
| (1600-20000Hz) | ||
| Nominall | 60 | Watts |
| Continuous Program | 120 | Watts |
| Sensitivity (1W/1m)3 | 106 | dB |
| Frequency Range | 1000-18000 | Hz |
| Voice Coil Diameter | 44.4/1.75 | mm/inch |
| Winding Material | ALR | |
| Former Marerial | KSV | |
| Recommended Crossover5 | 1.5 | kHz |
| Re | 5.5 | Ohm |
| Le | 0.11 | mH |
| Exit Throat Size | 25.4/1.0 | mm/inch |
| Flux density | 1.8 | T |
| Diaphragm | PEN | |

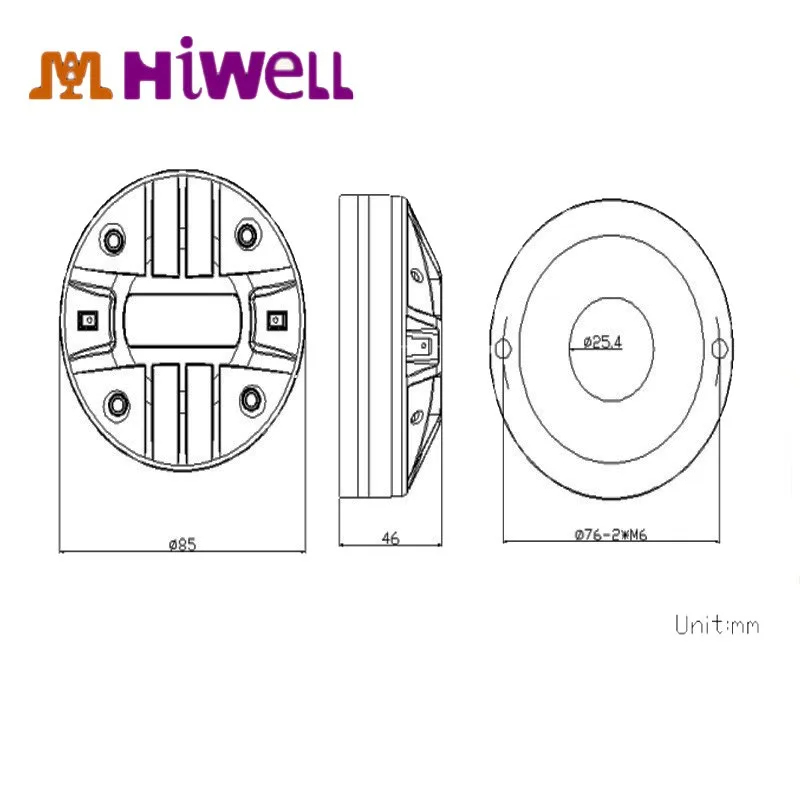

| Mounting and Shipping Information | ||
| Baffie Cutout Diameter | 85/3.35 | mm/inch |
| Depth | 46 | mm/inch |
| Net Weight | 0.85 | Kg |
| Shipping Weight | 11 (12pcs) | Kg |
| Shipping BOX | 350*220*135 | mm |
| Magnet Size | 85*56*5 | mm |
1. Packaging: Export Carton box
2. Shipping method:
Sample order by express
Produciton order by sea
Our Services
1.Great CUSTOMER SERVICE and COMMUNICATIONS
2.Fair price & durable quality we provide
3.OEM service with 15 years' experience R&D team

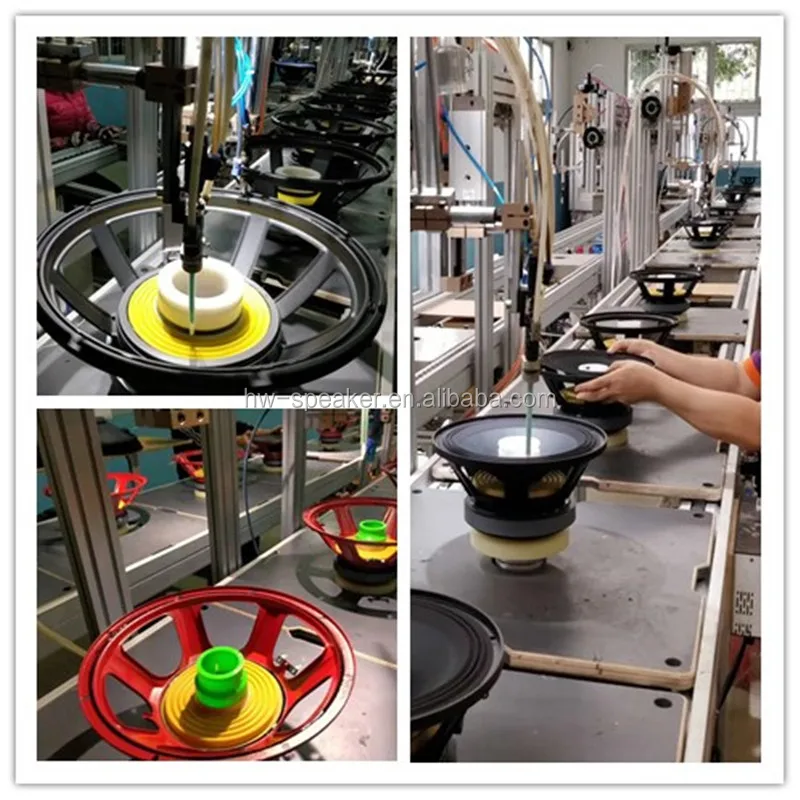

Company Information
We are professional loudspeaker manufacturer in Guangzhou, China formed in 2009.
Hiwell Audio was established to design and manufacturer loudspeaker products include pa loudspeaker( woofer, tweeter, coaxial speaker),hi-fi speaker,KTV speaker and car speaker.
Hiwell Audio fucus on high quality and reliabiity.
