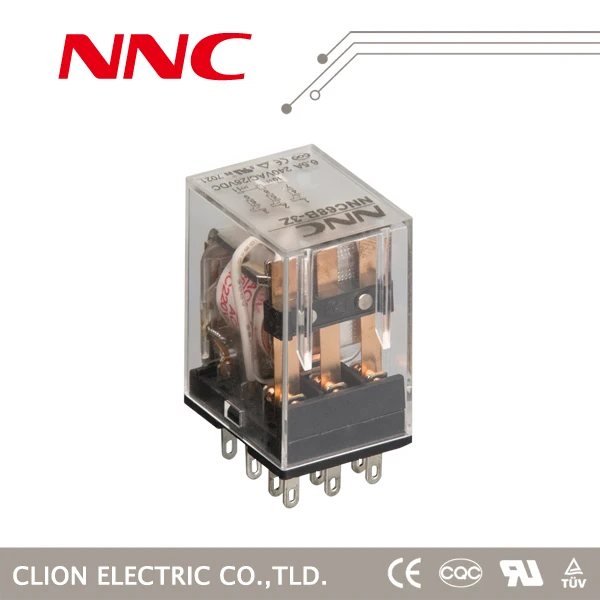

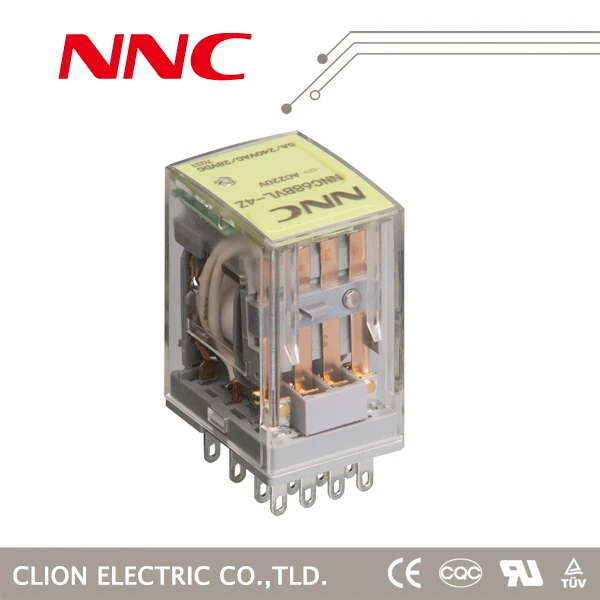

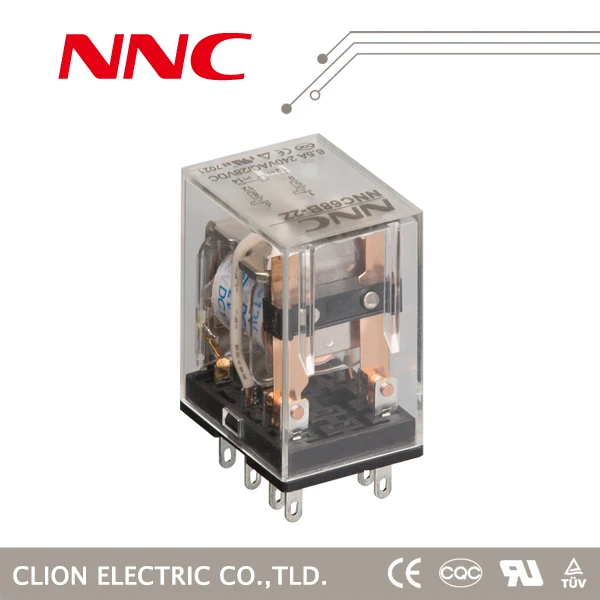

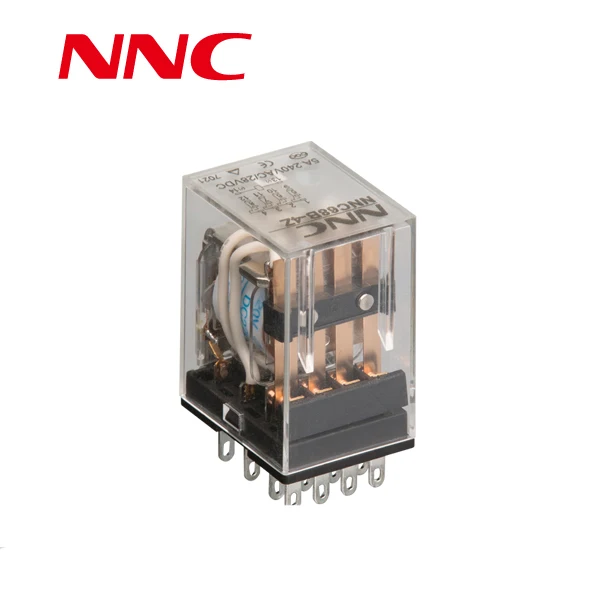

Стандартное реле (MY4), электромагнитное реле промышленного производства, реле общего назначения my4
- Category: >>>
- Supplier: Clion Electric Co. Ltd.
Share on (60593049435):
Product Overview
Description
Exhibition
Product display
Product display
Dimension | 27.3mm*21mm*35mm | |||
Contact | Form | 2A,2B,2C | 3A,3B,3C | 4A,4B,4C |
Feature | Rated load | 6.5A | 6.5A | 5A |
| Max switching voltage | 240VAC/28VDC | ||
| Contact resistance | ≤100mΩ | ||
| Material | Silver Alloy | ||
| Electrical life | ≥1*105 | ||
| Mechanical life | ≥1*107 | ||
Operate voltage (23℃) | DC:≤75%*Rated voltage, AC:≤80%*Rated voltage | |||
Release voltage (23℃) | DC:≥10%*Rated voltage, AC:≥30%*Rated voltage | |||
Maximum voltage (23℃) | 110%*Rated voltage | |||
Coil voltage | DC6-220V, AC6-380V (Customize allowed) | |||
Coil power | DC: 0.9W, AC: 1.2VA | |||
Pick-up time | ≤15ms | |||
Release time | ≤10ms | |||
Dielectric strength | Between Same-pole contacts | 1000VAC/1min(leakage current 1mA) | ||
| Between Opposite-pole contacts | 1000VAC/1min(leakage current 1mA) | ||
| Between contacts and coil | 1500VAC/1min(leakage current 1mA) | ||
Insulation resistance | ≥100mΩ(500VDC) | |||
Ambient temperature | -25℃ ~55℃ | |||
Ambient humidity | 45%-75%RH | |||
Atmospheric pressure | 86-106KPa | |||
Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | |||
Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | |||
Installation | PCB or Socket with DIN Rail or Screw | |||
Weight | Approx. 35g/PCS | |||
Packing | Carton with paper box inside | 600PCS/Carton, G.W.: 22KG, N.W.: 21KG, Dimension(mm): 330×310×345 | ||
| Carton with foam box inside | 500PCS/Carton, G.W.: 19KG, N.W.: 18KG, Dimension(mm): 440×310×345 | ||
Related products
Certificate
Certificate
Shipment & Packaging
Shipment & Packaging
FAQ
FAQ
Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
