Hot sale Simple Dry Mortar Production Line 4 8t/h the grout making machine
- Category: >>>
- Supplier: Henan Huaning Machinery Equipment Co. Ltd.
Share on (60593146202):
Product Overview
Description

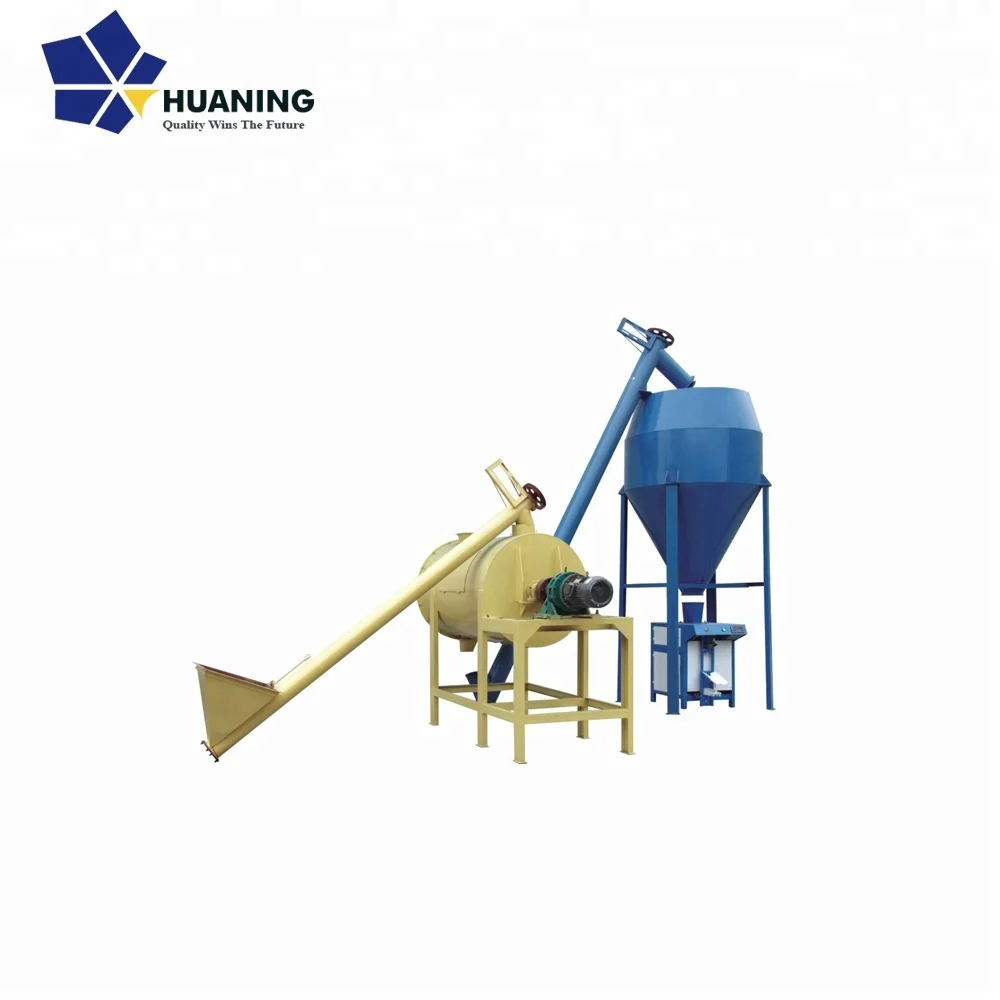

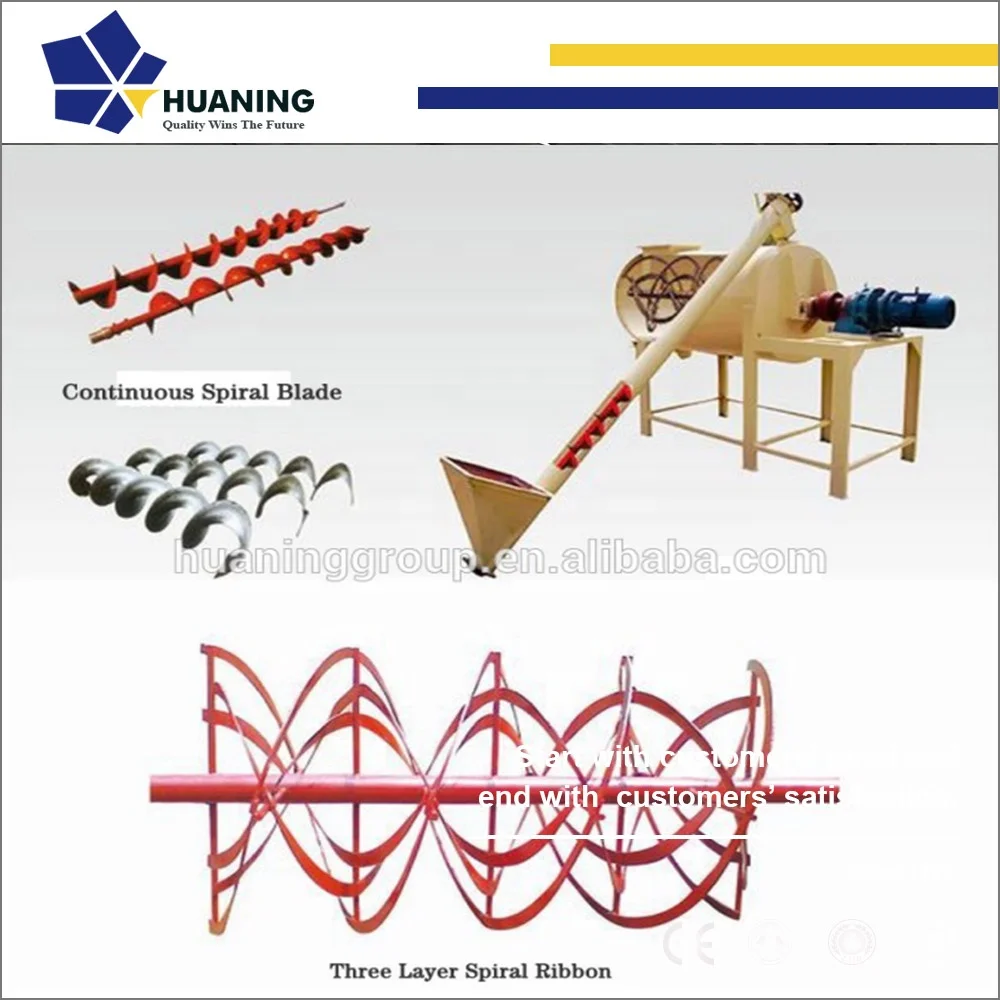

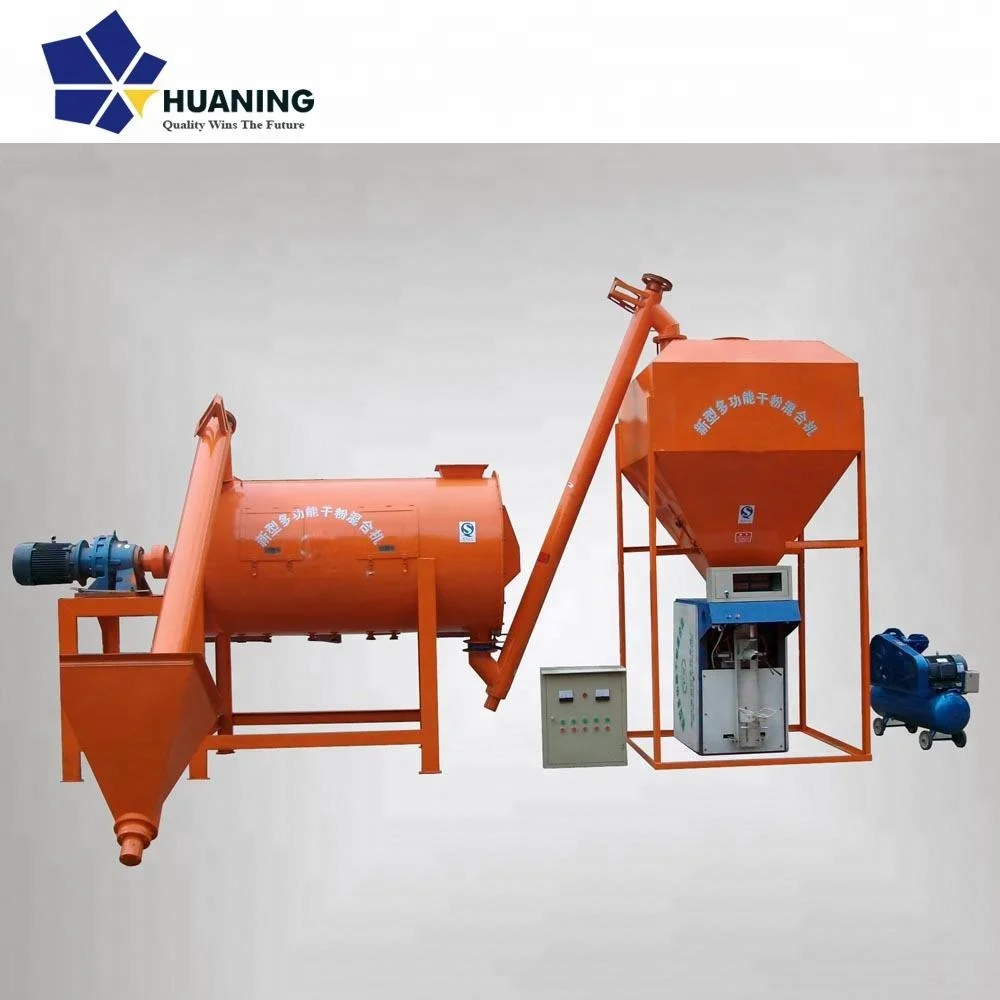

Dry mortar production Line is mainly composed of dry mortar mixer, feed screw conveyor, three ribbon mixing machine, secondary hoist, a storage hopper and automatic packing machine, etc.
This system is an efficiency production system after multiple times improvement on the basis of multiple ribbons dry mortar mixer. Mixed product will be into a storage bin through second lift machine. Then worker can carry out filing operation and not affect the next production. Matching an accurate packing machine can greatly improve production efficiency.
| Model | GLHL2.0 Production Line | |
| Host Type | HJJ2000 | |
| Feed Screw Conveyor | Power(kw) | 4 |
| Size(mm) | Φ219X3600 | |
| Second Lift Screw Conveyor | Power(kw) | 3 |
| Size(mm) | Φ165X3000 | |
| Size of Storage Bin(mm) | Φ1800X2850 | |
| Automatic Valve Port Packing Machine | Power(KW) | 3 |
| Packing Efficiency(s/bag) | 6 | |
| Size(mm) | 980*680*1050 | |
| Productivity(t/h) | 4-8 | |
