Weldable 63HRC CHOCKY WEAR BARS CB40, CB50, CB65, CB100 for abrasion and impact protection

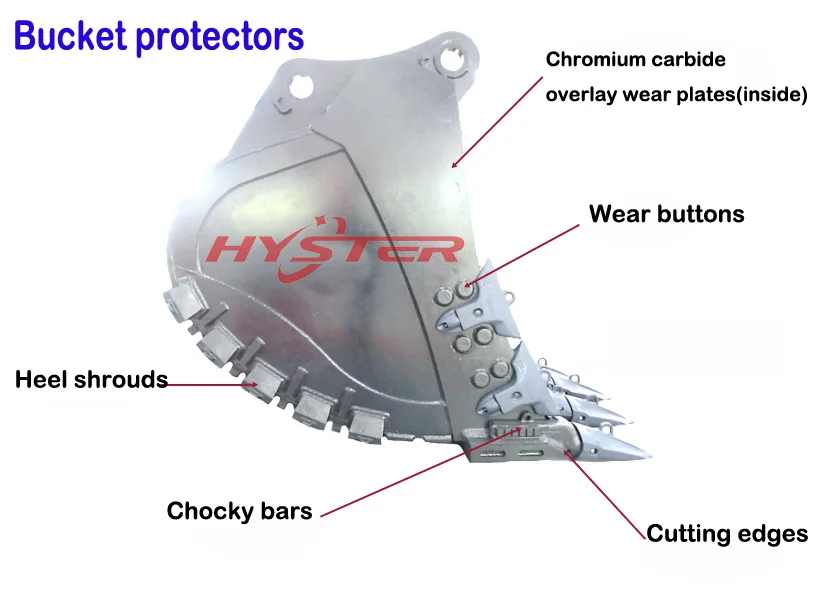

The unique, formable design of Hyster-Wear chocky bars are available in various lengths, grades and sizes and can also be customized as per the clients specific need. Applications for Chocky Bars are wide and varied, ranging from specific wear protection on buckets for loaders, excavators and draglines machines, or for weld-on hammer tips for the re-cycling industry, or chute linings and rock box edges.

They are easy to use and install. They can be bent, cut and formed to suit different surfaces.

The standard is 23mm thick, length is 240mm, width could be from 25mm from 150mm. We can also produce according to your special requests .

Type: Notched type and Non-notched type

**Other dimension is also available against your inquiry.**

About Hunan Hyster Material Technology Co.,LTD.

About Us

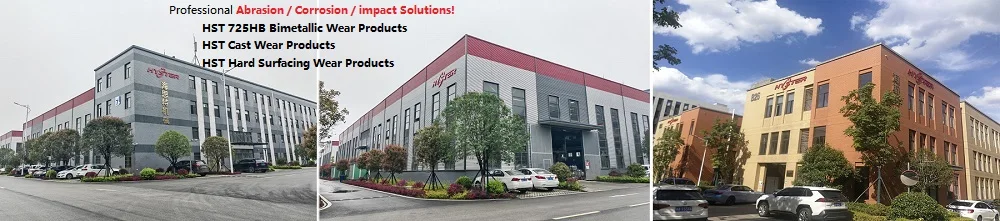

Hunan Hyster Material Technology Co., LTD. was founded in 1995 and located in Changsha city, Hunan province, middle of China, covers more than 8000 square meter production site area. We are a professional manufacturer & exporter of composite Bi-metallic wear blocks/wear plates(White Iron brazed with mild steel, hardness 63HRC/725 BHN), high chromium wear castings, Ni-hard wear Liners/Billets, Chromium carbide overlay wear plates, and other metallic wear castings, mainly serve for industries such as Mining, Quarrying, Material conveying systems, Sugar Cane Milling, Iron Mill/Steel Plant, Cement, Sand, Gravel, Dredging, Crushing etc.

Over 95% products have been sold to nearly 300 customers in more than 45 countries and regions such as Australia, Canada, Brazil, America, Chile, Argentina, South Africa, Indonesia, Thailand, Mexico, Russia, Holland, as well as many other countries and areas.

Our annual output of bi-metallic wear blocks/bars/plates is more than 4000tons, capable to produce about 1200 different sizes and shapes; annual output of metal wear-resistant castings is more than 6000 tons.

Hyster has its own License for Import and Export and also a professional team of sales staff,who are familiar with English, Spanish, Russian and international logistics.

Top quality with low prices and good services, Hyster people warmly welcome you visit us!

Main Service:

1. Mining & Quarrying & Mineral Processing

--Surface Mining

--Underground Mining

--Fixed Plant

--Mill & Crusher

2. Sand,Gravel,Dredging Industry

3. Sugar Cane Milling

4. Iron Mill/Steel Plant

5. Recycling Industry

6. Other Heavy Industries

Main Features - BIMETALLIC white iron wear blocks:
 1) Hardness:63HRC/700BHN.
 2) Material: ASTM A532 15/3CrMo White Cast Iron vaccum brazed onto weldable mild steel.
 3) High wear resistance with excellent impact toughness.
4) Tensile strength: 630Mpa Min.
5) Shearing strength: 250Mpa Min.
6) Usage life is 50% greater than that of Ni Hard Irons.

ALWAYS THE BEST CHOICE FOR THE TOUGH APPLICATIONS!

We provide OEM SERVICE, OEM MANUFACTURING, CAST LOGO BRAND FOR FREE!
PLEASE CONTACT US IF YOU HAVE CUSTOMIZED DRAWINGS AND DESIGNS, THANKS!

HYSTER WEAR SYSTEMS INCLUDE:

Hyster White Iron Wear Block(700BHN-63HRC)-- Range of products based on a composite white iron wear surface metallurgically bonded to a weldable mild steel backing plate. Wear block is fixed to the surface of fixed and mobile plant equipment, such as mining buckets and chutes, where protection from severe abrasion is required.

Hyster Overlay Wear Plates--Chromium carbide clad wear plate manufactured in HYSTER and marketed worldwide. Overlay plate is well suited to fixed and mobile plant equipment associated with the construction, mining and resource industries; particularly iron ore, coal, cement and steel applications.

Hyster NiHard(NiHard 4, Nihard 1&2)--Abrasion and high impact resistant product. It is often cast into wear billets and wear liners and used extensively in the mining, construction and mineral processes industries, particularly in bulk handling situations.

HST Cast Wear Material

--White Iron Wear Blocks/Plates

--Nihard Wear Plates/Billets

--Other High Chromium Wear Castings

--Other Metallic Wear Castings

Hyster Tungsten Carbide—High standard abrasion resistant product. It is often used where the application has no impact force or very slightly impact.

Special material design&manufacturing

Wear Solutions


Features and Benefits
• Reduced Maintenance
• Protects any high wear area, eliminating the need for frequent rebuild or replacing wear plate
• Lasts longer than other wear protection
• Excellent alternative to hard facing which can lead to cracking of major structural components Increased Productivity
• Reduced maintenance ensures maximum machine availability
• Wide variety of shapes and sizes allows small areas to be protected, minimizing the affect on penetration and material flow
• Lower Operating Cost
• Can be fit to flat or curved surfaces, eliminating the need to have wear plate formed to fit
• Bucket life is significantly increased, minimizing repair and new bucket orders

Typical Data Numbers(usage life comparison):
  >white iron wear blocks life is 50% greater than that of Ni Hard Irons.
 >At least 7 times longer than A.R. type steels 360/400 BHN
  >5 times the wear rate of Manganese Steel
  >3 times the wear rate of Tapco Weld Hardfacing
  >4 times the wear rate of Astralloy-Vulcan
  >16 times the wear rate of Carbon Steel
  >3 times the wear rate of 500 BHN A.R. Plate

Packing Material:

 Option 1. Poly-wood crates, Poly-wood pallets and Oil film, fastening belt.

 Option 2. Carton, PVC, fastening belt.

Packing Photos:

Delivery term:

 1) FOB Shanghai/Ningbo/Shenzhen/Guangdong, China. Other ocean port is also available.

 2) CFR/CIF ocean delivery to destination port.

 3) Express delivery such as DHL, UPS, TNT, FedEx.

 4) Ex-Work Changsha warehouse.

Hyster offer our clients a wide range of wear products and professional wear solutions. We also welcome custom made one off's and consumables.

Some of our products and services:
  --Wear plates, wear liners-Nihard wear liners, white iron wear liners, bimetallic wear liners

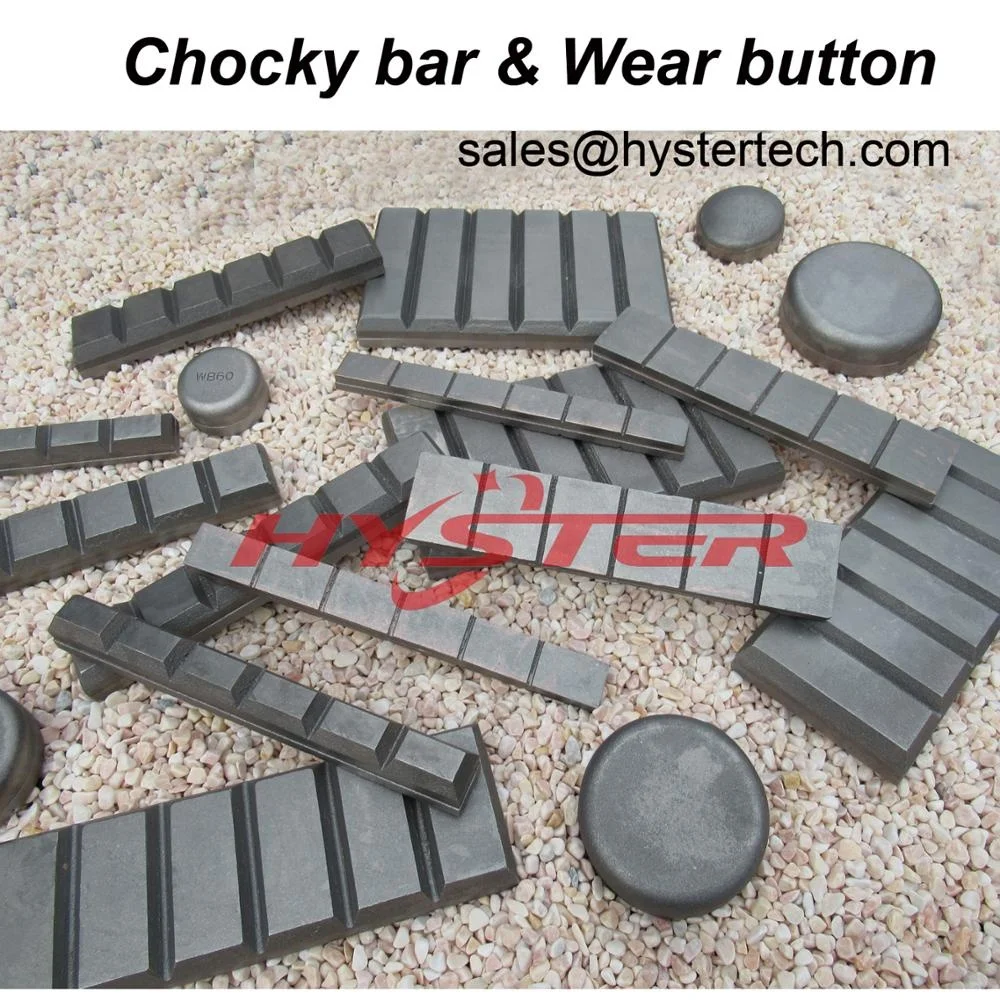

  --Chocky bars and wear buttons
  --Wear blocks, wear bars
  --Custom made wear liners
  --Bucket repair and protection
  --Full Fabrication services
  --Sugar mill hammer tips
  --Drilling, milling or machining
  --Casting/Investment casting
  --Fast service and timely delivery

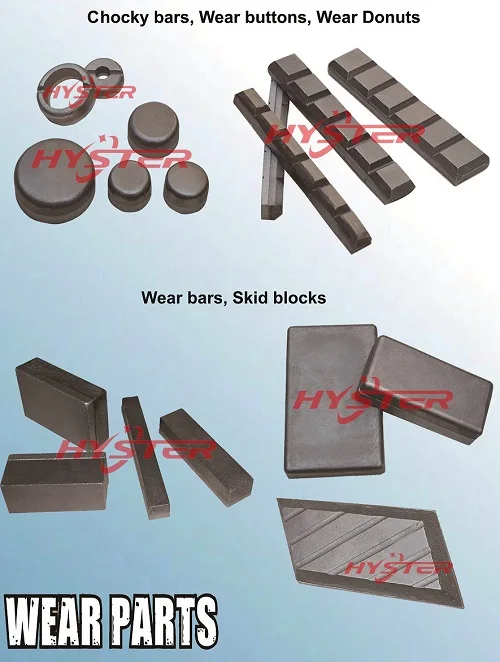

Following are our laminated wear blocks:

Laminated wear blocks---the most common types are:

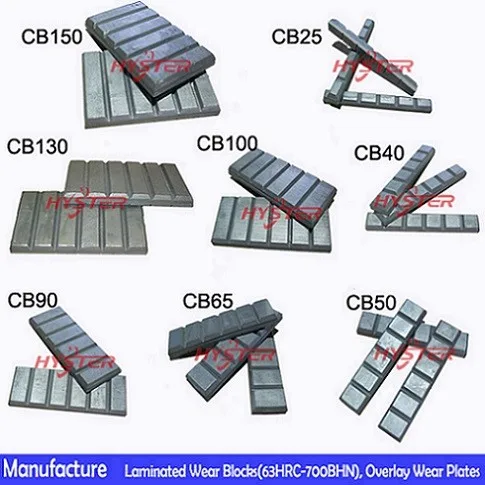

  1) Chocky bars (CB 25. CB40, CB50, CB65, CB80, CB90, CB100, CB130. CB150)
  2) Standard wear bars (DLP201A, DLP 125, DLP184, DLP528, DLP619, DLP451, DLP450, DLP2230, DLP2017, DLP4, DLP919, DLP1191, DLP515, DLP200, DLP271, DLP270, DLP508, DLP115, DLP337, DLP1101, DLP343 )
  3) Shaped wear bars
  4) Wear buttons& donuts(WB60, WB75, WB90, WB110, WB115, WB150, DLP1920, DLP1921, DLP1994, DLP2196)
  5) Shredder/Grinder hammer tips (DLP1654,90X90X50mm; DLP653,90X90X45mm; DLP1927, 90X90X55mm)
  6) Bi-metallic wear plates
  7) Knife edges(DLP1065-22, 203X22X50MM; DLP1265-22,305X22X50MM; DLP1065A-16, 203x16x50mm, DLP1065A-25, 203x25x62mm; DLP1265A-25, 305x25x56mm)
  8) Skid bars, skid blocks(DLP412, 250x150x45mm; DLP413, 200x150x45mm; DLP414, 250x250x45mm)
  9) Wafer strips, WS25, WS40, WS50, WS65;
 10) Elbow wear blocks
 11) Other sizes and shapes
 12) Multi-function gradient cutter tooth
 13) Rockbox liners
 14) Micro-ledges

We also produce Chromium Carbide Overlay wear plates:

 1) Standard sheet size 1500x3000mm / 1200x2400mm / 1480x3050mm

 2) Thickness available: 4+4(8mm), 6+4(10mm), 6+6(12mm), 8+5(13mm), 8+6(14mm), 10+5(15mm), 10+9(19mm), 10+10(20mm), 12+12(24mm), 12+17(29mm), 20+10(30mm)

 3) Hardness: 58-62HRC and 62-65HRC

Why Our Partner Choose Hyster?

1. We have completly production line. Annual output of bi-metallic wear blocks/bars/plates is more than 3000tons, capable to produce about 1200 different sizes and shapes; annual output of wear-resistant castings is more than 3000 tons, and hardfacing wear plates more than 2000 tons.

2. We have a very skilled team of workers and engineers with more than 15 years of experience.

3. We have independent research and development capabilities.

4. We are fully equipted with all necessary testing devices.

5. Hyster has its own License for Import and Export and also a professional team of sales staff, who are familiar with English, Spanish, Russian and international logistics.

How We Work With Our Partners?

1. We always welcome OEM / Distributor / Agent / Dealer.

2. We supply continuously R&D Support.

3. We guarantee the fastest Service & Delivery.

4. We provide the most competitive Price & Top-grade Quality.

> Confidentiality  > Professional   > Innovation   > Efficient

Quality Guarantee

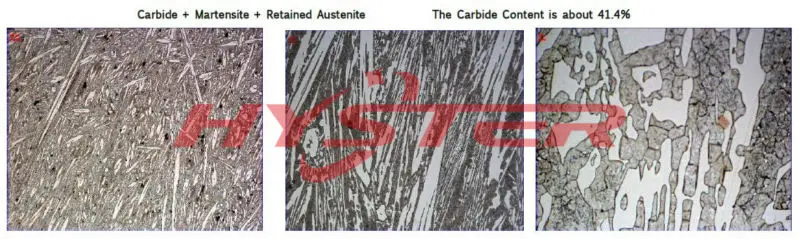

Quality Report to be submit ahead of delivery: include Metallographic Analysis & Hardness & Chemical Composition Analysis & Welding Quality(UT) & Dimensions & G65 Dry Sand/Rubber Wheel Abrasion Test. 12 month warranty on quality.

The company is certified with ISO9001:2015. We have a dedicated R&D team that can tailor various products with special requirements (such as wear resistance, corrosion resistance, impact resistance, heat resistance, etc.) and provide professional wear resistance solutions. Since its establishment, the company has carried out a lot of experiments on improving the wear resistance and composite bonding strength, various heat treatment technology on different products, and the selection of wear-resistant alloys under different working conditions. The production process and product performance are continuously optimized.
