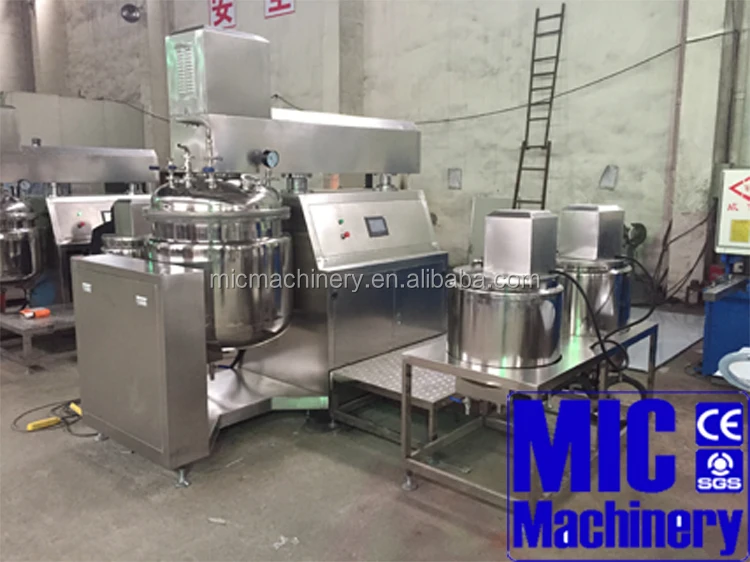

MICmachinery MIC 100L lotion making machine with high shear homo mixer

MICmachinery MIC-100L lotion making machine with high shear homo mixer

lotion making machine consists of vacuum homogeneous emulsifying machine, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet, piping system(oil tank and water tank optional). It is the most suitable equipment to produce high-grade skin care creams and other cream products.

This machine consists of: vacuum homogeneous emulsifying machine, heating system(steamy heating), mixing system, vacuum system, hydraulic lifting system, operation control cabinet, piping system. It is the most suitable equipment to produce high-grade skin care creams or other creams products.

lotion making machine Main Features

1) Heating system: steam heating device attaching at the bottom. Heating with temperature display, easy to control.

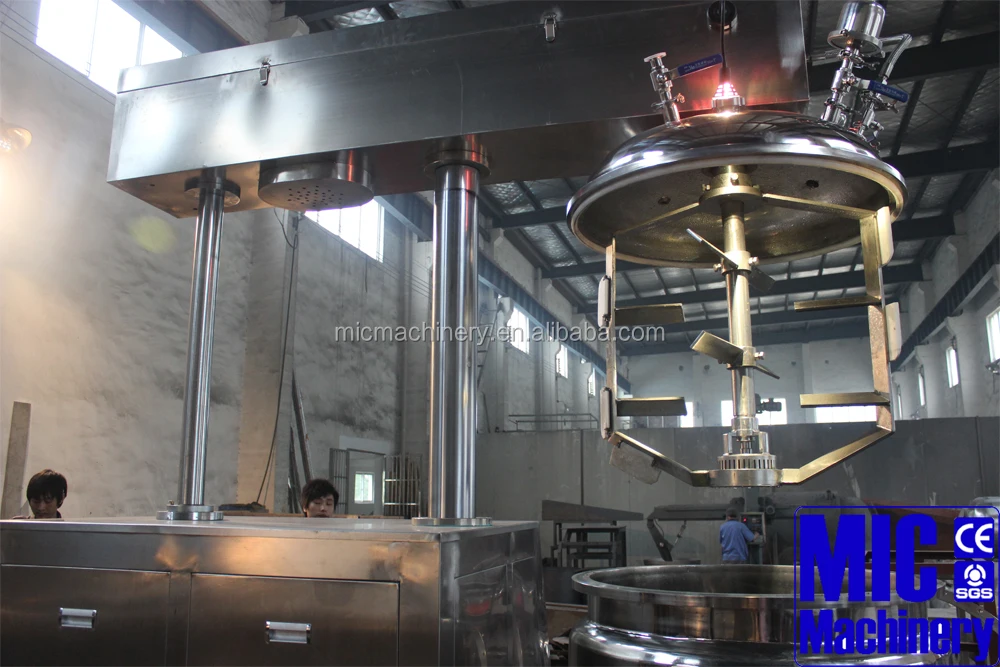

2) Hydraulic lifting: voltage 380V, power 4KW. Lifting is easy to operate, so the material can be effectively emulsified in a     closed condition.

3) Control System: The control system is equipped with digital time relay device, so it can adjust time and speed of     homogenizer based on different material. All control buttons are concentrated together,clear at a glance.

4) Homogenizing system: voltage 380V, power 15KW, 2800r/min

5) Mixing system: voltage 380V, power 5.5KW, 10-120 r / min. Monitoring with transparent filter, scraping the interlayer    when mixing, frequency control.

lotion making machine Machine Parts

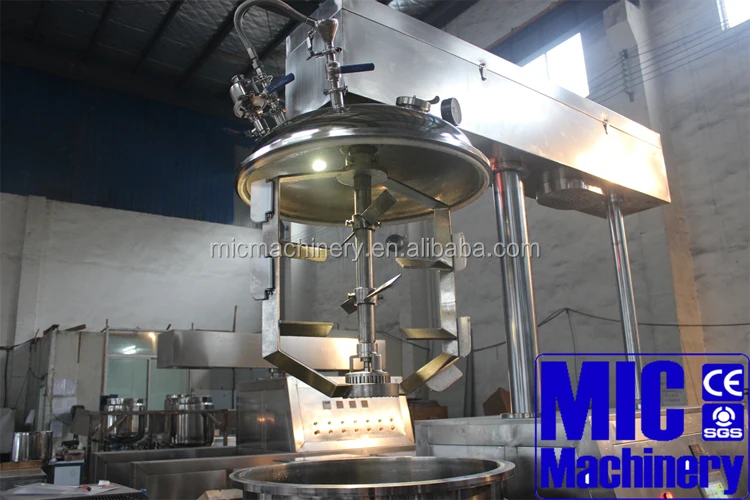

Name: Mixer

Brand: Own factory product

Original: Own factory design

High speed rotate, oltage 380V, power 5.5KW, 10-120 r / min. Monitoring with transparent filter, scraping the interlayer when mixing, frequency control.

According to customer different needs, can add scraper clean the wall of the tank.

Main Features

Name:lotion making machine Homogeneous head

Brand: Own factory product
Original:  Own factory design
The homogenizer is on the top of the emulsifying pot, adjustable time setting depends on the product homogenization need, voltage 380V, power 15KW, made in Shanghai and uses German technology, the highest speed 2800 r / min. The material moves in a high speed between the rotor and stator, what can engender a strong hydraulic shear power to dispersing materials, meanwhile it can engender centrifugal power to extrude, milling, crash the material, ultimately make the material mixing, stirring, diminution to the desired requirements.

Machine Parts

Name: lotion making machine  High shear emulsifying head
Brand:  Own factory product
Original: Own factory design
 made of three decks. Interlayer thickness 6mm, middle layer thickness 6mm, outer layer thickness 4mm, special light treatment The homogenizer is on the top of the emulsifying pot, adjustable time setting depends on the product homogenization need, voltage 380V, power 15KW,

Main Features

Name: Observation window
Brand:  Own factory product
Original:  Own factory design
Through this window , you can see the material's situtation in the tank.

lotion making machine Main Feature.

Name:Main pot

Brand: Own factory profuct

Material: Inner wall is 316 stainless steel, jacket, outer layer are made by 304 stainless steel, inner and outer are polished, the surface handled by special light treatment.

According to customer's different requirements, can customize double-layers pot tank.

According to customer different needs

Also can customize cooling system tank or heating system tank.

Main Feature

Name: lotion making machine tank with Spray wash head

Brand: Own factory profuct

In order to convenience customer to wash the tank and pot, can add 2 spray head in the cap, so when machine sealing, connect the spray head with the water pipe, it can washing the tank automatically.

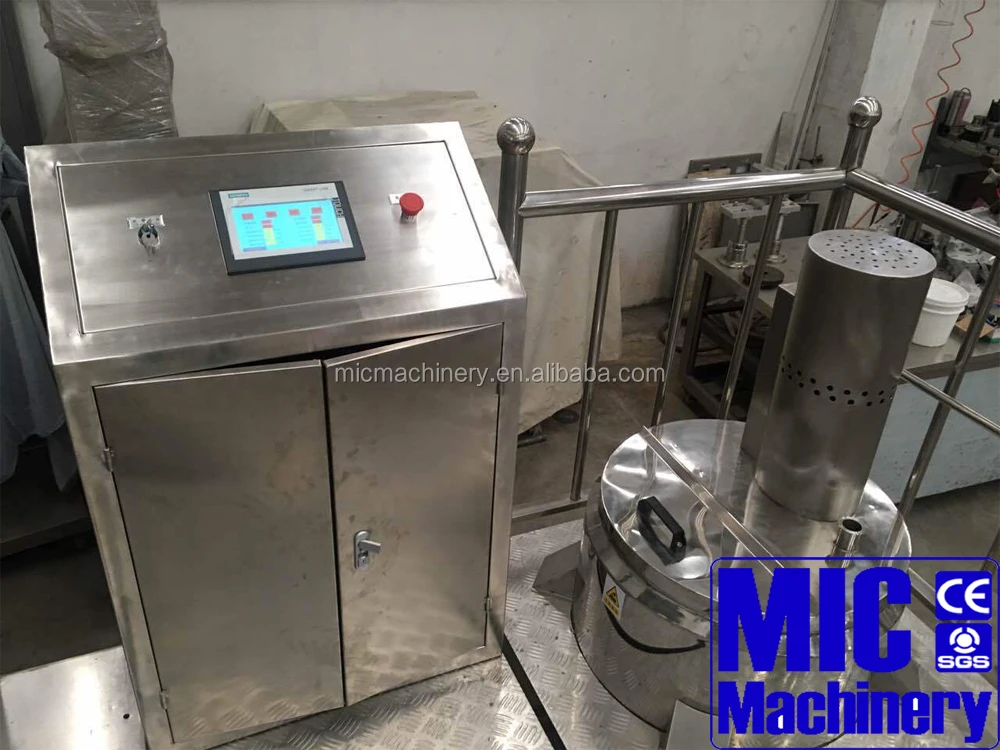

lotion making machine Touch screen

 Name:Touch screen control operation

Question about lotion making machine  homogenizer washing, connect  and other questions

1.\tHomogenizer all questions

a)\tAll the detailed connection between the homogenizer and the filling machine?

Homogenizer have a outlet and inlet connection point , so when the homogenizer finished the mix material work, we will use mirror seamless steel tube connect with the tank of the filling machine, the tank have a inlet connection point . So the pipe will connect the outlet connection point of the homogenizer and inlet connection point of the tank, when material extraction from the homogenizer need add a pump.
.

This is the inlet point of the tank of the filling machine,

This is the outlet point of the homogenizer.

b).most important : how is the tank going to be a 100% empty, with no left over at the sides of the tank and no left over on the bottom of the tank ?
