Multi-layer Filtering Reverse Osmosis Water Purification System
Product Description

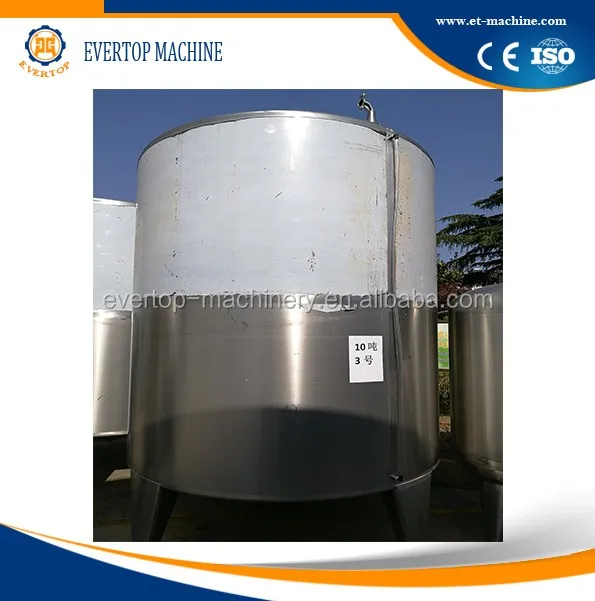

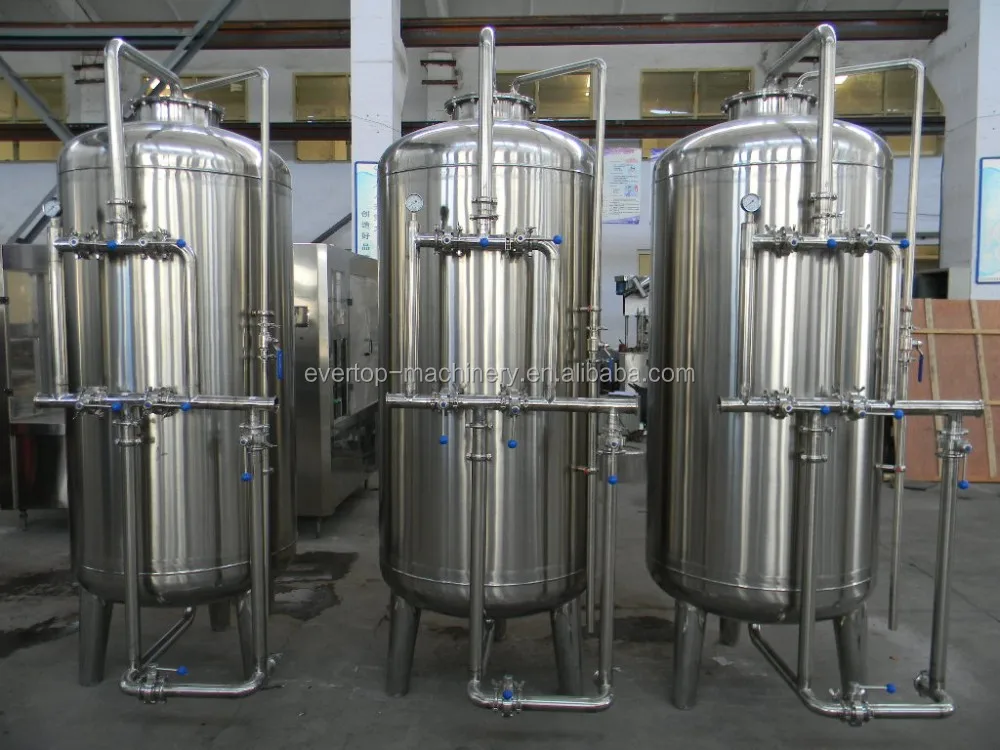

This mineral water processing plant is used for purify the pure water, mineral water, and drinking water in beverages. The whole system includes the water tanks, water pumps, multi-medium filter, active carbon filter, water softener, micro filter, reverse osmosis, hollow fiber super filter, water sterilizer (ozone and U.V ray sterilizer). There are some additional machines according to the customers' requirement and the raw water quality. Characteristics: Quartz sand filter Components: Water distributor, water gather, pressure gauge, filter material, valves and so on. Filter medium: Quartz sand Specification: d2mm, d1mm, d0.5mm, d0.2mm The bigger shall be put downside and the smaller shall be put upside. Usage: It is mainly used to remove Plankton, Moss, Suspension, Colloid and so on.
Active carbon filter Components: Water distributor, water gather, pressure gauge, filter material, valves and so on. Medium: Shuck shape active carbon Usage: It is mainly used to remove strange smell, chlorine, chloride, organic mater and heavy mental, lower color and optimize water quality.
Water softener Components: Water distributor, water gather, pressure gauge, filter material, strong acid exchanging resin, solution measurement, valves and so on. Medium: Strong acid exchanging resin Usage: It is mainly used to remove the calcium and magnesium ion.
Micro filter Medium: Polypropylene film Filter precision: 0.1-5μm Usage: It is mainly used to remove the tiny impurity.

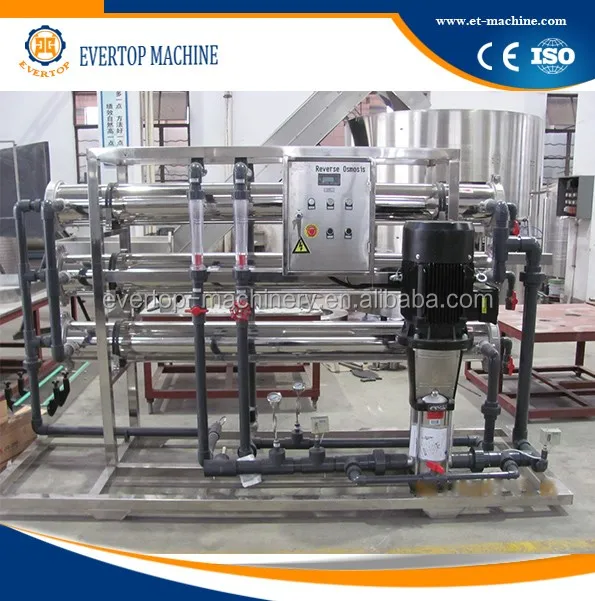

Reverse osmosisdevice is the equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures. The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and condense. The reverse osmosis machine is used to remove the germs, the harmful inorganic ion, and organic ion; remove heavy metals and salt; rearrange water structure. Rate of desalination: ≥98% It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The reverse osmosis membrane is only 0.001 micron pore size, from USA HYDRANAUTCS or DOW. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance. We have two types of reverse osmosis, that is one stage RO and two stages RO. The one stage RO is suitable for raw water with low electrical conductivity. Two stages RO is suitable for raw water with higher electrical conductivity.
Ultrafiltration (UF) is an important water purification technology used for production of high-purity water. Ultrafiltration is effective in the removal of colloids, proteins, bacteria, and other organic molecules larger than 0.01 Micron size. Ultrafiltration is a pressure-driven purification process in which water and low molecular weight substances permeate a membrane while particles, colloids, and macromolecules are filtered. The primary removal mechanism is size exclusion. A properly designed UF cartridge allows efficient rising of ionic residue from the cleaning and rapidly returns to optimal resistivity and organic purity. Material: All of the above machines are made of stainless steel 304/316. Quality: All the pumps, valves, pipe fittings and connectors are from good suppliers in China. Also we can make the machine according to the customer's requirement. The reverse osmosis membrane is from USA HYDRANAUTCS company ESPAI high technology compound film. We can supply the water treatment system from 500Liters per hour to 50,000Liters per hour.
*The filters are equipped with back wash system and user shall connect the pump with each filter and open relative valves to back wash.
Multi-layer Filtering Reverse Osmosis Water Purification System
Packaging & Shipping
Multi-layer Filtering Reverse Osmosis Water Purification System
Company Information
Zhangjiagang Evertop Machinery Co., Ltd., which has the function of research, development and manufacture, is specialized in beverage packaging machinery. We are providing the following products: liquid filling machine (bottle water, juice/tea, carbonated drink, oil, milk, wine etc.), 3 to 5 gallons water filling production line, water treatment machine, labeling and packing machine, automaticmi-automatic bottle blow molding machine, injection molding machine and automatic batching, mixing system, a variety of sterilization equipment etc. Since foundation, we devote all the strength to the new field of beverage packaging machine technology and absorb the advanced technology from German and Italy. Company insists the management ideas of market-oriented, technology-first, quality of life, faith-based, service paramount, and has established perfect quality assurance system.
Our Services
1. The plant layout To provide customers with pre-project planning workshop, design. 2. Commissioning services Send experienced engineers and technicians responsible for equipment installation and commissioning, to ensure normal production and customers. 3. Spare parts It comes with one year of wearing parts when the device is shipped. In addition, we prepare an adequate equipment spare parts as inventory, customer ever need spare parts repair and maintenance of equipment, can quickly provide. 4. Technical training To ensure that your technical staff to become familiar with the performance of the equipment, proper operation and maintenance procedures to master the equipment, provide on-site technical training, in order to facilitate customers faster and more comprehensive access to technology.
FAQ
1. Why to choose your factory?
Zhangjiagang Evertop Machinery Co., Ltd. is specialized in beverage packaging production line machinery, which has the function of research, development and manufacture. With more than 30 years’ experience on machinery production, we can provide you the high-quality products with the best price.
2. How could I know if your machine specification is suit for our country power?
Our machine is custom made. We will make suitable voltage and frequency products according to your need.
3. What is your trade clause?
For the deliver type, we mainly handle it by FOB, CFR, CIF, EXW. It depends on the client’s need.
4. What is the valid of your price?
Because the cost and exchange rate changes rapidly, so all of our quotation for you is with 30 days valid. If you need any update price, please feel free to contact us.
5. What is the package for your products?
It is mainly made by wooden case package.
6. Could I get spare parts?
We will enclose with one year quick wear parts for your order.
7. How do you deliver my orders?
As most of our products are heavy and large, by sea or railway is better. Airfreight or express can also be arranged upon request.
8. How long can you arrange delivery?
About 30 days after we received the deposit (apyment term: 30% by T/T in advance, 70% by T/T or L/C before shipment), all the machines will be ready. You are welcomed to test the machine in my factory or we send you video of your machine running.
9. What documents can you provide me for Customs clearance?
We will provide you with usual documents: Commercial Invoice, Packing List, BL. The other documents also can be provided upon request.
10. How about your after-sale service?
We have English Manuals for all products, which can help you to know the operation easily,
My technician is available to go aboard to install the machines and guide the workers of buyer how to operate and necessary repair, and give buyer a turnkey project.
Besides, for any question about the products, you can feel free to contact us for suggestion.
11. When I come to China, What services can you provide?
When you come to my city Zhangjiagang ( near Shanghai), we will provide you with the transportation support, take you to visit the factory, offer purchasing suggestions, show you the products, and for any other help you need, please feel free to let us know.
