D Type sintered bronze metal filter bronze sintered filter
- Category: >>>
- Supplier: Ningbo Maosheng Pneumatic Machine Co. Ltd.
Share on (60593457421):
Product Overview
Description
Product Description

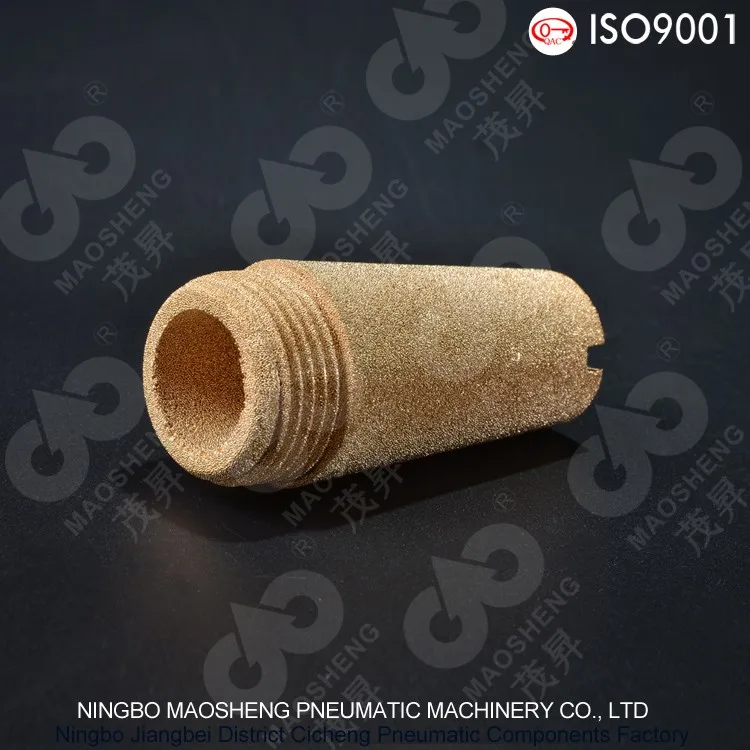

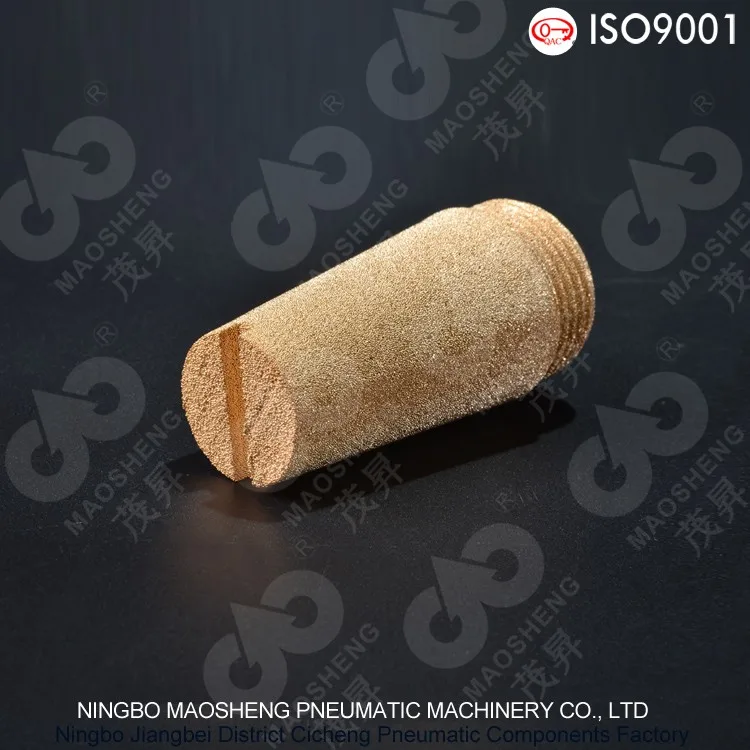

D Type sintered bronze metal filter bronze sintered filter
| |||||||||||||
| 1 | Sintered Air/oil filter | ||||||||||||
| 2 | ISO 9001:2008 | ||||||||||||
| 3 | SGS / RoHs Certificate | ||||||||||||
| 4 | OEM available. | ||||||||||||
| 5 | Filtering degree 2micron-150micron. | ||||||||||||
Product Dimenstions
| Code | Product Model | Sarew Thread | D | D1 | L | C |
| Size | mm | mm | mm | mm | ||
| 1.1.10.1.81.01 | D-6 | G1/8" | 11 | 8 | 21 | 1.5*2 |
| 1.1.10.1.82.01 | D-8 | G1/4" | 14 | 10 | 27 | 1.5*2 |
| 1.1.10.1.83.01 | D-10 | G3/8" | 18 | 15 | 36 | 2*2 |
| 1.1.10.1.84.01 | D-15 | G1/2" | 24 | 19 | 44 | 2*3 |
| 1.1.10.1.85.01 | D-20 | G3/4" | 29.5 | 20 | 65 | 2.5*3 |
| 1.1.10.1.86.01 | D-25 | G1" | 35.5 | 26.5 | 75 | 4*4 |
Company Information
MAOSHENG brass sintered filter, bronze filter , filter disc and porous components are sintered parts with high porosity, between 30 and 80% in volume, currently made of Bronze or Stainless Steel 316L and PE/PP material, also new invented with sintered Active Carbon material.
