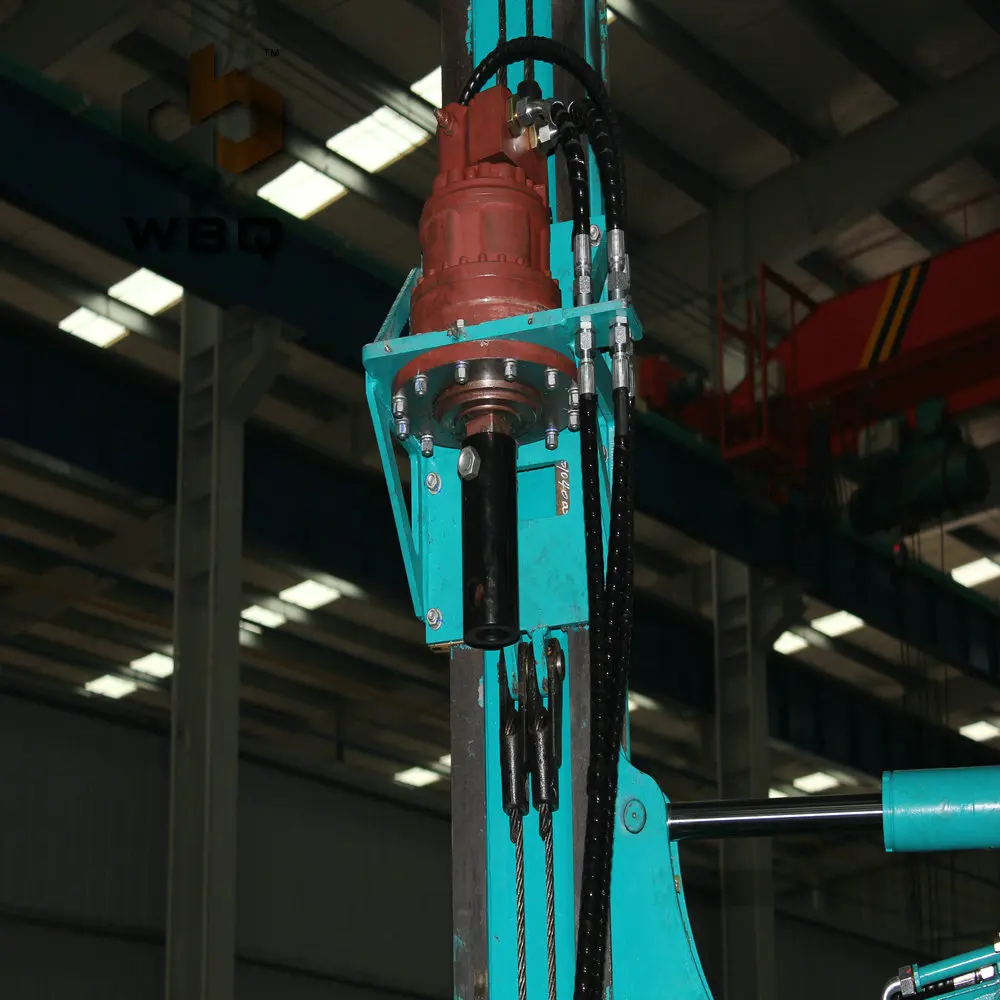

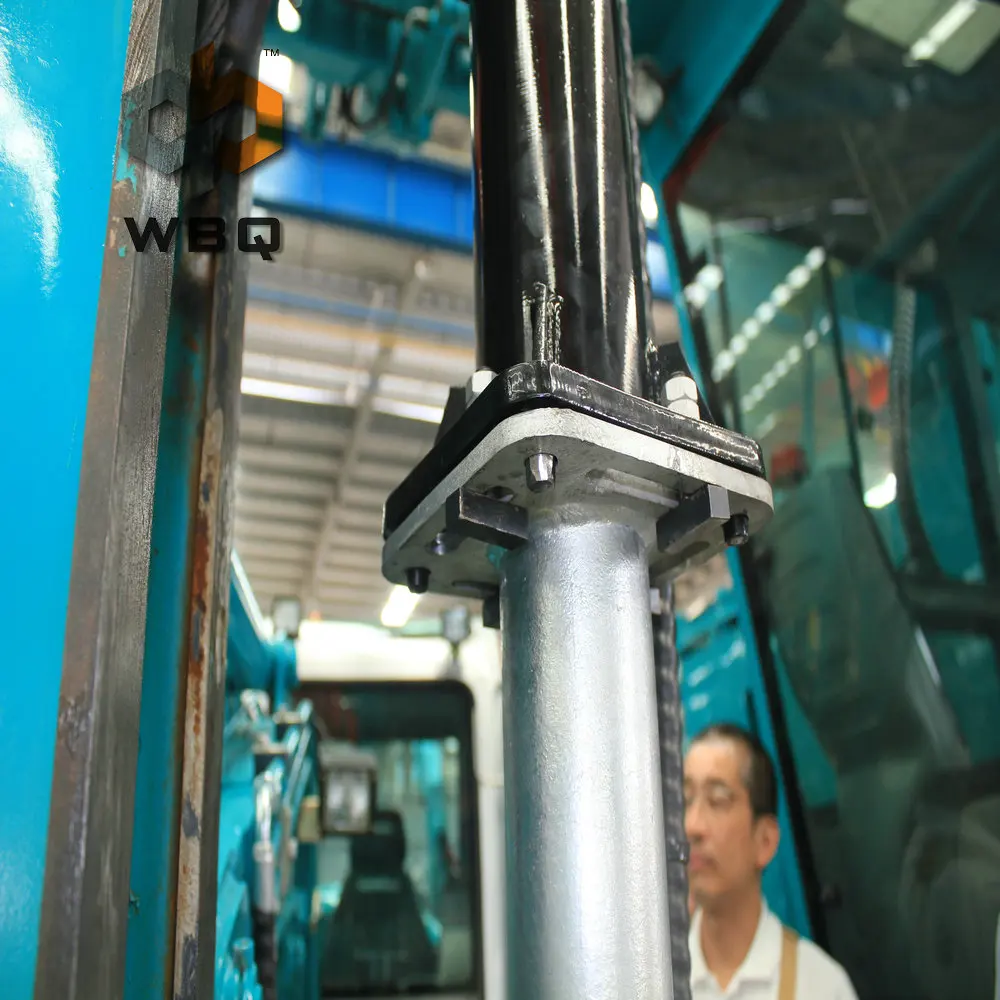

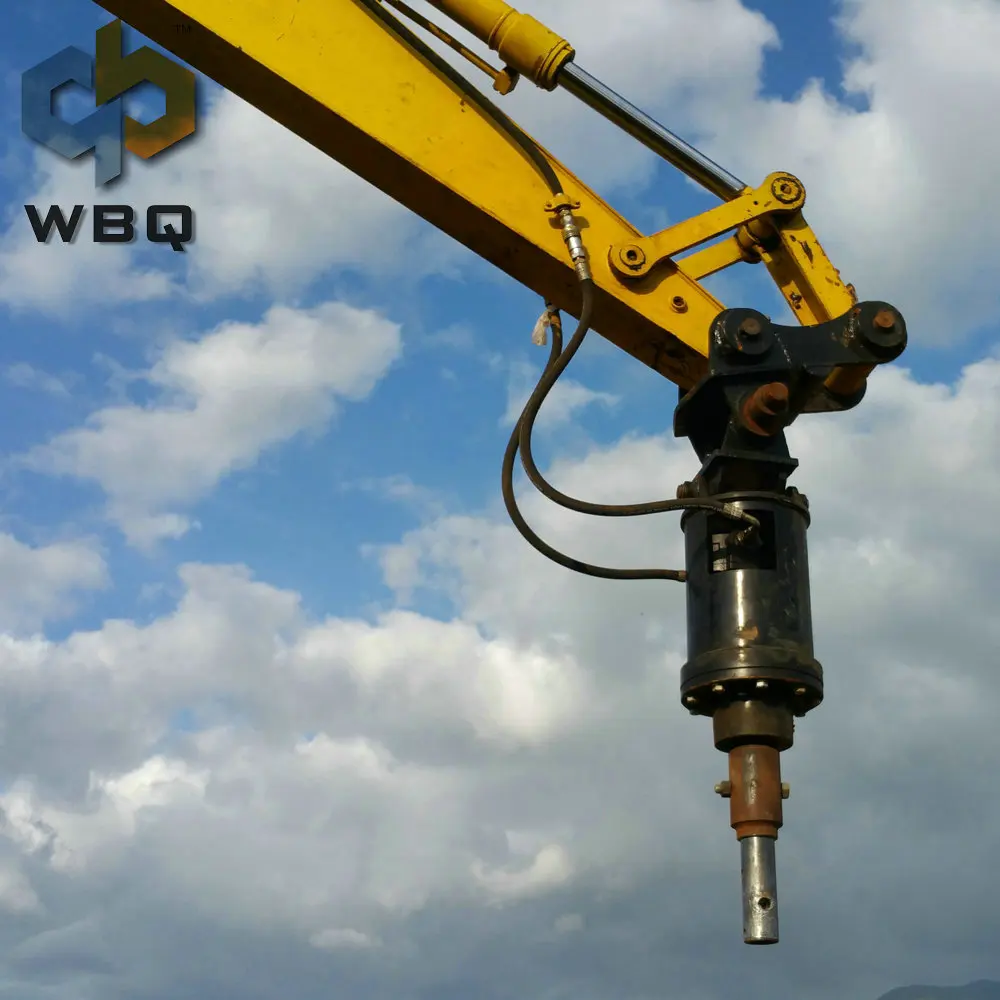

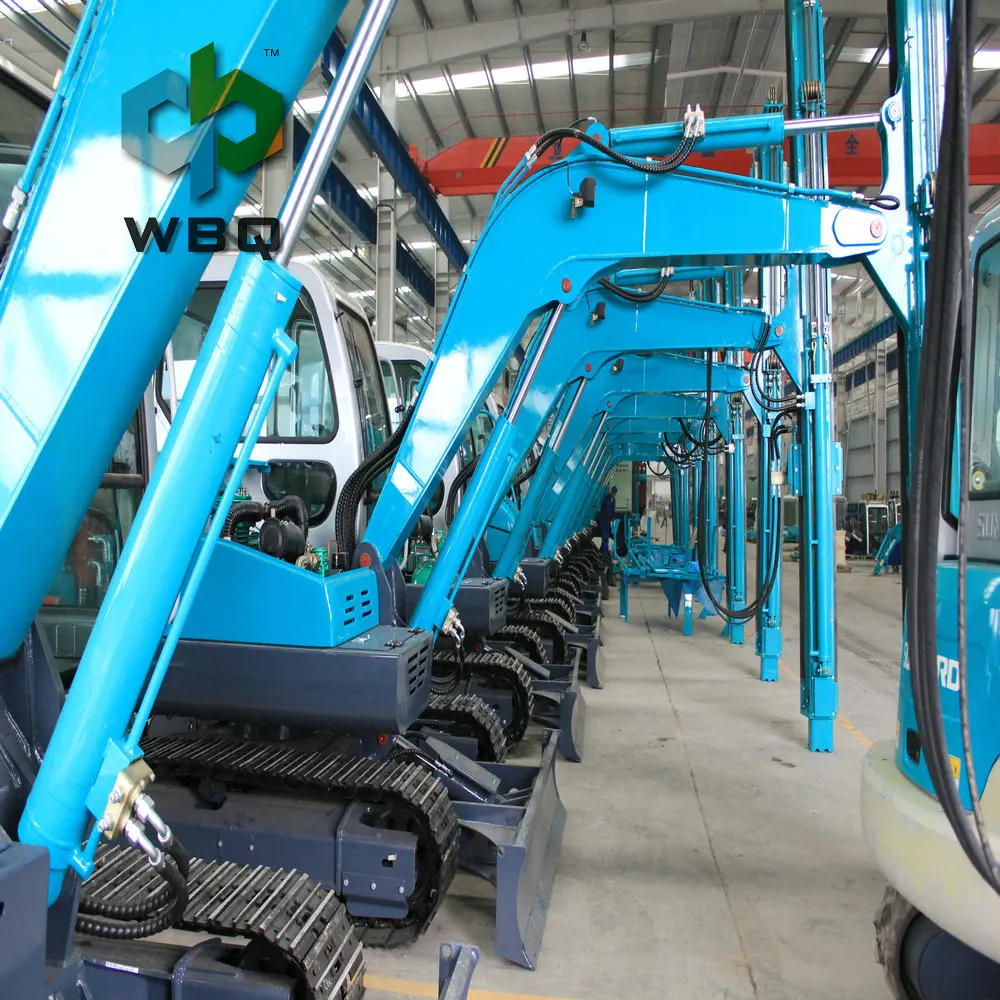

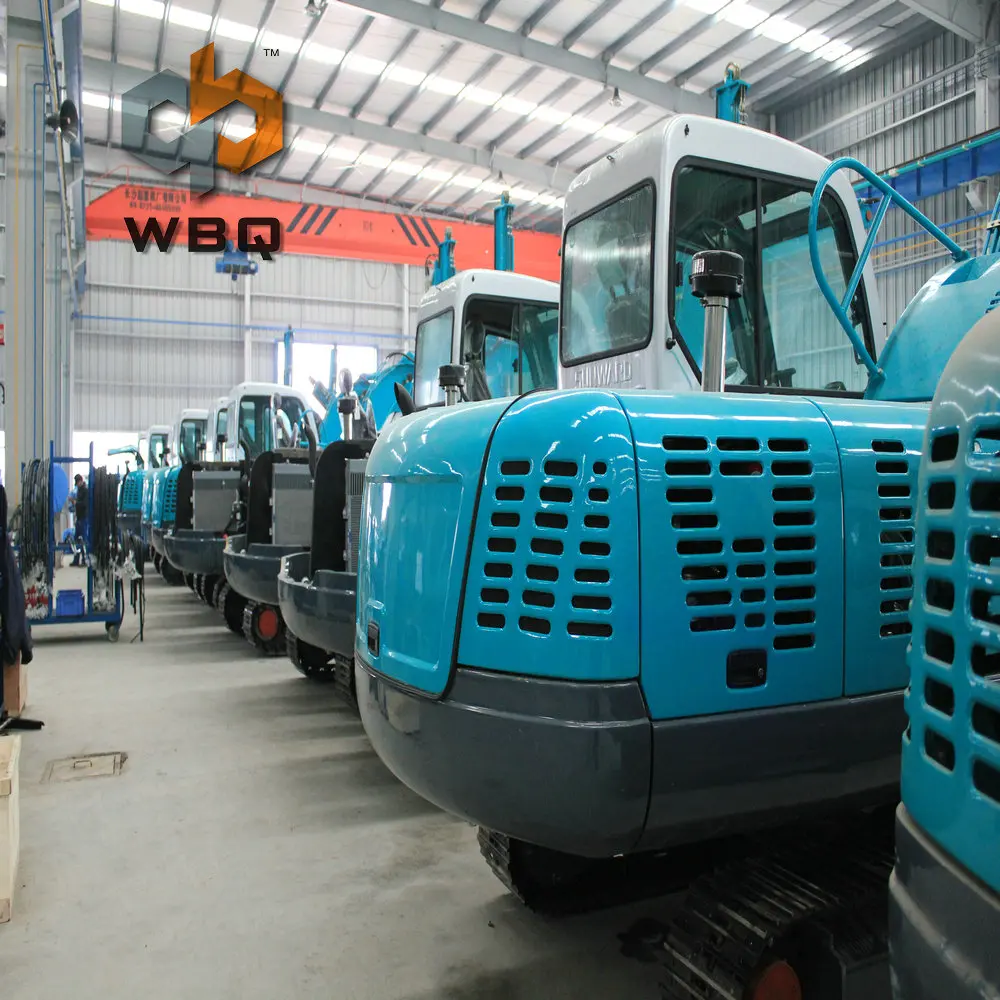

Ground Screw Ramming Piling Machine Driver For Pv Installation

Pile Drilling Parameter

Drilling Diameter

mm

76

Drilling Depth

mm

1800

Chassis

Wheel gauge

mm

1430

Track  gauge

mm

1150

Crawler width

mm

250

Grounding clearance

mm

280

Dozer length

mm

1400

Travel Capacity

Max. Traction

KN

19

 (Max/Min)

Travel speed

Km/h

4.7/2.6

Climbing capacity

°

20

Feed

Length of feeding beam

mm

3400

Stroke

mm

2000

Speed

m/min

2

Rotation

Torque

N.m

1500

Speed

rpm

50

Engine

Model

YANMAR-3TNV82A

Displacement

L

1.331

Power/Rev.

kw/rpm

16/2200

Fuel tank volume

L

42.5

Turntable Swing

°

360

Dimension(L*W*H)

mm

5500X1400X3000

Machine Weight

kg

3000

* High Quality:

As a factory owned ISO 9001 certificate, WBQ can provide high quality steel ground

stakes with critically inspection.

* Major customer:

WBQ is the sole agency of steel ground stakes for two listed company in Japan, and Thailand.

* Prompt shipment:

Stable sales volume guarantee prompt delivery time.

* Superior Service:

WBQ can offer superior service and stable quality control which credit to 20 year's rich export  experience and top quality sales team.

* More Professional:

As the biggest and earliest supplier for steel ground stakes foundation and mounting system,

WBQ has devoted herself to fulfilling comprehensive production line, R&D and QC department guarantee full quality system.
