Plastic pipe coiler soft pipe winder customize winding machine

Product Overview

Description







Application:

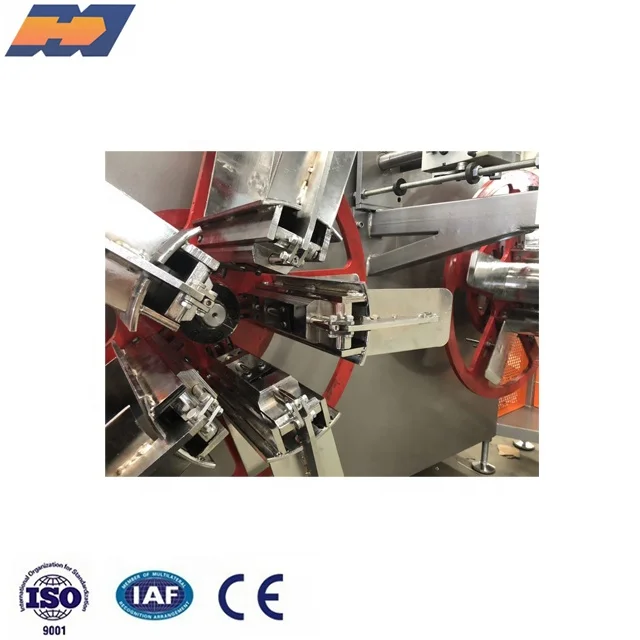

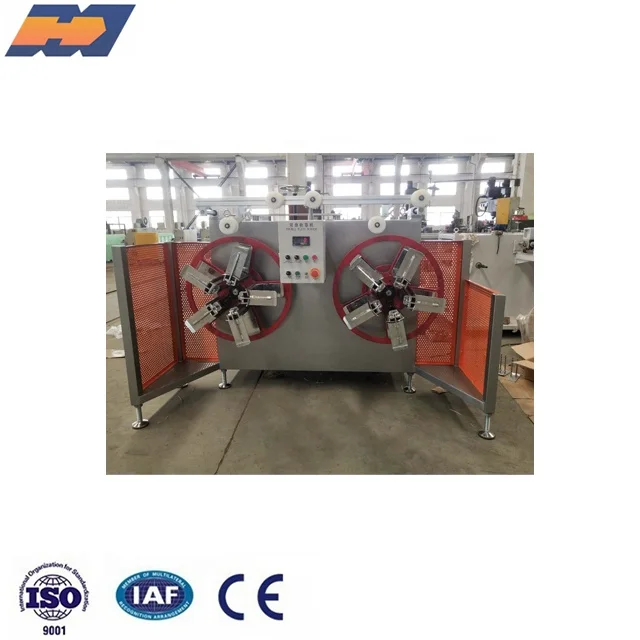

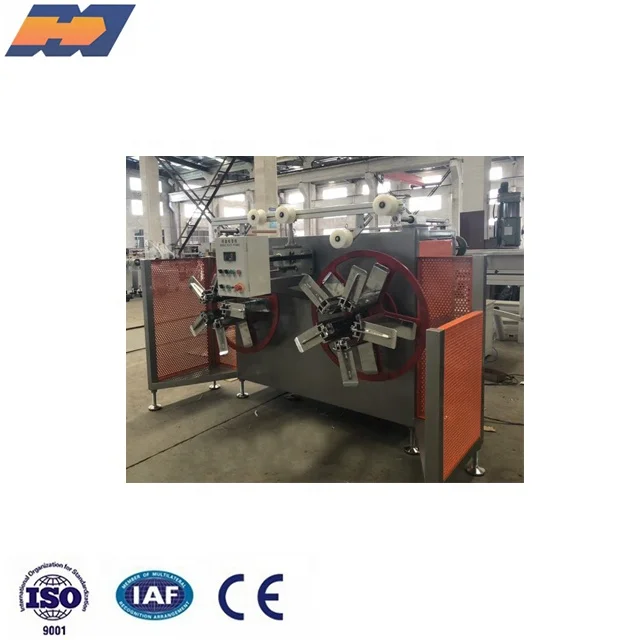

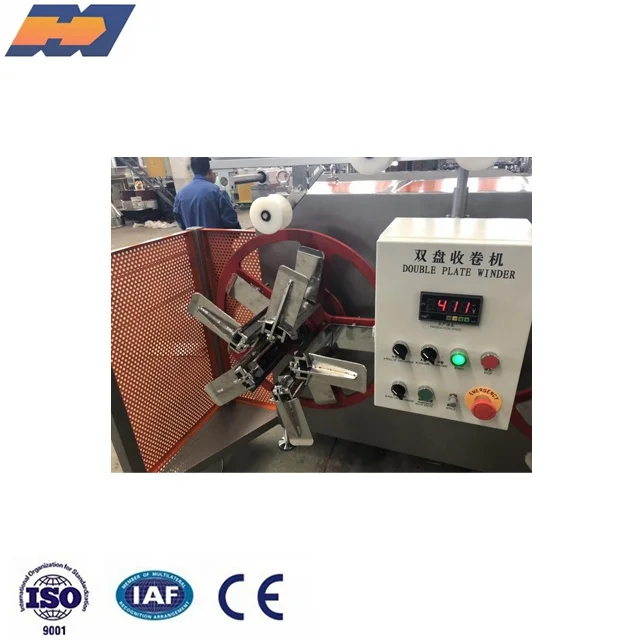

The machine is mainly used in winding-up and packing of aluminium-plastic compound pipe cross-linking compound pipe and other plastic soft pipes. It automatically adjusts winding speed and winding methord. It has two disk for continious winding. It adopts air-operated method. The wheel rib of the winding up wheel adopts air-operated opening and closing. It is equipped with a ray creel stand to automatically wind displacement. It reaches winding up orderly. The machine structure is compact. Its automatication is high. Its appearance is beautiful and its opration is conenient.



Main techinical standards:



model	SPS280	SPS400	SPS700	SPS1250
winding diameter	280mm	400mm	700mm	1250mm
winding speed	0.5-15m/min	0.5-15m/min	0.8-8m/min	0.8-5m/min
winding width	220mm	300mm	400mm	420mm
winded pipe specification	12-16mm	14-32mm	14-63mm	75-125mm
air pressure	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa
appearance size	2100x1000x1400mm	2500x1150x1450mm	4350x2100x2315mm	4500x2250x2300mm
weight	7000kg	1000kg	1500kg	4500kg
