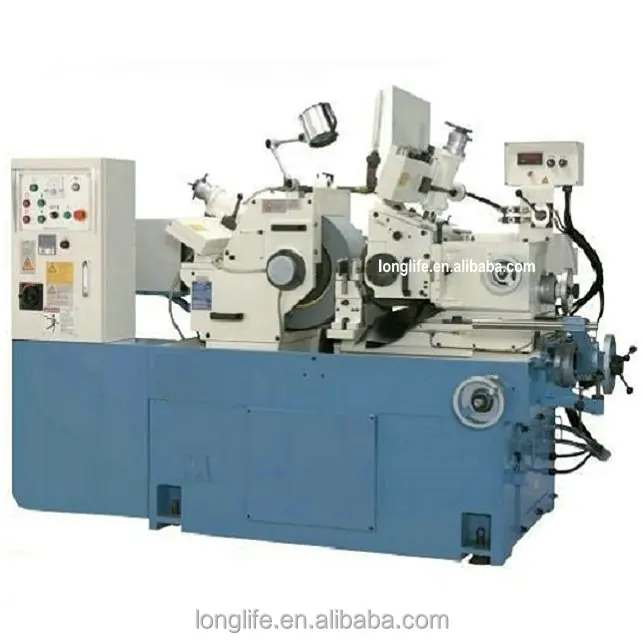

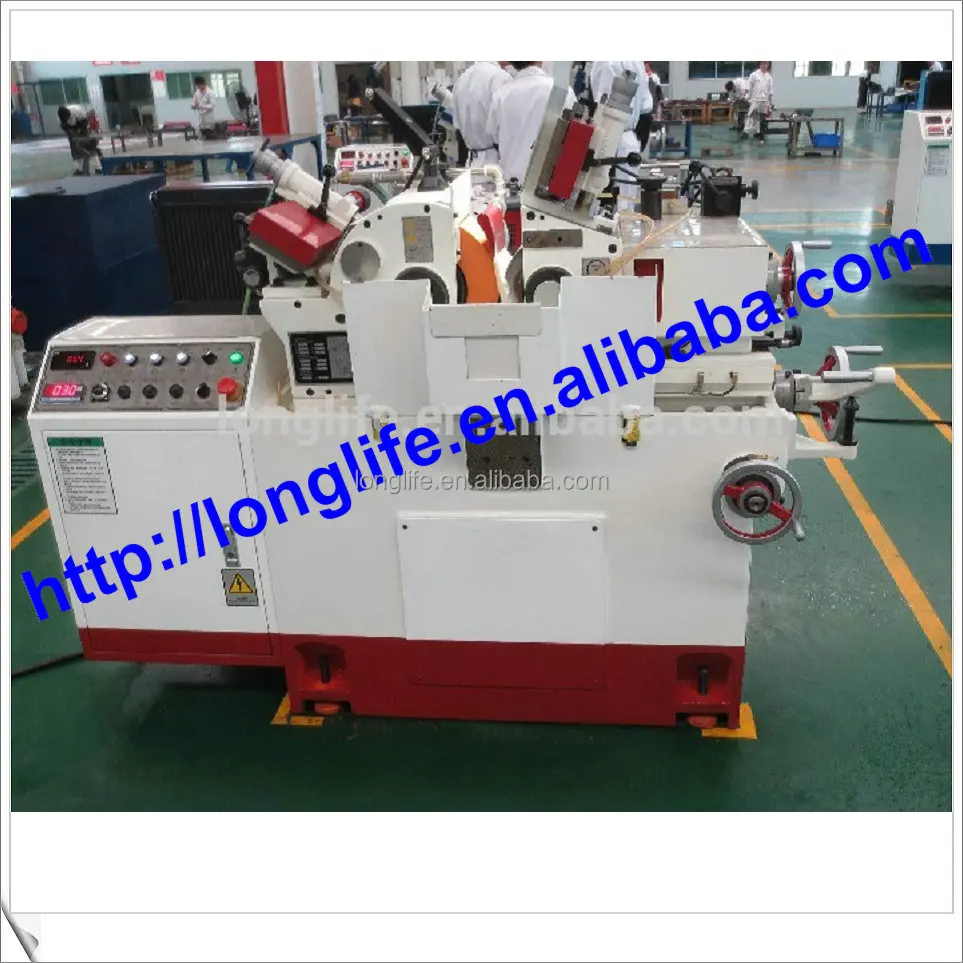

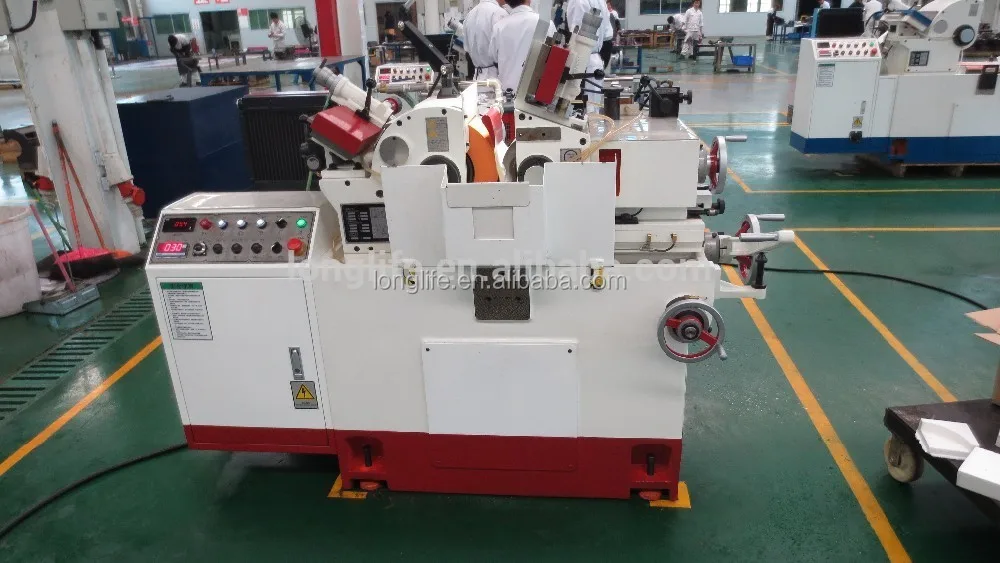

LFM_1810T Centerless grinding machine/centerless grinder machine

Grinding diameter

mm

φ1 ~ 50

Special work rest (dia.)

mm

φ40 ~ 120

Grinding wheel size (dia. x width x hole)

mm

φ455x225xφ228.6

Regulating wheel size (dia. x width x hole)

mm

φ255x225xφ111.2

Grinding wheel speed

rpm

18~1520

Max. wheel surface speed

m/s

35

Regulating wheel speed

rpm

10~300

Regulating wheel tilt angle

°

+6~-5

Regulating wheel swivel angle

°

±6

Drive method

Chain drive + Servo control

Spindle type

Hydrodynamic

Rotative precision

mm

<0.002

Grinding wheel motor

15HP(11kW)AC380V/50HZ

Regulating wheel motor

4HP(3kW)AC380V/50HZ

Hydraulic pump motor

1HP(0.75kW)AC380V/50HZ

Coolant pump motor

1/4HP(180W)AC380V/50HZ

Regulating wheel feed on hand wheel

mm

3.5mm/rotation 0.05mm/graduation

Regulating micro feed on hand wheel

mm

0.1mm/rotation

0.001mm/graduation

Table feed on hand wheel

mm

9mm/rotation

0.10mm/graduation

Table micro feed on hand wheel

mm

0.2mm/rotation 0.001mm/graduation

Dressing hand wheel

mm

2mm/rotation

 0.01mm/graduation

Regulating wheel feed on hand wheel

mm

0.05/scale

Regulating micro feed on hand wheel

mm

0.001/scale

Table feed on hand wheel

mm

0.10/scale

Table micro feed on hand wheel

mm

0.001/scale

Dressing hand wheel

mm

0.01/scale

Floor space  (L x W x H) no more than

mm

2550x2160x1560

Package dimension (L x W x H)

mm

2400x2200x1800

Net weight /Gross weight

kg

3150/3650
