11.6 ' Slim HD screen matte LCD laptop Screen B116XTN02.1
- Category: >>>
- Supplier: Richshine Technology Co. Limited
Share on (60593685556):
Product Overview
Description
Wholesale Original New 11.6 Matt LED LCD Screen Laptop Accessory for B116xtn02.1
Product Description
Description(Specification):
1.AUO B116XTN02.1 Mechanical Features
| Panel Brand : | AUO |
| Panel Model : | B116XTN02.1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 11.6 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 256.125×144 mm |
| Outline : | 278×170.6×3 mm |
| Shape Style : | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 45% |
| Response Time : | 8 (Typ.)(Tr+Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |

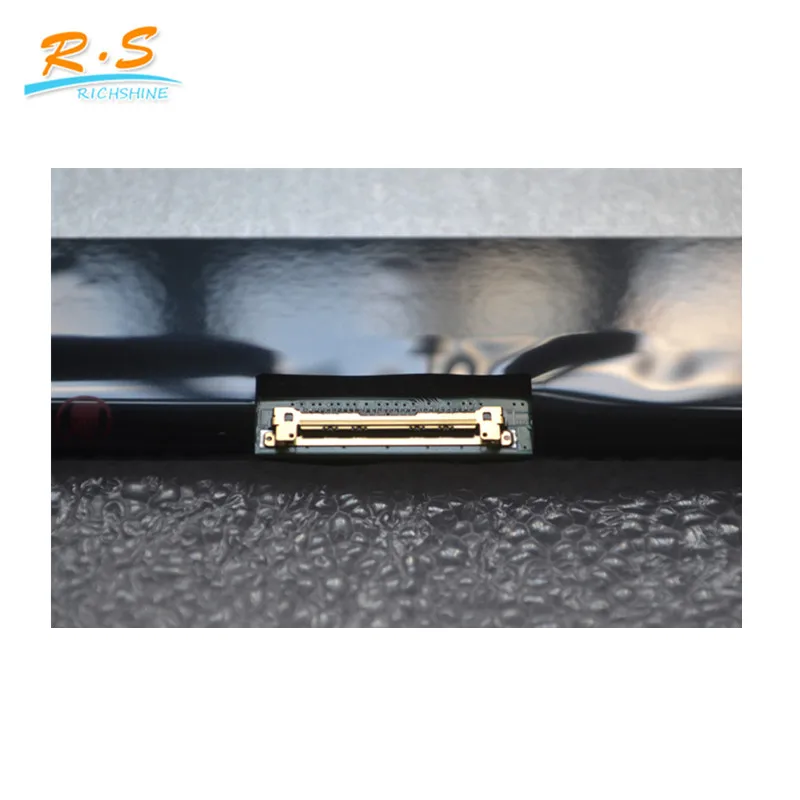

| Signal Interface : | eDP (2 Lanes) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
Product show

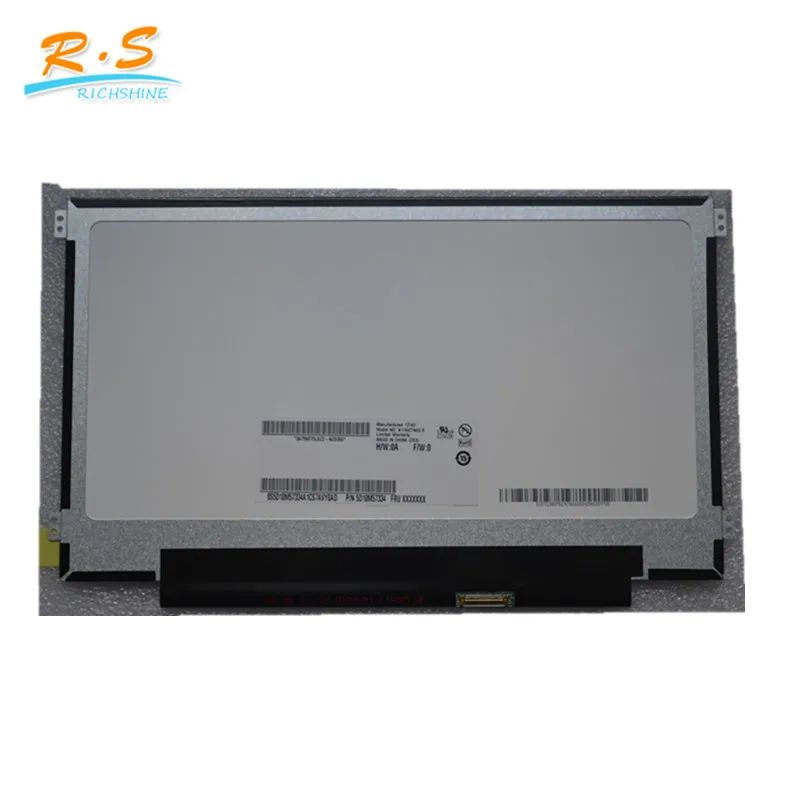

2.Product Show
Packaging & Shipping

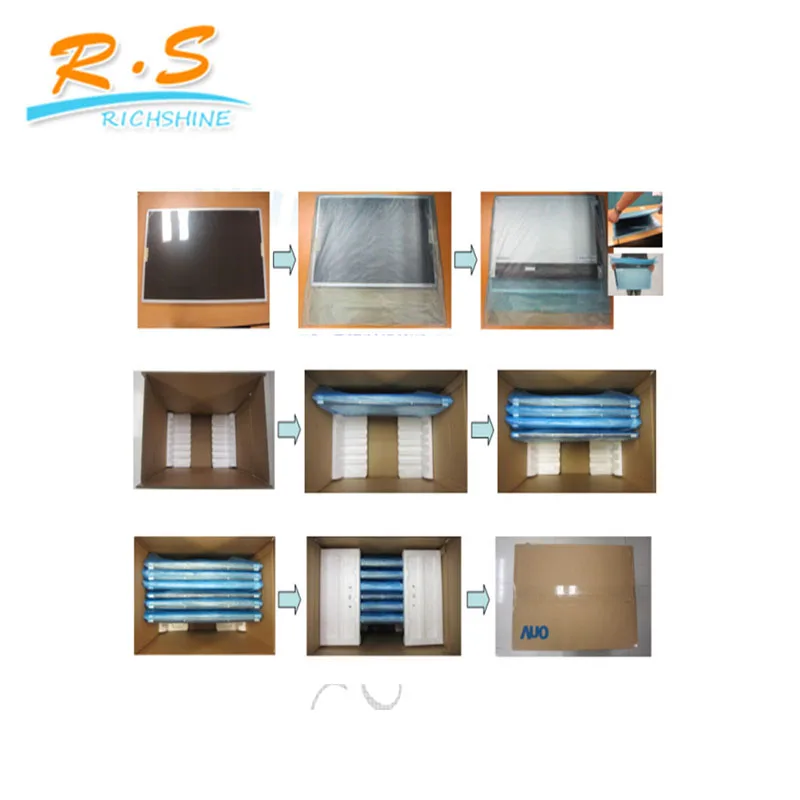

4.Packing & Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Company Information
About Richshine:
ShenZhen Richshine Technology CO.,LTD was established in 2002, Speciliazed earlier in the LCD product development /
production,we holds the operating philosophy of "quality, service, responsibility, innovation".
Our products have passed the certification of ISO9001 Quality Management System, 3C, UL,
CE and ROHS in order to improve quality of our products .
we have a wealth of professional experience and strong research and development, always
walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!
