PET PP strap band tape production line / PET PP packing tape band production line / PET PP packing strap extrusion line

Product Overview

Description

PET PP strap band tape production line / PET PP packing tape band production line / PET PP packing strap extrusion line

Description of PP PET packing strap extrusion line:

This production line can produce different with and thickness of PP PET strap according to client's requirement. This extrusion line is mainly for producing PP PET strap. The raw material can be 100% recycled material, which can reduce the produce cost and get a good profit. And the PP PET belt is the substitution of the steel strap and has lots of advantages such as good extension, high temperature resistance, easy use, etc.

Configutation of PP PET packing belt extrusion line:

1. Dehumidifying and Drying Machine

2. Automatic Feeding Machine

3. Single Screw Extruder

4. Die and Mould

5.Casting Trough

6.The First Seven Roller Preheating Machine

7. Hot Stretch Oven

8. First Tractor

9. The Seven Five Roller Preheating Machine

10. Embossing Machine

11. Tension Heating Setting Device

12. Three Roller Tractor

13. Cooling Water Tank

14. Three Roller Tractor

15. Single Station Coiler

16. Electrical Control Cabinet

Main technical parameters:

Extruder model	SJ-XX single screw extruder
Main motor	30-90kw
Motor drive	AC
Power supply	380V 50HZ or Customized
Strap width	9-25mm
Strap thickness	0.5-1.5mm
Drying volume	100kg/h
Loading power	3kw
Daily output	1000-2000kg
Worker	2-3



Application of PP PET packing belt:

It is mainly suitable for packaging for various trades. The use of the product is convenient and it can adopt common steel fastening for connection. It also is suitable for various kinds of hand-operated of table packing machine and large auto-packaging machine of enterprises.

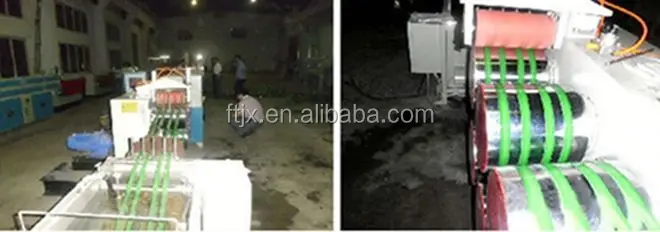

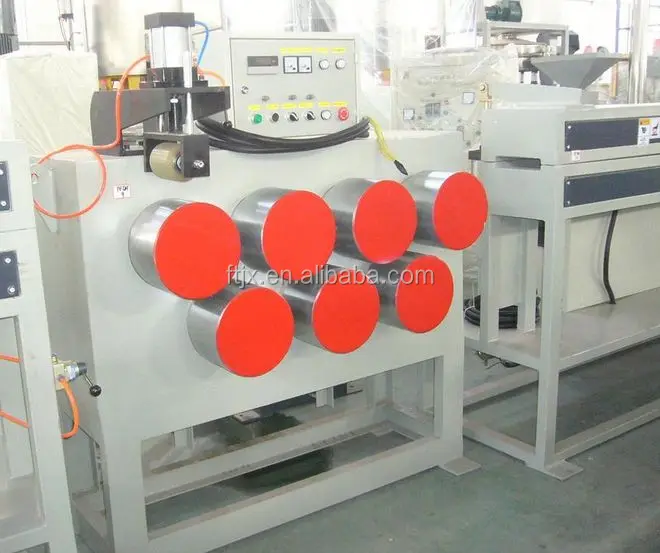

Photos:

PET PP strap band tape production line / PET PP packing tape band production line / PET PP packing strap extrusion line

Certifications:

Our Services:

Turn key project

Technical documents

We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.

Arrangement for inspection, installation and testing work

After being informed machines ready for inspection, customer can send engineers to our factory.

After the machines are delivered to customer’s factory, we will send one or two technicians to the factory after preparation work is completed. Technicians will be responsible for guide on-site installation and testing machines.

Meanwhile technicians will give free training lessons to labors in customer’s factory.

After one year quality guarantee period, we will provide after-sell service for all the life.

Company Information:

Zhangjiagang City Futian Machinery CO.,Ltd. is located in Zhangjiagang city, Jiangsu province, China. It’s a high-tech manufacturer specializing in research&development and producing plastic extrusion equipment. The main products are including: plastic pipe extrusion lines, plastic profile production lines, plastic sheet extrusion lines, WPC board and profile extrusion line, PET bottle flakes washing recycling line, PP/PE film washing recycling line, PVC/PP/ PE pelletizing line and auxiliary machinery(mixer unit, crusher and shredder, belling machine, etc.).

We have enjoyed great prestige from our customers both at home and abroad with good products quality and considerate service.We exported our products to many countries and regions all over the world, such as the Mid-East, Africa, Southeastern Asia, South America and Europe.

We sincerely hope to cooperate with customers from all over the world.

Our company is near shanghai,  about 130km. Welcome you to visit our factory anytime!

Working machine can be showed at any time!
