300w 500w cabinet air conditioner for outdoor telecom cabinet

Product Overview

Description

Range of application of  300w 500w cabinet air conditioner for outdoor telecom cabinet

This series product can be widely use din enclosed area for climate control,such as wireless communication cabinet,battery cabinet,industry contrl cabinet etc.



Here is 300w air conditioner specification sheet

Name	outdoor cabinet air conditioner
Model	A 003/N/E/A
Mounting Method	Semi-embedded mounting
Power supply	230VAC±15%   50HZ/60HZ
Cooling Capacity	300W@L35/L35
Power Consumption	170W@L35/L35
Cooling Capacity	190W@L35/L55
Power Consumption	230W@L35/L55
Internal Airflow	100M³/h
Working temperature range	-40℃~+55℃
Max Noise Level	60db(A)
IP Grade	IP55
Net Weight	14kg
Refrigerant	R134a
Dimensions	550*320*175(mm,H*W*D)
CE&Rohs Compliant	YES
Surface Treatment	outdoor type poweder coating,standard color RAL7035
Heater	500W optional
Hydrogen Function	Optional



PRODUCT FEATURE OF 300w 500w cabinet air conditioner for outdoor telecom cabinet
1 Remote measuring,remote communication,remote control,which can realize multiple automatic protection and comprehensive self-testing function;
2 Strict process control and international brand parts deployed to ensure high quality  and reliable of this product;
3 Unique energy-saving & control technology;
4 Fit for T3 high temperature working condition by using of R134a refrigerant gas;
5 Multiple seIf-protection design & visible monitoring interface,RS422 I RS485
 communication port
6 LED display,all the settings can be changed at the field;
10 The heating function is optional;
11 Dry contact alarm output,NO/NC optional;
12 Anti-theft design,without the protection cover

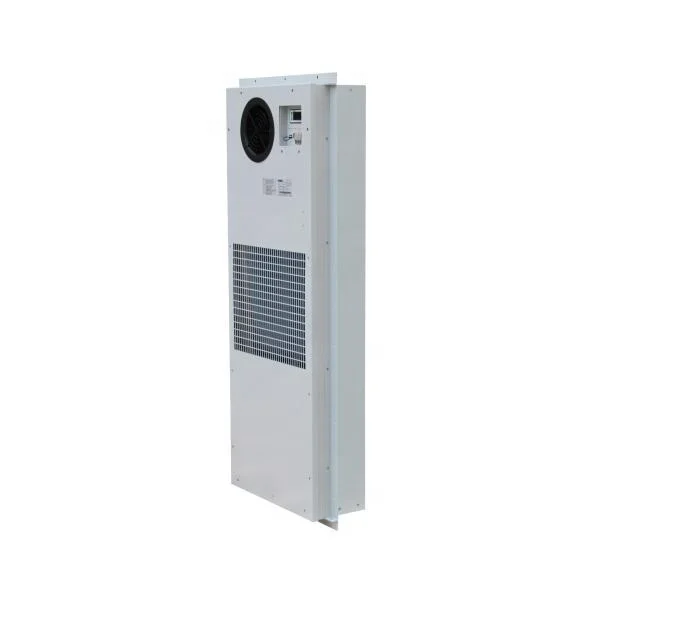

 Photos of 300w 500w cabinet air conditioner for outdoor telecom cabinet

 The front



The back



The usage of 300w 500w cabinet air conditioner for outdoor telecom cabinet





Using environment friendly refrigerant R134A







Cooling capacity :300w ,500w ,800w,1000w,1300w,1500w,2000w,2300w,2500w,3000w available

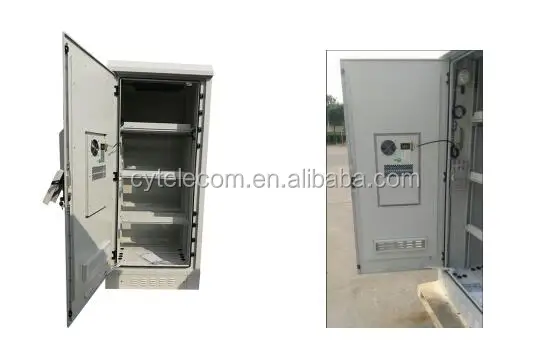

The other pictures of outdoor cabinet air conditioner
