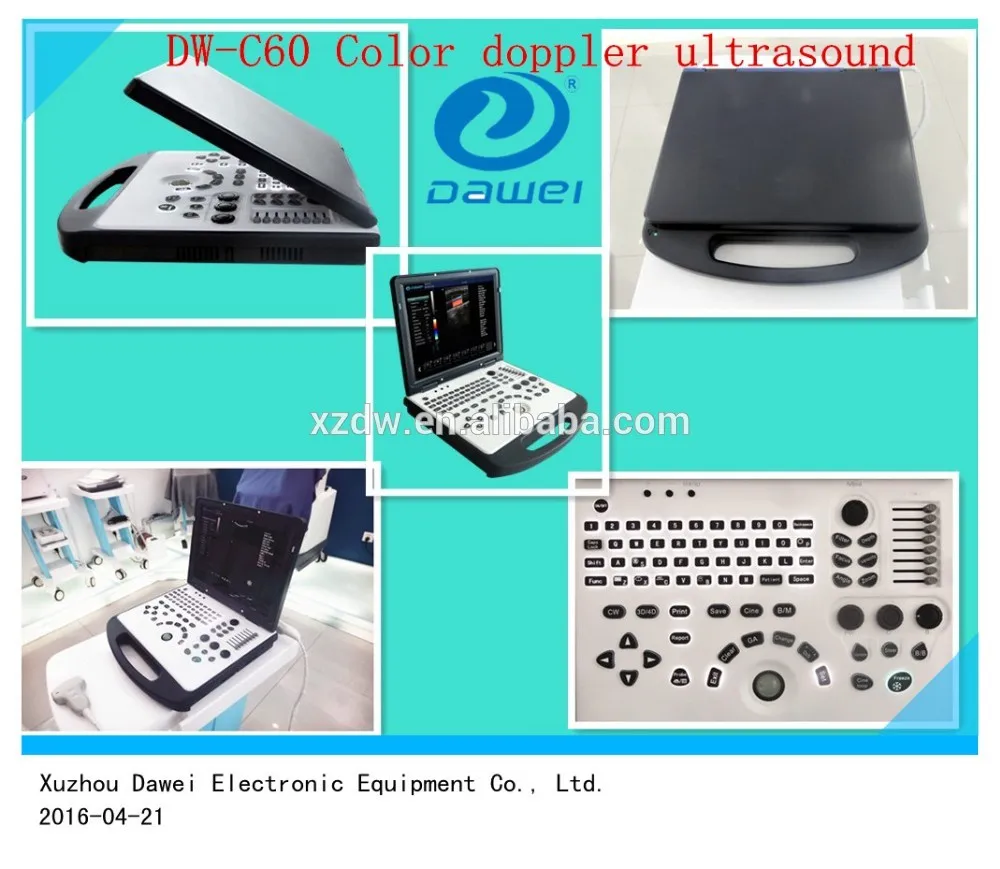

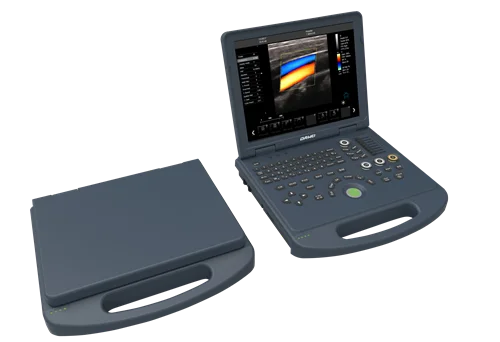

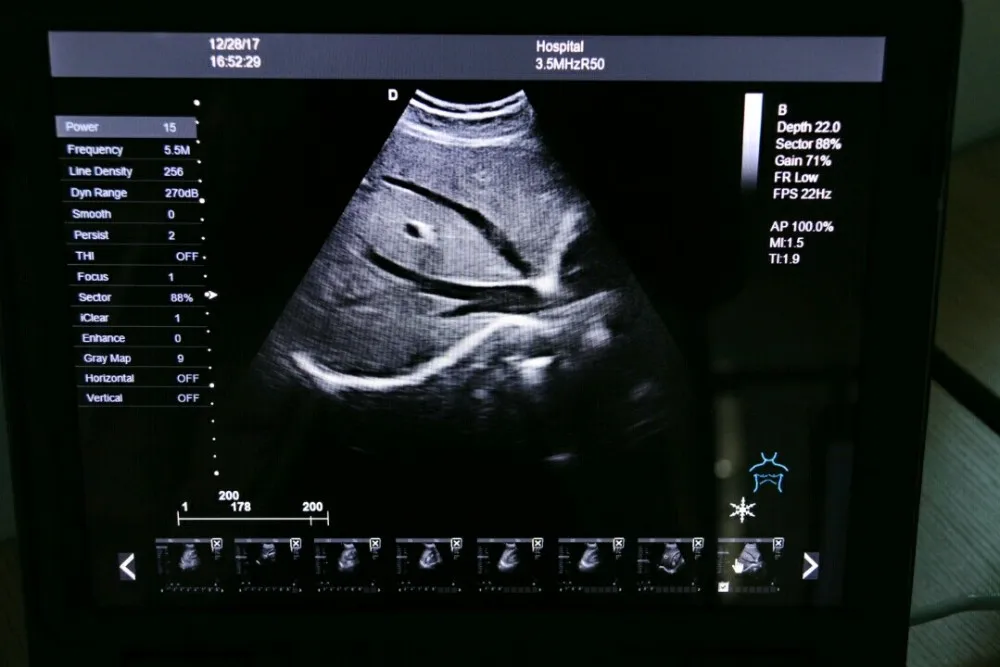

hot selling 2021 style Design latest cardio color doppler & portable doppler ultrasound machine with certificate
- Category: >>>
- Supplier: Dawei Medical (Jiangsu) Co. Ltd.
Share on (60593849971):
Product Overview
Description
Production Information
Efficient and intelligent workflow
Professional high resolution medical grade LED:
much wider visual angle,more perfect match of brightness and contrast,protect your eyes effectively
Probe with auto freeze protection function:
auto freeze, increase of service life
Rapid user-defined settings:
meet doctors' individual needs ,improve the work efficiency
Imaging AutoSnap:
easy to set the individual condition for check
The comprehensive solutions for clinical application
Automatic envelope spectrum calculation
Blood flow peak capture
Trapezoid Imaging
Real-time two synchronous
B/C Double amplitude real-time contrast imaging
Linear array 2d deflection
One Touch Optimize

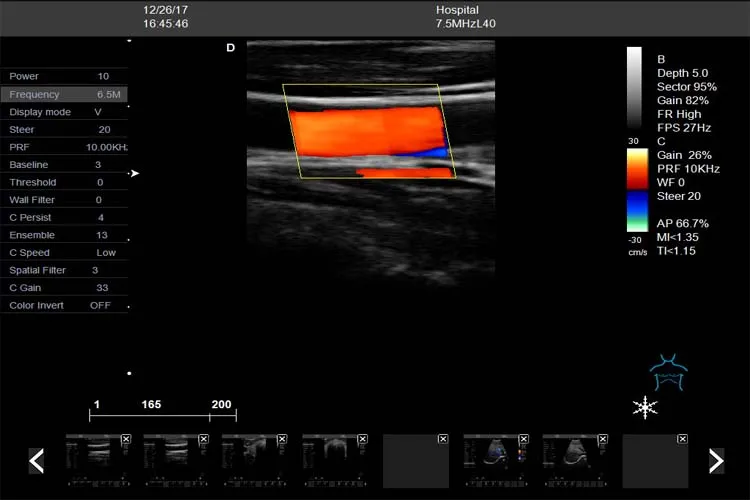

Pulsed wave (PW) Doppler
Doppler frequency
Tissue Harmonic Imaging (THI)
| Item | Specification | |

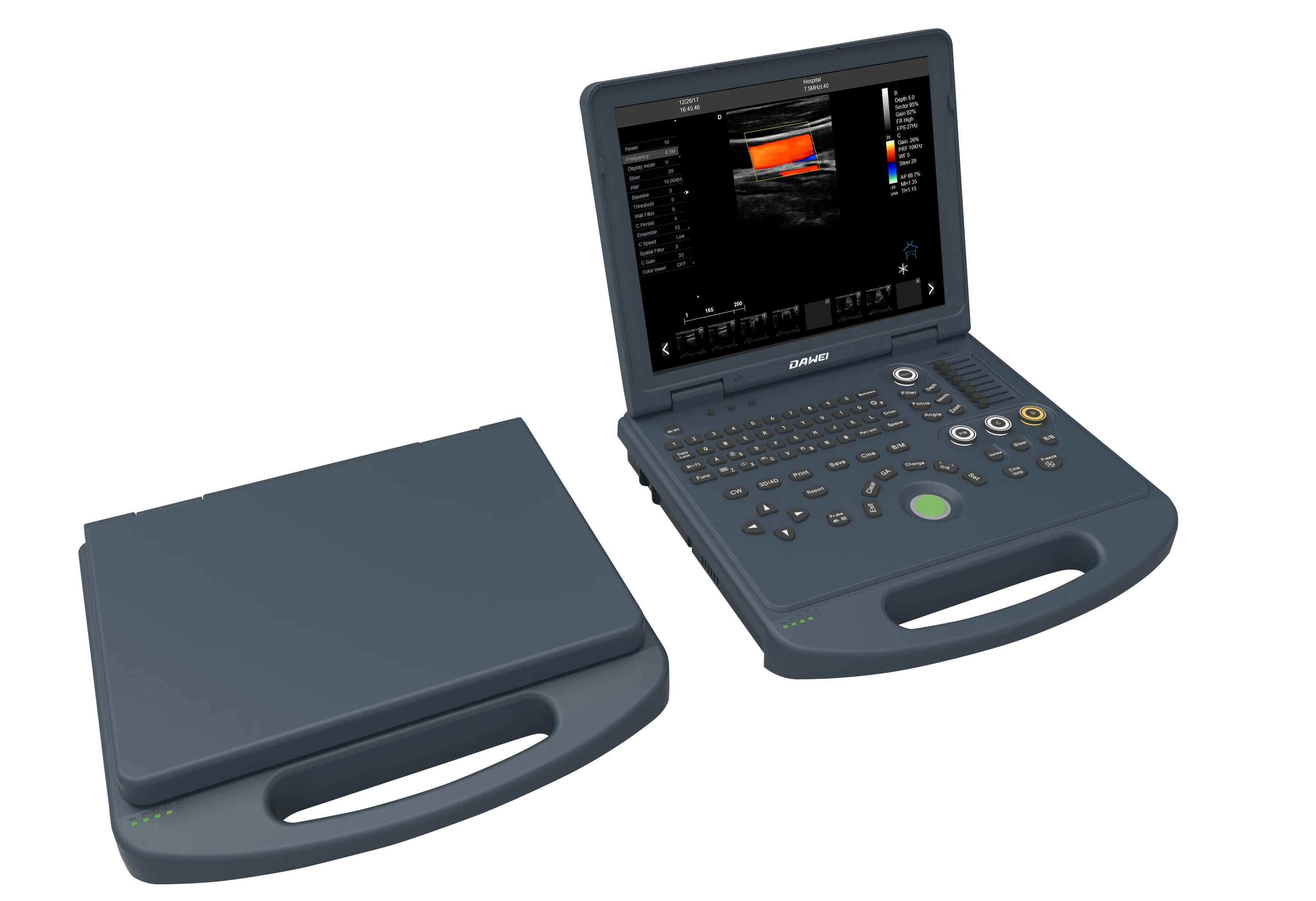

| Model | DWC60 Doppler Medical Ultrasound with transducer & vessel doppler scanner | |
| Display | 15.6 LCD screen | |
| Power supply | 100V- 240V 50Hz/ 60Hz | |
| Scanning mode | Electronic linear, electronic convex, Electronic phased array | |
| Display mode | B mode, M mode, color mode, PW mode | |
| Input/output port | PAL-D, SVGA (SVGA color monitor), USB port, VIDEO |
| Item | Specification |
| Imaging mode | B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, PDI Color, Dual Color Simultaneous 2D/Color Compound PW, Duplex/Triplex CFM, CDE, PD, Directional PD, CD |

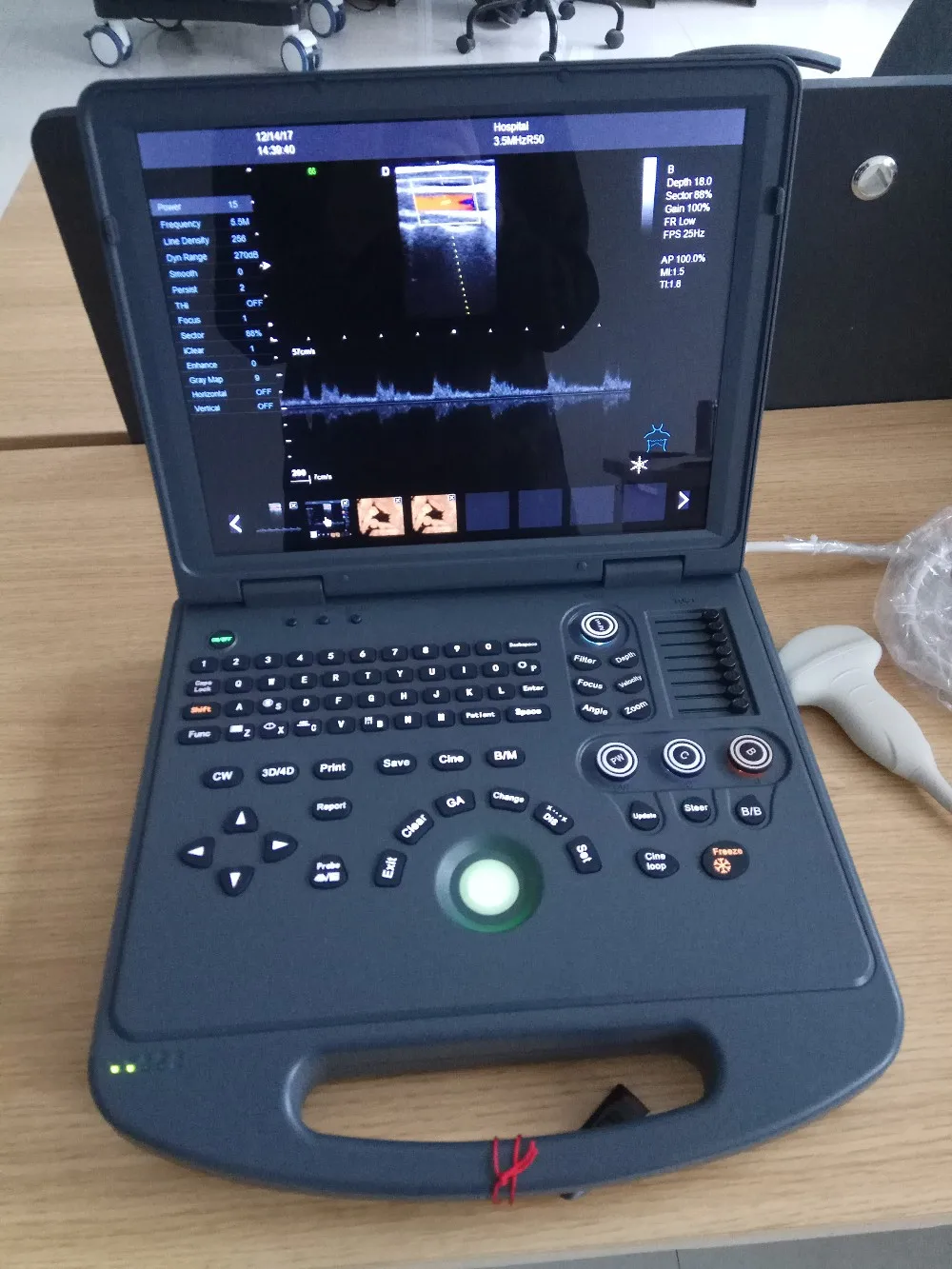

| Operation panel | user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation |
Application | Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal |
| Max Detecting depth | 2-300mm, various as different probes |
Image Storage | Storage Format: PNG, AVI, BMP, JPEG, DICOM Export Video Format: AVI Export Image Format: PNG, JPEG, BMP, DICOM USB Flash Drive |
| Technology | Panoramic Imaging Tech All-digital signal processing Tech Multibeam formation Tech Speckle Reduction Tech Tissue Harmonic Imaging Tech Dynamic Tissue Optimization Tech Duplex & Triplex Synchronous Display Directional Power Doppler Imaging Parameters Preset |
| Dynamic range | 0-160db |
| Analysis Packages | Basic / Obstetrics/ Gynecology/ Urology/ Andrology/ Cardiac/ Peripheral Vascular /Venous /Small Parts/ Orthopedic |
| Basic Measurement | B-mode basic measurement:Distance, Angle, Perimeter and Area (ellipse or track-based method), Volume, Histogram, Sectional Map M-mode basic measurement:Heart Rate, Time, Distance, Speed |
| Note | date, time, name, sex, age, doctor, hospital, comment, language conversion. |
Connectivity /Media /Peripherals | Transducer Ports: 1 USB Ports: 2 Hard Disc: 60GB (SSD) 120G/256GB SSD (Optional) Footswitch: USB Ethernet Port: 2(100Mb/1000Mb) External Display: VGA HDMI USB Printer (optional) Digital Laser Printer (optional) Digital B/W Thermal Printer (optional) |
Standard Configuration | Main Unit 15.6 inch LED color display Battery (3 hours working time) Full digital system 3.5MHz Multi-frequency convex probe Aluminum plastic multi-layer package |
Optional Configuration | 6.5MHz High frequency Trans-vaginal probe 7.5MHz High frequency Liner probe phased array probe 7.5MHZ rectal probe Printer Trolley |
