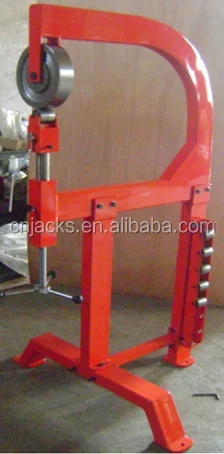

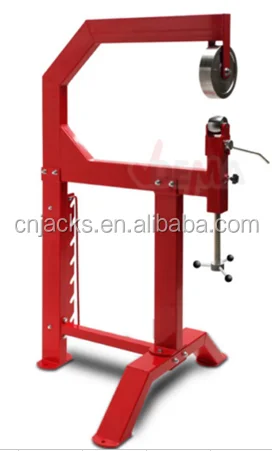

ENGLISH WHEEL 27"

The English wheel, in Britain also known as a wheeling machine, is a metalworking tool that enables a craftsperson to form compound (double curvature) curves from flat sheets of metal such as aluminium or steel.
The process of using an English wheel is known as wheeling.It has the key advantage that it can flexibly produce different panels using the same machine. It is a forming machine that works by surface stretching and is related in action to panel beating processes.

It is used wherever low volumes of compound curved panels are required; typically in coachbuilding, car restoration, space frame chassis racing cars that meet regulations that require sheet metal panels resembling mass production vehicles,car prototypes and aircraft skin components. English wheel production is at its highest in low-volume sports car production, particularly when more easily formed aluminium alloy is used.

Model Nr.	Work Piece Thickness	Throat Width	Rolling Wheel(upper wheel)	Anvil Wheels (lower wheels)
EW075.508	0.75mm	508mm		3pcs(dia.1", 2", 3") anvil to hammer opening 4"
EW080.360	0.80mm	360mm	dia.6" x w. 1"	5pcs (dia.1/2", 1-1/2", 2-1/2", 5", 9" x w.1")
EW120.510	1.20mm	510mm	dia.8" x w. 2"	6pcs (dia. 2", 3", 4", 6", 8", 12" x w. 2")
EW120.560	1.20mm	560mm	dia.8" x w. 2"	6pcs (dia. 2", 3", 4", 6", 8", 12" x w. 2")
EW120.766	1.20mm	766mm	dia.8" x w. 2"	6pcs (dia. 2", 3", 4", 6", 8", 12" x w. 2")
EW120.1000	1.20mm	1000mm	dia.8" x w. 2"	6pcs (dia. 2", 3", 4", 6", 8", 12" x w. 2")
EW150.610	1.50mm	610mm	dia.8" x w. 2"	6pcs (dia.2",3”, 4” ,6”,8”, 12” x w.2")
EW150.686	1.50mm	686mm	dia.8" x  w.2"	6pcs (dia.2",3”, 4” ,6”,8”, 12” x w.2")
EW150.686L	1.50mm	686mm	dia.8" x w. 2"	6pcs (dia.2",3”, 4” ,6”,8”, 12” x w.2")
EW150.686M	1.50mm	686mm	dia.8" x w. 2"	6pcs (dia.2",3”, 4” ,6”,8”, 12” x w.2")
EW150.686Z	1.50mm	686mm	dia.8" x w. 2"	6pcs (dia.2",3”, 4” ,6”,8”, 12” x w.2")
EW150.762	1.50mm	762mm	dia.8"  x w.2"	6pcs (dia.2",3”, 4” ,6”,8”, 12”  x w.2")
EW150.915	1.50mm	915mm	dia.8" x w. 2"	6pcs (dia.2",3”, 4” ,6”,8”, 12” x w.2")

Main Features

1) Heavy duty english wheel is used for arc surface processing of sheet metals without heating and hammering.

2) It can produce different arcs and curved surfaces according to the various forming wheels.

3) Includes heavy duty steel stand with mounting holes and bottom anvils storage for easy and comfortable operation.

4)  Rigid steel welded C frame; Both Top & Bottom anvils are harden-processed

5) Quick lever mechanism

Processing Pics

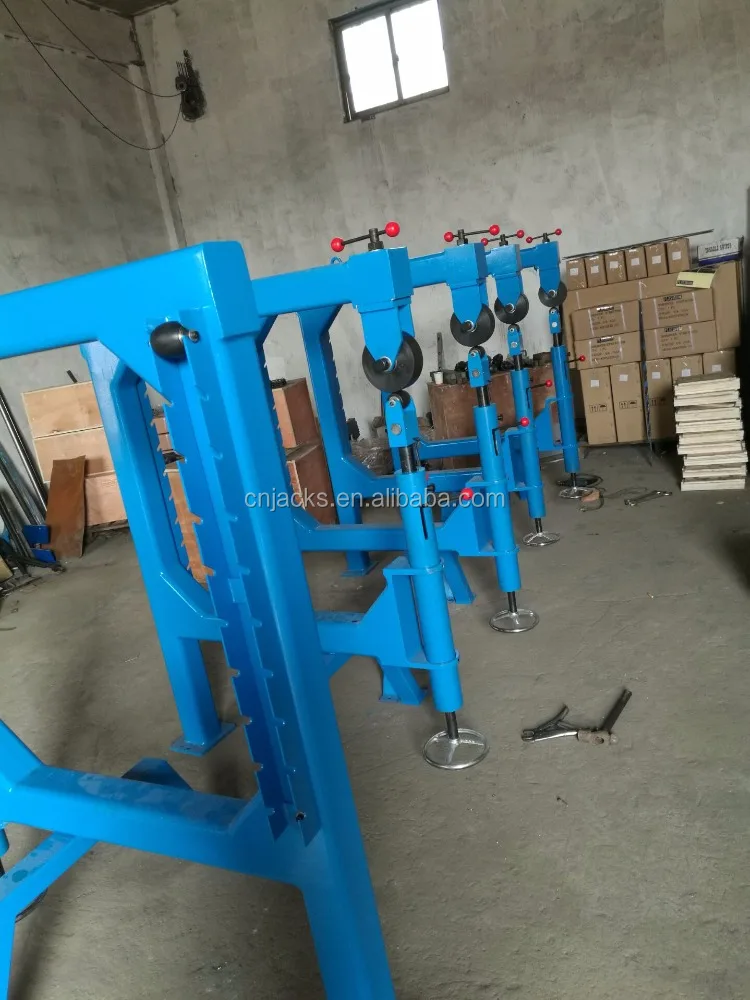

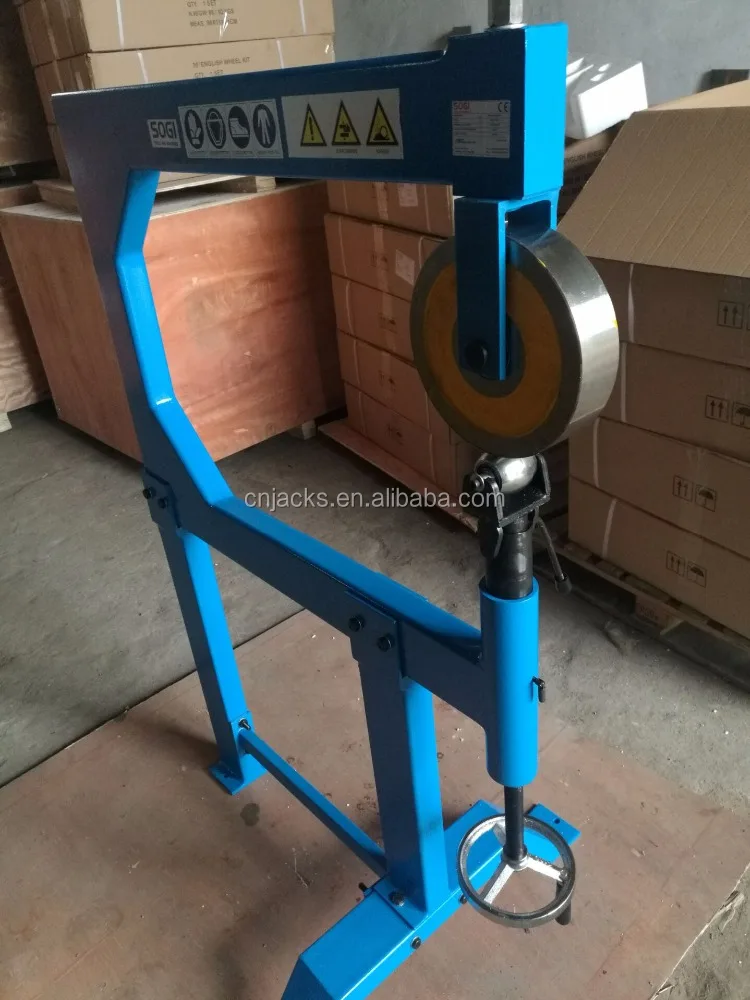

Detailed Images

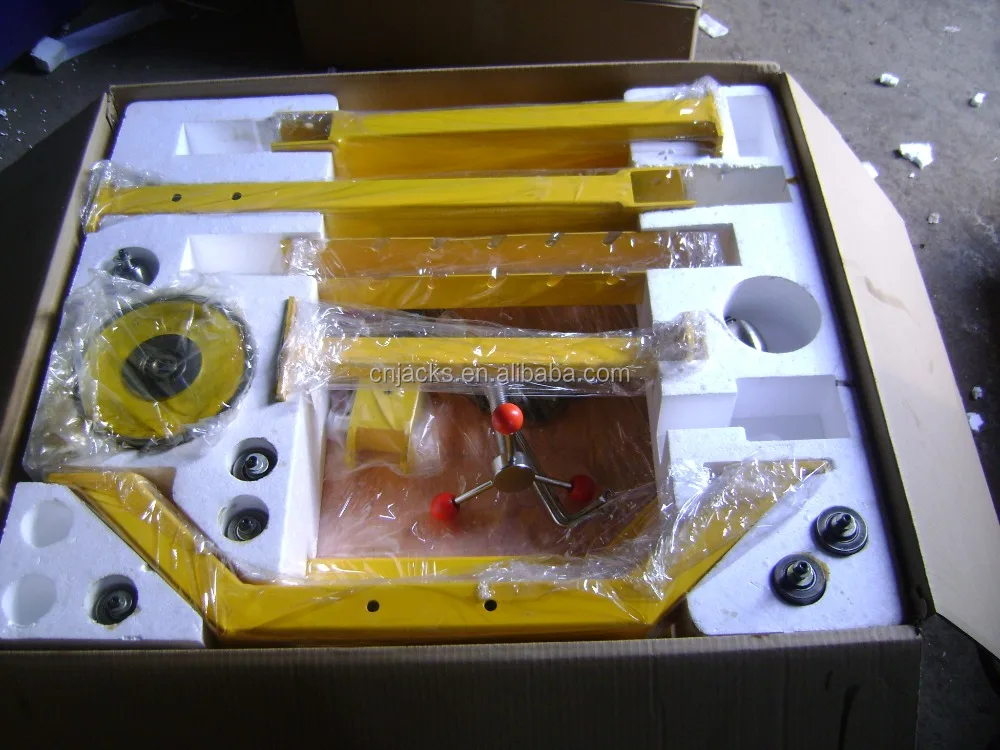

Packing & Delivery

Packaging
Size	130x130x50cm
Weight	360kgs
Packaging Details	The normal package is CTN or  wooden box(Size:130x130x50cm). If export to european countries,the wooden box will be fumigated.We could  pack it according to customers special request.
