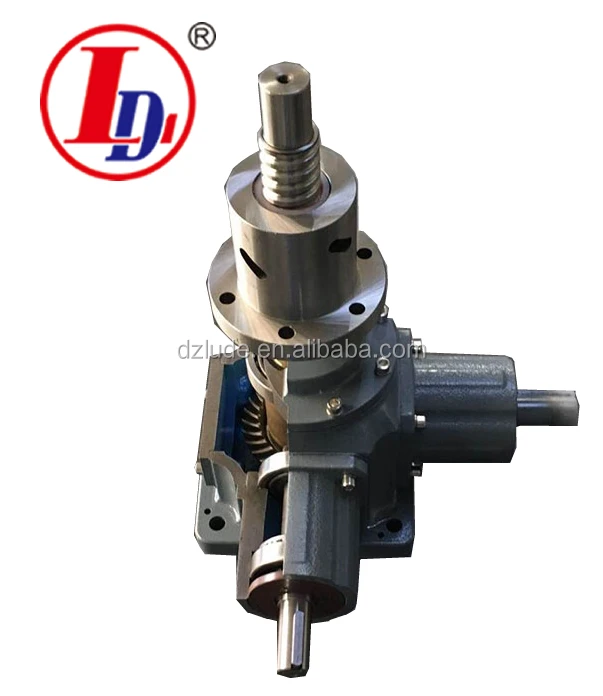

All kinds of types of screw jack bevel gear screw jack
Product Description

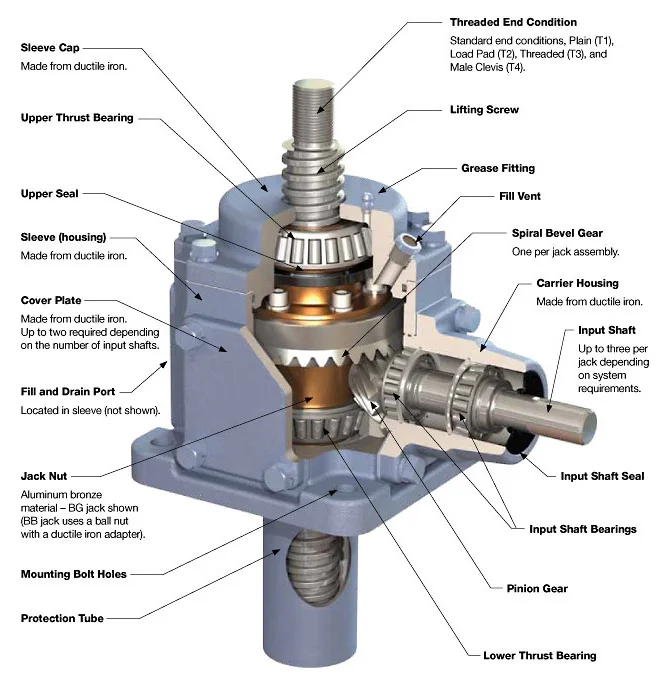

Picture & Function
Bevel gear jack systems don’t come with standardized travel lengths, so each one can be built to specification. Bevel screw jacks come available in machine and ball screw models. Machine screw jacks use a trapezoidal acme screw that offers a low backlash between the nut and screw. Ball screw jacks use hardened bearing balls that allow for smooth and efficient movement of the load. Bevel gear jacks have the capability to run continuously at 100-percent efficiency without overheating. Because of the greater efficiency and rolling action, the ball screw can operate at higher speeds or increased duty cycle when compared with the machine screw jack.
Advantages:
Higher efficiency and greater speed. As an added benefit, bevel gear jacks also act as miter boxes, making them an ideal choice for multi-jack systems.
Application Industry:
Screw jak is applied to all fields for lifting or pulling, such as
Aircraft maintenance platform, Solar plate, machinery, metallurgy,
water conservancy, medical treatment, chemical industry, culture and
hygienist etc.
How to choose a suitable model?
Some parameters need to know when choose a screw jack, pls answer us the below for us to suggest you the best screw jacks.
Q1: The lift capacity ? (it means how many Kilos or KN the screw jack need to lift? Such as 5Kn)
The screw’s travel stroke length? (it means the screw’s travel distance, such as 400mm)
The ratio? (it means how long time the screw takes to finish the travel stroke length? such as use10 seconds to finish a 400mm stroke)
Answer: I need lift Kn (Kg) weight, stroke length is mm, I want to use seconds to finish the stroke length.
SWL series screw jack parameters as below:
Q2: Which of the screw top you need? Answer: I need screw top.

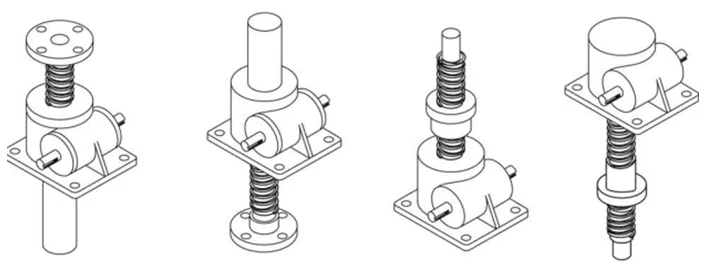

Q3: Lift or pull? Answer: I need (A B C D)

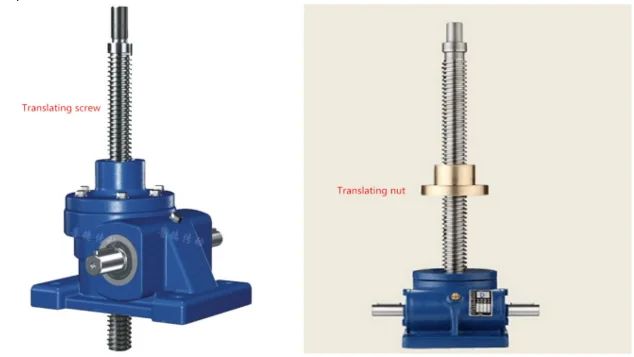

Q4: Translating screw movement or nut movement? Nut movement has a higher precision and can save space. Answer: I need translating movement.
Q5: Manual or electric motor? Answer: I need type.
Q6: If you need 2 sets or more than 2 sets to combine, pls choose the linkage scheme, see the below.
After we got your answer, we will make an CAD drawing for you to confirm, so just feel free to contact us if you have such need.
Screw jacks classifications:
There are SWL,SJA and SJB series screw jack, SWL is the most common type used, SJA and SJB has a compact, small size, mainly used in the small space place, and ball screw movement has a much higher precision than trapezoidal screw movement. More importantly, we can give you the best suggestion after got your answers of the above questions.
Screw Jacks Application:
1.Abstract

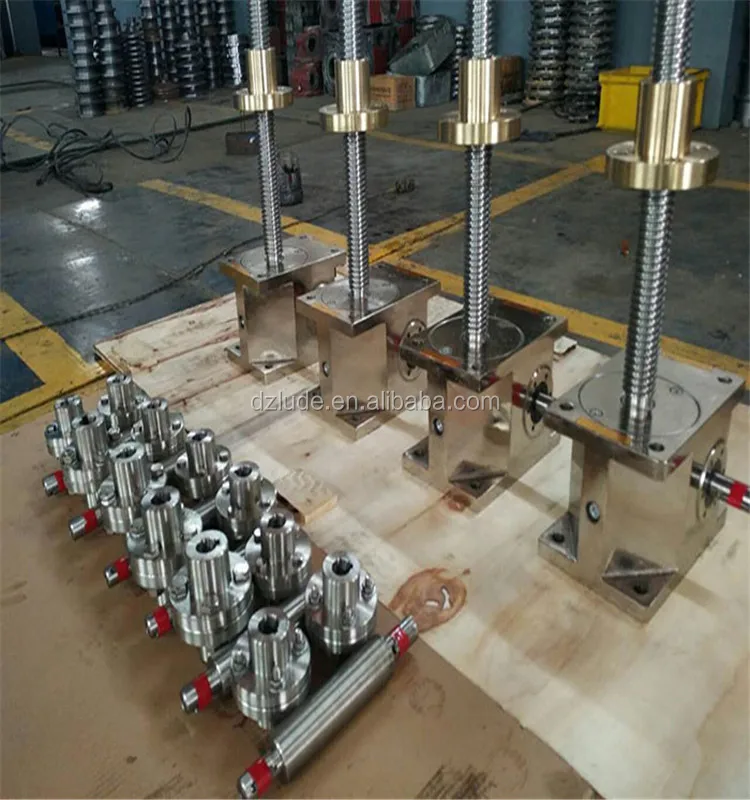

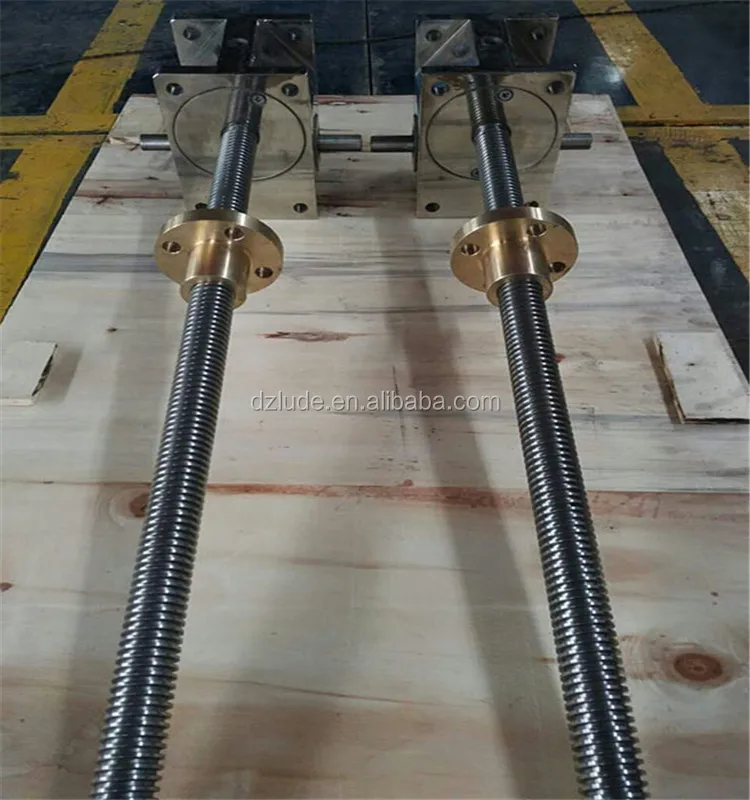

2. Real figure of our case
Packaging & Shipping
1. Payment:
We accept T/T, the Credit Card, E-checking, L/C, Alibaba Trade Assurance (this service can guarantee the clients' benefit to utmost) etc.
2. Package:
1. Common package: PE bags with bubble, carton box then bubble, the outmost is plywood box, safe package.
2. Or according to clients' requirements.
3. Shipping:
1. Sea transportation: shipping FCL or shipping LCL, this is the most common way
2. Land transportation: this is suitable for the inland countries
3. Air transportation:this is used in the very urgent order
4. Express: DHL,TNT,UPS,Fedex etc., this is always used for the trial order and also be very urgent order.
Company Information
Dezhou Lude Transmission Equipment Co.,Ltd is concentrated was in transmission industry since 2001, there are more than 350 employee in our factory, among them there are 35 technology research and development staff and 30 quality inspection personnel and 20 after sale service staff. 60% of the staff have college degree or above. Our company enjoys high-end CNC machining, quality inspection machines, technology research machines for many, see the picture following.
Our Service:
1.Low MOQ : It can meet your promotional business very well.
2.OEM&ODM : Accepted.
3.Prompt Feedback : We reply every clients within 2 hours.
4.Accurate delivery : We ship on time or in advance 100%.
5.After Sales Services : We continue to serve you after sales and will be responsible for quality problem.

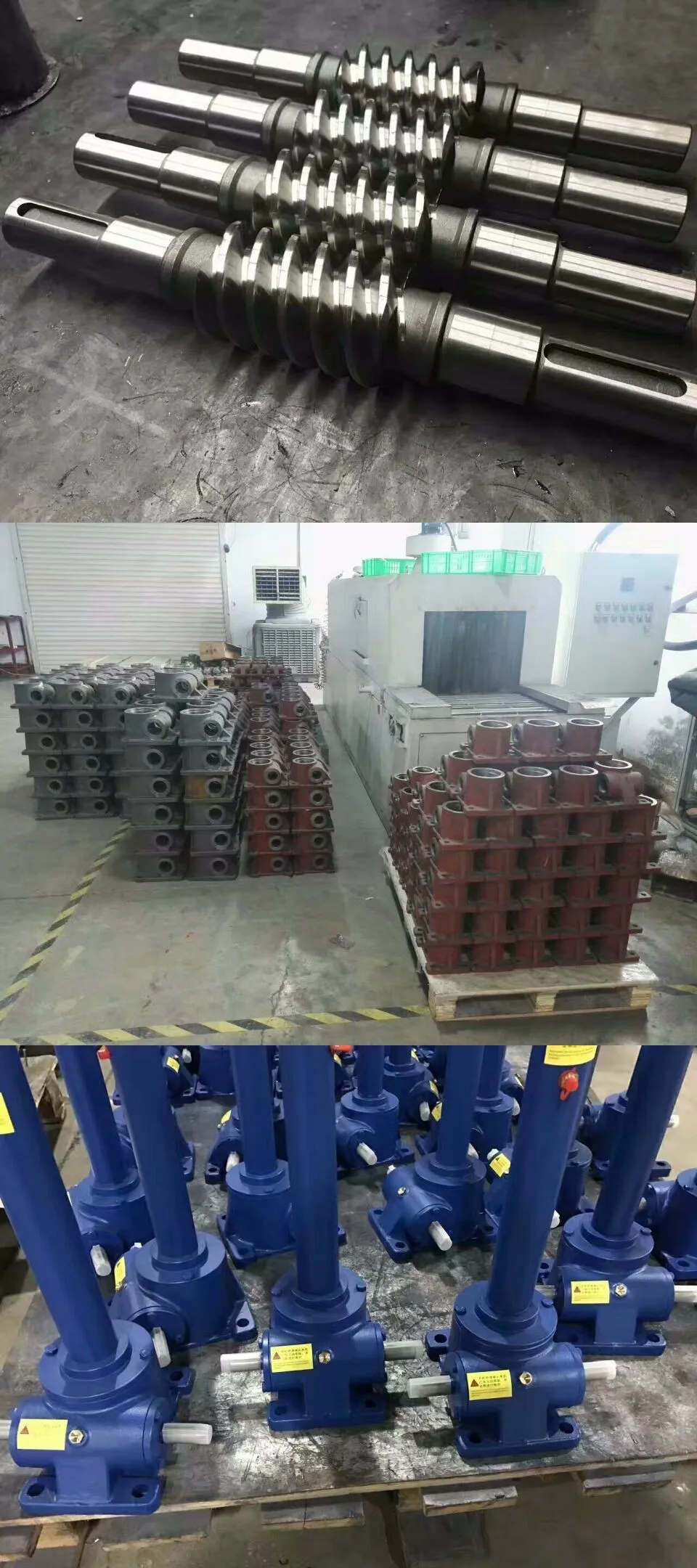

Production:
