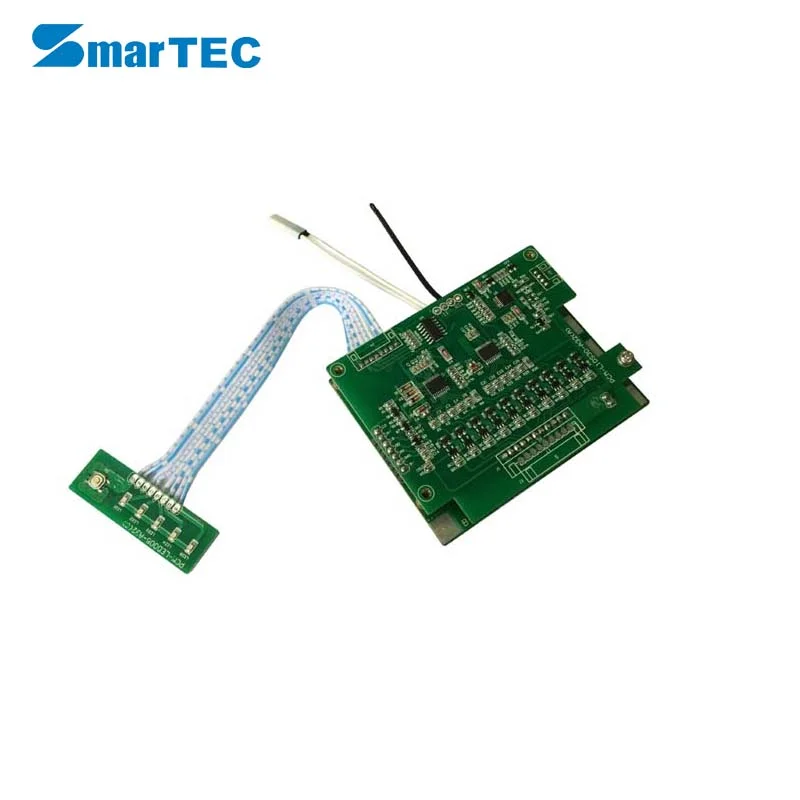

Smarttec Li Ion Ebike Battery PCM With I2C And HDQ smart bms 10s 36v PCM L10S30 A32
- Category: >>>
- Supplier: Shenzhen Smartec Technology Co. Ltd.
Share on (60594130049):
Product Overview
Description
Smarttec Li-Ion Ebike Battery PCM With I2C And HDQ smart bms 10s 36v PCM-L10S30-A32
1.Apply for 37V 10 Cells Li-Ion Battery Pack with discharging current 30A, Max charging current 30A
2.SOC,voltage,current,capacity,remaining capacity,temperature,cycle times of battery pack
3.To prevent the 37V battery packs from overcharge,overdischarge,over current, over temperature ,short circuit;
4..Compatible with all the Li-ion /Li-Po cells.
| Protection Circuit Module Specifications For 37V Li-ion/Li-Po Battery Pack | ||||
| Model: PCM-L10S30-A32(LI-10S) IC:MM3474G02VBE-TCT1S+BQ34Z100 | ||||
No. | Test item Test at normal temperature 25±2℃ and relative humidity≤90%) | Criterion | ||
1 | Model | PCM-L10S30-A32 | HDQ or I2C | |
2 | Capacity | Designing battery capacity(PCM 18650-22P 10S4P) | 9000mAh | |
| Designing battery capacity(PCM 18650-22P-1054P) | 16000mAh | |||
| Max capacity(Battery pack) | 320000mAh | |||
| Min capacity(Battery pack) | 800mAh | |||
| External capacity Indication | ||||
| Gas gauge algorithm | Impedance Track | |||
3 | Voltage | Charging voltage | DC: 42V CC/CV(4.2V/1cell) | |
| Balance voltage for single cell | 4.2V±0.05V | |||
4 | Current | Balance current for single cell | 84mA±5mA | |
| Normal operating-mode current:Gas Gauge in NORMAL mode,ILOAD > Sleep Current | 160 uA | |||
| SLEEP operating-mode current:Gas Gauge in SLEEP mode,ILOAD < Sleep Current | 80 uA | |||
| FULL SLEEP operating-mode current:Gas Gauge in FULL SLEEP mode,ILOAD < Sleep Current | 25 uA | |||
| Maximal continuous charging current | 30A | |||
| Maximal continuous discharging current | 30A | |||
5 | Over charge Protection | Over charge detection voltage | 4.25±0.05V | |
| Over charge detection delay time | 0.5S—2S | |||
| Over charge release voltage | 4.05±0.1V | |||
6 | Over discharge protection | Over discharge detection voltage | 2.5±0.1V | |
| Over discharge detection delay time | 10—30mS | |||
| Over discharge release voltage | 3.0±0.1V | |||
7 | Over current protection | Over current detection voltage | 0.2±0.015V | |
| Over current detection current | 60±10A | |||
| Detection delay time | 5ms—60ms | |||
| Release condition | Cut load | |||
8 | Short protection | Detection condition | Exterior short circuit | |
| Detection delay time | 200-800us | |||
| Release condition | Cut load | |||
9 | Resistance | Protection circuitry | ≤50mΩ | |
10 | Temperature | Operating Temperature Range | -40~+85℃ | |
| Storage Temperature Range | -40~+125℃ | |||
| Dimension | L90*W70*T20mm | |||
B+:Battery+
B-:Battery-
SDA:Serial Data interface
SCL:Serial Clock interface
HDQ:Open drain HDQ Serial communication line (slave)
P+:Charge+/discharge+
P-:Charge-/discharge-
Packaging & Shipping
Company Information
So why SmarTEC ?
- 12+ Years of experience in battery industry with extensive knowledge.
- Joint venture with several manufacturers, so we can provide fast & best services.
- Two assembly production lines in USA for small, urgent custom orders.
- Capability of designing and making custom designed batteries.
- Large selections of batteries, chargers, testing equipments and accessories. Excellent credit & buying power.
- Private labeling and packaging for either big or small customers. Starting from 10,000 per order, customer can own their own brand name.
- Own all buildings and testing equipment.
- Can provide UN38.3 / IEC62133 safety test service and report.
Exhibition
Certifications
FAQ
Q: Are you manufacturer ?
A: ,We are specialized in developed & manufacture BMS for over 12 years. BMS and Blue-tooth system original manufacturer.
Q: Can I use this PCM/BMS for my battery?
Q: Can I use this PCM/BMS for my battery?
A: Please let us know your details requirements ,and our engineers will provide best solution for you.
Q: Do you have BMS/PCM with Communication?
A: We have over 2000 kinds of BMS,and some bms with communication of I2C, HDQ, SMBus or Blue-tooth Commnucation.
Q: How is Mosfet?
A: our BMS/PC is making of Seiko's Chip and IT with ST and IR Mosfet
Q: Does the BMS/PCM Bulit in balance Function?
A: Yes,
