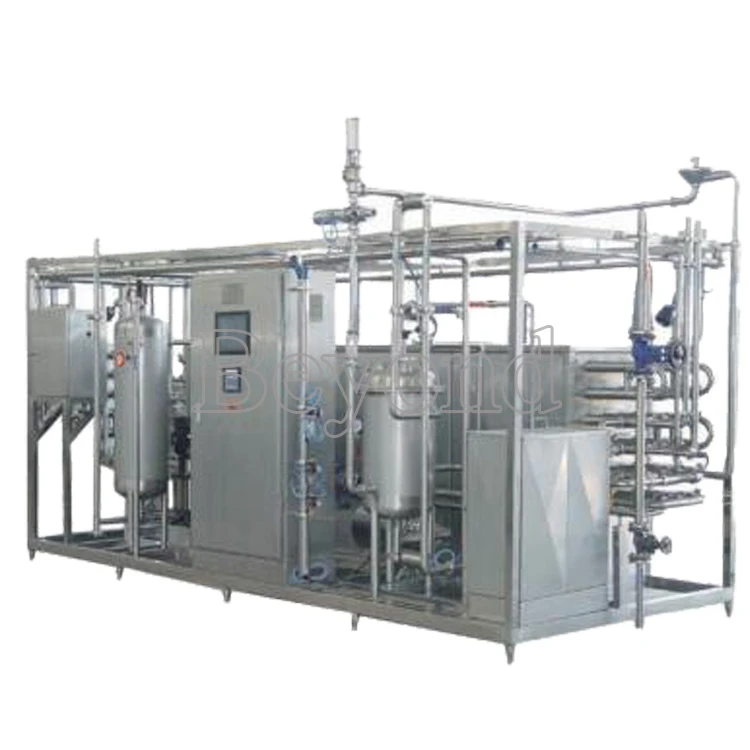

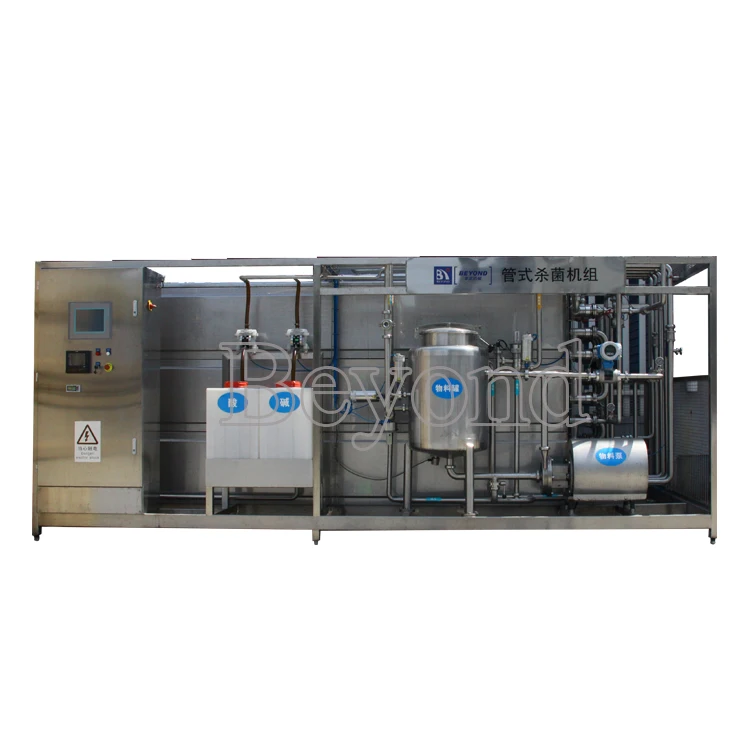

juice milk UHT tube sterilizer tubular type sterilizer
- Category: >>>
- Supplier: Shanghai Beyond Machinery Co. Ltd.
Share on (60594196123):
Product Overview
Description
Product Description
UHT sterilizer mango pulp pasteurizer medical equipment pasteurizer
Description for tube sterilizer :
Field of application:juice beverage and other liquid food industries. The tubular heat exchanger unit is designed for sterilizing and cooling of milk and juice as well as products containing fibers and particles. The sterilization temperature is typically 135~ 140C for 4 seconds holding. .
Standard design: The unit is pre-assembled and tested before it leaves the factory. The installation on site only require connection to external service such as product inlet and outlet, water, steam, air and electricity.
The unit comprises:
- Frame

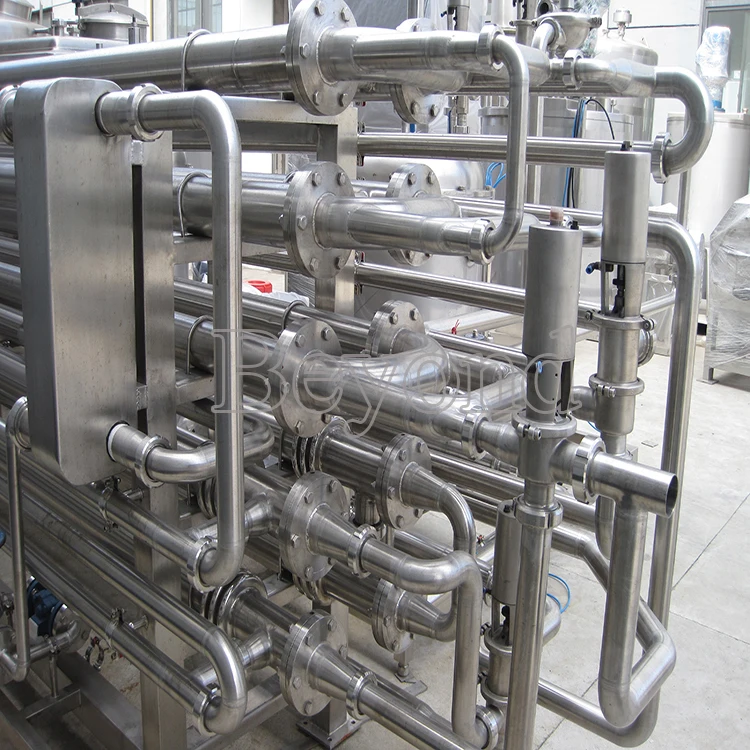

- Set of tubular heat exchangers with:
Regenerating section
Sterilization section
Hot water section
Cooling section

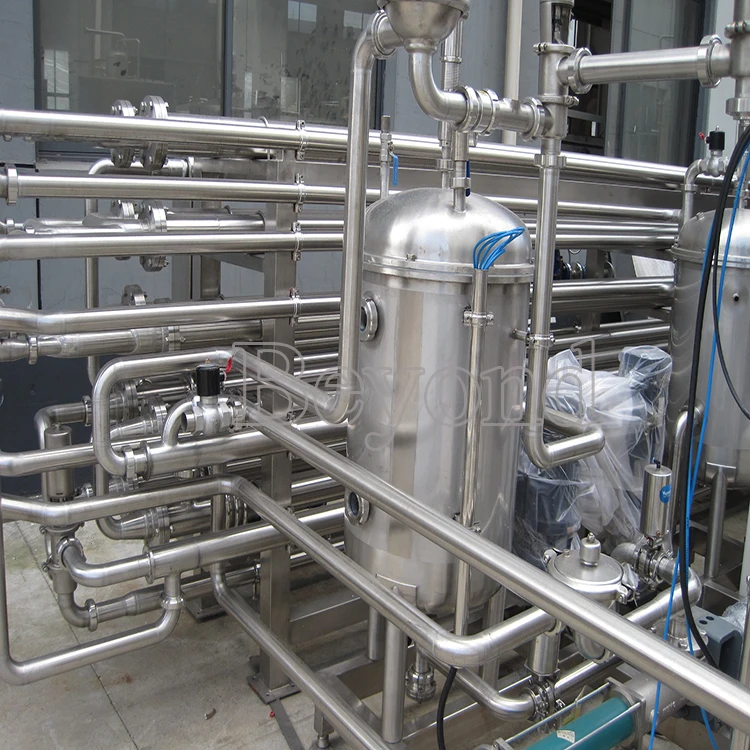

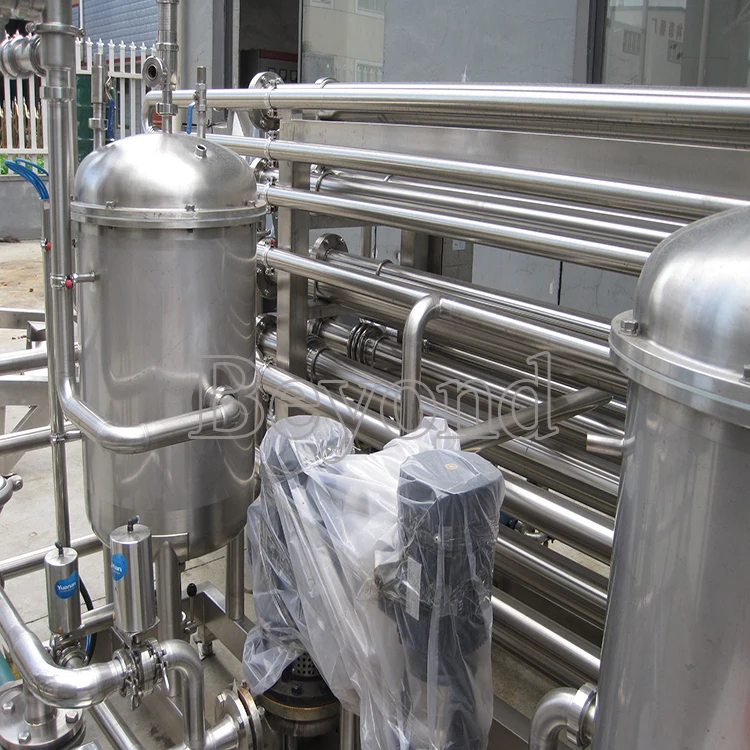

- Balance tank

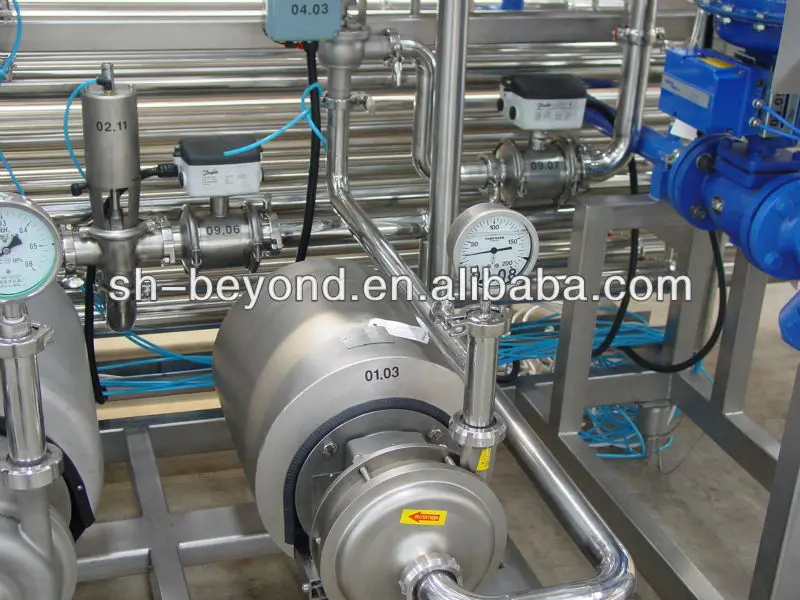

- Product pump
- Holding tube
- Hot water pump

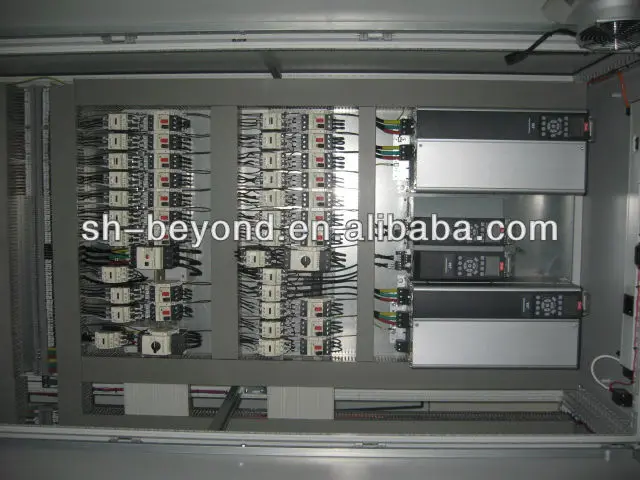

- Control panel with:
PLC controller
Color Human Machine Interface
Alarm for high and low temperature
Alarm for high temperature and low flow in hot water section
Start/stop buttons for pumps
Indicator for and control of pasteurizing temperature
- Set of internal pipes, valves and fittings
The unit is designed for CIP via recirculation over the balance tank and dosing of chemicals automatically.
Parameters
Temperature profile: 5°C→65°C →95°C / 30S→140°C / 4S→25°C
Ice water 1:1 (≤2°C Spare) Cooling water 1:1(30°C Spare)
modle | LG-UHT-1 | LG-UHT-2 | LG-UHT-3 | LG-UHT-4 | LG-UHT-5 |
Production capacity(L/H) | 1000 | 2000 | 3000 | 4000 | 5000 |
Inlet temperature | 5°C | 5°C | 5°C | 5°C | 5°C |
Holding time(s) | 4-15 | 4-15 | 4-15 | 4-15 | 4-15 |
Sterilize temperature | 105~143°C | 105~143°C | 105~143°C | 105~143°C | 105~143°C |
Product outlet temperature | 20 | 20 | 20 | 20 | 20 |
Icewater inlet temperature | ≤2°C | ≤2°C | ≤2°C | ≤2°C | ≤2°C |
Steam pressure | 0.5MPa | 0.5MPa | 0.5MPa | 0.5 MPa | 0.5 MPa |
Steam consumption | ~150Kg/h | ~210Kg/h | ~280Kg/H | ~350Kg/h | ~420Kg/h |
Compressed air pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
Compressed air consumption | 50L/H | 50L/H | 60L/H | 60L/H | 70 L/H |
External dimension (homogenizer excluded) | 3500×2000×2500 | 3500×2000×2500 | 4500×2500×2200 | 5000×2000×2200 | 5000×2000×2200 |
Total weight of machine | 1700kg | 2000Kg | 2200 Kg | 2500Kg | 2800kg |
