Bulk bag unloading machine/discharger with electric hoist
Product Description
Brief description
Bulk/big/ton bag unloader used in chemical industry, plastics, rubber, pharmaceutical, food and other industries of powder and granular material in the ton bag unpacking discharging operation, such as a large bag (ton bag) plastic resin, carbon black powder and granular materials and food additives and other dry powder and granular materials unpacking and discharging.
Working principle
By forklift or electric hoist to enhance the ton bags to the equipment feed port, manually or automatically open the discharging mouth of ton bags, open the flow valve and supplemented by vibration device to promote powder or granular material(in the ton bags) to rely on gravity fall into the hopper to complete unpacking discharging work.
| SPECIFICATIONS | ||
Technical parameters | Model | JBS-XL1000-H |
| Unloading Speed | 10-20 bag/h | |
| Air consumption | 6m³/hr | |
| Electric Chain Block Speed | 10.05m/min | |
| Frame Material | Carbon steel, 304,304L / 316L stainless steel | |
| Power & Output | 3 phase 380V 50Hz,2.0KW | |
| Total weight | 800kgs | |
| Machine Dimension | 1800*1800*4560mm | |
| Features | 1. Accommodate Your needs. Flexible modular design makes this discharger most suitable for a wide range of applications to best accommodate your needs. 2. Cost efficiency: Dustless operation helps you to save extra cleaning cost. Incorporated dust collector to help you save cost on a separate dust-collection-device. 3. Space Efficiency: Understanding the requirement of your project on envirnment and space, our professional R & D team will design the most appropriate system to suit you needs. 4. Optional Component: Flow-control valve >Dust collector >Exit conveyor>Dumper>Store hopper>Weighing system | |
Feeding equipment:

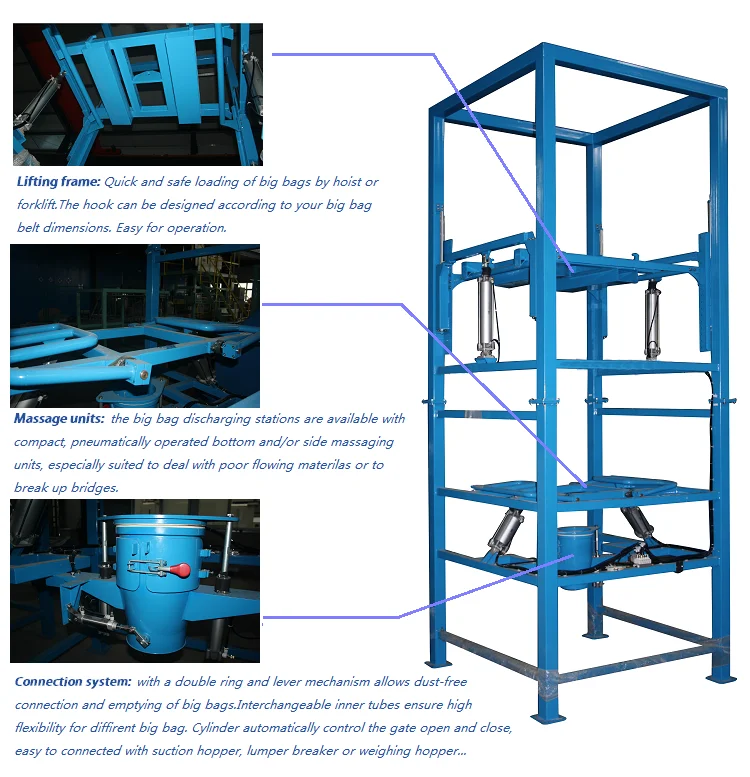

Detailed Images
Stainless steel type:
Programme drawing:

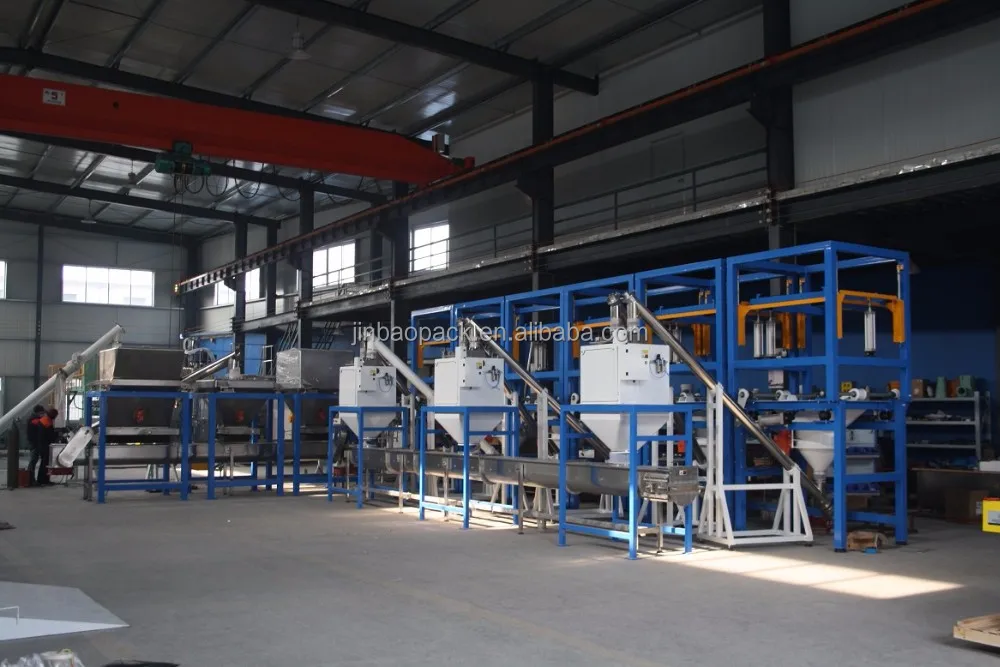

Project case:
FAQ
Why Choose Us ?
Q: Are you trading company or manufacturer ?
A:We are a factory founded in 2006 with trade team for international service.
Q: How long is your delivery time?
A: Normally 45 days after confirmed order. 30 days could be available in low season for some items (during May to July), and 65 days during new year and hot season (Jan to March).
Q: How do we test your machinery ?
A: When the machine complete manufactured, we will send video for check, and you also can come to our factory to test and learn how to operate it.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Company Information
Company overview
Shanghai Jinbao Packaging Machinery Co., Ltd specializes in the production and sale of packaging machine, packaging and palletizing line, big bag automatic weighing packaging production line, particle packing machine, powder packing machine, automatic mixing packaging production line, according to customer requirements the specific system. The products are widely used in chemical, fertilizer feed, pesticide, washing powder, seeds, grain, food, medicine, spices, tea, building materials and other industries, and exported to the Middle East, Southeast Asia, North America, Northern Europe and other more than 10 countries and regions.
Exhibition
Our customers
Our service
Warranty period & After service
Life-time warranty.
Any problem caused by our party within one year from the date of shipment, we will provide free spare parts for the repairment.
After one year, we can provide the spare parts, but the user should pay for the related cost, including cost of the spare parts, delivery cost etc.
Packaging & Shipping
Packaging:
Machine packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.
Shipping:
Upon receipt of payment , delivery date will be in 3-15days
By Air, by Sea or by Express (DHL etc)
Shipment cost will depend on the destination, shipment way,size and the weight of the goods.
