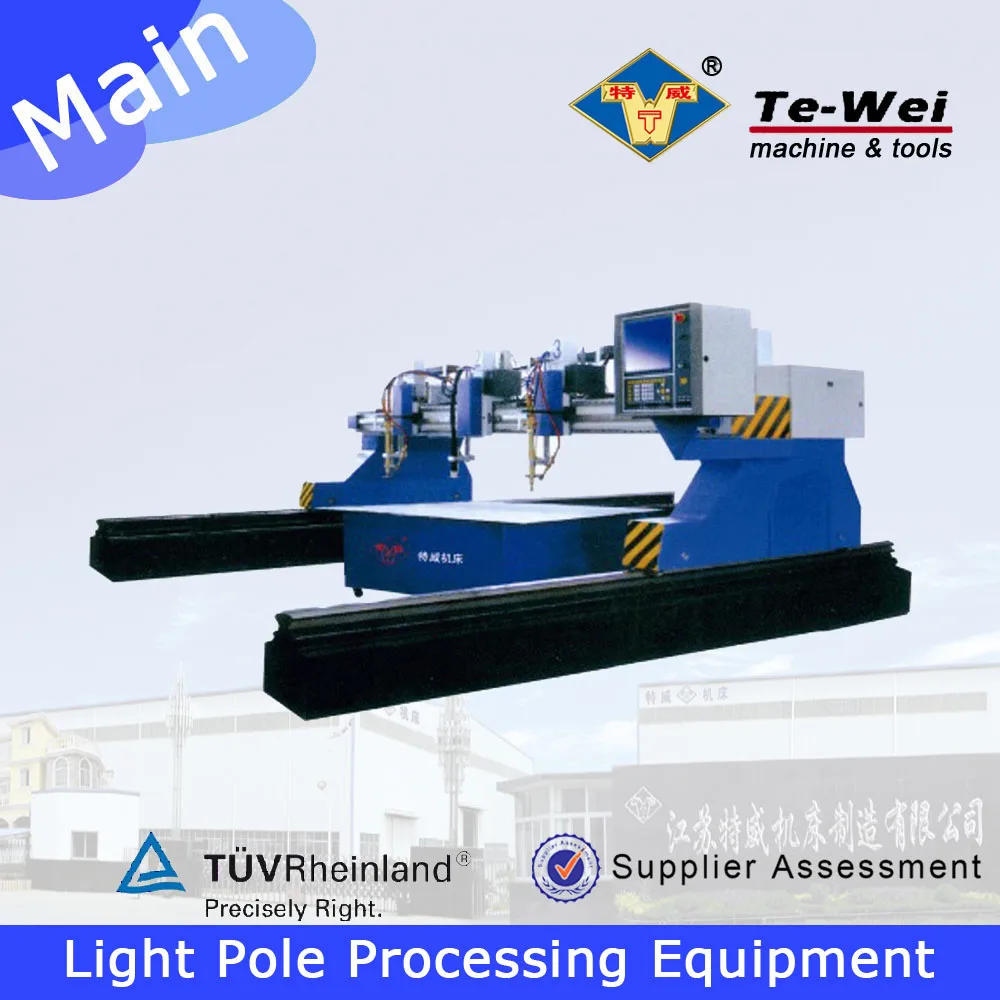

BTSZ CNC Flame Plasma Metal Cutting Machine
- Category: >>>
- Supplier: Jiangsu Tewei Machine Tool Manufacturing Co. Ltd.
Share on (60594321564):
Product Overview
Description
Product Description
Feature:

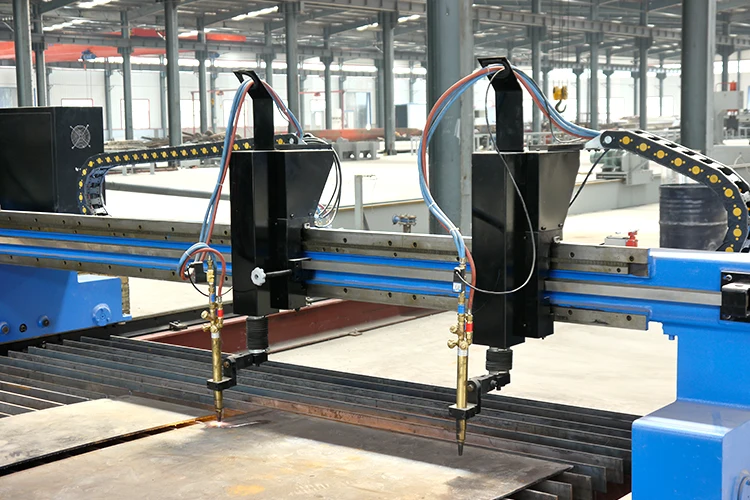

1.After heat treatment the box ,the largest rigid and light weight, inertia, quality assurance rack structure.
2.Confidential meshing gear and rack processing, digital servo drive motor accompanied by sophisticated gear boxes, high-torque,long-life lubrication ensure accuracy and longevity of drive.
3.Central gas distribution systems, fluid solenoid valve control, tanks and trachea chain transmission cables ensure that the pipeclean and compact appearance.
4.Seeker finishing drawing boards, finishing 50kg tracks made of the running track machine stability and precision.
Matching Project:
1.Auto lgnite device.
2.Mechianical/capacitance/arc automatic increase pressure device.
3.Three piercing devices(greater than 100mm).
4.Weak/flame-conversion devices.
5.Straight conference of the cutting torch.
6.Rotary break plasma cutting torch.
7.Plasma power.
8.Track length and cutting torch can be requested serveral changes and may install plasma power to achieve plasma cutting.
1.After heat treatment the box ,the largest rigid and light weight, inertia, quality assurance rack structure.
2.Confidential meshing gear and rack processing, digital servo drive motor accompanied by sophisticated gear boxes, high-torque,long-life lubrication ensure accuracy and longevity of drive.
3.Central gas distribution systems, fluid solenoid valve control, tanks and trachea chain transmission cables ensure that the pipeclean and compact appearance.
4.Seeker finishing drawing boards, finishing 50kg tracks made of the running track machine stability and precision.
Matching Project:
1.Auto lgnite device.
2.Mechianical/capacitance/arc automatic increase pressure device.
3.Three piercing devices(greater than 100mm).
4.Weak/flame-conversion devices.
5.Straight conference of the cutting torch.
6.Rotary break plasma cutting torch.
7.Plasma power.
8.Track length and cutting torch can be requested serveral changes and may install plasma power to achieve plasma cutting.
Specification
Mechanical parts | 1 | Host width | 4000mm |
2 | Longitudinal guide rail length | 17000mm | |
3 | Flame single cutting torch | 2 groups | |
4 | Automatic ignition | 2 groups | |
5 | Capacitance height adjusting | 2 groups | |
6 | Plasma cutting torch | 1group | |
7 | Arc height adjusting | 1group | |
8 | Contact location | 1group | |
9 | Anti collision device | 1group | |
10 | Driven type | Double sides | |
11 | Pipeline transmission mode | Transverse and longitudinal track | |
Electric parts | 12 | CNC system | USA Hypertherm Micro EDGE |
13 | Driven system/motor | Panasonic | |
14 | Reducer | Germany SEW | |
15 | Plasma source | USA Hypertherm max Pro125 | |
16 | Automatic program, Nesting software | Australia FASTCAM |
Spare Parts Suppliers
1 | Effective cutting width | 3000MM |
2 | Effective cutting length | 12000MM |
3 | Flame cutting thickness | 6-150MM |
4 | Flame cutting speed | 5-750MM/MIN |
5 | Plasma cutting thickness | 25MM |
6 | Plasma drilling thickness | 20MM |
7 | Plasma cutting speed | 0-6000MM/MIN |
8 | Cutting torch raising space | 200MM |
9 | Machine running speed | 0-9000MM/MIN |
10 | Speed setting tolerance | ≤±5％ |
11 | Automatic height adjusting precision | ≤±0.1MM |
12 | Vertical line precision | ±0.2MM/10M |
13 | Side (4 sides) | ±0.5MM |
14 | Diagonal error |AD-BC| | ±0.5MM |
15 | Return origin bias | ±0.2MM |
16 | Intersection deviation | ±0.5MM |
17 | Inverse linear deviation | ±0.2MM |
18 | Cutting plate surface quality (roughness)(as δ=25 plates) | Rz(um)=70+1.2a With eyes: roughness 12.5 |
19 | Verticality and angularity tolerance | μ(mm)=0.4+0.015a, tool: Angle ruler |
Machine running condition | ||||
1 | Source voltage/frequency | 3×380v±10%/50Hz, 220v±10%/50Hz | ||
2 | Input power | 3KW | ||
3 | Cutting oxygen pressure | 0.5-0.9 MPa | ||
4 | Pre head oxygen pressure | 0.4－0.6 MPa | ||
5 | Gas pressure | 0.05-0.1 MPa | ||
6 | Gas types | Acetylene, propane, propylene, natural gas. | ||
7 | Surrounding temperature | 0-50℃ | ||
8 | Relative Humidity | <90% No condensation | ||
9 | surround | Ventilation. No big impact | ||
