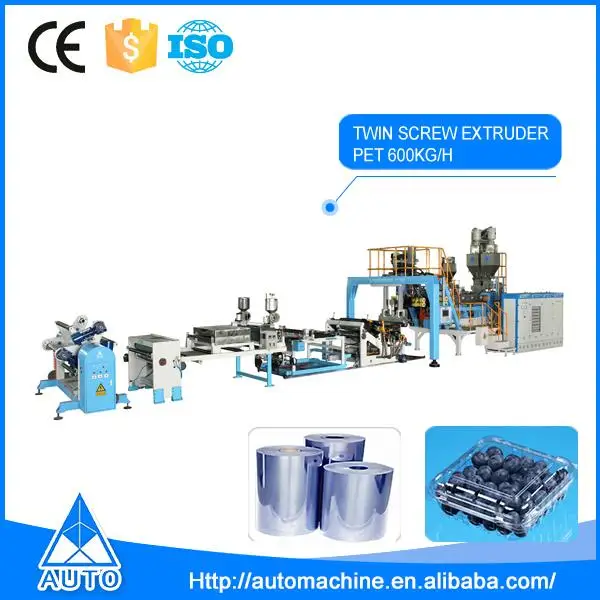

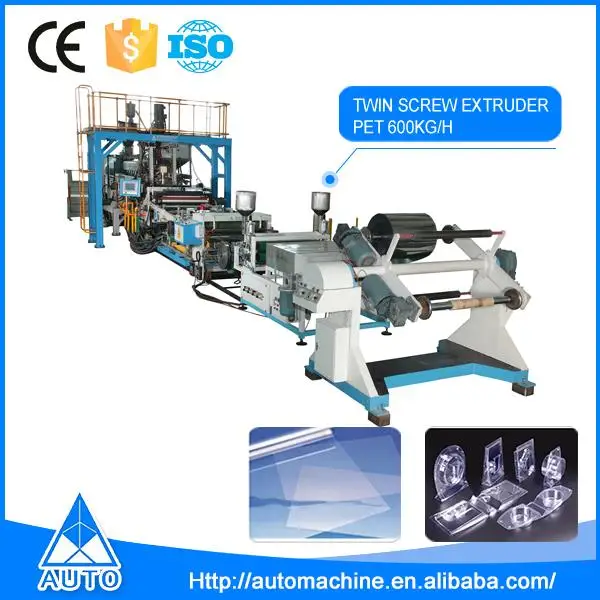

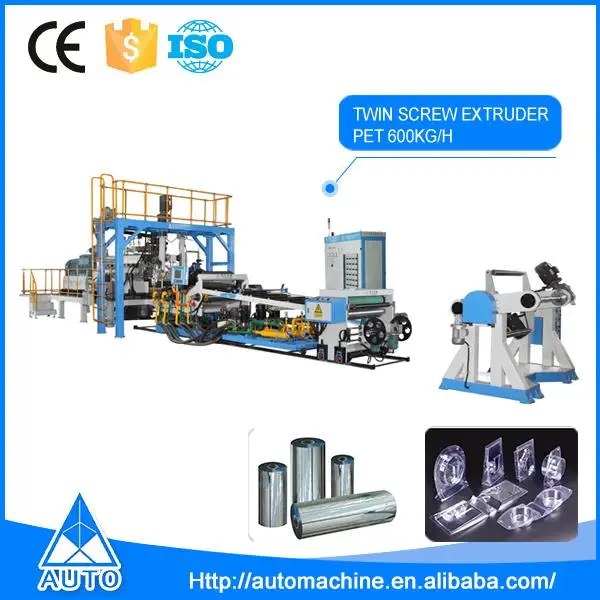

AUTO Machinery Pet Sheet Making Extrusion Production Line Plastic Extruder Machine

Share on (60594367542):


Price:RUB 14,568,307.00

Quantity:


Product Overview

Description


750x240

Product Description



AUTO Machinery Pet Sheet Making Extrusion Production Line Plastic Extruder Machine



Full Auto Plastic Food Plate Packaging Cup Thermoforming Machines Vacuum Forming Machine1WJP75B-1000 PET (2).jpg



WJP75B-1000PET (2).jpg

I. Main Technical Data
Item Parameter Remarks
Product Format Single Layer
Suitable Materials PET
Sheet Thickness 0.2-2.0mm
Sheet Width ≤880mm
Tolerance of Sheet Thickness ±0.015mm
Max. Output ≤400kg/h
Production Line Speed ≤30m/min
Total Power ≤200kw Actual Power≤60%
Remarks:
1. Suitable voltage: 380V±5%,50Hz;
2. Water pressure: 0.2-0.4MPa;
3. Air pressure:0.5-0.8Mpa.
II. Outstanding Features:
→Twin screw design no need dryer & crystallization, save energy consumption.
→Toy brick structure Conjugate screw thread, mix PET thoroughly and easy clean
→The Melt pump equipped fulfill the unit closed loop control
→PLC control make all the extrusion line automatic operation.


III .Process


IV. Main Line components

1. Automatic Feeding machine: Capacity400kg/h, motor power 4kw.

2. 1 sets Twin-screw Extruder

- Screw Diameter Ratio(44:1)

- Siemens motor driven 132kw

- Gear box and AB inverter

3. JGTIMES Duplex screen changer

- 1 sets screen diam125mm

- Power in Hydraulic station 1.5kw

4. JGTIMES Metering Pump

- GEFRAN Dynisco Pressure sensor

- 7.5kw Gear motor driven

5. JCTIMES Extrusion Ttype Die

- Effective width 1000mm, for 0-2.0mm sheet production

- 8 zones heating area

6. Diagonal Three-roller Calender

- 2pcs Mirror RollerΦ490*1000mm; 1pc Mirror RollerΦ330*1000mm

- 3 sets SEW 3kw parallel axis gear reducer Frequency conversion closed-loop controlled

- 3 sets thermostat device control roller's temperature

7. Cooling trimming machine

- cooling rollerΦ80*1000mm

- Manual trimming device

- leftover material wind device

8. Tractor

- Parallel axis gear reducer Frequency conversion driven

9. Duplex Center Turnover winding machine

- Max. Winding diameter 700mm; winding width 9000mm

- 2 Torque motors driven

- 2pcs air shaft 3"*1000

- With calculator alarm

10. Electrical control cabinet

- PLC control system, touch-screen, Temperature Module, all used AB series

- AB Variable-frequency drive control the extruder, melt gear pump, Three-roller Calender, tractor.



PET_05




Company Information





Automatic disposable plastic glass cup making machine

     We are leading packaging machine manufacturer in China, we are famous disposable products manufacturer in China (//lhpack.en.alibaba.com/) as authorized Coca Cola supplier.



     We started manufacturing disposable product in 1992, more than 20years effort now we have both disposable product factory and machinery factory.   We have our own R&D department with our experienced engineer team which guarantee the best quality of product, professional & efficient machinery maintenance and after sale service.



     With 20 years experience in producing thermoforming quality products, we can give our customer more useful suggestion and technical support from the tooling making and final production.



     Our top selling item are extrusion machine, high speed full automatic thermoforming machine, including mould design and produc tion, our professional sales team is very familiar with the disposable products material & production process , hence possibility for them to provide customer the most professional purchase solution of machine.



     Our mission is to provide good quality machine to our customer and to be the leading packaging machinery manufacturer in the world.
