DB-1 Winding usage automatic motor stator coil lace making machine

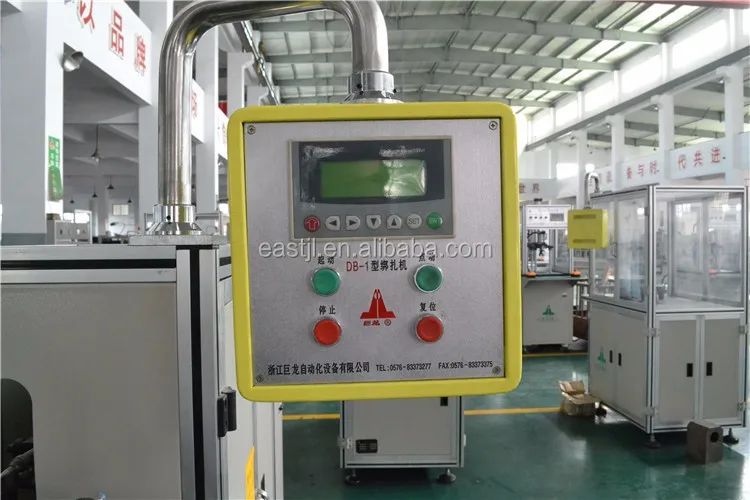

This machine is a vertical single-head automatic binding machine, integrating machine, electricity and gas. The machine can automatically bind the ends of the stator windings continuously. Through the cam sprocket, gear and linkage mechanism to achieve each action, pneumatically complete a variety of auxiliary actions, using a programmable controller for automatic cycle control, touch screen display parameters, the main drive uses inverter stepless speed regulation.
Technicai Parameters
| Supply voltage | AC220V±10% 50Hz |
Air pressure | 0.5~0.7 MPa |
Total power
| 1.5kw |
| Stator OD | Φ50~200mm |
| Stator thickness | Φ20~500mm |
Product Show
Product Description
Usage: suitable for wave shape coil winding for auto generator stator.
Features: apply servo wire winding, step motor wire winding, automatic loading to tooling,
automatic shearing and three phases finish in one time.
Main Technical Parameters:
1. Power Supply Voltage: 220V±10% 50Hz
2. Air source Pressure: 0.5~0.7Mpa
3. Wire Winding Diameter: ≤Φ1.7 or 2×Φ1.3
