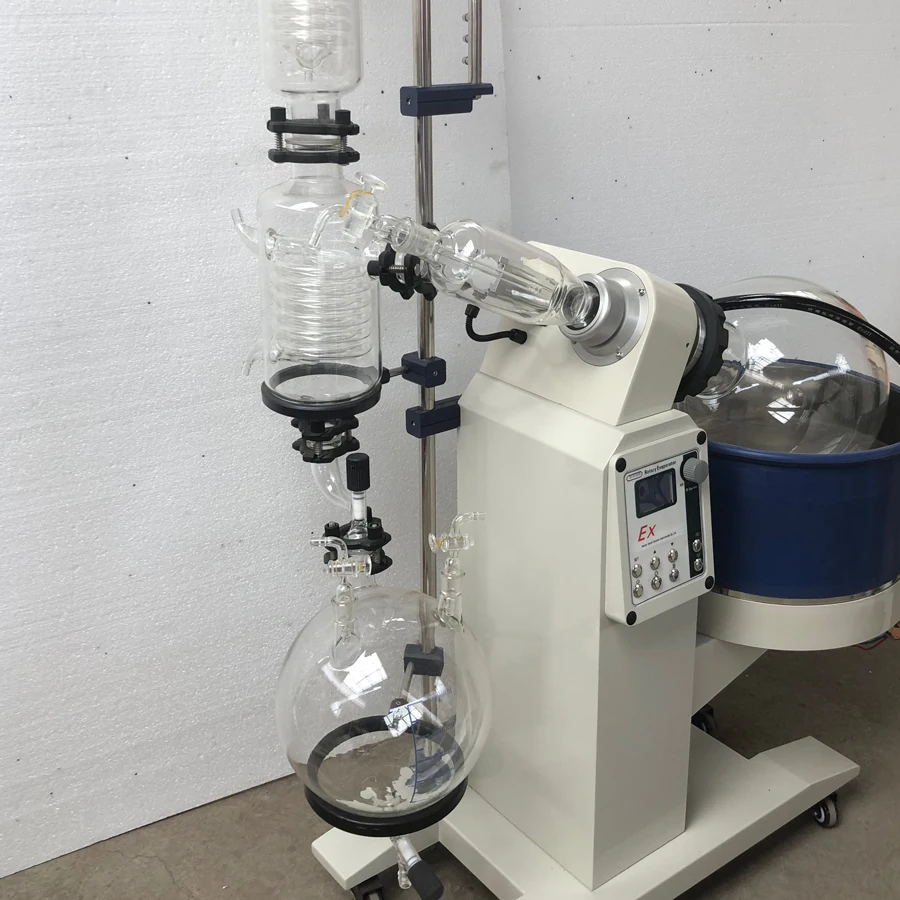

20l Rotovap Price of Rotary Evaporator Extraction Distillation Device Glass Reactor Extraction Equipment

Introduction:

Applications:

Flavor extraction/food industry

Solvent removal/separation and recycling
Chemical/educational/fuel/environmental
Sample concentration
HPLC and natural product sample prep
Drying down powders (using test tube adapter)
Trapping hazardous waste liquid

Details of 20l Rotovap Price of Rotary Evaporatorr:

The Evaporating Parts:

Material: Stainless steel inner bath container, Spray anti-corrosion steel bath shell

Parameter: Bath size: Φ350×220mm, Heating power: 4.8KW, Rotary Flask: 10L

# More homogeneous distribution of temperature achieved in the heating bath and evaporation flask.

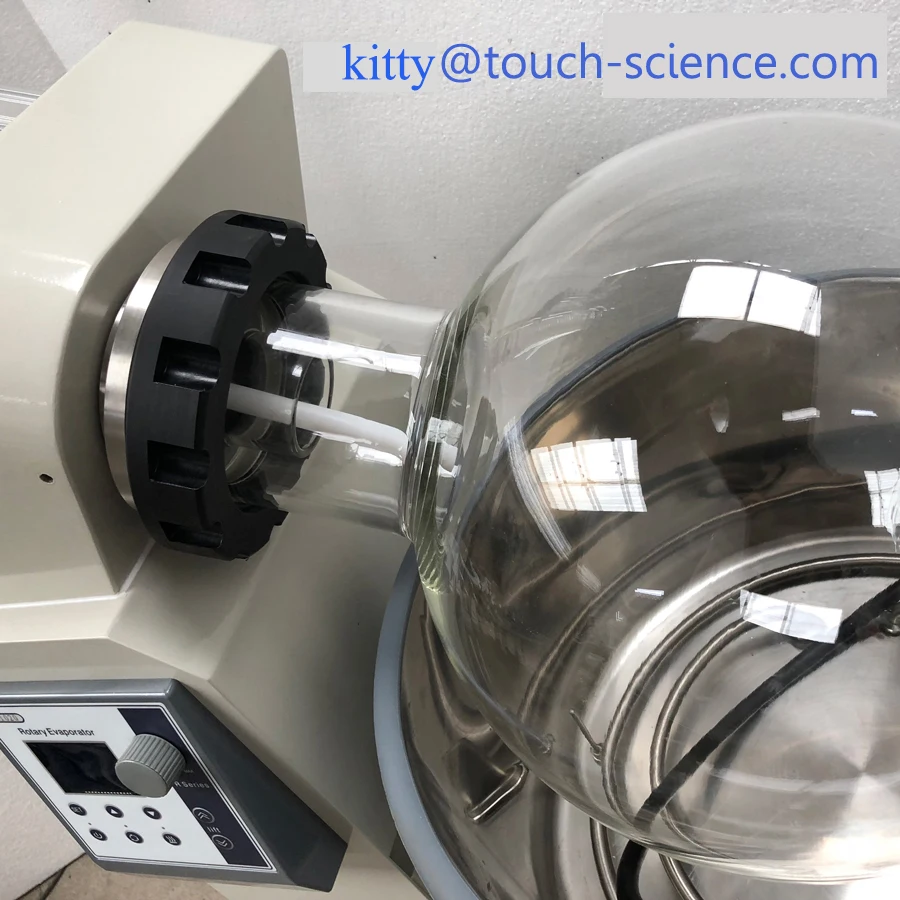

# Quick release of evaporating flask, sample removal and cleaning made easily.

# Electric lift water/oil bath with intelligent temperature controller.

The Rotation parts:

Parameters: Rotating Power: 250W,  Speed: 20~130 rpm.

# Quiet and low vibration. Strong force and steady rotation

# Brushless, sparkless high-torque induction motor for constant rotation.

# Advantages of rotation: Increase evaporating area; The risk of boiling delay is reduced; No localized overheating;  No crust formation

# Explosion-proof motor optional.

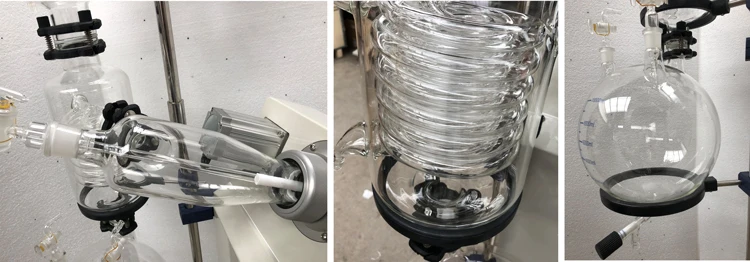

The Glassware Parts:
Material: GG17 high borosilicate glass and PTFE teflon seal.

 # PTFE/glass liquid pathway for chemical inertness. Anti-pollution, Anti-corrosion, Heat-resistant.

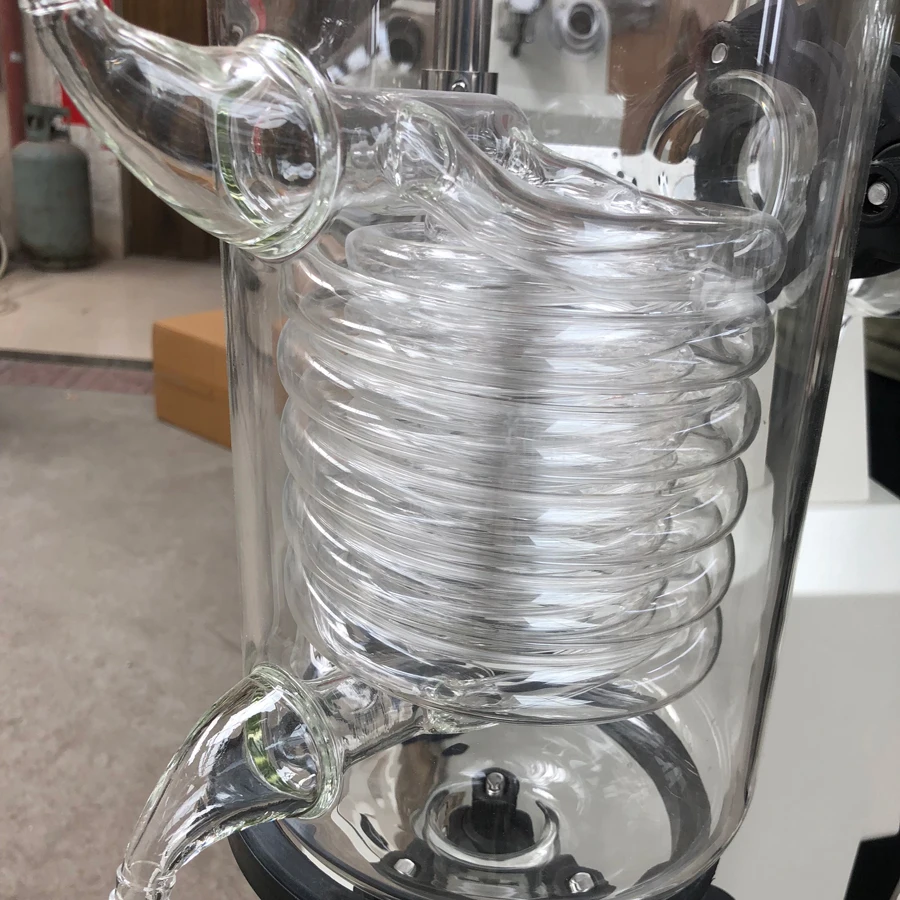

# The spiral coil increase surface area of the condenser to provide excellent condensation effect and higher recovery rate.

# V type (vertical) condenser can prevent the condensed solution to reflux into sample flask

Compare with RE Series

# Obviously, New appearance is more beautiful and compact.

# New model adopt the explosion-proof brushless motor, more stable and safe.

# Automatical lift bath

# New control system can control rotation and bath together, more convenient.

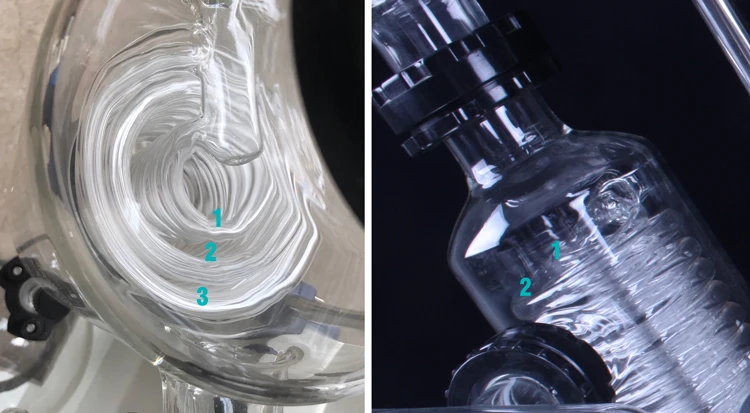

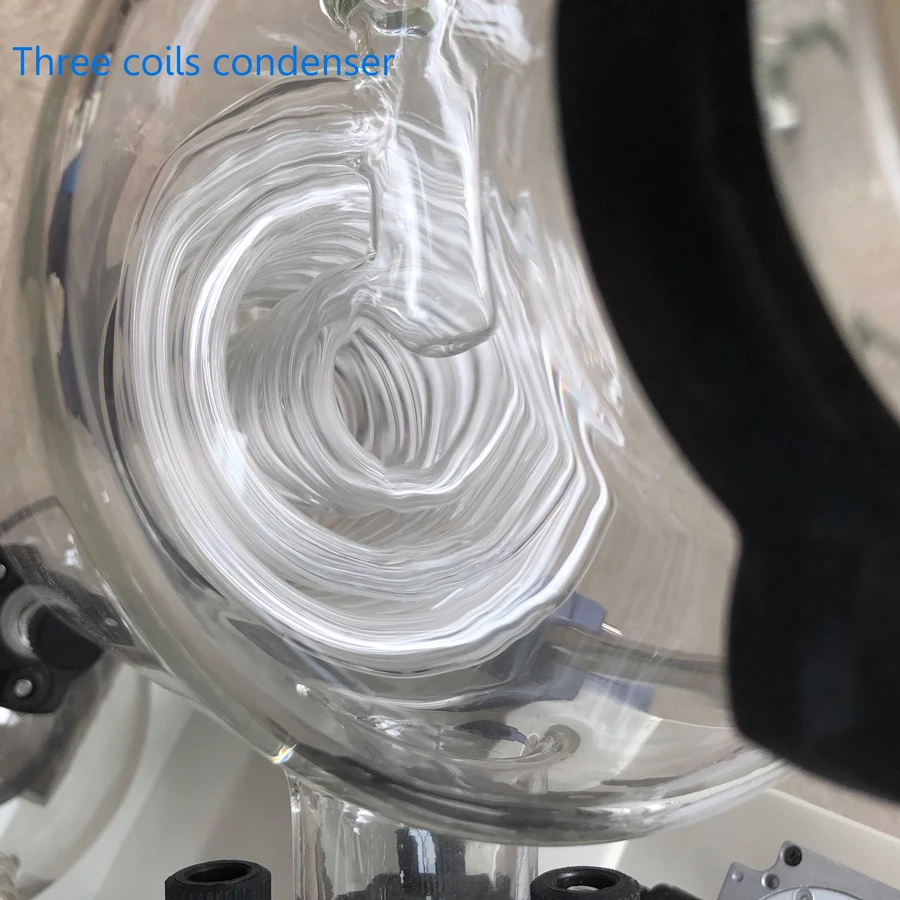

# There are three coils in condenser, more effective condensation.

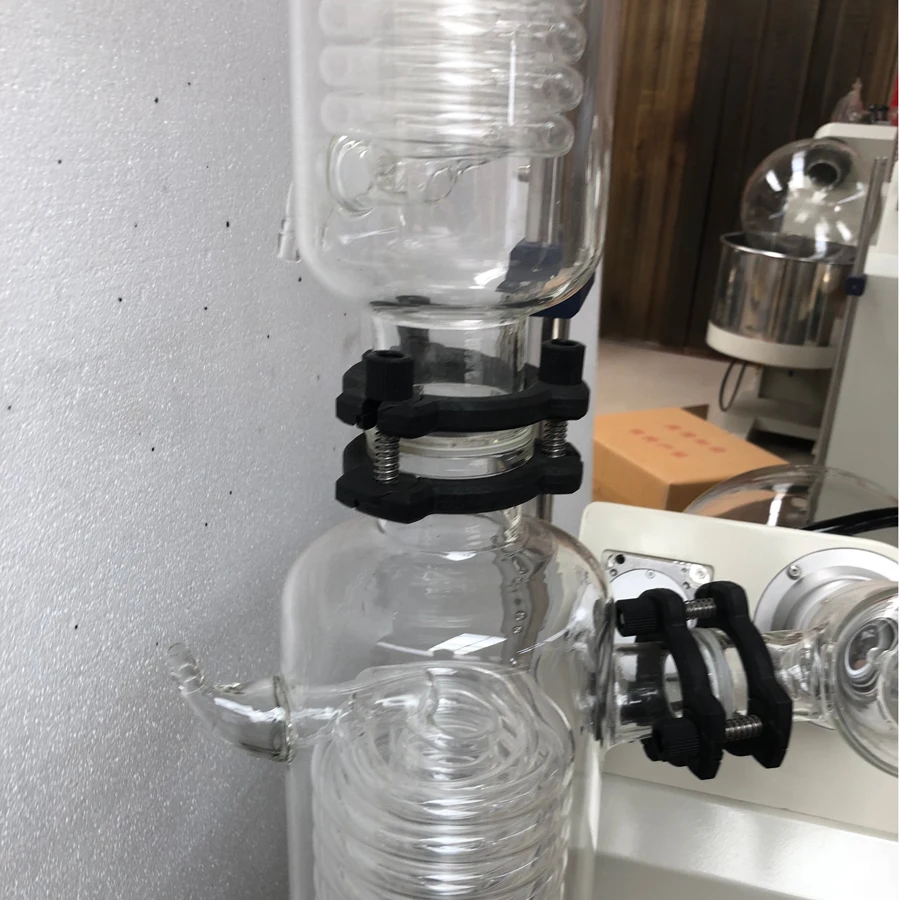

# Flange connect and fix instead of Screw nut, more tight and better seal effect.

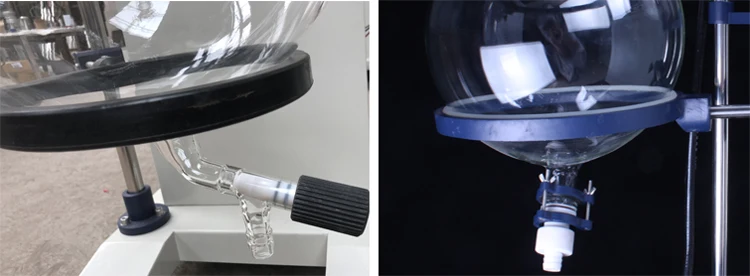

# Release valve instead of discharge port, can hold vacuum when release the liquid in receiving flask

                         Click to Tell Me your Demands

Parameters of 20l Rotovap Price of Rotary Evaporator:

Circulating water vacuum pump: Used to provide a vacuum source

Circulation oil bath: Provide heating oil for circulation
Low temperature coolant circulation pump: For condensation and reducing waste of materials.

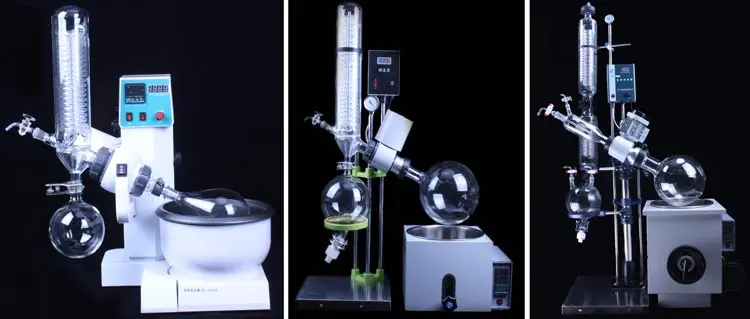

             1-5L Rotary Evaporator                        1-5L Rotary Evaporator            10-50L Rotary Evaporator

  Single Layer Glass Reactor         Jacketed Glass Reactor                    Vacuum Drying Oven


Packing:
-20l rotovap price of rotary evaporator glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packed in wooden cases.
-Both neutral and customized packaging can be available.

Shipping:
-Usually we ship the goods by one of three methods as below. You can choose the most appropriate one according to your timeline and budget. Shipping by your own shipping agent is acceptable.
