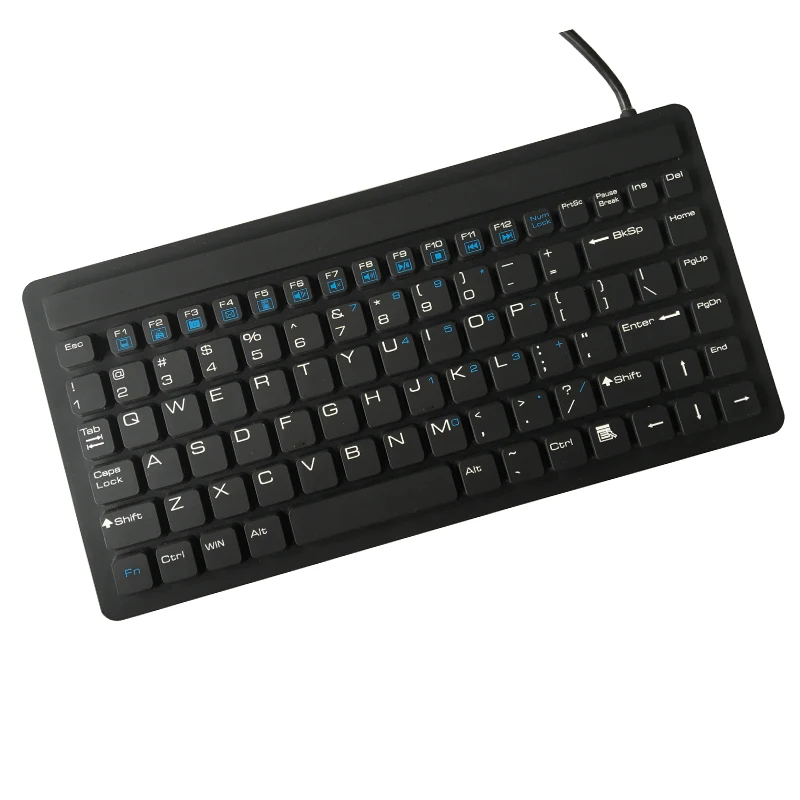

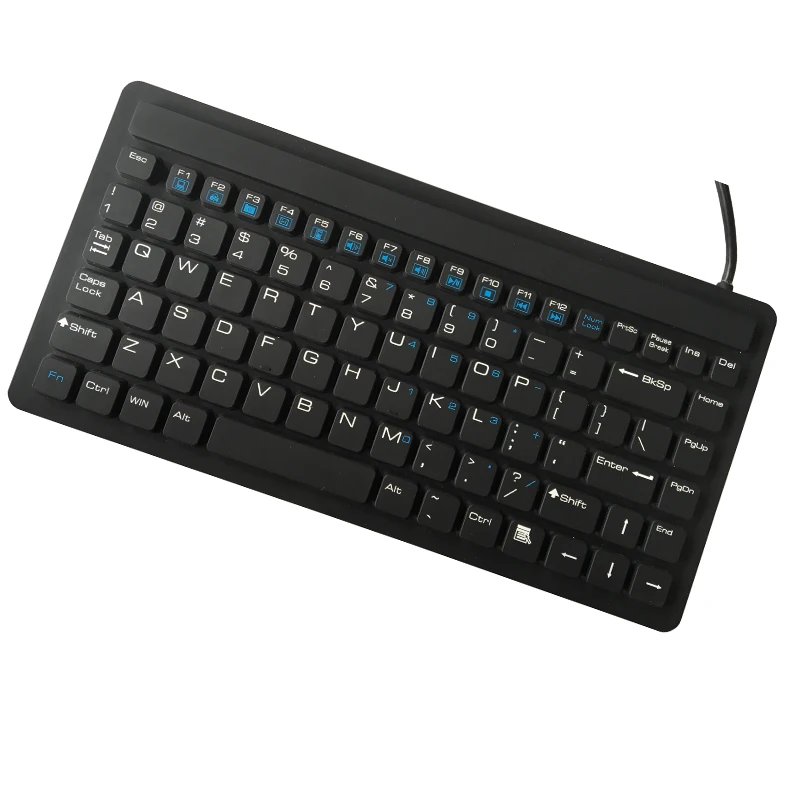

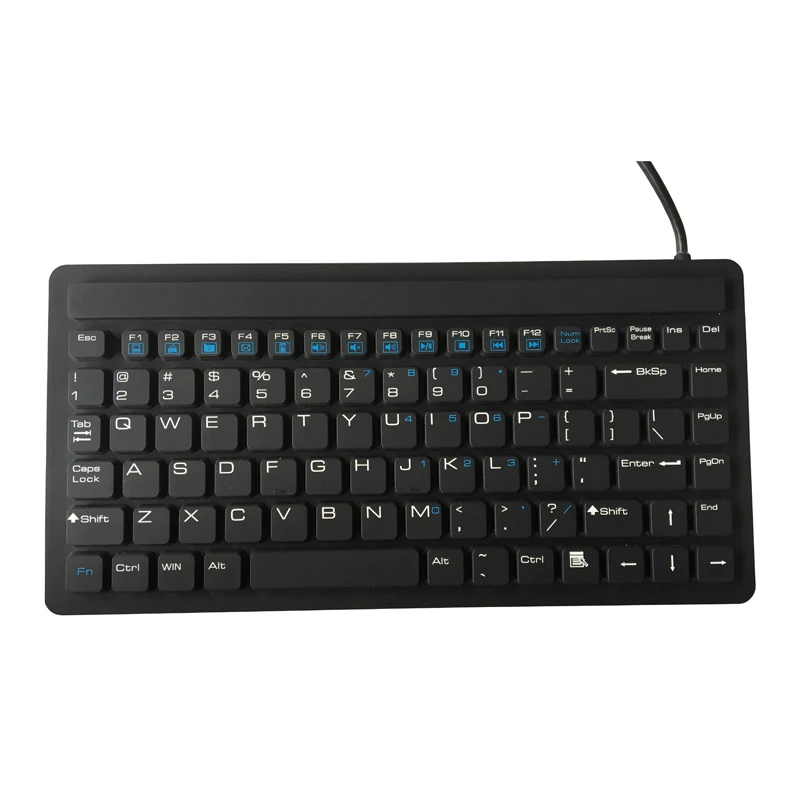

Medical Super Slim 87 Keys Washable IP68 Silicone Keyboard

Items

Specifications

Key Feature

- 87 keys including 12 function keys

- Use of antimicrobials to prevent reproduction of harmful bacterials

- Used in harsh industrial,military environment OR other medical environments where harmful bacteria exists

- Custom color available

Material

- Silicone

Electrical Data

- Power supply voltage: DC 5 V ± 5%
- Current rating: <=100 mA
- Interface: USB or PS2
- EMC Emission:EN55022(B)

Environmental Characteristics

- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force: 90 ±15g
- Key travel: 1.50mm ±0.5mm
- Lifetime (cycles): Min 10, 000, 000 actuations
- Sealing protection: IP68
- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4

Compatible Operation System

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10

Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Certification

FCC,CE,RoHs

Dimension

-272(L) x 135(W) x 11.5(T) mm

Weight

0.55kgs
