TS...NF.. series rod ends for hydraulic components

Product Overview

Description



TS..NF.. series rod ends for hydraulic components

Features    • sliding contact surface: steel / steel  • housing:alloy steel • requiring maintenance for welding  • inner ring    —bearing steel     —heat treated HRC 58-64    —phosphating • outer ring    —bearing steel     —heat treated HRC 54-60    —phosphating

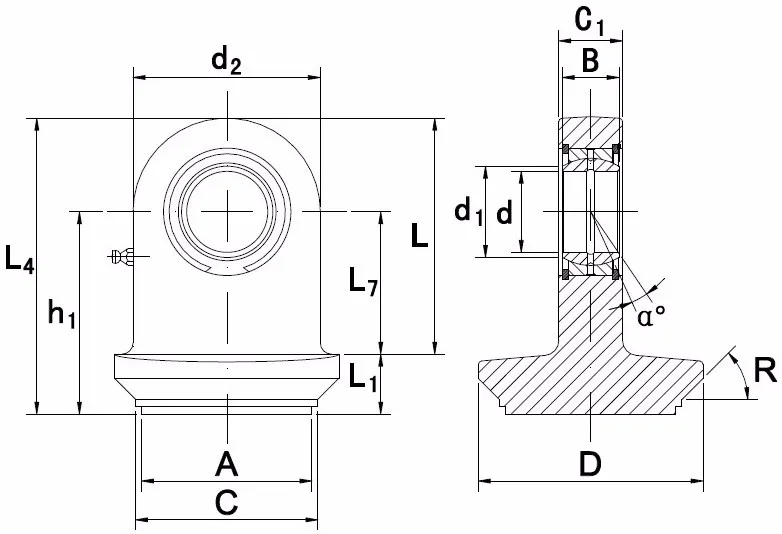

Part No.	Dimension (mm)									Bearings
	d	B	C1	L1	d2	(L)	E	F	a
									≈
TS 20 NF 35	20	16	19	48.5	50	73.5	35	45	9	GE 20 ES
TS 20 NF 40	20	16	19	48.5	50	73.5	40	50	9	GE 20 ES
TS 20 NF 45	20	16	19	48.5	50	73.5	45	55	9	GE 20 ES
TS 25 NF 50	25	20	23	57.5	55	85	50	60	7	GE 25 ES
TS 25 NF 55	25	20	23	57.5	55	85	55	65	7	GE 25 ES
TS 30 NF 60	30	22	28	63.5	65	96	60	70	6	GE 30 ES
TS 30 NF63	30	22	28	63.5	65	96	63	73	6	GE 30 ES
TS 30 NF 65	30	22	28	63.5	65	96	65	75	6	GE 30ES
TS 35 NF 70	35	25	30	73.5	83	115	70	80	6	GE 35 ES
TS 35 NF 75	35	25	30	73.5	83	115	75	90	6	GE 35 ES
TS 35 NF 80	35	25	30	73.5	83	115	80	95	6	GE 35 ES
TS 35 NF 80-1	35	25	30	73.5	83	115	80	90	6	GE 35 ES
TS 40 NF 80	40	28	35	84.5	100	134.5	80	95	7	GE 40 ES
TS 40 NF 85	40	28	35	84.5	100	134.5	85	100	7	GE 40 ES
TS 40 NF 90	40	28	35	84.5	100	134.5	90	105	7	GE 40 ES
TS 40 NF 100	40	28	35	84.5	100	134.5	100	115	7	GE 40 ES
TS 50 NF 110	50	35	40	106.5	123	168	110	130	6	GE 50 ES
TS 50 NF 120	50	35	40	106.5	123	168	120	140	6	GE 50 ES
TS 50 NF 125	50	35	40	106.5	123	168	125	145	6	GE 50 ES



—It is made up of a radial spherical plain bearing GE..E(S) or GE..ES 2RS,and rod body with weldable base.
—Requiring maintenance,for welding.



• The C&H hydraulic rod ends are made from high extra clean through-hardened steel, precision ground. 100% inspecting by various parameters before delivering to customer.

• The high quality hydraulic rod ends are used in pivoting, high load bearing applications where angular misalignment is required.

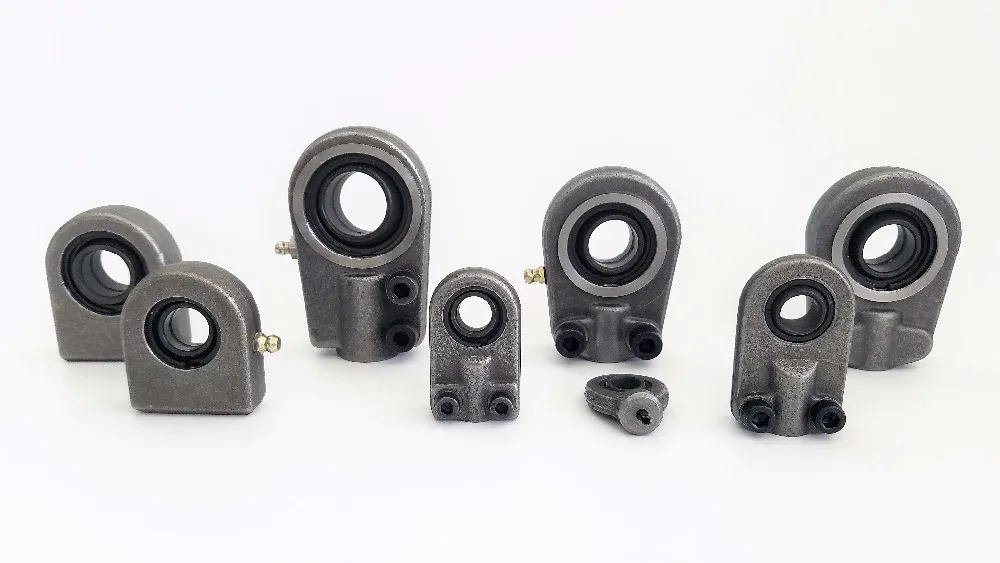

C&H can offer the following variants:

Maintenance type	maintenance-free, maintenance required
Rings	chrome steel 52100(100Cr6),phosphating
Housing	carbon steel, alloy steel

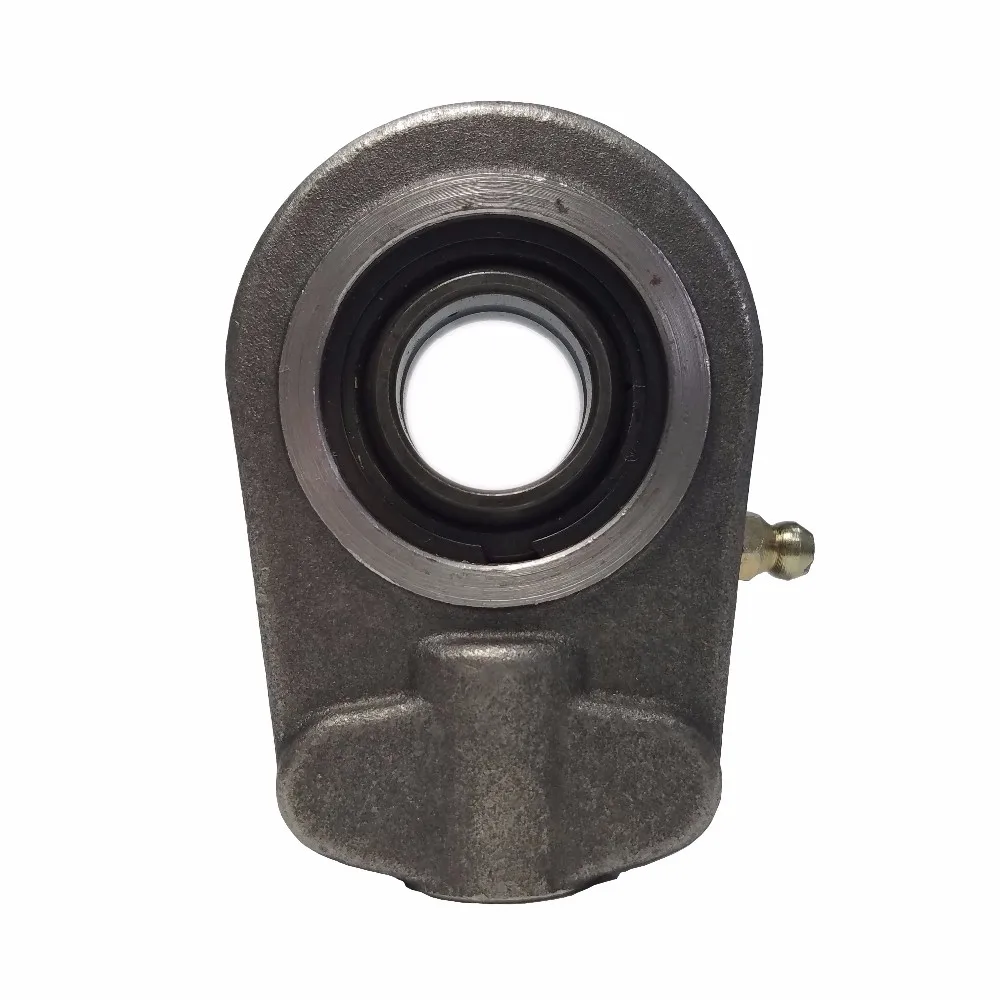

Without Connecting	GIHR..DO

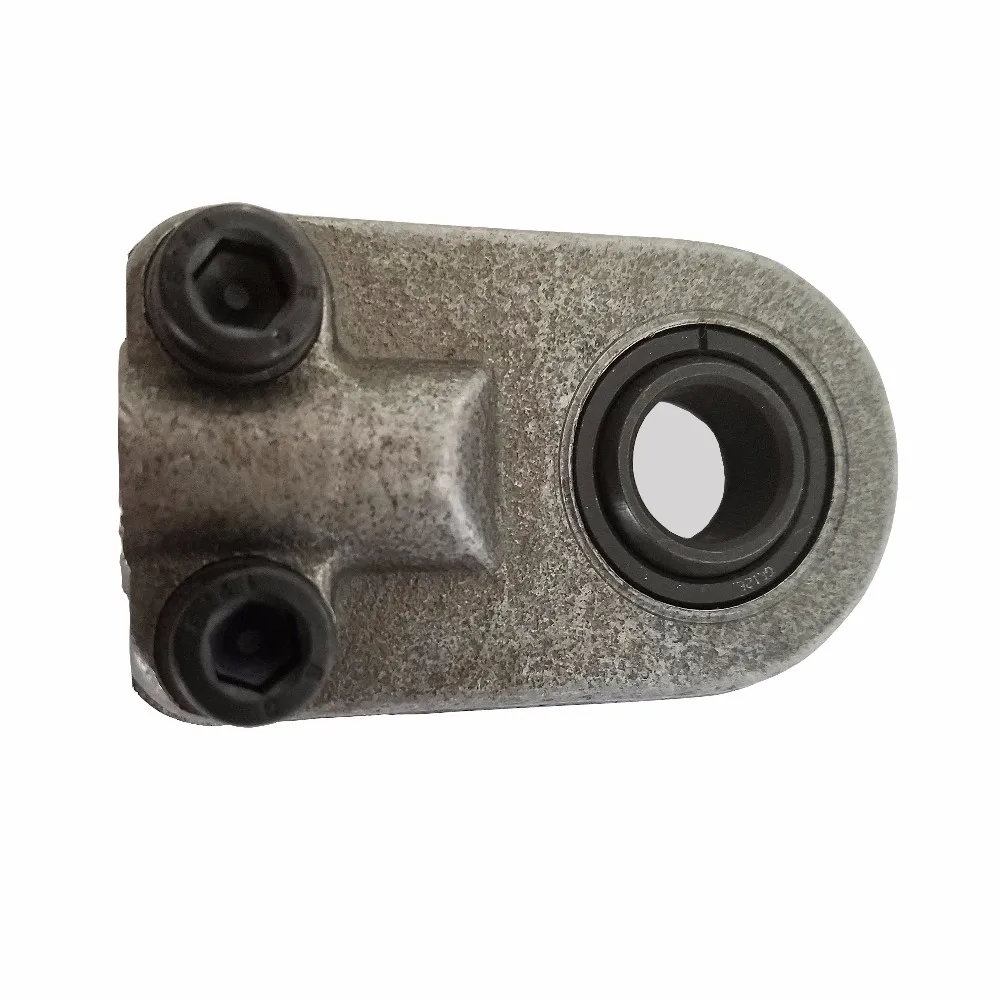

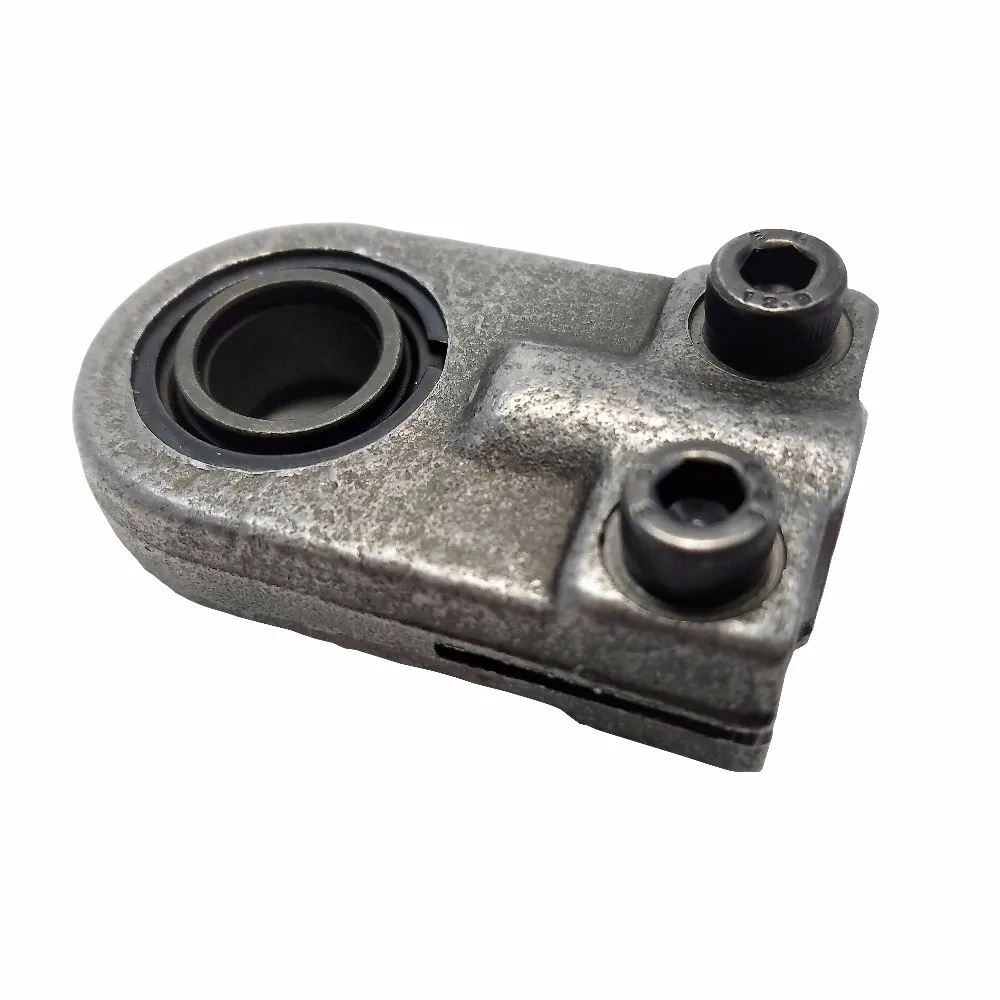

With Locking Nuts	GIHR-K..DO,GIHN-K..LO,GIHO-K..DO,GK..SK

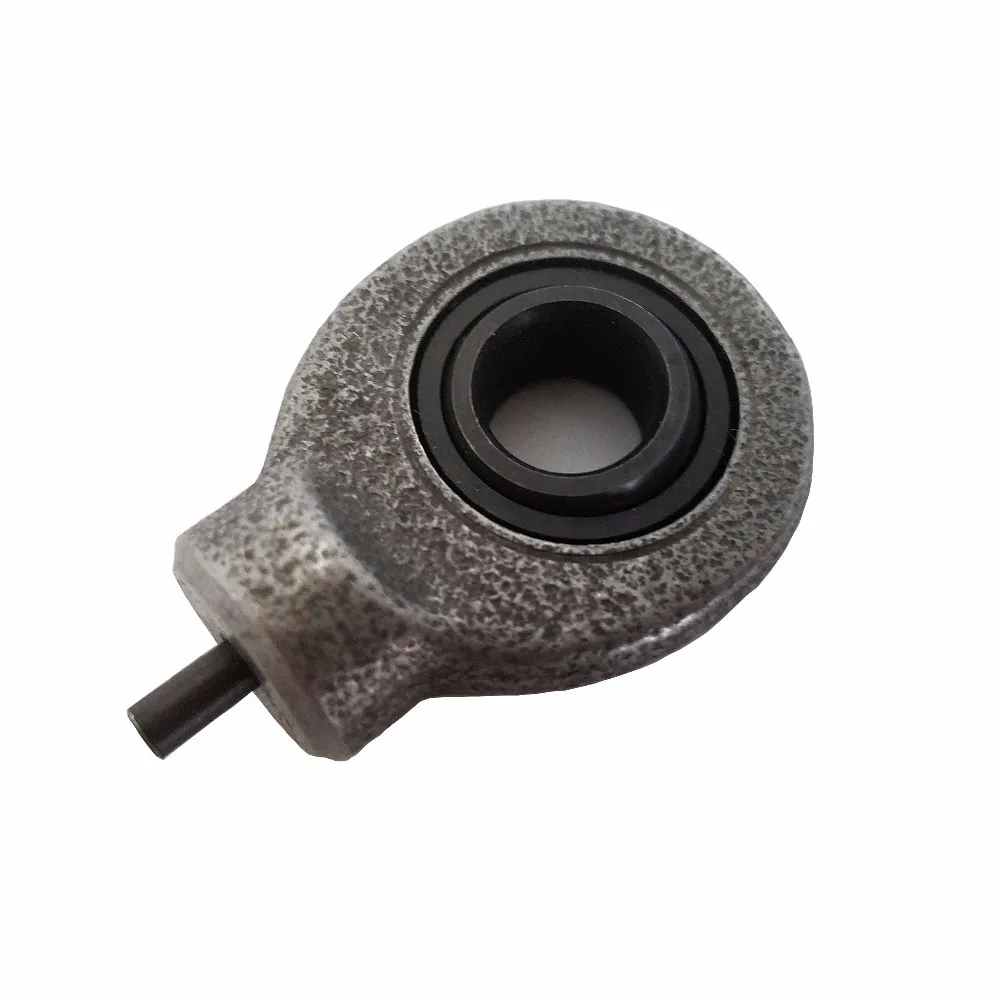

Welding Connecting	GK..DO,GF..DO,GF..LO,TS..NF

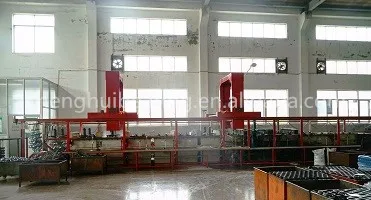

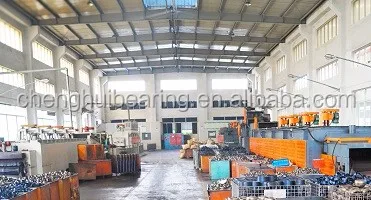

quenching and nitrogen protetion tempering lines		auto high performance hang-up phosphate lines

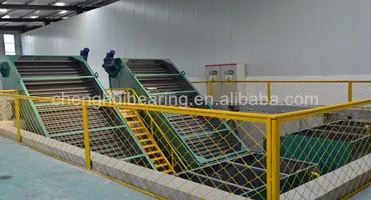

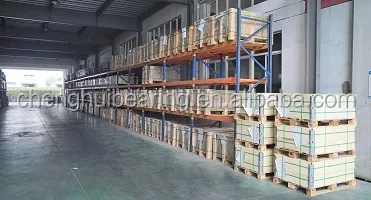

cutting fluid wastewater recycling system		warehouse



.
