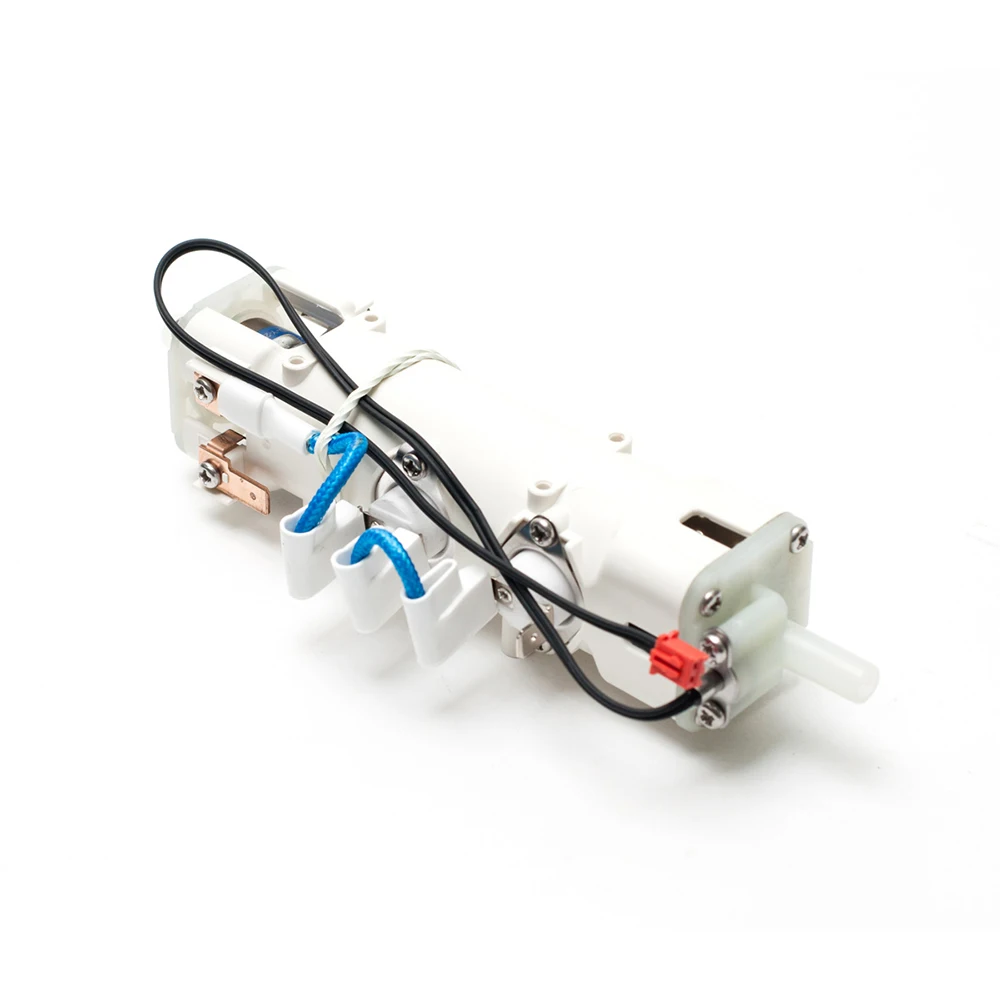

In order to make clients to test Thick Film Electric Heating Elements soon, we launch this new model with full set of temperature & flow traffic control module.
You'll find our heating elements is higher in power density (60w/cm2), largerfaster in temperature response (up to 150℃/S), high in thermal transfer (97%).
With tubular structure, Jieda Thick Film Heater can instant heat water flow inside tube, by electric circuit printed on tube surface.

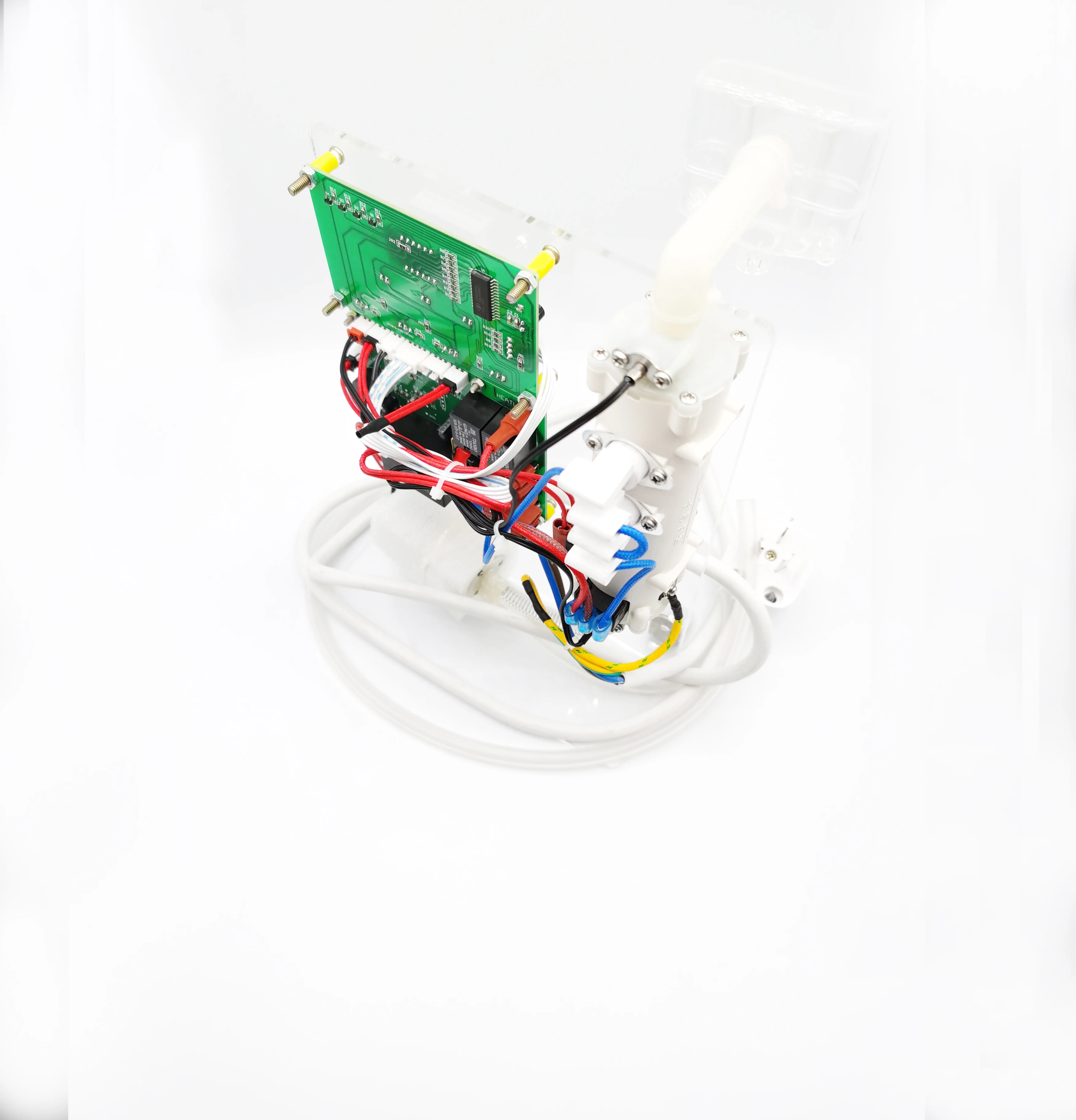

You can set different power, temperature and flow traffic. For the order in bulk, we can customize the full application solution or just provide the Electric Heating Elements.
Feature
temperature and flow control
Heat Density
＞60W/cm²
Ramp-Up Rate
150℃/s
Thermal Efficiency
≥97%
Heating Power
1,650W
Service Life
＞10,000 hours
Rated Voltage
110v
Certificate
CQC, RoHS
Dielectric Strength
1,500V/5mA/60s
Power Deviation
-10% - +5%
Leakage Current
≤0.25mA
Insulation Resistance
≥200MΩ
Type
PA66+ glass fibre, temperature resistance≥250℃
Snap Action Thermostat
16A, installed close to the heating tube’s heating circuit
Shield Thermistor
PTC
Grounding Type
Spot-Weld
Water Inlet & Outlet
Φ10mm
Heating Tube Dimention
Φ20mm*110mm
Main Features

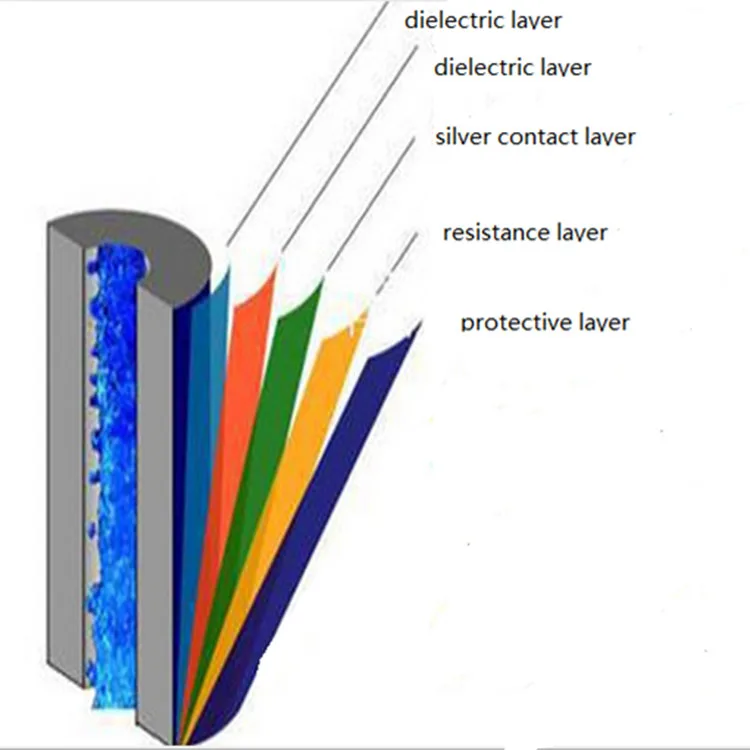

1. Electric Circuit printed on stainless steel tube surface, to heating the water flow inside. 5 isolation layers sintered on the surface. 2. Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 97% or above. 3. Fast temperature response, power density is as high as 60W/cm² and heating circuit’s temperature raising rate exceeds 150℃/s. 4. Simple structure, compact profile, various applications
1). Electric Circuit printed on tube surface, to heating the water flow inside. 2). Compact size, high heat utilization 3). Available Power 1.65KW 4). SUS430 Stainless Steel
CustomerApplications
It’s called “the most compact instant type heating element”. It’s the ideal heating element for novel and fashionable home appliances such as Water Dispenser, Water Purifier, Coffee Maker, Milk Machine, etc.
The majority of our Thick Film products are individual customer solutions which are designed to match our customers’ individual and specific requirements. During the development and application stages we work closely together with our customers in a partnership based on trust and mutual confidence.
Certifications
Company Profile
Jieda was founded in 2012, is a high-tech manufacturer that specializes in design, research, produce and sales rare-earth metal thick film electric water heating tubes/elements.
What is Jieda advanced in?
1.More than 8 years experiences in thick film electric heating tubes.
2.Fully mastery of thick film tube surface screen printing and sintering.
3.Main Process Flow in 10000+ Grade Air Purification Workshop.
4.First manufacturer to mass produce Thick Film Electric Heating Tube/Element in China
5.Available various Solutions for fluid heating, especially for Instant Water Heating Home A.ppliances, House Floor Heating and Industrial water flow heating.
6.Monthly production capacity is up to 300,000 pcs.
FAQ
Q: What's Thick Film Heating Element?
A: Thick Film Heater is a new technical art which is use screen printing technology and new thick film material. It is printed with isolation dielectric, heating element and glass prevent on a substrate that is made by stainless steel, and through drying firing process with 800°C. Thick Film Heater has become a new type of heater.
Q: What's the advantages of Jieda Thick Film Heating Element?
A: We fully master screen printing and sintering technology on curved surface stainless steel tubes, which makes it possible to heat continuous water flow without water tank.
60W/c㎡ POWER DENSITY
>80℃/S TEMPERATURE RANP UP
Q: What's the lifespan of Thick Film Heating Tube / Thick Film Heating Element?
A: It can work more than 10,000 hours, in case of no DRY HEATING.
Q: What's the inlet and outlet diameter?
A: Thick Film Heating Tube : 18, 20, 30, 35, 40, 50mm.
Thick Film Heating Element : Available with 10mm, 16mm and G1/2 OD20.9mm
Q: Can I DIY it for personal use by myself?
A: Our Products are mainly used as heating spare parts for water heaters in mass production, not recommended for Personal DIY.
Q: Can the Thick Film be applied to Copper Pipe or Aluminum Pipe?
A: It can not be applied on Copper pipe, but can work on Aluminum pipe.
Q: How to get the suitable model for our application?
A: We need to know the water temperature in inlet and outlet port, water flow rate, connection port details and other special requirements, to recommend the suitable Thick Film Heating Elements
Q: What's the operation attentions?
A: 1. The temperature ramp-up above 80°C/s, please make sure the tube fulfilled with water before use.
2. Please install it vertically, make sure water flow direction from bottom to top, to prevent DRY HEATING in partial area of
heating tube.
3. Set the minimum flow rate according to tubes' power watts, ensure smooth flowing of water, to prevent vaporizing and dry heating
4. Make sure reliablility grounding.
