Deep Cycle XUPAI 12V24AH Battery for E bike and E scooter

Product Overview

Description

Deep Cycle XUPAI 12V24AH Battery for E-bike and E-scooter

How to Buy Batteries:













SLA
Size 188(L) x 100(D) x 130(H)mm
Charge Current 0.2512-0.312(A) for 10-14 hours
Discharge Current 20 hr rate 0.6(A)
Battery Casing:ABS



Capacity
20hr rate (0.60A to 10.5V) 24Ah
10hr rate (1.20A to 10.5V) 20Ah
5hr rate (2.40A to 10.5V) 16Ah
3hr rate (4.00A to 10.5V) 14Ah
2hr rate (6.00A to 10.5V) 12Ah



Internal Resistance
Fully Charged Battery(20°C,68°F): below 13m Ohm
Max Discharge Current (5 sec):40A



Charging Methods
Floating Use :13.5-13.8V, Compensation co-efficient-3mv/cell/°C
Cycling Use:14.7-14.9V,Compensation co-efficient-5mv/cell/°C
Constant Voltage Charge:14.8V
Max charge current :0.3C(A)
Self Discharge Rate(20°C,68°F): Above 85%/3 Months



Operating Temperature Range
Discharge:-35 to 50°C(-31to 122°F)
Charge:-15 to 40°C(5 to 104°F)
Storage:-15 to 40°C(5 to 104°F)

RECHARGEABLE
Battery quantity: 1pc (4pcs/pack)
Charging Time: 10-12hr
Recharging Voltage: 14.8V



BATTERIES
Amp Hour Rating: 24Ah
Connection Type: Spring Terminal(Pins)
2 Hour Capacity: 16Ah
3 Hour Capacity: 18Ah
5 Hour Capacity: 20Ah
10 Hour Capacity 22Ah
20 Hour Capacity 24Ah



Battery Usage Rechargeable
Battery Chemical Composition: Sealed Lead Acid (SLA)



DC VOLTAGE RATING
DC Voltage: 12V



PRODUCT DIMENSIONS (Tolorance.2mm)
Item Length 188mm
Item Height 100mm
Item Depth 130mm



PACKAGED DIMENSIONS
Packaged Volume 0.010CBM/CTN
Packaged Weight 29.2kgs(N.W.: 29.0KGS)
Packaged Length 31.2cm
Packaged Width 21cm
Packaged Height 14cm
20"Container:1800pcs

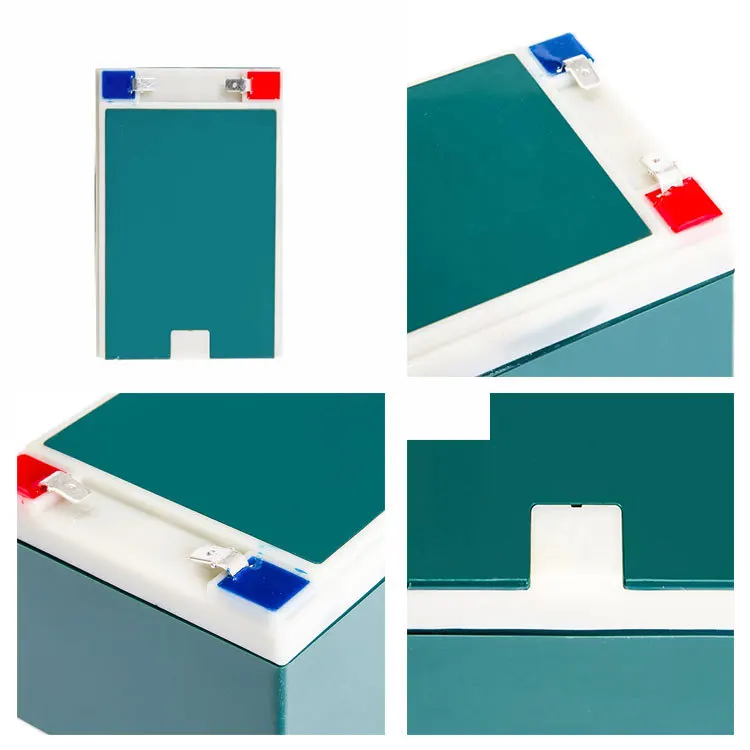

Do you have pictures showing details for your batteries?

How's inside your batteries?





Best Rechargeable Sealed Lead Acid Battery 12V 24AH for Electric scooter,  e-bicycle, electric bicycle, battery operated vehicle





Packaging Details:Paper Box or White Box and Pallet



Delivery Details:All goods are in warehouse and can be deliveried within  25 Days



XUPAI Battery, the world's leading supplier of new energy products, the highquality worldwide leading brand of electric vehicle batteries, top three global suppliers of electric vehicle batteries,is specialized in R & D, manufacturing, sales and service of high-tech enterprise.





XUPAI battery has always been adhering the business philosophy of quality, integrity, service,and development, which keep continued leadership position in global suppliers of new energy products. XUPAI Battery has abundent experience with product development and manufacturing in the fields of power batteries, storage batteries, and UPS batteries,Which is one of the few manufacturers that mastered into making the high-tech batteries without cadmium ,and that is one hundred percent without cadmium into products .Those batteries is noncadmium and arsenic-free, green and eco-friendly, which is the global leader products in similar lines.





XUPAI  battery has three major production bases in Mainland China:Changxing Boneng Environmental Protection Power Electric Co., Covering an area of 33,000 square meters of ground. Jiangsu Aoxin Technology Development Co., Ltd. ,which covers an area of 167,000 square meters. Jiangsu Xupai Energy Technology Co., Ltd. covered an area of 490,000 square meters.





Our products are popular in Italy, South Korea, Turkey, India, Canada, Brazil, Bangladesh, Israel, the Netherlands, France, Honduras, Czech Republic, New Zealand, Slovenia, the United Kingdom, Colombia, Pakistan, Singapore, Denmark, Estonia, Sweden, Spain, the United States, Greece etc. So far there are more than 35 million of worldwide customers using products and services provided by XUPAI battery, and discharge time of those battery totaled more than 350 billion of hours!

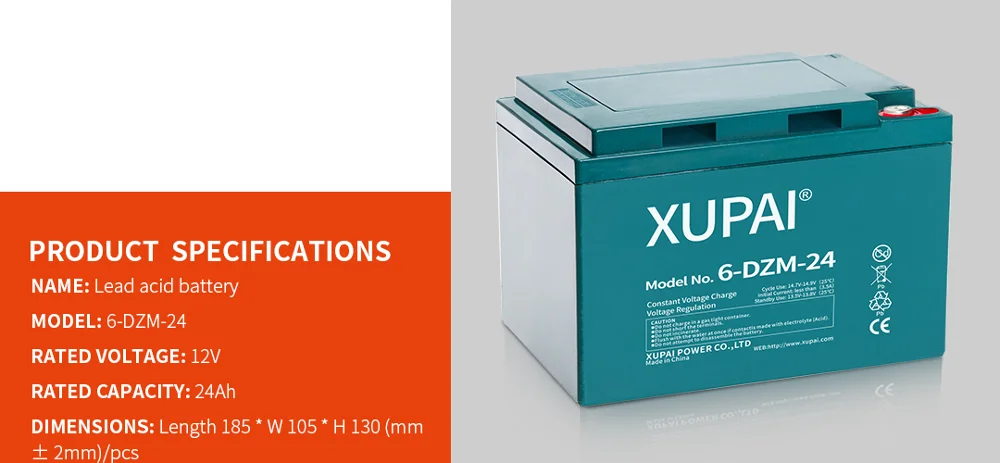

 Product Specification



 Exhibitions in China and Overseas









Other Model Batteries to Choose
