Aluminum sheep tube fence/used livestock panels/cattle fencing

Product Overview

Description

Livestock/Cattle panel introduction



Specifications:

Material : Low carbon steel pipes

Processed : firstly,we prepared the pipe (square pipe or the round pipe,the elliptic),then put the   pipe on the welded shaping machine,the pipe are galvanized ,welded the pipe together.then make the spot smoothing,then silver painted .

Features: It can quickly and easily be installed, without the need to disturb the surface area by

digging holes or laying foundations.

Main markets: Australia, European countries, Canada, America and Asia countries.

Specification :

-1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails.

 -Complete with Caps & Foot plates.

 -Holes for ground pin on one leg of each panel.

 -Elongated lug holes in brackets, for ease when connecting



Size:	1.8*2.1m 1.6*2.1m			Gate
Pipe  style:	Round pipe:32mm 42mm	Square pipe 40*40mm 50*50mm	Elliptic pipe 40*80mm 30*60mm	On your need
Thickness of the pipe	Generally 1.6mm
others	Pin connection	One set With  caps
Rails number	1.8*2.1m 6 rails	1.6*2.1m 5rails	Zinc amount,70-80g

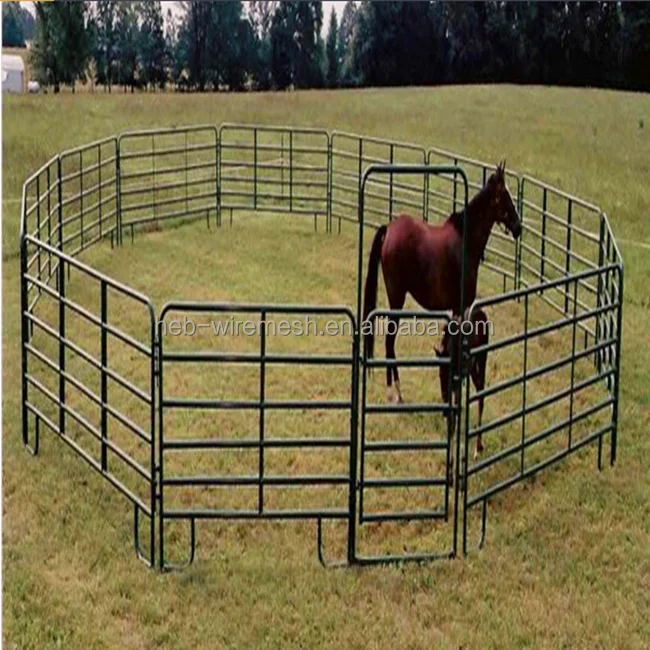

Cattle panel styles



1. Round style cattle panels

Hot-dipped galvanized cattle panels

Height x Length :1.8x2.1m

Round pipe:40mm OD x 1.6mm thickness



2. Oval tube style cattle panel

 Hot-dipped galvanized cattle panels

 Height x Length :1.8x2.1m

Vertical pipe:40x40mm RHS x 1.6mm thickness

Horizontal pipe:30x60mm oval rail x 1.6mm thickness



Sheep Yard panels:

Overall dimensions 2.2m*0.950m.

Vertical Pipes: 40*40*1.6mm.

5 Rails: 25X25X1.6mm.

BracketsX2

18KG/piece. The pipes are pre-galvanized.



Livestock Yard Gates:

Overall dimensions 2.1M x 3.0M.

The vertical pipes 50mmx50mmx1,6mm.

The Rails 60mmx30mmx1.6mm

50.7KG/piece. The pipes are pre-galvanized



Producing Process:



1). Pre hot dipped galvanized steel pipe -- welding -- polishing -- wipe antirust paint on welding seams



2). Pre hot dipped galvanzied steel pipe -- welding -- polishing -- wipe antirust paint on welding seams -- silver spray painted on the welding seams



3). Pre hot dipped galvanzied steel pipe -- welding -- polishing -- silver spray painted on the whole panel

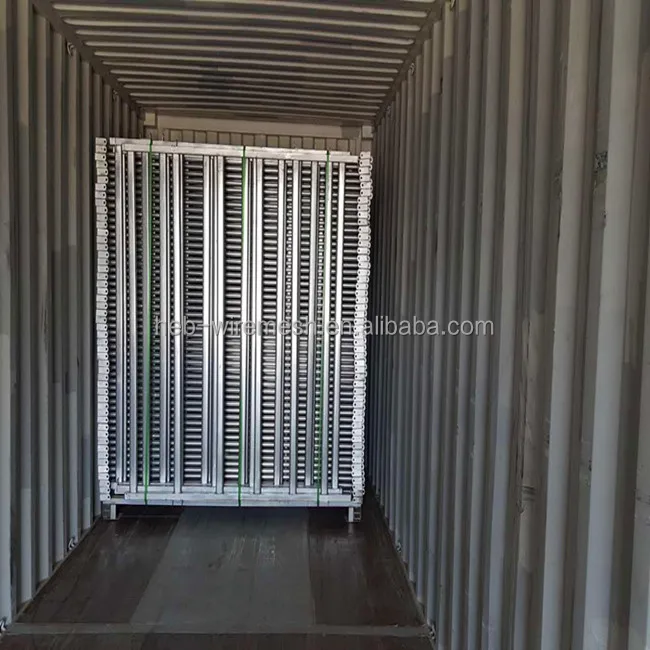

Packaging Details:

1. On steel pallets,60 pieces on per pallet
2. 150 sets in 1x20ft container,430 sets in 1x40'HQ container.

Delivery Detail:

20 working days after deposit was received.

Our Company

Hebei Ocean Wire Mesh Co., Ltd. was founded in 1990 in Anping County, a renowned area for wire mesh making in North China.

We mainly supply various wire and wire mesh products at full sizes of welded Wire Mesh, Expanded Metal Mesh, Square Wire Mesh, Stainless Steel Wire and others.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.









Our Services

1. Reply your enquiry in 24 working hours;

2. Experienced staffs will answer all your questions in professional and fluent English;

3. Customized design is available.

4. Exclusive & unique solution can be provided by our well-trained and professional engineers;

5. Special discount can be offered with large quantity;

6. We will try our best to meet your requirements and supply you best quality of the products.



Why choose us?



1.More than 10 Years manufacturing experience.

 2.Professional research and development team

 3.Zero Customer Complaints for several Years

 4.Human-based management

 5.Environmental Protection

 6.Excellent after-sales service.



You can refer to the specifications above,we can also change it as your requirements.

Please not hesitate to contact us if you are interested in our products. We are very honored to build a good cooperation with you!

If possible,welcome to Chiha to visit our factory!
