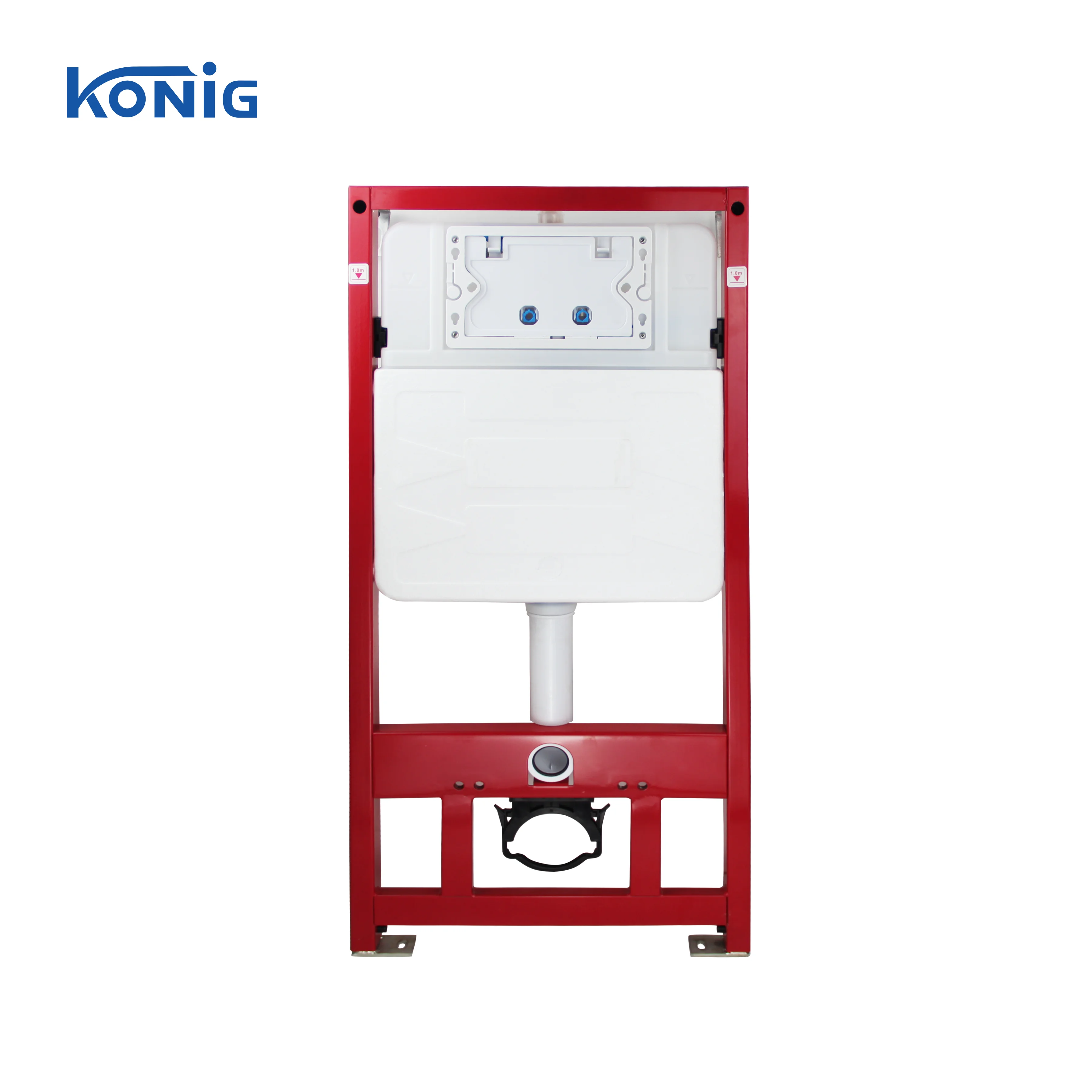

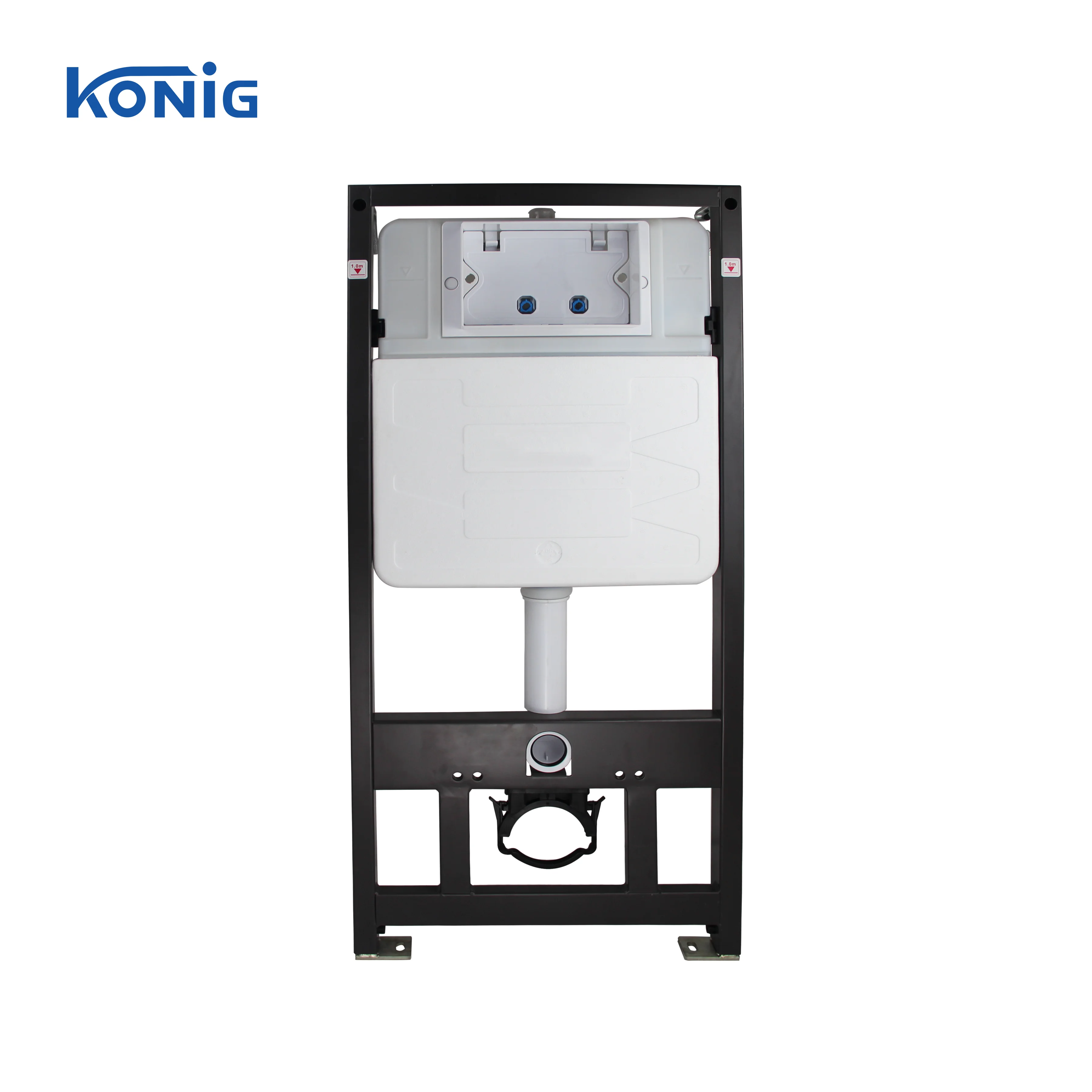

HOT! Modern 3 6L dual flush Wall mounted Toilet WC concealed cistern tank with metal frame

Application Purpose

For installation in split-height preWall construction in front of a solid or drywall construction

For a floor construction 80-200mm.

For wall-hung toilet with fastening distance 180 or 230mm.

Characteristics

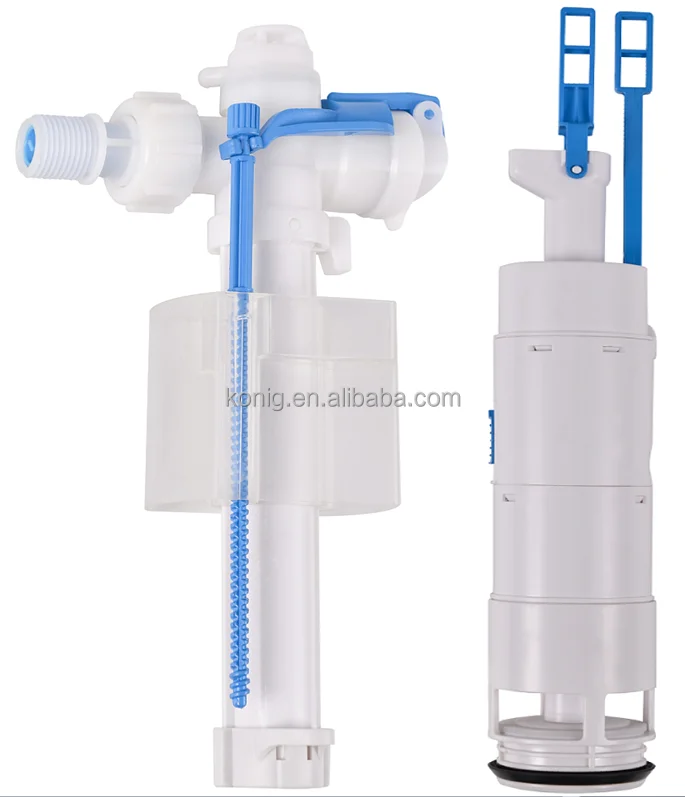

6/4L or 4.5/3L adjustable flush volume

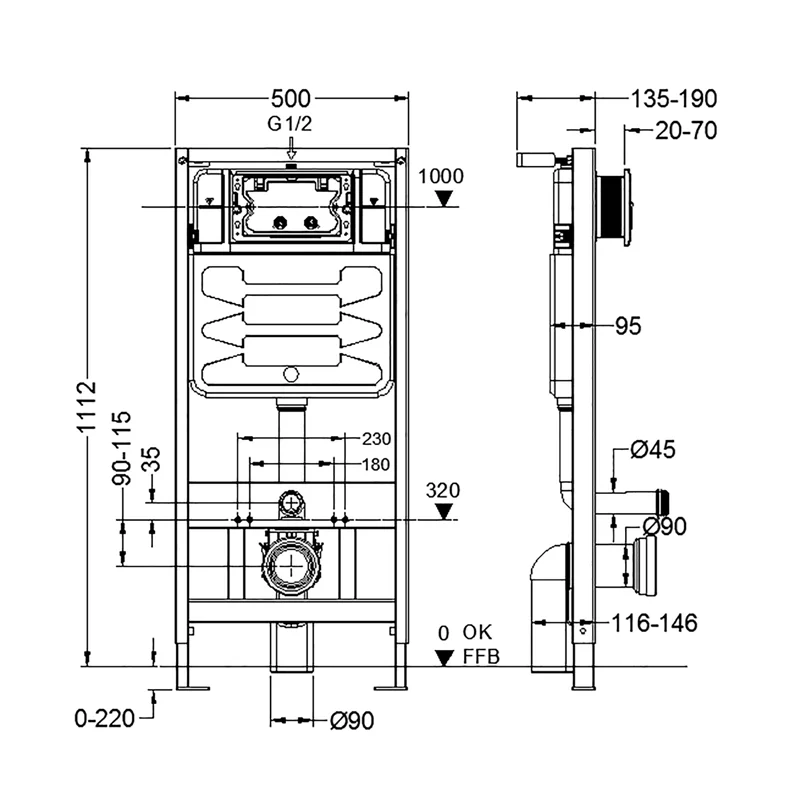

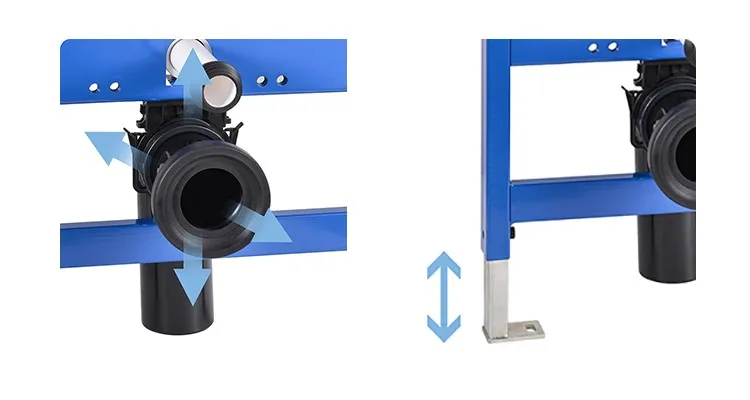

         Drainage pipe bend adjustable up and down:90mm-115mm, front and back:116mm-146mm

Water supply connect at the top

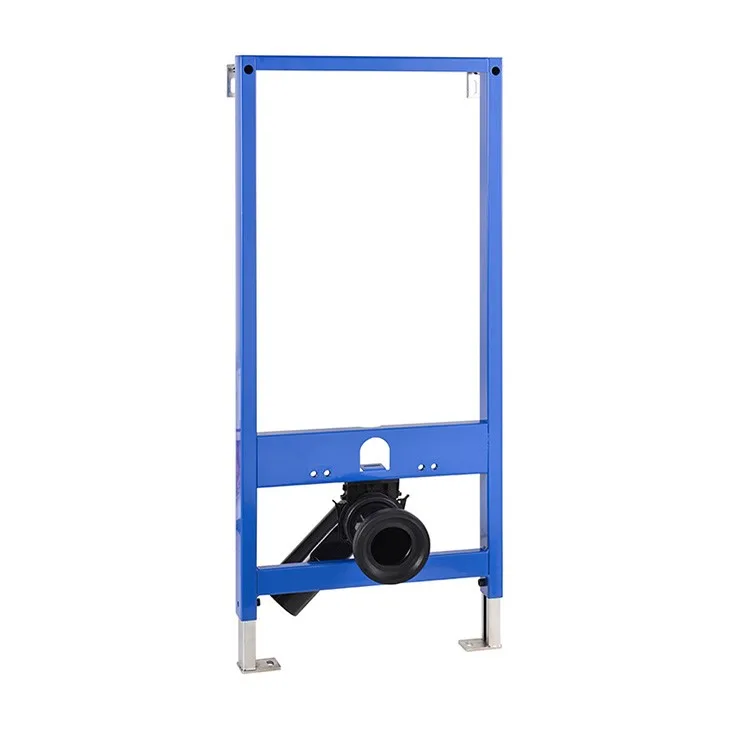

         Self-supporting frame, height 1120mm

Cistern cover by Poly foam , anti-condensation protection

         Powder-coated, color Boges blue

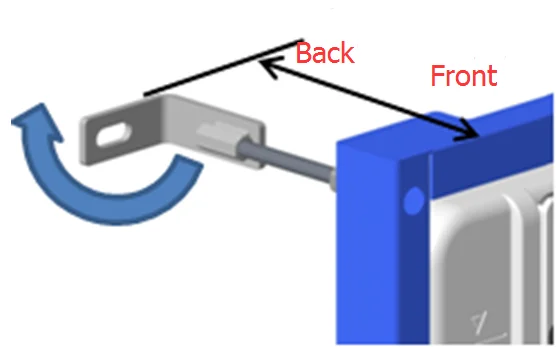

       Galvanized arm adjustable 135-190mm, galvanized leg adjustable 0-220mm

Ordering information

G1/2’’X3/8’’ water supply Copper or Plastic angle valve, options

Maintain window protect frame, ABS material, can be cut in need

Drainage pipe bend HDPE  D:90/110mm

Flush connect pipe D45mm X L180mm, PP material, can be cut in need

Drainage pipe D90mm X L180mm, HDPE material, can be cut in need

Flush connect pipe rubber, drainage pipe rubber

         2 groups rods M12 for ceramics fastening

Protection plug, PP material

4 groups setscrew

1. R&D

Strong R&D team for the new product

2. Full Test Facilities

salt spraying tester

Carton Strength Tester

Weatherometer

Life tester

Inlet and Outlet Tester

3. ISO9001 Management

4. Good Quality Control

5. Durable and Fashion design Product.

6. Competitive Price.

7. Care After Service.

Zhongshan Boges Sanitary Ware Co., Ltd. established in 2003, is affiliated with the American Konig investment group, is a famous professional sanitary water saving cistern research and development high-tech company, the production base is located in shower room industry manufacturing base, Zhongshan City, Guangdong Province, China.

 Plant area is more than 10000 square meters, with more than 300 staff. Now, there are 50 sets of domestic advanced technology of high precision injection molding machine, all equipped with automatic mechanical arm, realize the production automation, manufacturing cost is greatly reduced, that provide a powerful guarantee for Boges Sanitary Ware in the cistern field to lay status of Chinese cistern industry leader.

 Strength casting brilliant, behind the precise positioning is Boges Sanitary flying again. These achievements have been recognized by the industry and the vast number of consumers, Boges has honor as ‘Energy saving and environmental protection products of China’, ‘Chinese sanitary industry top ten famous high-quality brand’, ‘Chinese famous brand’, ‘quality reliable products’, ‘Chinese famous brand’.

1 What is the difference between series A and series B ?

A: series is more economic without the steel frame, A series is stronger, with steel frame.

2 Does it include all the fittings like the blowdown canal?

A: Our products are the full set of fittings sales, including all accessories.

3 Are the products can assembled Geberit panel ?

A: Yes, the 009 series can be assembled the Geberit panel.

4 Are the A or B series can assembled all of the wall hang toilets?

A: Yes, they can

5 What certifications do we have?

A: our factory and cistern fittings have passed the European CE Certification, China's water-saving certification, and have our own patent.

6 Can you provide the free samples?

 A: Yes.  however the freight will be paid by you .

7 What is the MOQ?

A: In general, up to 30 pcs.

8 How long is the delivery time?

A: Under normal conditions, 20 to 25 days.

9 What is the adaptive panel size?

A: 245 x165mm

10 Do you offer OEM service?

A: Yes.

11 Is there the risk of leakage?

A: 100% inspected before shipment. Durable for use more than 20 years.

12 How to solve the after-sales problem?

A: we will provide the free after-sale accessories for each shipment of the 0.3% of the goods value. If some problem with the quality, we would provide the accessories for free and sent together with purchaser’s goods.

13 Does it have the noise avoiding?

A: The surface of the cisterns is provided with a layer of foam, which have reduce noise and thermal insulation function. And the test result from the lab is less than 50 dB.
