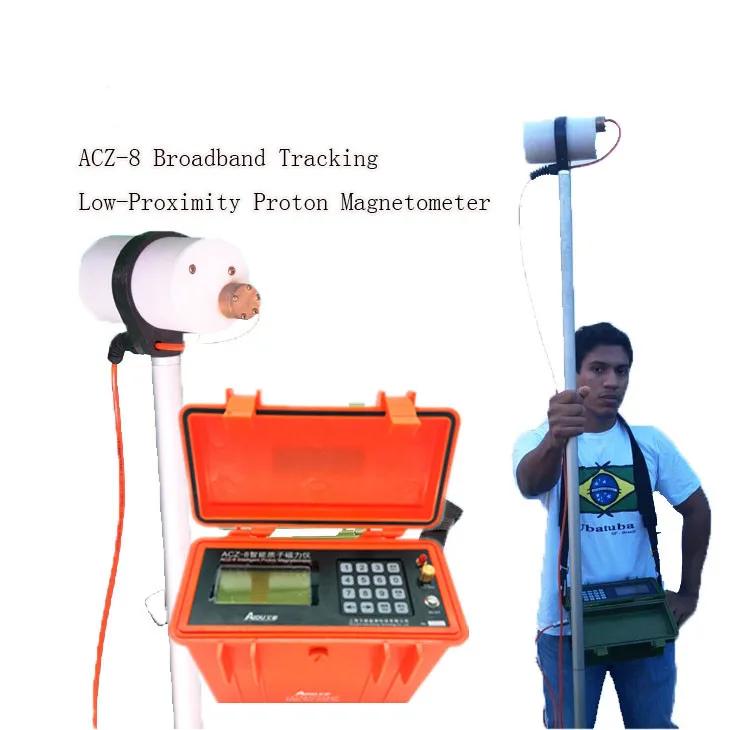

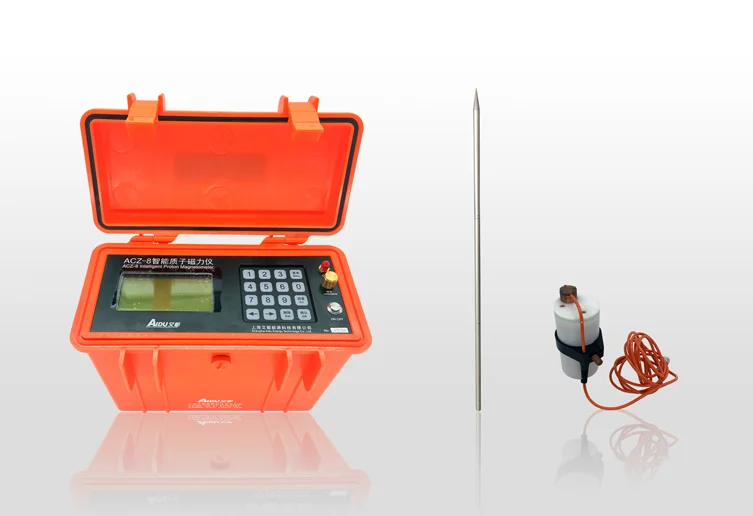

Протонный магнитометр и минерального детектора ACZ 8

Product Overview

Description

Brief Introduction

ACZ-8 is a proton magnetometer&mineral detector which bases on the principle of the free precession of the magnetic moment of hydrogen proton in magnetic field. This mineral detector could be vastly used in weakly magnetic mineral prospecting &metal detection with high resolution of ±0.5nT in the global area without any parameter modification.Besides,ACZ-8 mineral detector has some amazing advantages such as built-in GPS,coordinate record ,navigation lights etc.



Characteristics:



1. Full intellectual property
2. High-tech product
3. Efficient, easy to operation
4. High accuracy, wide frequency range



The Principle of ACZ-8 Magnetic Mineral Detector:



The principle of ACZ-8 mineral detector&proton is that the magnetic moment of hydrogen proton will make free preccession in magnetic field,which could be used to measure the abnormal magnetic change generated by the ground geological substance.we can estimate underground geological formation nature (ground water) and mineral conditions like location, buried depth, shape and volume etc. after doing interpretation to abnormity.



Main Feature:

1. Built-in GPS, coordinate record, navigation lights, and the  connection is more simple, and the instrument is more reliable.
2.Full-scale automatic tuning or artificial manual tuning.
Built-in precision clock, GPS timing to ensure the clock of base stations and mobile stations is accurate synchronization.
3.Each point is stored with the information of the magnetic field result, point coordinate time and temperature etc., directly output all the data with a U disk.
4.English interface, and automatically displays the magnetic field value curve, the operation is more easier and convenient.
5.Portable and light, one person can finish all the work.
6.Equipped with the software to do the diurnal correction and create the contour map and profile map.





Application:



1. Widely used in mineral exploration(such as iron ore, lead and zinc, copper etc.).
2.With mining exploration, research the ore body’s buried depth, occurrence and continuity, and study the shape and size of the ore body, estimate the deposit, oil and natural gas exploration, research the geological structure and tectonics of oil and gas etc..
3. The diurnal correction of aviation and marine ground magnetic survey, fault location, archaeologic, engineering exploration, such as pipeline detection, earthquake precursor monitoring, and volcano observatory, as well as other environmental and disaster geological work.



Technical parameters:

Measuring range	20,000nt~100,000nt
Measurement Accuracy	±1nT
Resolution	±0.1nT
Allowed gradient	≤6,000nT/m
GPS positioning accuracy	≤2.5m
Screen	320x240 graphic LCD with backlight
Input keyboard	16 keys
Working temperature	-10°C~+50°C
Data transport	USB
Data interface	USB2.0
supply power	Built-in big capacity recharge lithium battery
Weight	2.3kg
