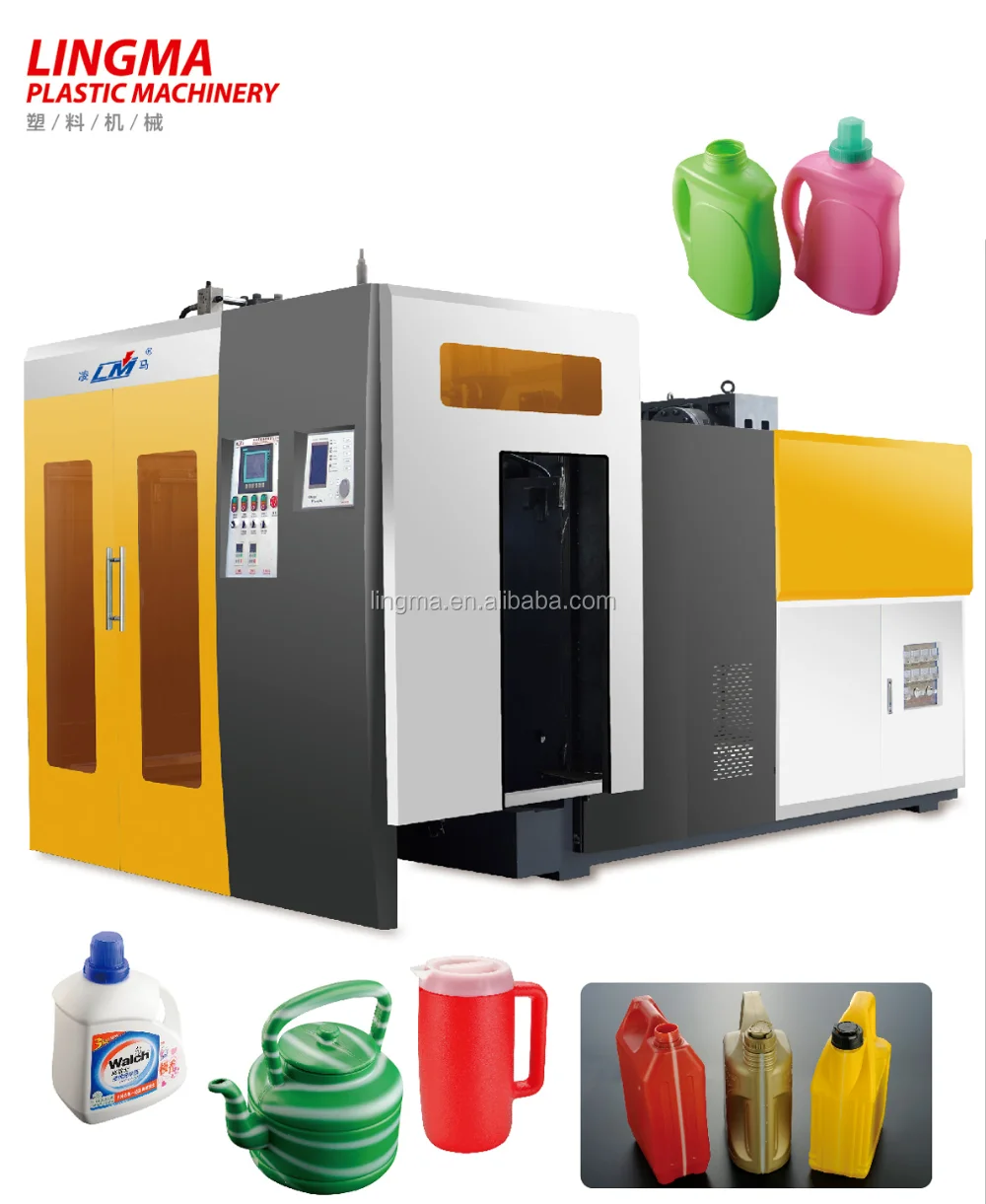

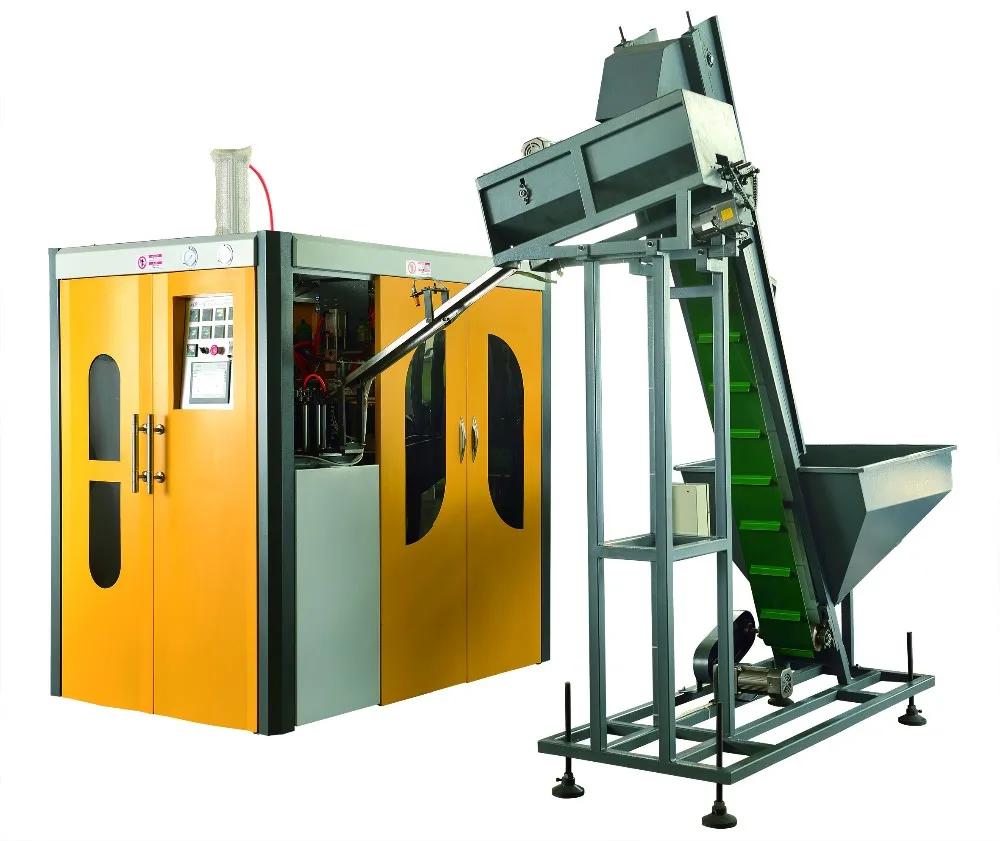

automatic jerry can extrusion blow moulding machine for 2/4/5lt bottle/hdpe plastic bottle making machine

our machine is equipped with SEIMENS PLC control system,operating manual in English, hydraulicy system  operated, clamping by hydraulic system .Moreover,It is also equipped with de-flashing system, resulting in saving time and manual cost for clients, servo motor elected for energy saving. its  Suitable for various materials, such as PE/PP/PVC/PS/EVOH/EVA/PET and so on. it was  used to make  various kinds of plastic products, such as oil jerry can, detegent bottle ,cosmetics bottle, pharmaceutical bottle, food package, plastic toys, Christmas ball, plastic lubricating oil bottle .

Basic Parameters	suitable material	PE,PP,PVC,PS,PETG,so on
	max volume	5000mL
	Die head number	1
	Size	4×2.2×2.4(M)
	weight	6.8T
	Total power	55KW
	Stations	2
System	specification	parameters
Extrusion System	Summarize	High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature
	reducer	Hard finishing, high intension, low noise reducer
	screw	∮75mm,L/D ratio 22-24/1,38CrMoALA with nitriding surface HV≥800, brittleness≤2;
	Plasticization	90Kg/H
	Screw Heating zone	7 Aluminum heater
	Screw Heating power	7.2Kg/H
	extrusion Motor	three phase asynchronous motor(380V,50HZ)75HP
	Cooling Fan power
Die System	Summarize	high-grade alloy steel,center feeding
	Max die mouth	∮30mm
	Die Heating zone	7 Stainless steel heating cycle
	Die Heating power	5KW
Clamping System	Summarize	High intension,rigidity,center mold locking,stable mould opening and clamping system
	Clamping force	100KN
	Template distance	500-1400mm
	Template stroke	500-1401mm
	Max mould size	W*H: 520×470mm
	Mould material	High grade 50 ﹟steel
Electric System	Summarize	PLC+touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault alarm, auto counting, auxiliary function available)
	Operate interface	10 inch colorful touch screen, automatic self-diagnose alarm system
	Temperature control	Automatic temperature control module Temperature controlling precision: Various in ±1%;
	Movement control	SEIMENS, Chinese/English Version
	Electric protection	Ampere overload, electric short circuit self-portection function
Hydraulic System	Summarize	Multipel function hydraulic integrated block proportional control, high eficient
	Oil pump motor	three phase asynchronous motor(380V/220V, 50/60HZ)15KW
	Oil pump	Japanese double Vane pump
	Valves	YUKEN valves and connections
	Oil pipes	double layer overpressure resistant
	system pressure	60Kg/cm²
	cooling system	separate water cooling cycle, oil cooler cooling system
Pneumatic System	Summarize	FESTO an airtac pneumatic system
	Air pressure	0.8Mpa
	Air displacement	1M3/min
	Electromagnetic valve	FESTO
Cooling System	Summarize	Sparate cooling system of mould, barrel and oil system
	Water pressure	0.3-0.6Mpa
	Cooling medium	Water

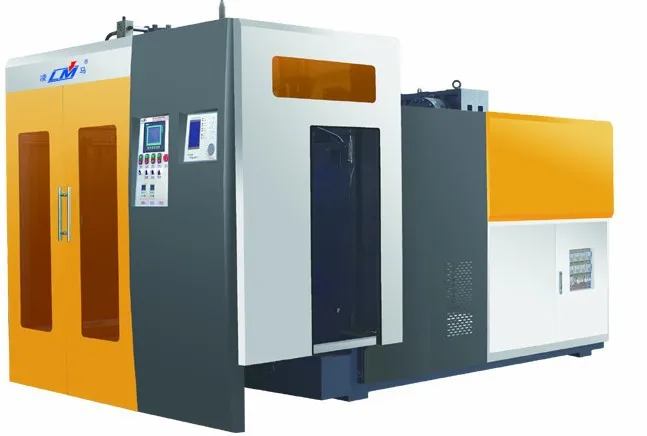

main construction

extrusion sytem detail.

Drives by a generator with frequency conversion, our extrusion system can realize the requirement of a transformable rotate speed of the screw for the blow machine process.

extrusion sytem detail 1

Screw with a big length-diameter ratio, has a good capability for processing all kinds of plastic with high plasticizing efficiency, low power expenditure.

extrusion sytem detail 2

Import linear guide rail with double station leads flexible and stable movements for the mould.

Siemens PLC human-machine interface control system, automatic fault-alarm, credible and highly automatic work, available for 40 molding process data in the compute

 system Capable of manual, half-automatic and full-automatic operating methods. Electrical and mechanical safety structures (stop working automatically when safety door open) guarantee operating security.

.Products with content level line or double-layer, triple-layer can be produced when 2 or 3 machines work together on the team extruding system with different die-head one each machine

adapt the different size of diehad core and cup .

1.) Material of screw: Special design according to the material request, High quality nitriding steel 38CrMoAlA，with nitriding surface HV≥800，brittleness≤2；

2.) Material of barrel: High quality nitriding steel 38CrMoAlA，with nitriding surface HV≥900，brittleness≤2；

The whole hydraulic system adopts Japanese YUKEN components and proportional controlling circle. It’s moving stand, exactly and longtime using.
Import hydraulic valve, seal and proportional control.

Optimized hydraulic oil loop design gains a stable, fast, energy saving property. working together with good brand pneumatic system.
