Nade Inverted microscope electronic microscope camera NIB 100
- Category: >>>
- Supplier: Zhejiang Nade Scientific Instrument Co. Ltd.
Share on (60595605168):
Product Overview
Description
Nade Optical Instruments Inverted microscope electronic microscope camera NIB-100
Product Description
Discription:
1.Excellent Optical Function with Infinitive Optical System.
2.Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Incubating Cell Tissue.
Feature:
With LWD Infinitive Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier
Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable
Different Holders for Various Observations
With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens
Specification:
| Viewing Head | Trinocular Head Inclined at300, Interpupillary Distance48-75mm | S | |
| Eyepiece | High-point, Extra Wide Field Eyepiece EW10×/ 22 | S | |
| Objective | LWD Infinite Plan Objective | 4×/ 0.1, WD 18mm | S |
| 10×/ 0.25, WD 10mm | O | ||
| 20×/ 0.4, WD 5.1mm | O | ||
| 40×/ 0.6, WD 2.6mm | S | ||
| Infinite Plan Phase Objective | PH10×/ 0.25, WD 10 mm | S | |
| PH20×/ 0.4, WD 5.1mm | S | ||
| PH40×/ 0.65, WD 0.35mm | O | ||
| Nosepiece | Quintuple Nosepiece | S | |
| Condenser | ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm) | S | |
| Centering | Centering Telescope (Φ30MM) | O | |
| Phase Annulus | 10×-20×,40× Phase Annulus Plate | S | |
| 10×-20×,40× Phase Annulus Plate | O | ||
| Stage | Plain Stage 160×250mm | S | |
| Glass Insert | S | ||
| Attachable Mechanical Stage, X-Y Coaxial Control,Moving Rang120×78mm | O | ||
| Auxiliary Stages70×180mm | S | ||
| Terasaki Holder | O | ||
| Φ38mm Petri Dish Holder | O | ||
| Φ54mm Slide Glass Holder | O | ||
| Focusing | Coaxial Coarse and Fine Adjustment, Vertical Objective Movement Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation | S | |
| Illumination | Halogen Lamp 6V/ 30W | S | |
| Filter | Diameter 45mm, Blue,Green and Ground Glass | S | |
| Photo Attachment | O | ||
| Video Adapter | Video Adapter with C Mount | O | |
| Note: "S" Standard Outfit, "O" Optional |

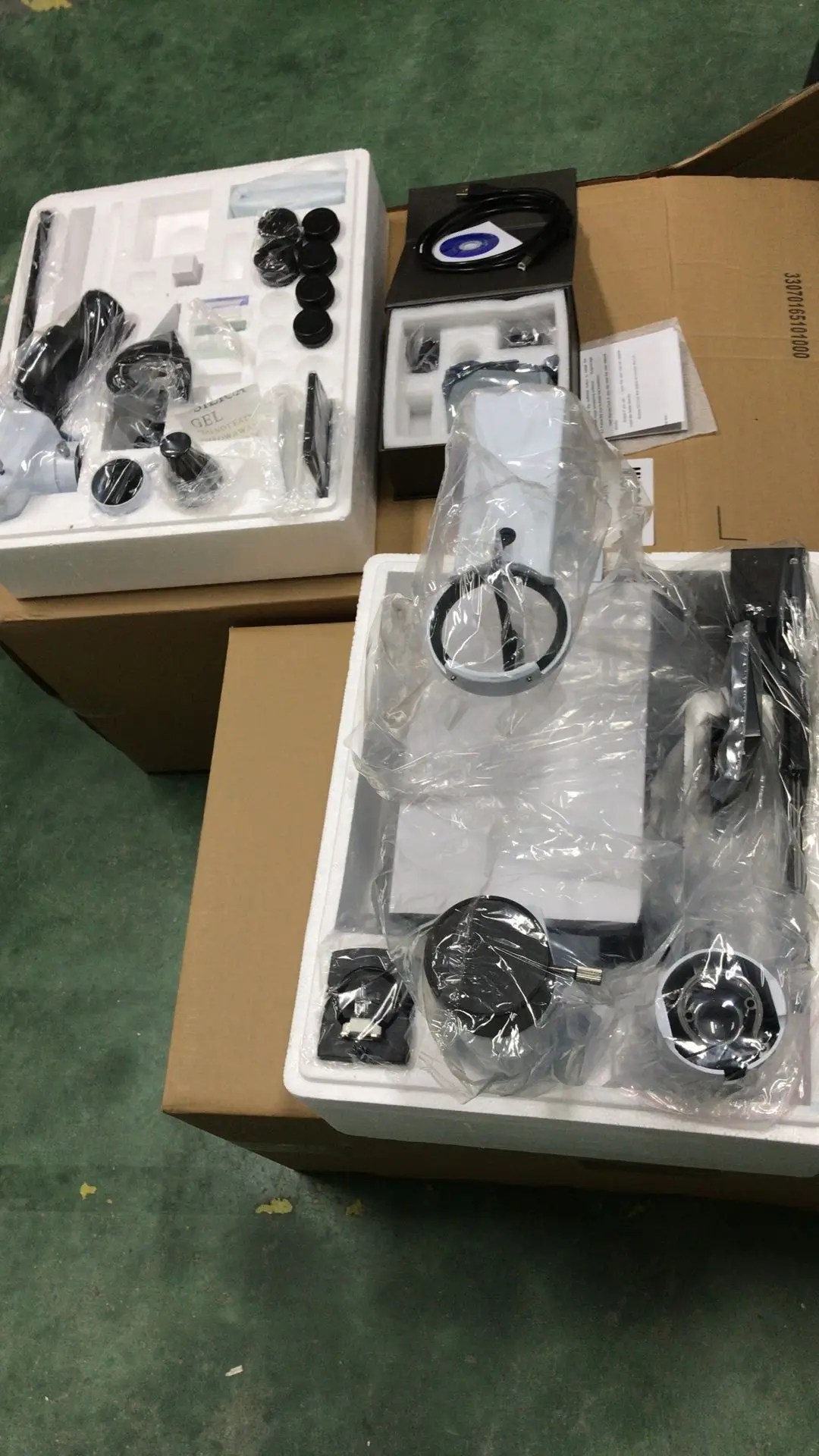

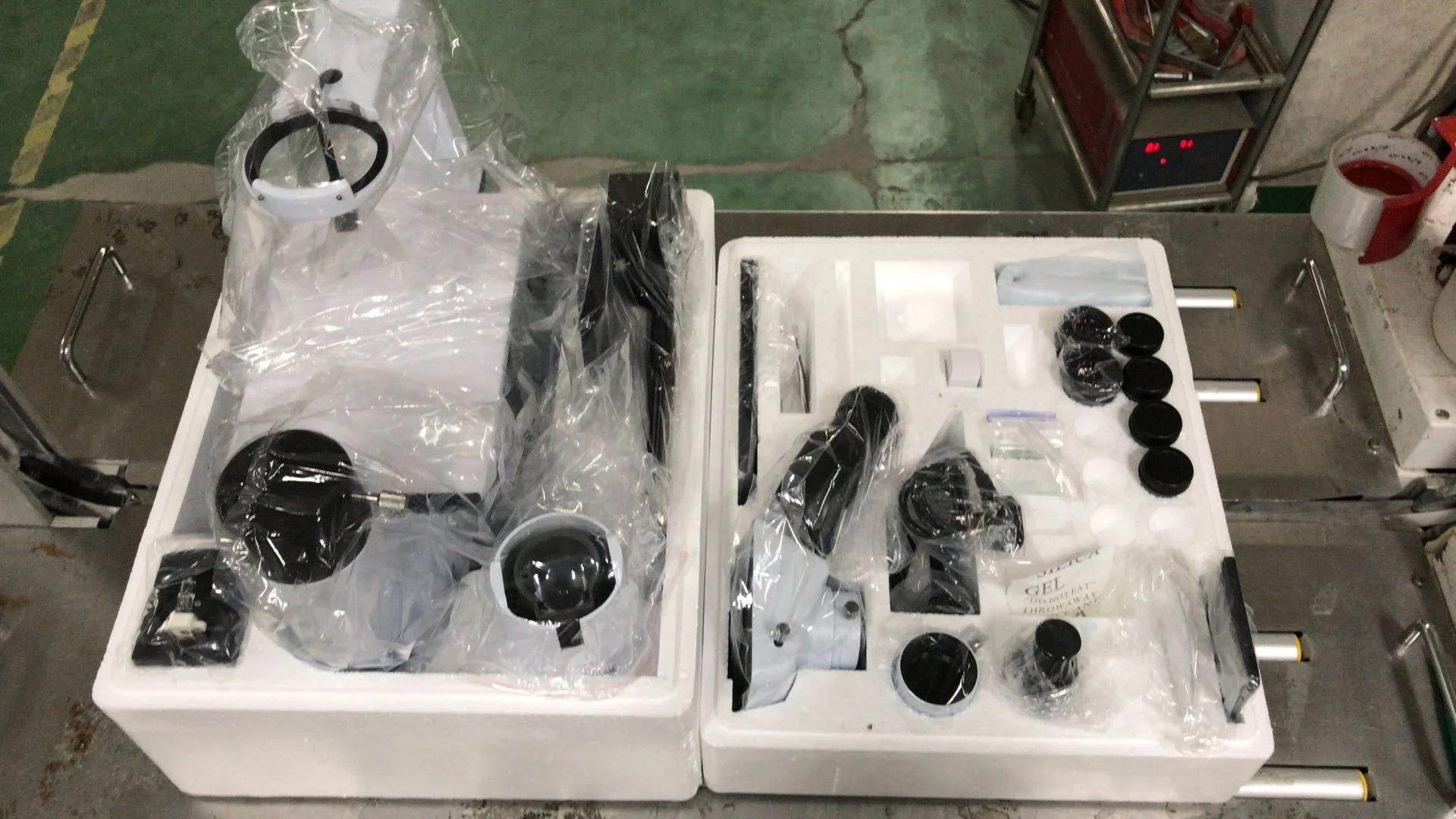

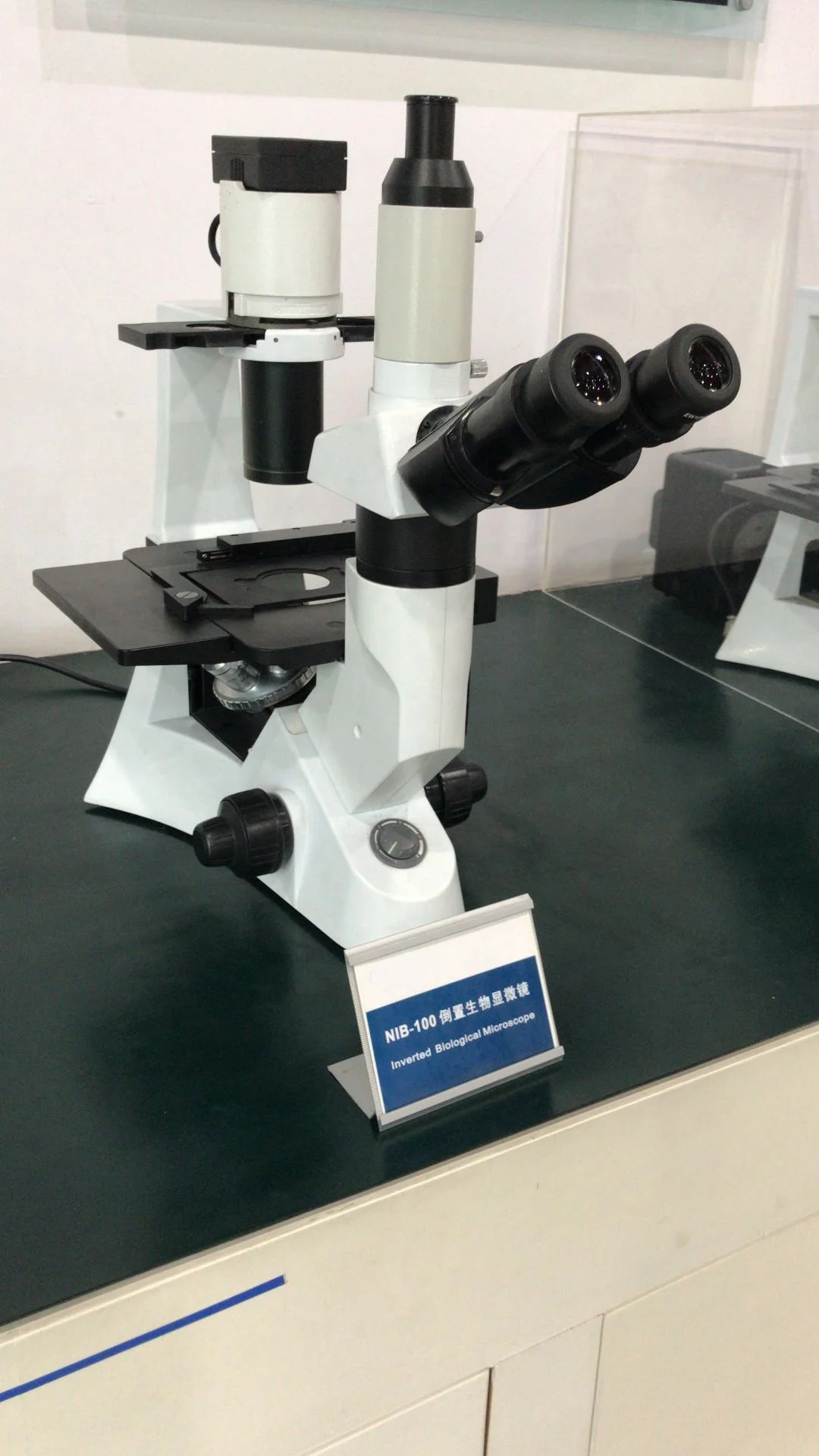

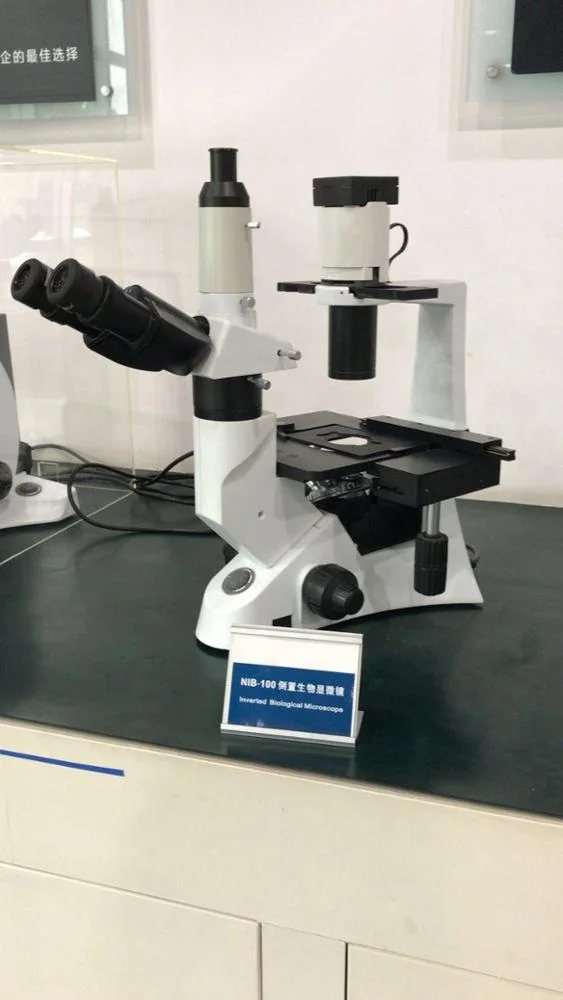

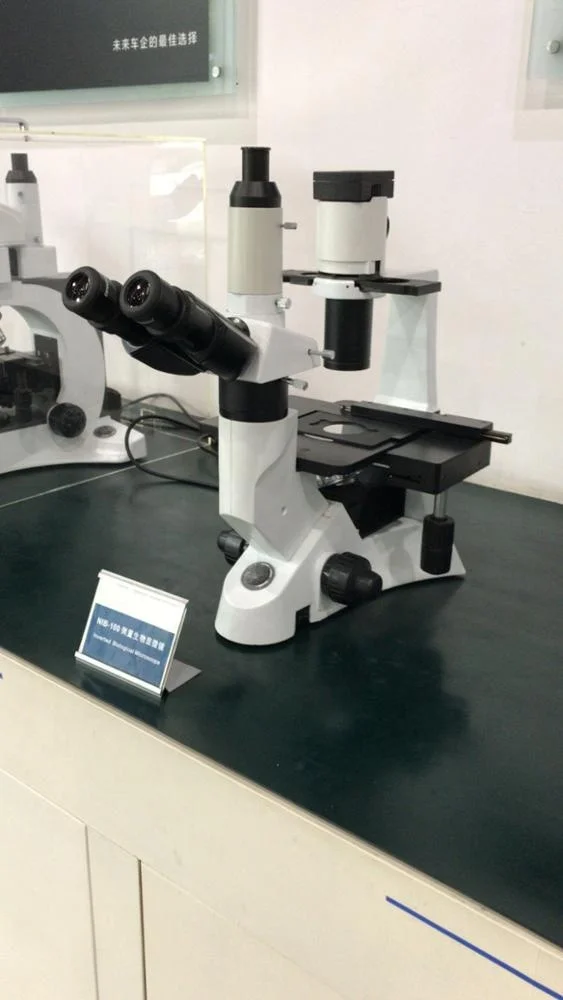

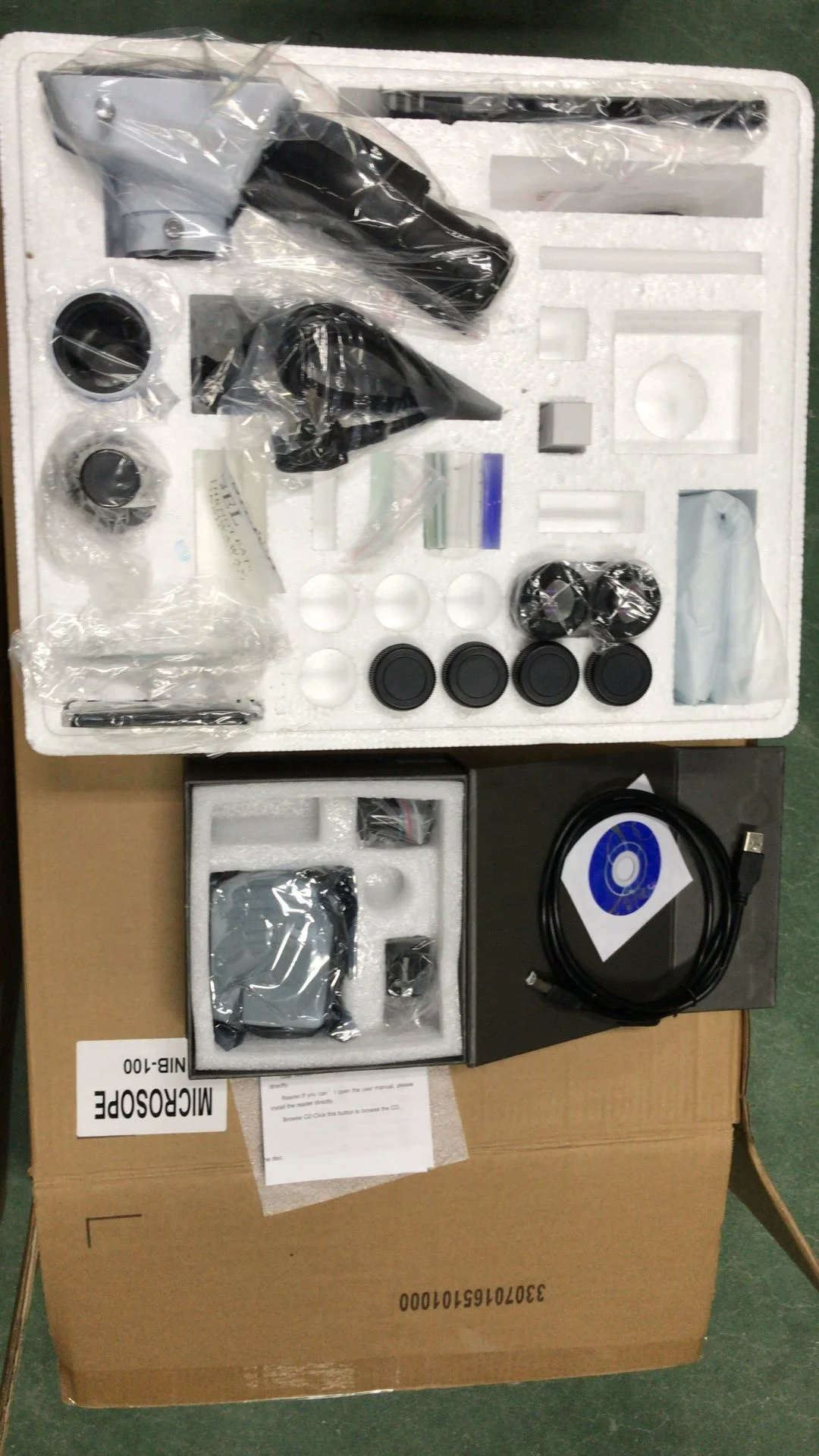

Real photos show
Packaging & Shipping
Company Information
Our Services
FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
