Factory Price Rock Breaker Hydraulic Rock Splitter For Hot Sale

Product Overview

Description

Factory Price Rock Breaker  Hydraulic Rock Splitter For Hot Sale Introduction

Hydraulic Operated Rock Split Machine is our newly developed product which is a powerful and extremely

cost effective alternative to other conventional demolition tools. It can develop a very huge splitting force

(Maximum 1000 T) when it put into the pre- drill holes of rock or concrete and crack it into pieces

 within several seconds. It is widely used in mineral mining (cave mining), civil engineering construction and

demolition. It is also an indispensable tool in construction, river dredging, salvation etc.

Factory Price Rock Breaker  Hydraulic Rock Splitter For Hot Sale Parameter

Rock spliter gun parameters
model	HW80-250	HW80-350	HW80-450	HW90-250	HW90-350	HW90-450
piston diameter	80mm	80mm	80mm	90mm	90mm	90mm
drilling diameter	Φ42mm	Φ45mm	Φ50mm	Φ42mm	Φ45mm	Φ50mm
drilling depth	500mm	550mm	600mm	500mm	550mm	600mm
cheese block length	250mm	350mm	450mm	250mm	350mm	450mm
crack width	10~40mm	10~40mm	10~40mm	10~40mm	10~40mm	10~40mm
splitting time	5~15s	5~15s	5~15s	5~15s	5~15s	5~15s
Theory of separatist force	600T	600T	600T	800T	800T	800T
The actul split force	480T	480T	480T	480T	480T	480T
weight	28Kg	29Kg	30Kg	31Kg	32Kg	33Kg



Pump pack parameters
Engine	Electricity engine			Gaslion/diesel engine
weight	60kg	110kg	150kg	100kg	130kg	150kg
capacity of tank	40L	60L	88L	45L	65L	90L
motor power	3.0KW	5.5KW	7.5KW	4Hp	7Hp	8Hp
working pressure(Mpa)	55-60	55-60	55-60	55-60	55-60	55-60
working flow(L/min)	2—13	2—13	2—13	2—13	2—13	2—13
configurable guns number	1—5	2—7	2—10	1—3	3—8	3—10

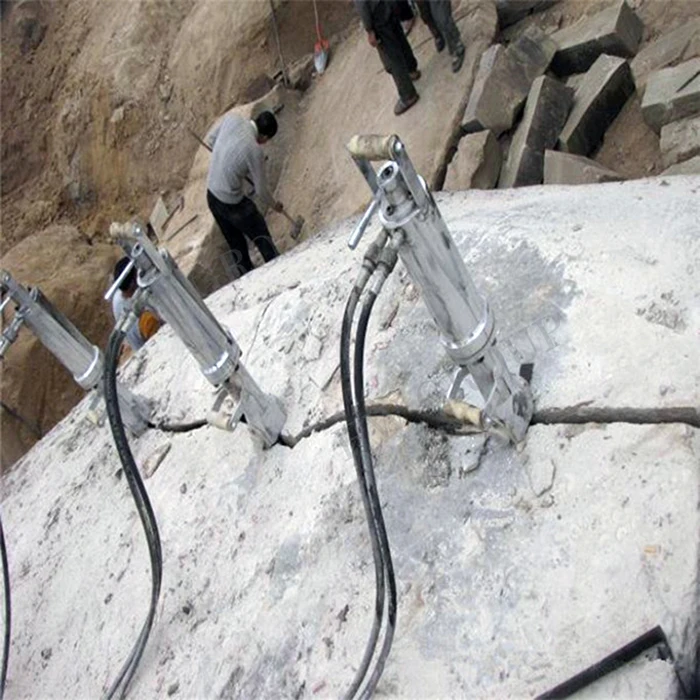

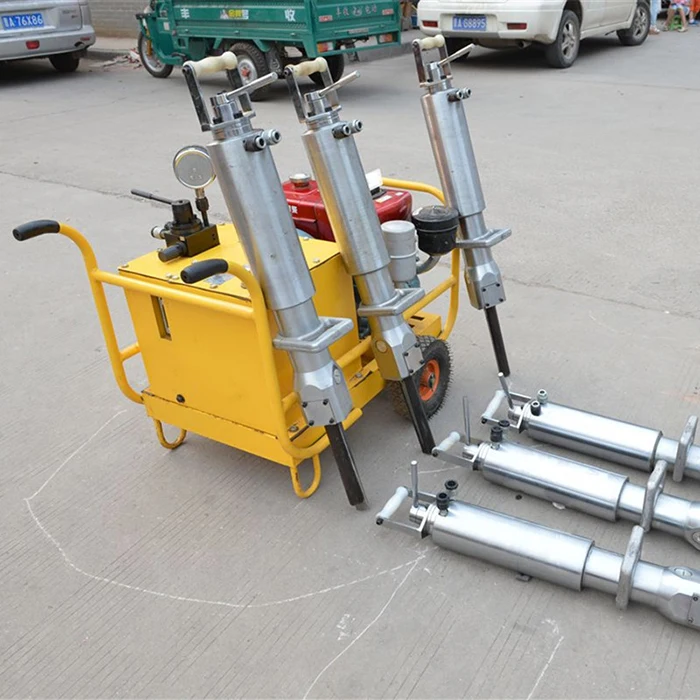

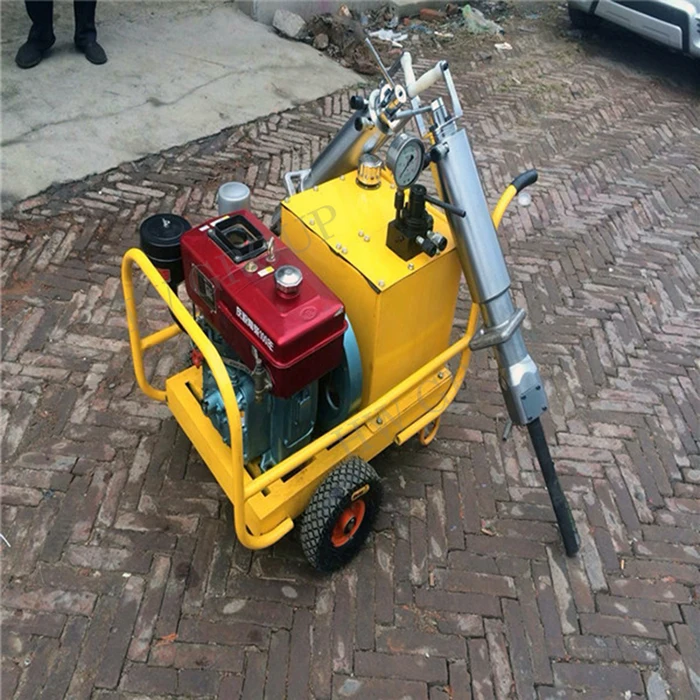

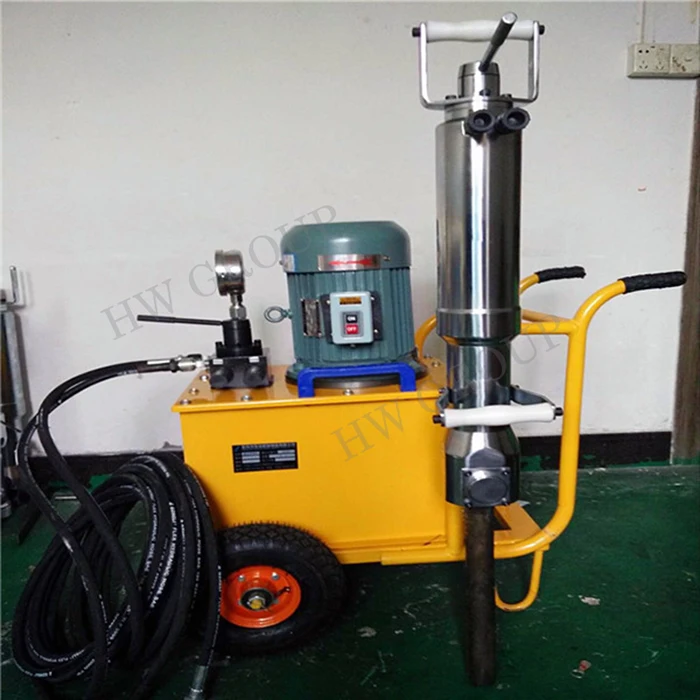

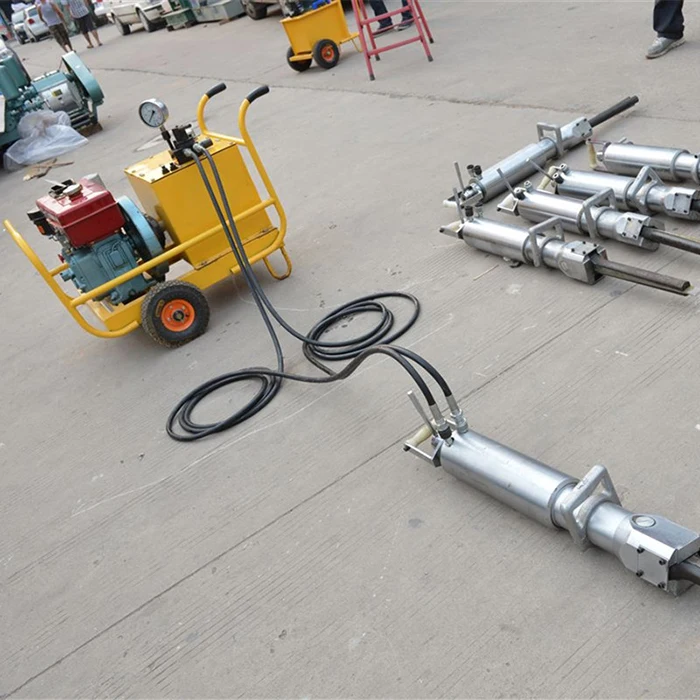

Factory Price Rock Breaker  Hydraulic Rock Splitter For Hot Sale Photos
