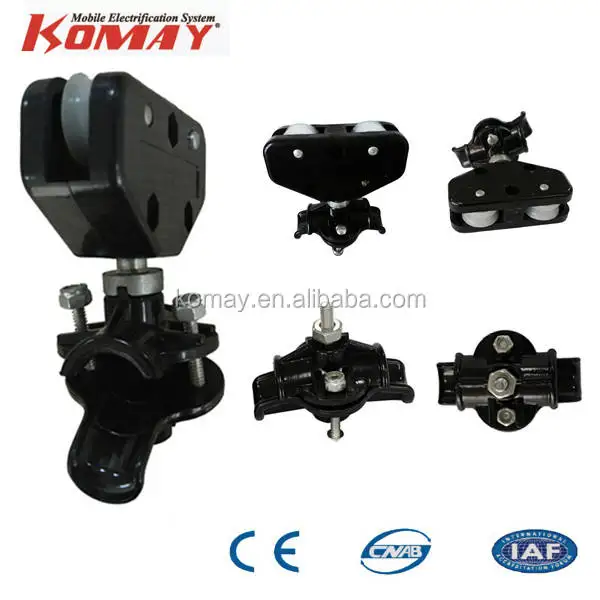

KOMAY Wire Rope Cable/ Crane Cable Trolley for Crane & Hoist

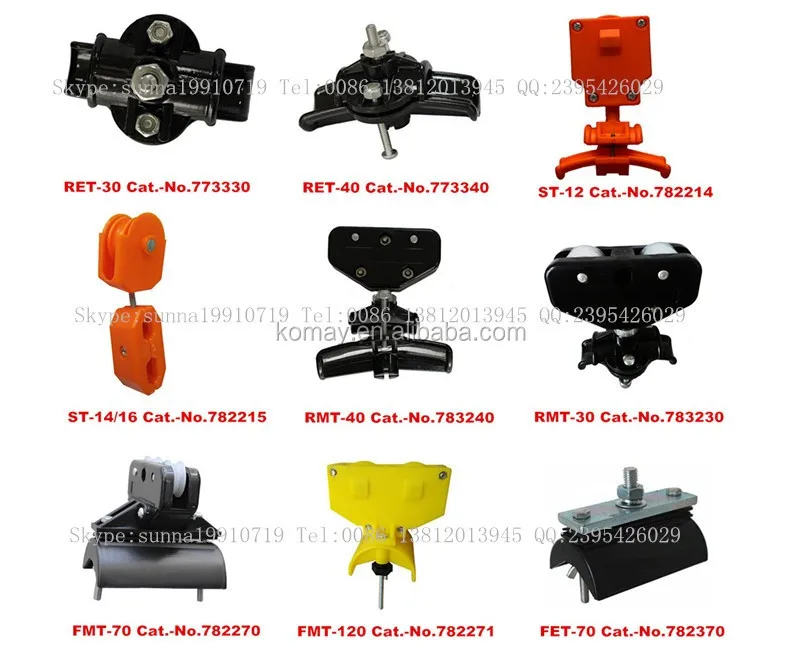

Product Overview

Description





Description

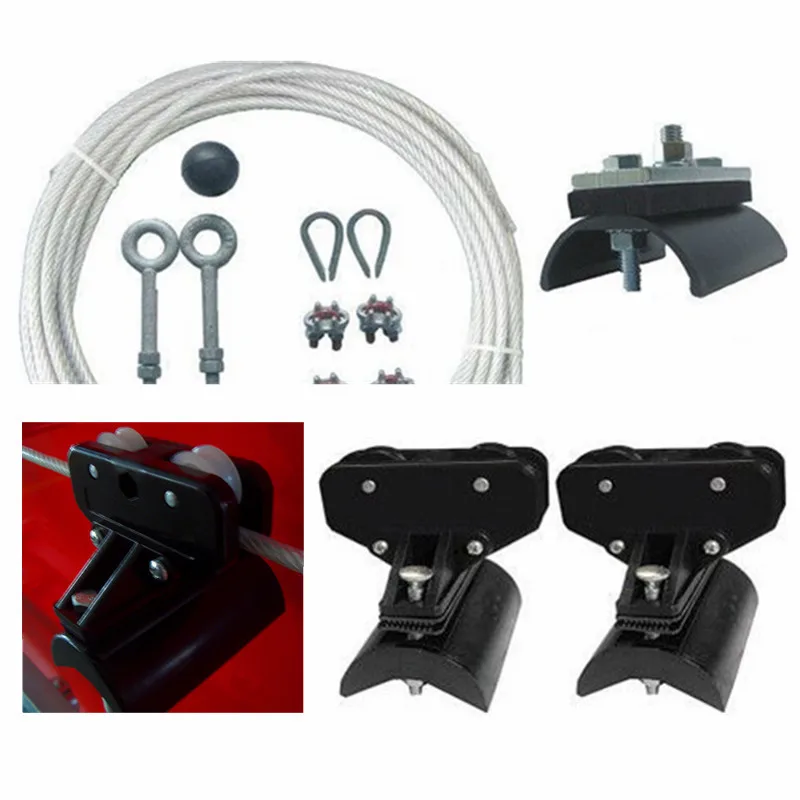

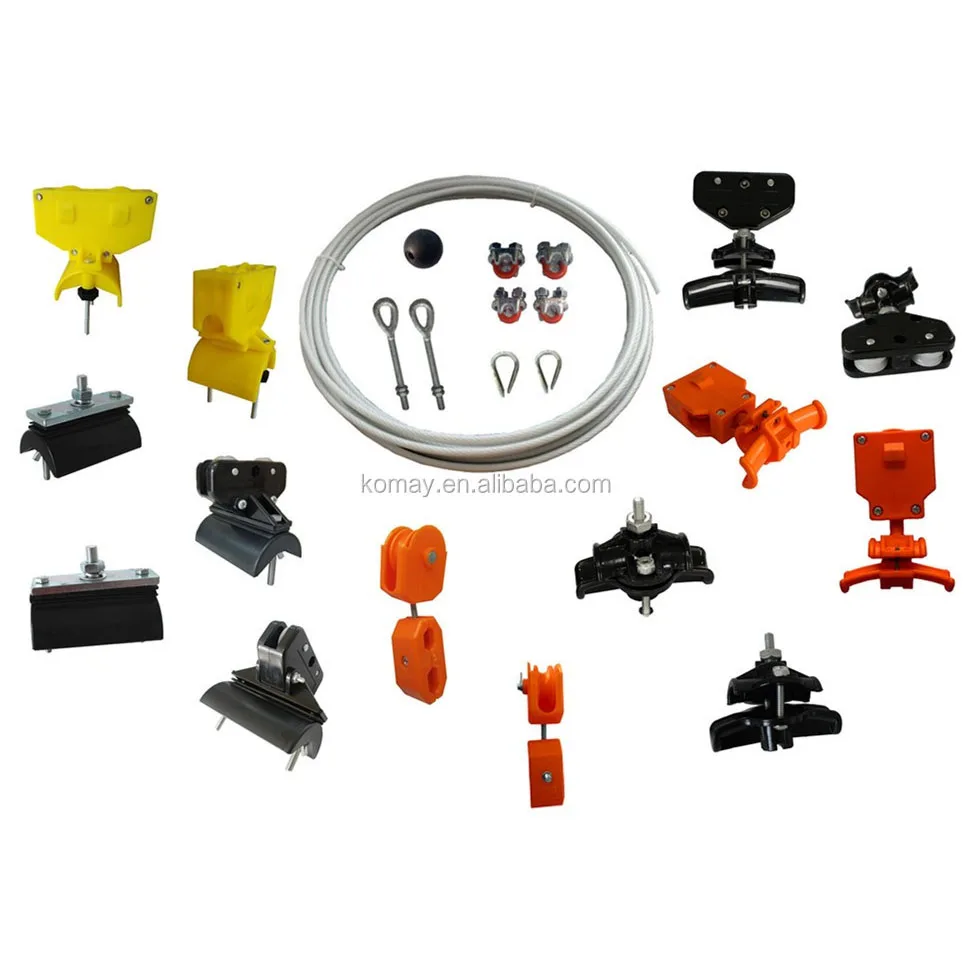

The festooning wire rope system kit is used for powering horizontally moving hoists, small cranes and moving parts on machinery. The wire rope systems included wire rope, intermediate car, end clamp and hardware kit.

General Safety Information

READ AND FOLLOW SAFETY INSTRUCTIONS!

Do not ue above the recommended overload capacity voltage or amperage rating of the cable which may affect the operation of the system.

Make sure all accessories are tightly encured.

Keep festooning system clear of any debris in the wire rope.



WIRE ROPE



Material	Max. tensile strength	Dim.	Weight
Transparent nylon-coved, steel galvanized	1000Nm	D=6.8MM	0.18KG/M





Ball Stop		Thimble
Material	Dim.	Material
Rubber	3.81mm with 0.76mm central hole	Steel, Galvanized



Eyebolt



Material: Steel, Galvanized

Dim.: 0.95mm*15.24mm



Wire Rope Clip

Material: Steel, Galvanized













Step 1: Wire Rope

Combine the eyebolt, two wire rope clips, one thimble and one ball stop together on one side of wire rope and then affix the eyebolt at the required position(refer to Figure 2).

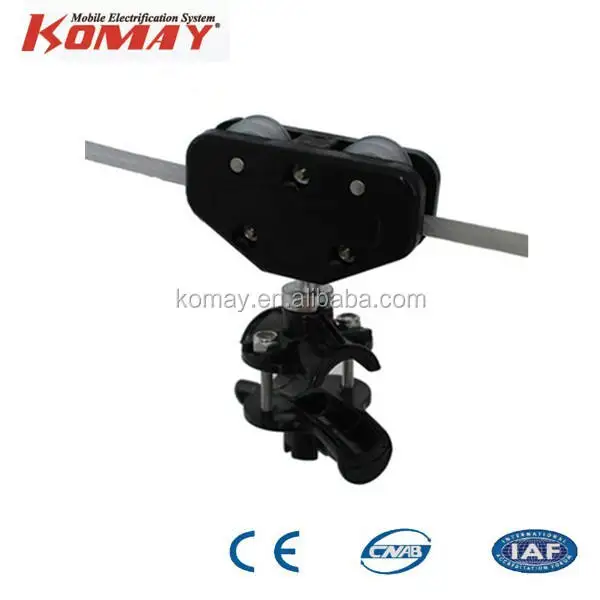

Step 2: Intermediate car installation

Install the intermediate are from the unfixed side of wire rope. Configure the other side of the wire rope(except the ball stop) the same way as noted in Step 1. Ensure that the wire rope i straight.

Step 3: End Clamp Installation

Install one end clamp to the cable access side and connect the other end clamp on the movable trolley/ hoist.

Step 4: Cable

Place the cable through the intermediate cars and end clamp.
