Densen customized High quality sales casting carbon steel Industrial wcb stem gate valve
- Category: >>>
- Supplier: Shenyang New Densen Casting And Forging Co. Ltd.
Share on (60596263216):
Product Overview
Description

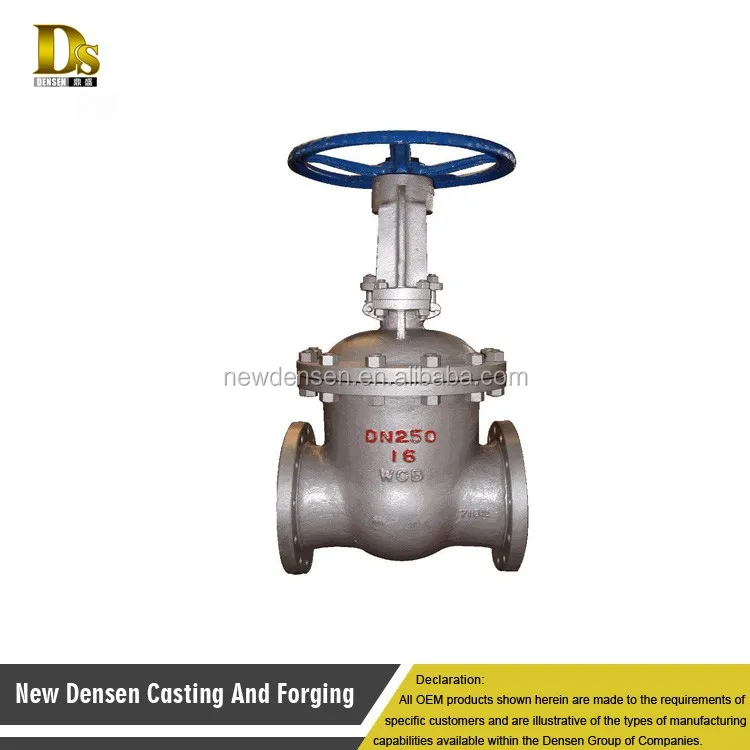

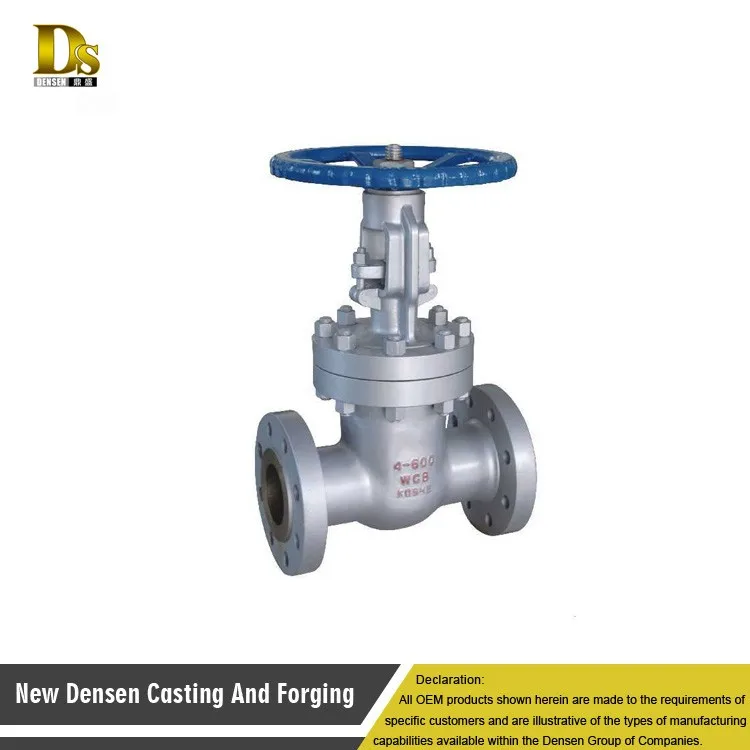

Densen customized High quality sales casting carbon steel Industrial wcb stem gate valve
THE MAIN PARTS MATERIAL OF OUR GATE VALVE
No. | Part name | Material | ||
1 | Valve body | Cast ductile iron | ||
2 | Wedge disc | Cast ductile iron with rubber coverage | ||
3 | Hexagon socket-head cap screws | Carbonization | ||
4 | Sealing ring | NBR rubber | ||
5 | Bonnet | Cast ductile iron | ||
6 | Stem | Stainless steel | ||
7 | O-ring | NBR rubber | ||
8 | Thrust bearing | Tin-bronze | ||
9 | Bolt | Stainless steel | ||
10 | Gland | Cast ductile iron | ||
11 | Dust cover | NBR rubber | ||
12 | Handwheel | Cast ductile iron | ||

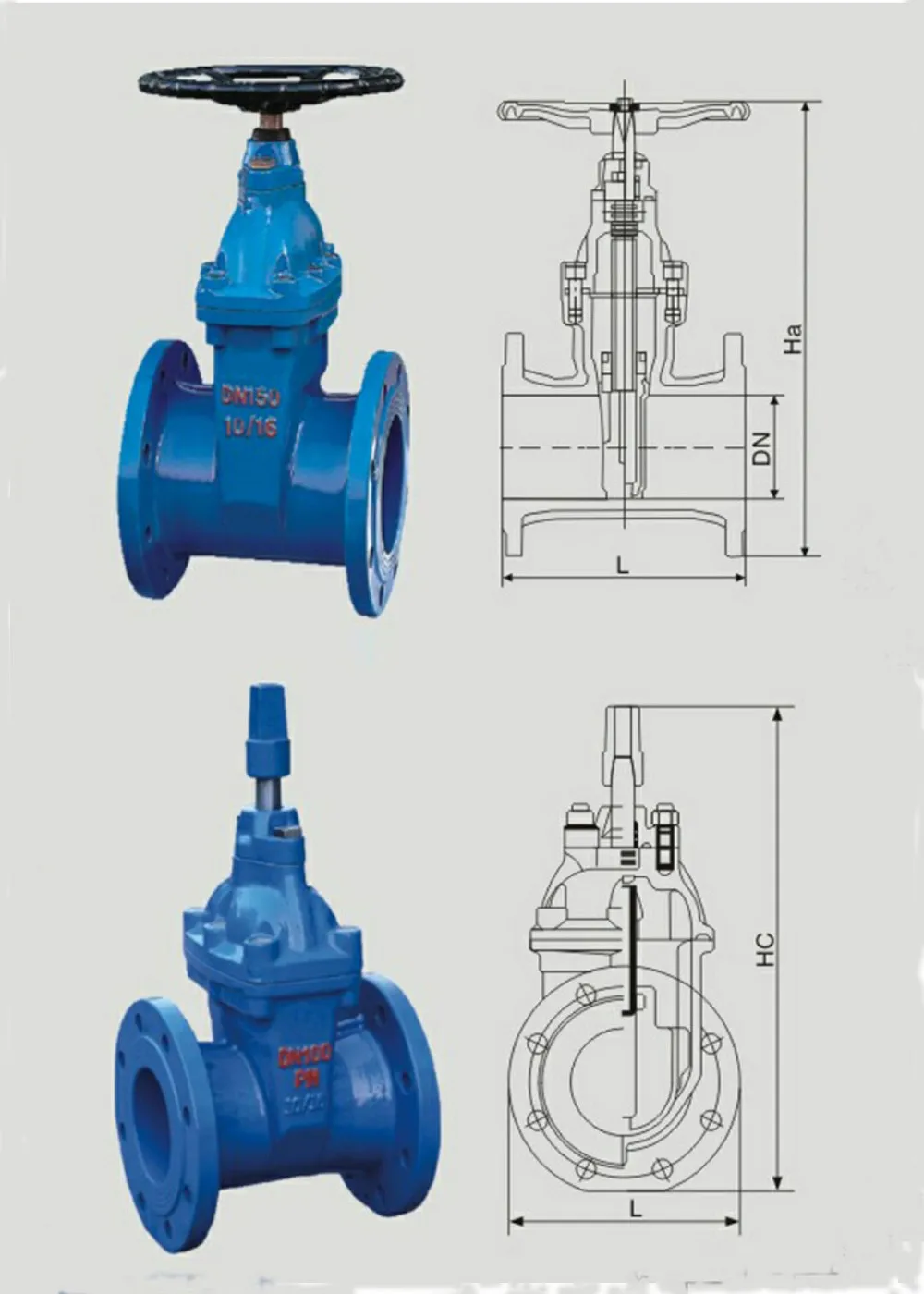

The structure of our industrial wcb stem gate valve
By using rubber coating for the whole gate valve to produce deformation compensation to achieve good sealing effect. Overcomed other gate valves’ shortcomings such as poorly sealed, leakage or rust. Our gate valve is more effective and save installation space. Widely used in city water supply, sewage treatment, construction industry, petroleum pipe line, chemical industry, foodstuff industry, pharmaceutical industry, textile-industry, power sector, shipbuilding, metallurgical industry, energy system and other fluid pipes as regulator or cut-off equipment.
Technical Parameters Of Our Stem Gate Valve
Nominal pressure:1.0~2.5MPa
DN: 50~600mm
Operating temperature :0~80℃
Applicable medium: water oil gas and so on
Flange standard:GB/T 17241.6 GB/T 9113
Test standard: GB/T 13927 API 598
OEM and Customized Design
The Advantage of Our Inductrial wcb Stem Gate Valve
1. integral seamless steel tube pressed full-auto welded without leaking outward.
2. PTFE+25% carbon fiber and disc spring feely compensating structure zero leakage.
3. can be directly buried without need of a high ground well,saving the engineering cost.
4. both valve and pipeling are made of the same material, without the condition of uneven sterss.
5. in multiple connection combination, for use with special working conditions.

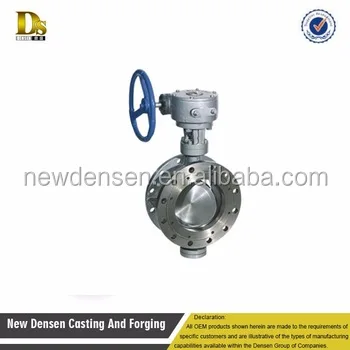

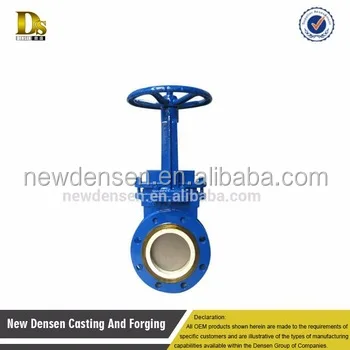

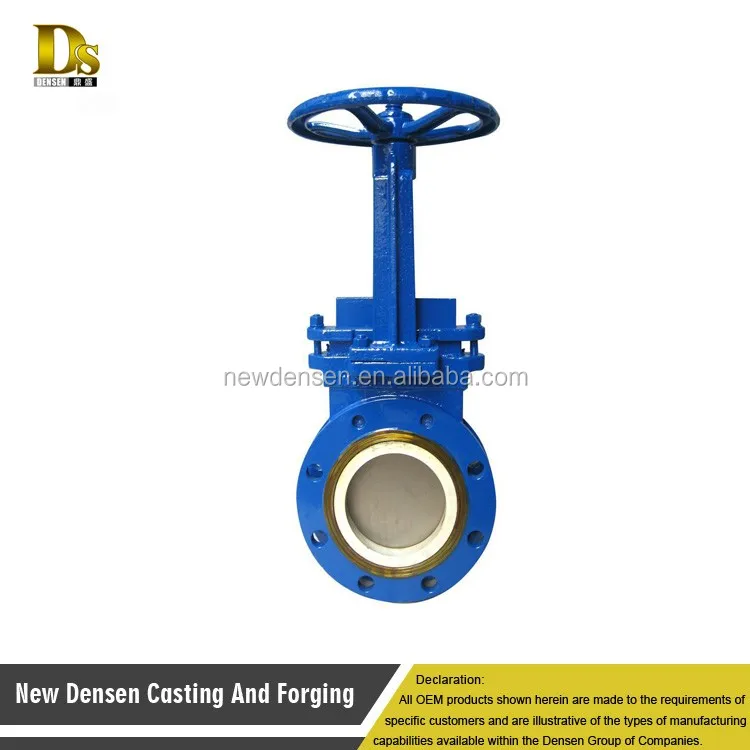

We Can Also Supply Other Valves Like These
Our products of fully welded ball valve:
We can offer the products as your request and drawings.
FAQ
Q Are you a manufacturer or a trader?
A We have our own foundry ,forging factory and machinery shop located in Liaoning Province, China.
Q What can you do for customer?
A One Stop Service
1).Manufacturing and supply various machinery parts
2).Technical analysis and design
3).Factory audit, on-site production supervision, in-time feedback, pre-shipment quality inspection
Q How could you commit the product quality?
A 1) All our factories were ISO certified.
2) More than 50% of New Densen’s products were sold to worldwide top 500 companies which located in North American, Western Europe, and Japan.
3) New Densen’s QC engineers will do on-site supervision and before EX-work quality inspection. New Densen will issue inspection reports for customers’ approval before EX-work. New Densen will be responsible for its reports and every parts no matter how long sold to customers.
Q What is your payment term?
A 1) Pattern and tooling: 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.
2) Sample : 50% prepaid as order deposit; balance 50% paid within 10 days after samples approved.
3) Product: 30% prepaid as order deposit;70% paid before EX-work.
Q How long shall we get the quotation?
A Processing time for inquiry: 1-3 working days.
Q What is your company product range?
A We are a professional customized mechanical components supplier.The process could be casting, forging, machining,stamping,welding,fabrication.The material could be iron,steel,non-ferrous etc.OEM and ODM are welcome.
Q Are your products are standard or non-standard?
A Mostly non-standard.Just send us your drawings and specifications,we will try our best to provide you a best scheme.
3rd Party Inspection
3rd Party Inspection:
New Densen worked as 3rd party inspection center besides its sister factories or sub-contractors' self inspection, Offers process inspection, random inspection and before delivedry inspection services for material, mechanical, inside defects, dimentional, pressure, load, balance, surface treatment, visual inspection and test. Weekly project follow-up report together with pictures and videos, full quality inspection documentation available.
New Densen also designed as 3rd party inspection representative for several customers when their products made by other suppliers.
Application:
