CE ISO Good quality LCD laptop Ultrasound machine/animal/veterinary Ultrasound Scanner/ ultrasound price for cow horse

Product Overview

Description

• DBF: Digital Beam Forming technology
• DFS: Dynamic Frequency Scanning technology
• DRF: Dynamic Receiving Focusing technology
• RDA: Real-time Dynamic Aperture imaging technology
• DRA: Real-time Dynamic Receiving Apodization technology

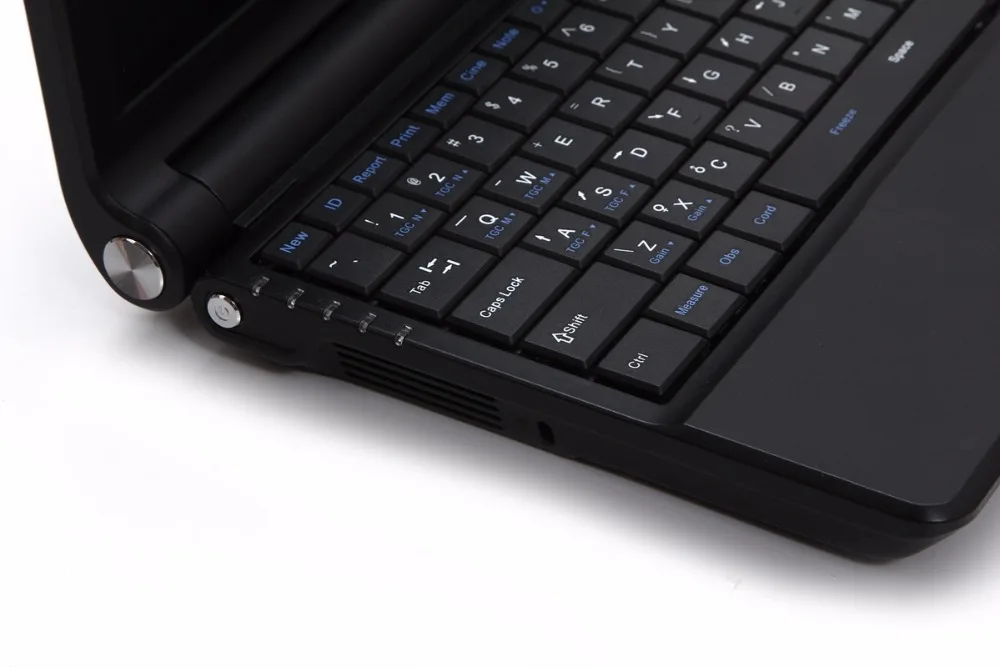

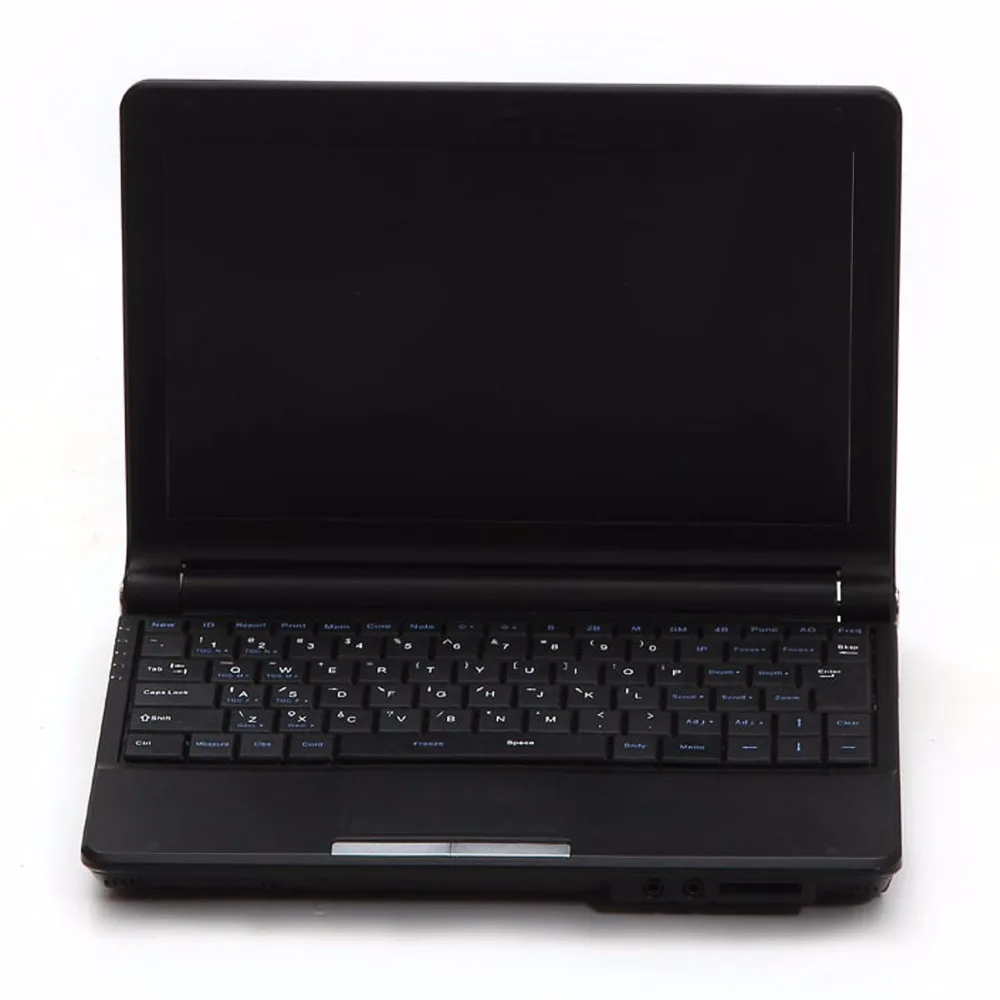

• Main unit with 10.4'' LCD monitor
• One probe connector

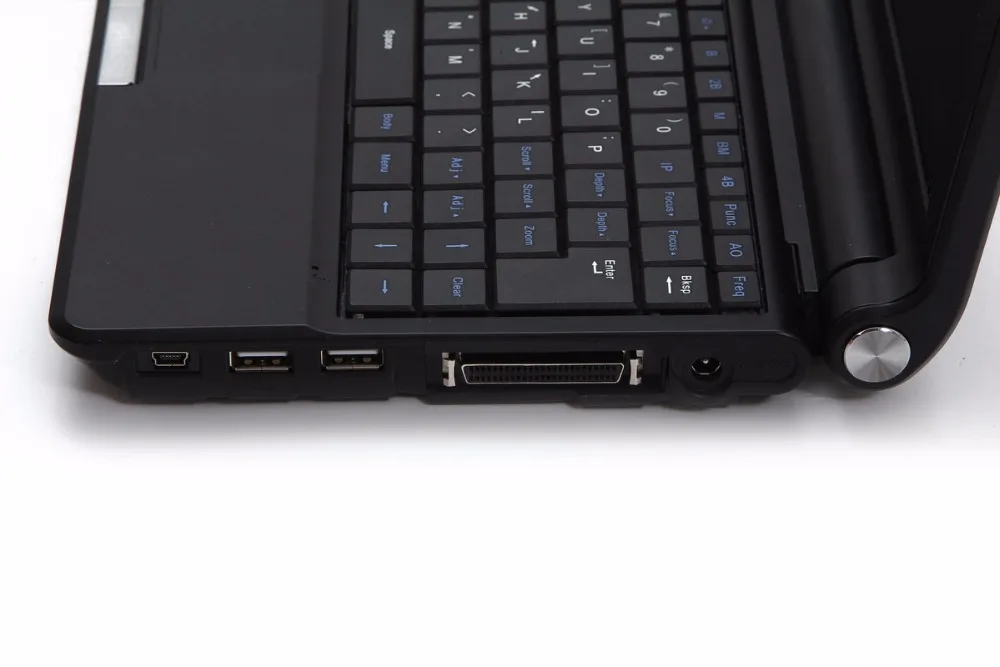

• USB 2.0
• Cine loop (819 frame max)
• 32 images permanent storage

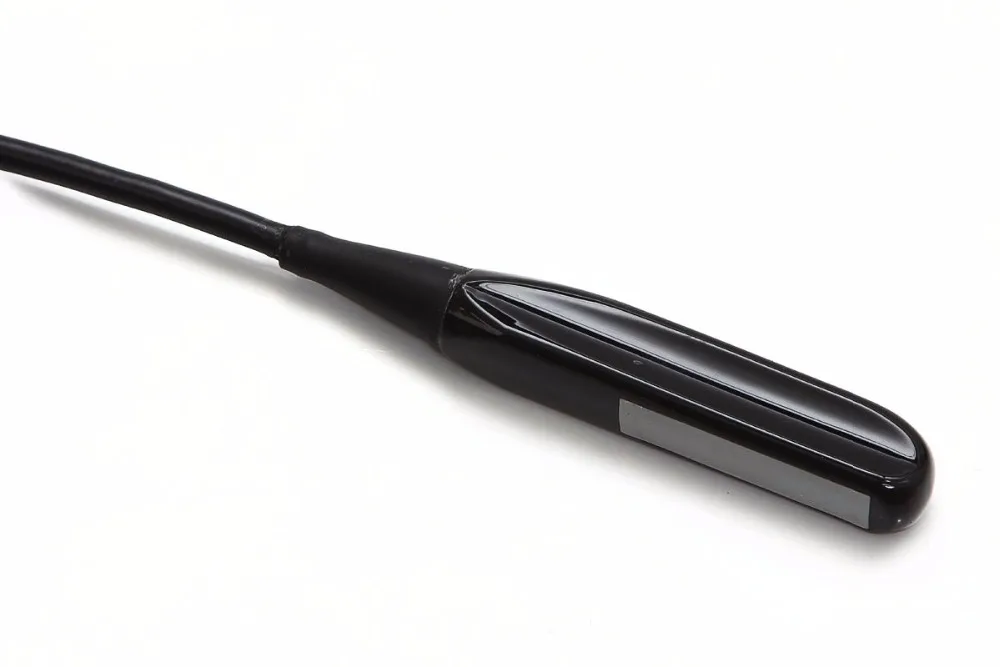

• 7.5MHz rectal linear probe
  Optional:
• 60R/3.5MHz Convex Probe
• 7.5MHz Linear Probe
• 20R/5.0MHz Micro-Convex Probe
• Video Printer
• Extra battery
• Car charger
  Specification:

  Image mode	B, B/B, B+M, M, 4B
  Scanning mode	Convex/linear
  Element	96
  Multi-frequency probe	2.5~8.5 MHz
  Scanning depth	60-130mm
  Gray scales	256
  Cine-loop	508 frames (Max)
  Image permanent storage	32 frames
  Image conversion	up/down, left/right, black/white
  Local zoom	2 times both in real-time and frozen
  Measurement	distance, circumference, area, volume, EF rate, heart rate
  OB measurement	Equine - GA (GSD) Bovine - GA (BL, SL, HL) Swine - GA (HL) Sheep - GA (USD) Cat - GA, EDD (HD, BD) Dog - GA, EDD (GSD, CRL, HD, BD)
  Monitor	10.4 inch TFT color LCD
  Comment	date&time, name, sex, age, doctor, hospital, annotation (whole screen comment input)
  Wide application	Equine, Bovine, Swine, Sheep, Cat, Dog
  USB port	High speed USB 2.0
  VGA port	Available
  Weight	2.4kg with one probe
  Dimension	292x230x41mm
  Battery working time	3 hours (MAX)
  Power supply	110-240V AC, 50Hz±1Hz

•
