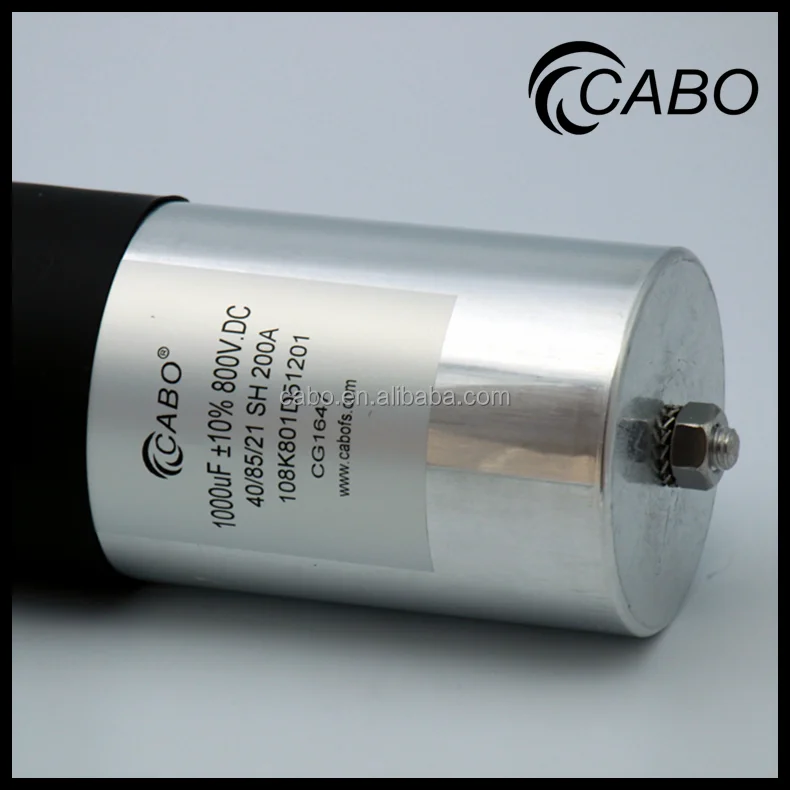

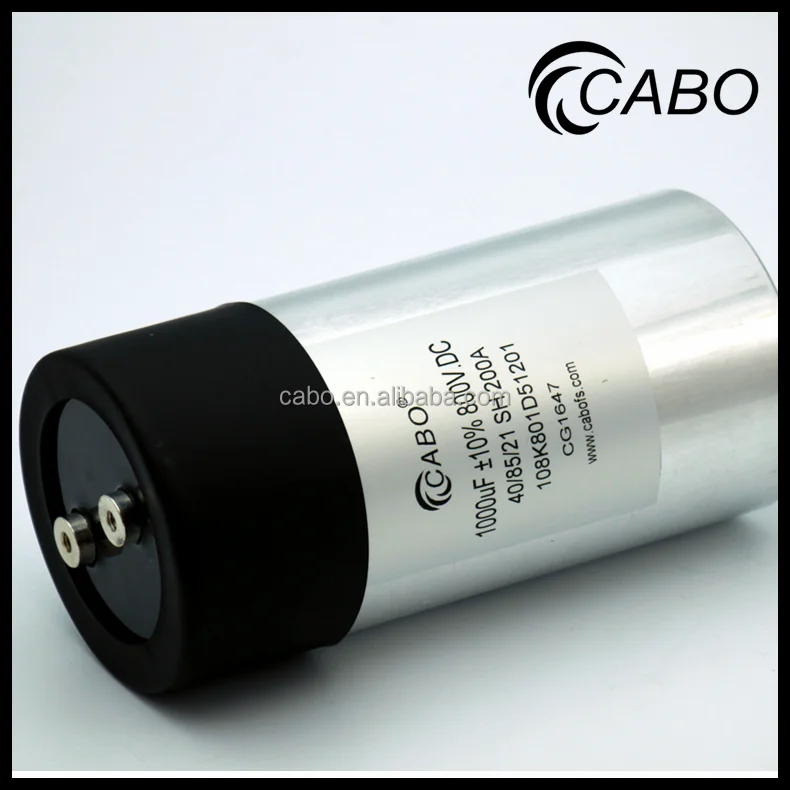

LL 1000uF 800VDC DC link capacitor For DC filter use cylinder capacitor 108K801D51201
LL 1000uF 800VDC DC link capacitor For DC filter use cylinder capacitor 108K801D51201
LL 1000uF 800VDC DC link capacitor For DC filter use cylinder capacitor 108K801D51201
LL 1000uF 800VDC DC link capacitor For DC filter use cylinder capacitor 108K801D51201

LL 1000uF 800VDC DC link capacitor For DC filter use cylinder capacitor 108K801D51201

Share on (60596400880):


Price:$88.60 - $95.40

Quantity:


Product Overview

Description


Product Description
>Ordering number: 108K801D51201

>IEC 61071
>Dry type structure
>High over-voltage and over-current
>Self-healing
>Transition metal layer
>Aluminum resin infusion
>VARI
>Outer diameter reel

Electrical Parameter
\t
Capacitance
\t
1000μF
\t
Temperature
\t
-40℃～+85℃
\t
Capacitance Tolerance
\t
±10% (K)
\t
Rated Voltage
\t
800V.DC
\t
Test Voltage between terminals
\t
1.5Un 60s
\t
Test Voltage between Terminal/Case
\t
3000VAC/10s
\t
Max.Altitude
\t
＜4000m
\t
Insulation Resistance
\t
R*C≥5000S(100VDC, 60S)
\t
Flame Resistance
\t
UL 94V-0
\t
Max Torque of terminals
\t
3.5Nm
\t
Max Torque of installation
\t
10Nm
\t
Lifetime Expectancy
\t
≥100,000Hours (Un≤70℃)
\t
Failure
\t
50FIT
\t
Weight
\t
1.7kg/pieces
Typical Circuit



It can be widely used in:
Wind,Solar power inverter / Welding machine / Frequency converter /power supply / Plating power supply / UPS.

For DC-link , energy storage and filter.
Outline Drawings

>>More details about 108K801D51201, please contact us for its specification,

>>For more different types,please check our MKMJ series data sheet "LL series DC capacitor"

Detailed Images
Packing & Delivery

Be a environment friendly enterprise, CABO under control of IS0 9001 and ISO 14001 quality and environment standard. All of our packing materials are environmentally friendly.


CABO is a leading manufacturer of electric & electronic components in China. As a popular brand in China,its products widely used for electric & electronic industry.


We have  4 factories in China: Nantong city, Shenzhen city, Dongguang city and Foshan city,all of our factories are under control of ISO9001 quality control standard.
