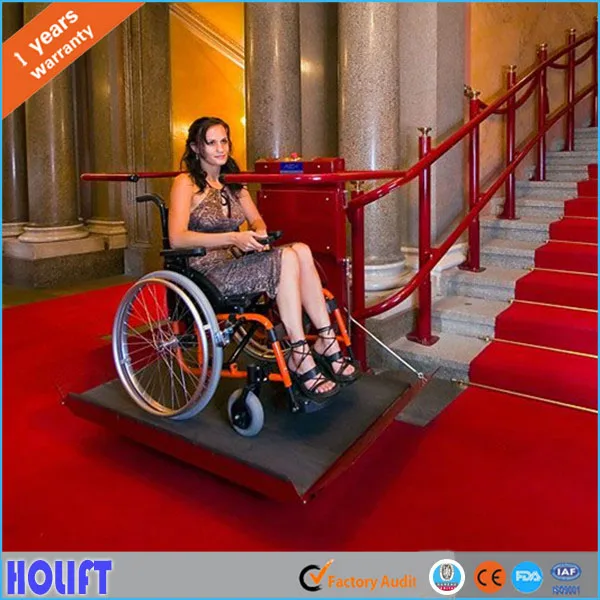

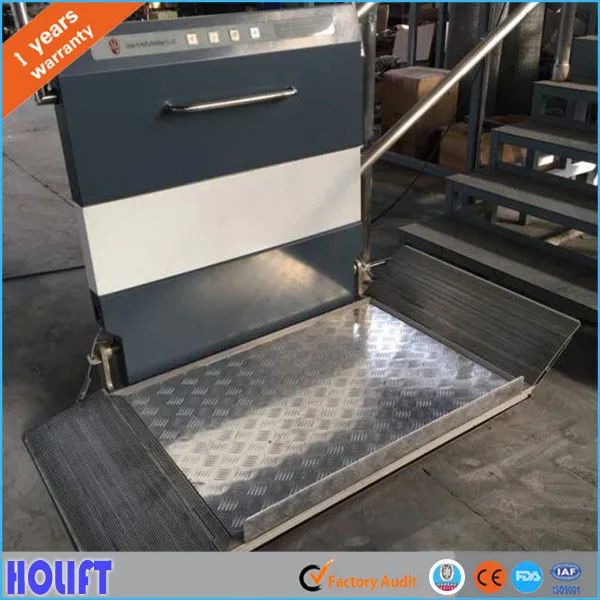

Holift, подъемная платформа для инвалидной коляски для людей с ограниченными возможностями

Product Overview

Description

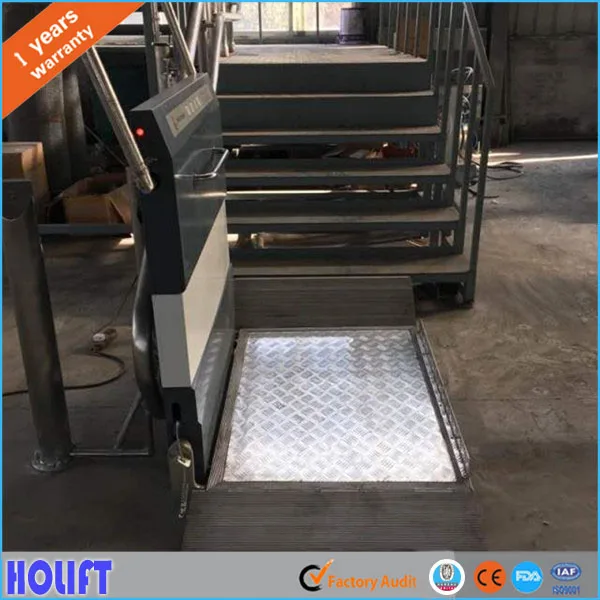

Holift brand Home inclined wheelchair platform lift for disabled person







Mainly Features:



* Fully automatic operation, without human intervention, automatic folding, back to place.

* Manual operating system: manual control switch, you can manually control platform auxiliary drive system action.

* Run warning, equipped with sound and light warning styles.

* Automatic deceleration: platform is leaving/arriving to the landing site, automatic/deceleration.

* Self-checking system

* Intelligent charging

* Abnormal operation can not work

* Safety pedal and security fence cannot work unless reach the designated position.

* Stop running in advance when non-contacting and contacting induction obstacles , continue to run automatically after remove obstacles.

* Platform abnormal running protection (safety protection system)

* Extreme limit stop running automatic protection device

* EOS and relay protection device

* Emergency stop device In the operation

* External linkage or fire alarm system

* Main non-slip pedal platform pattern and spray paint, anti-slip coefficient is not less than 0.85

* User-friendly control

* Smart stepless variable speed

* Applicability widely

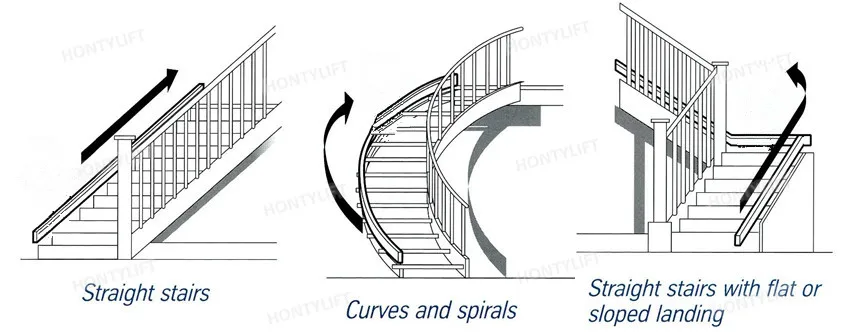

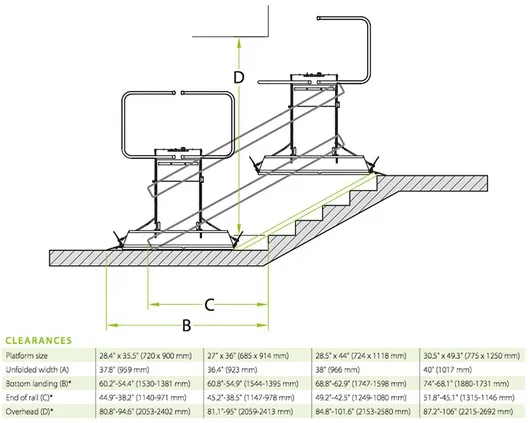

Travel styles( for reference, it will be platform table, not chair!):





Platform technical parameter table:



Platform load	250kg	Self-weight	≈75 kg
Handle size	1040mm*1170mm	Loading size	1122mm*800mm
Rollover plate size	840mm*240mm	Rollover angle	≈60 degree
Barrier height	980mm	Button height	1125mm
Folding thickness	<350mm	Folding speed	<30s(Any action)
Internal voltage	Max. DC 29.6V safe voltage	Battery capacity	7AH*2
Battery life	No charge, continuous use times:300



Power box technical parameter table:



power	1.1kw	speed ratio	less than 150:1
Traction gear	16	Drive power	1.1kw
running speed	0.06~0.13 m /s	driving voltage	220/380V 50HZ



Guide rail technical parameter table:





Column height	According to the actual situation of the field	Inside diameter of guide rail	50mm
Guide rail internal distance	60mm	Column spacing	less than 800mm



Protection:



A: Protection switch contains:Plate safety switch, Seat rotating safety switch, both can do safety protection when working.
B: Safety stop switch:
In working condition, if the chairs come up against any barrier, the safety stop switch in the foot rest will stop the chairs from hurting body.
If come up against and barrier on the rail, the safety stop switch in the drive unit will stop the chairs from hurting body.
The lift has 12 safety travel switches for safety
C: Earth leakage protection: can prevent the Wire wear from hurting people.
D: Every safety protection switch use DC24V power supply in case electric shock may occur, for the safety of user.

E. The operation switch on the chairs use DC12V power supply, safe and reliable
F. The out operation switch use high insulation materials and electrical leakage protector in case electric shock may occur, safe and reliable.



Packing and loading:

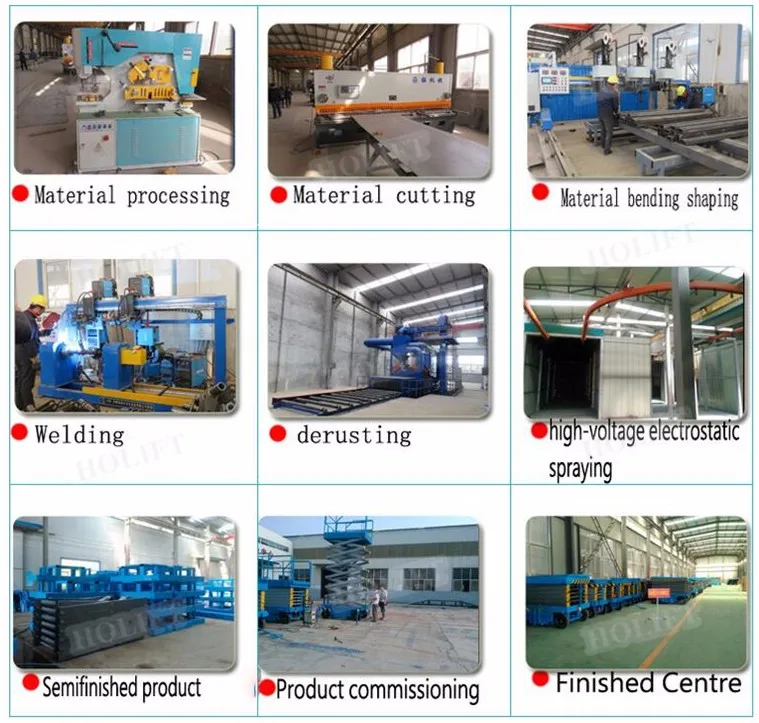

Our production line:

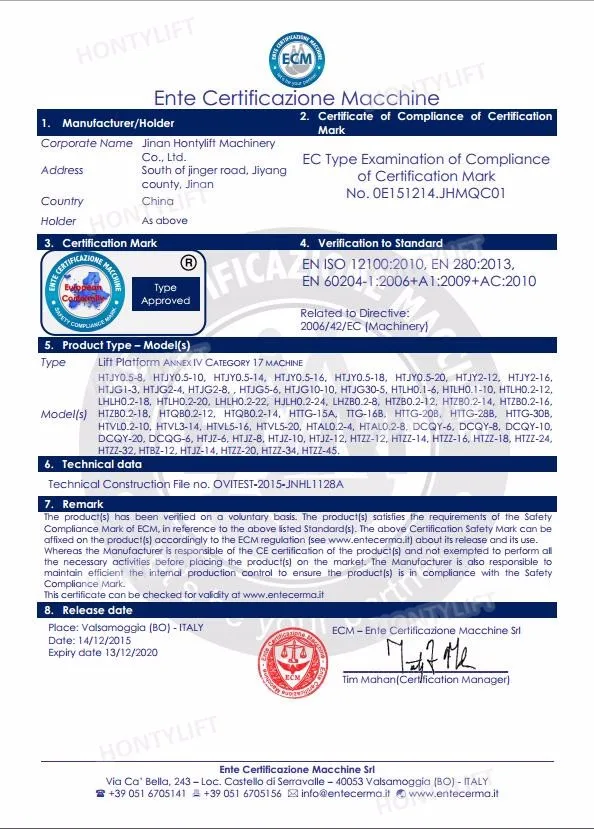

CE/ISO certification:











Our Service:
1. All machines sold will be tested before shipment;
2. One year warranty without man-made fault;
3. 24hours technical support by email, telephone or video online.
4. User-friendly English manual for machine using and maintain.
5. Spare parts will be offered for free within warranty.

FAQ:
1. Delivery Time
The product will be finished within 5 days and with best quality.
2. Payment Terms
T/T, L/C, Western Union, escrow, paypal, other kinds, pls contact with us.
3. MOQ
MOQ is 1 set.
4. Package
Usually, we will pack our product by plywood case or loaded into container.



Contact us:
Jinan Hontylift Machinery Co., Ltd
email:sale008 at holift.cn
whatsapp/wechat/viber/line:+86 18615651982
address: Jibei Industrial Development Zone, Jinan City, Shandong Province(Mainland)

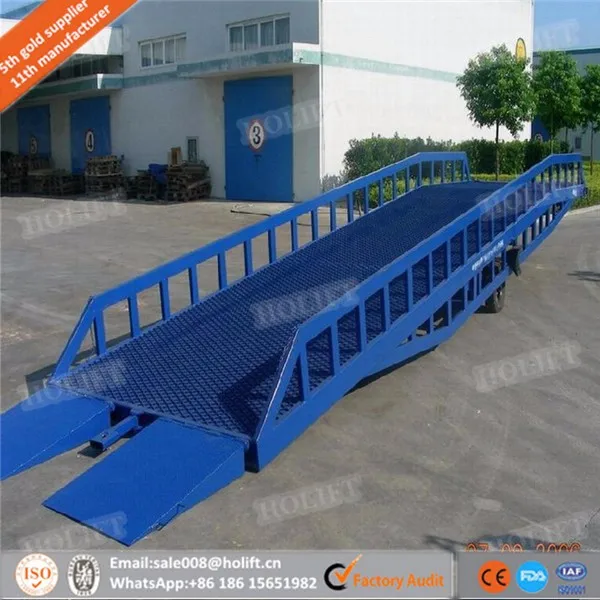

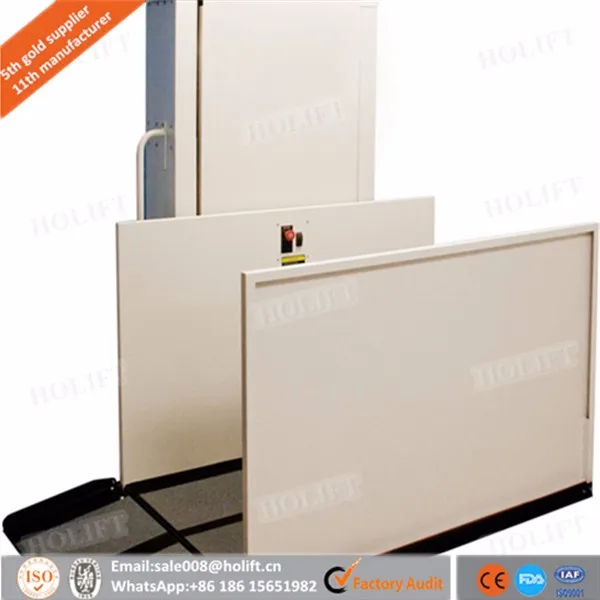

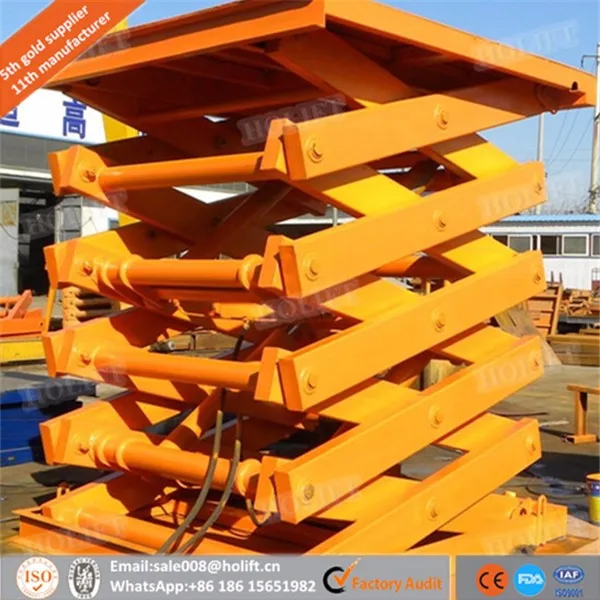

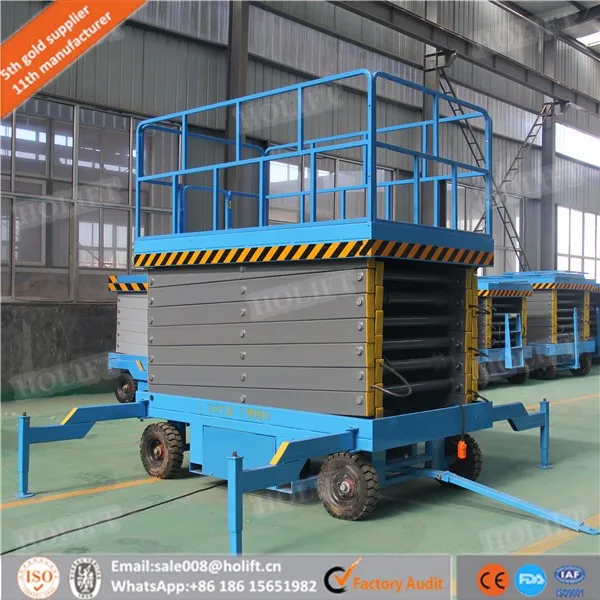

Other products we are also dealing with(you could enter by click the photo):
