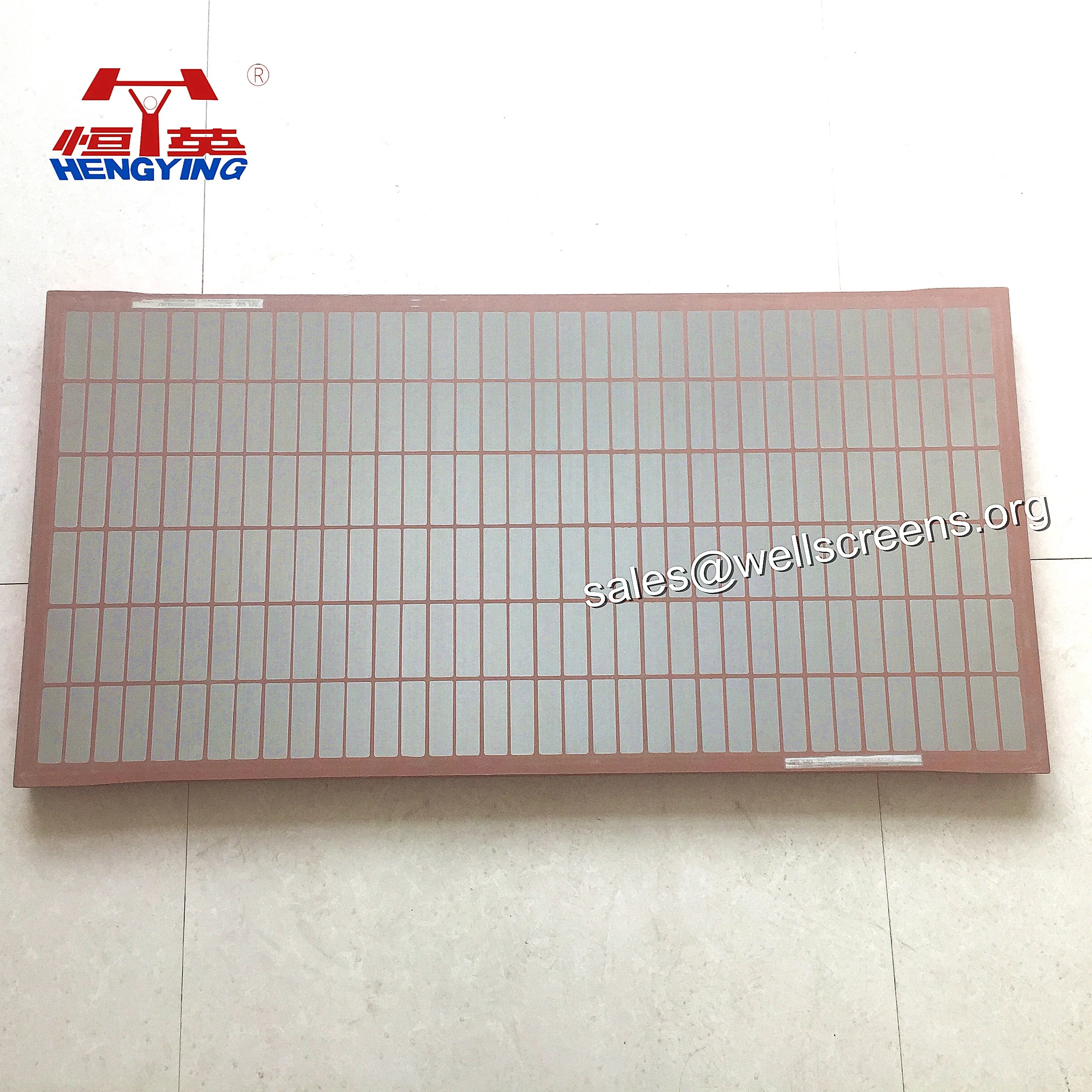

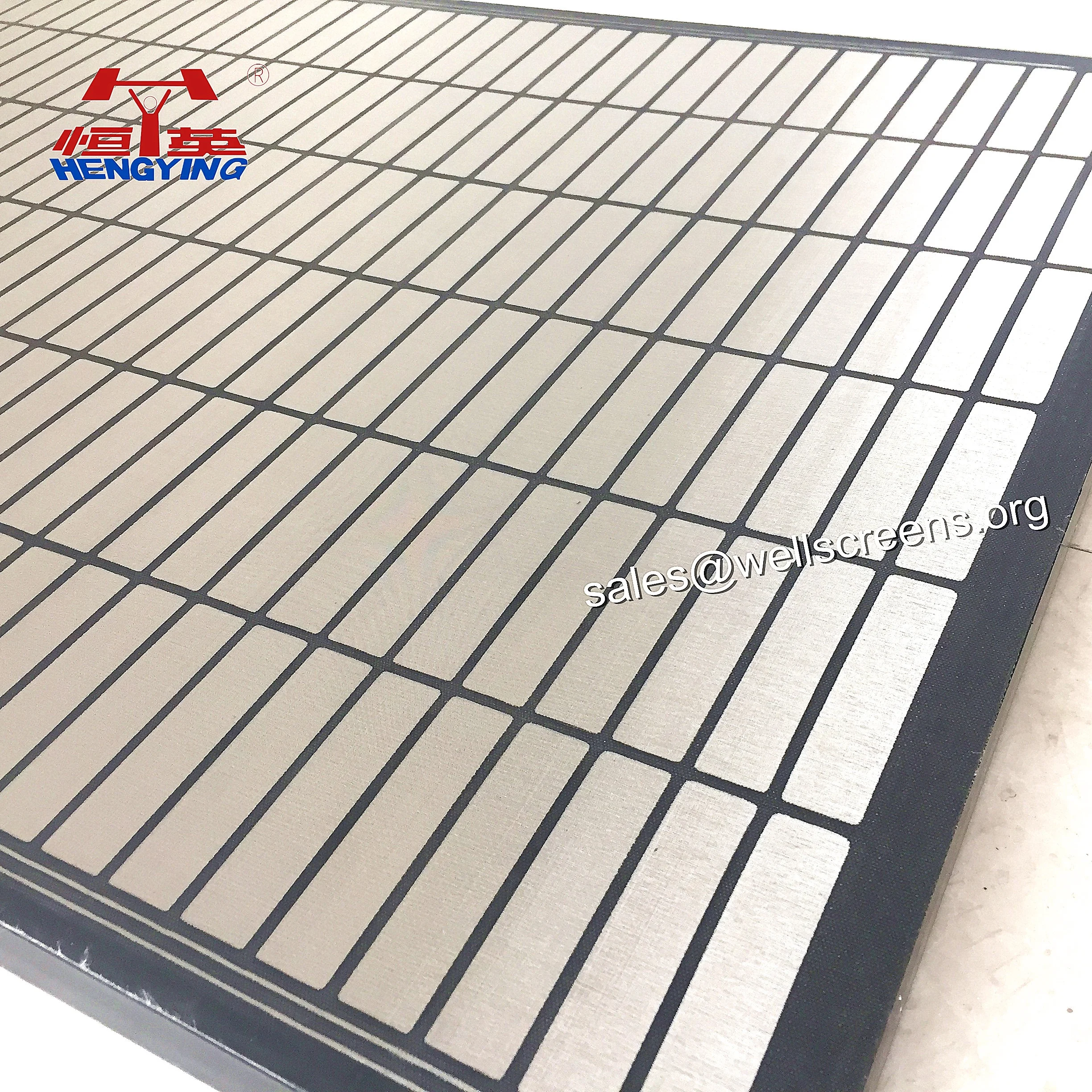

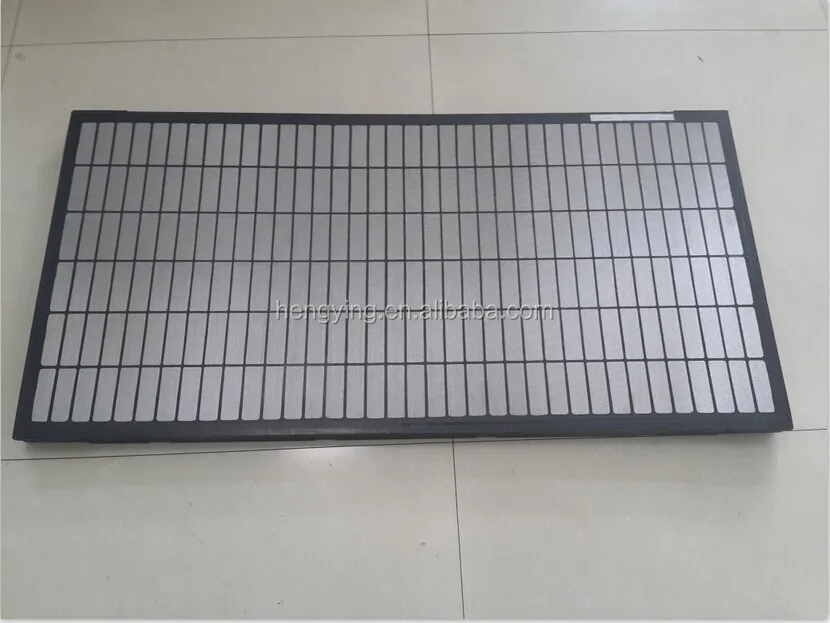

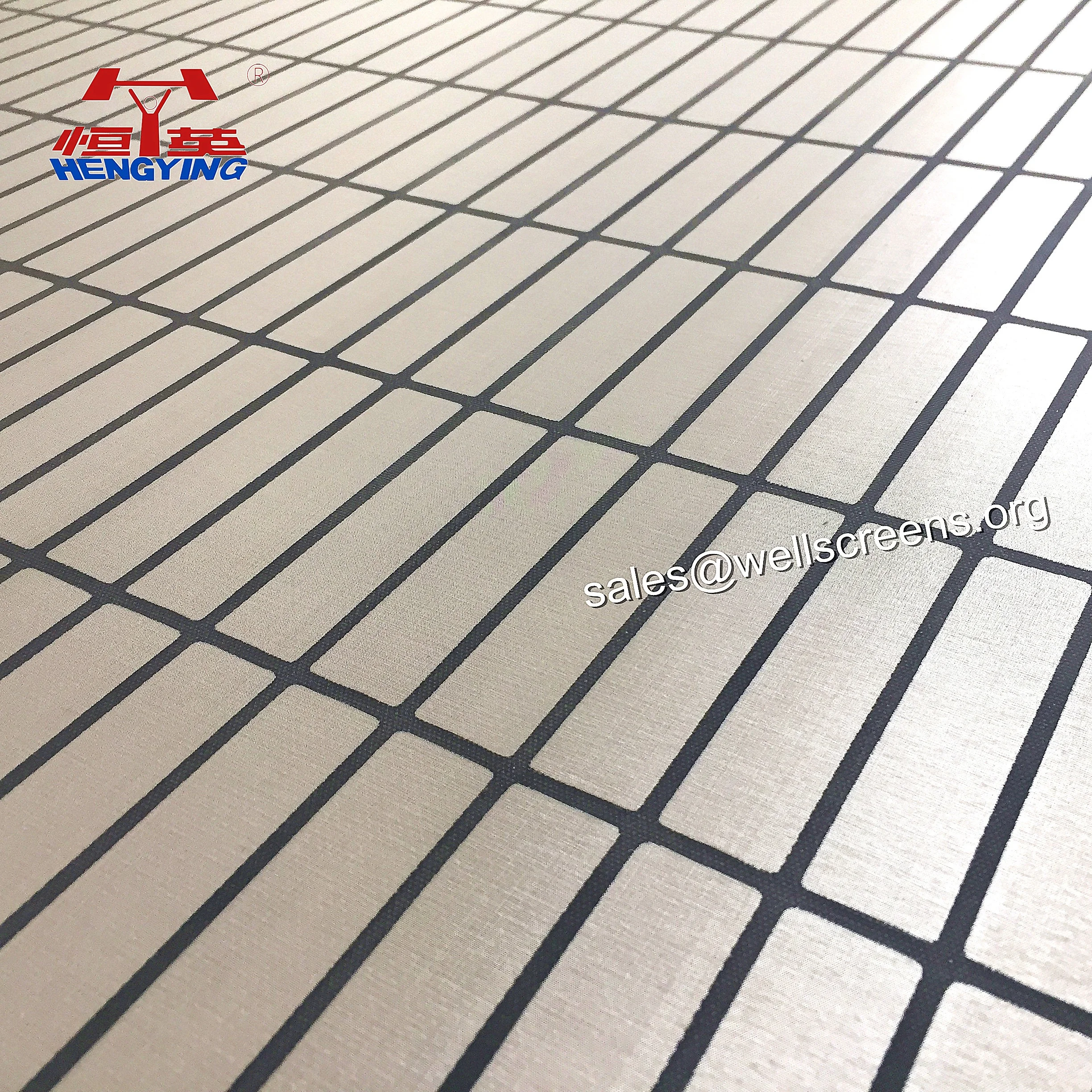

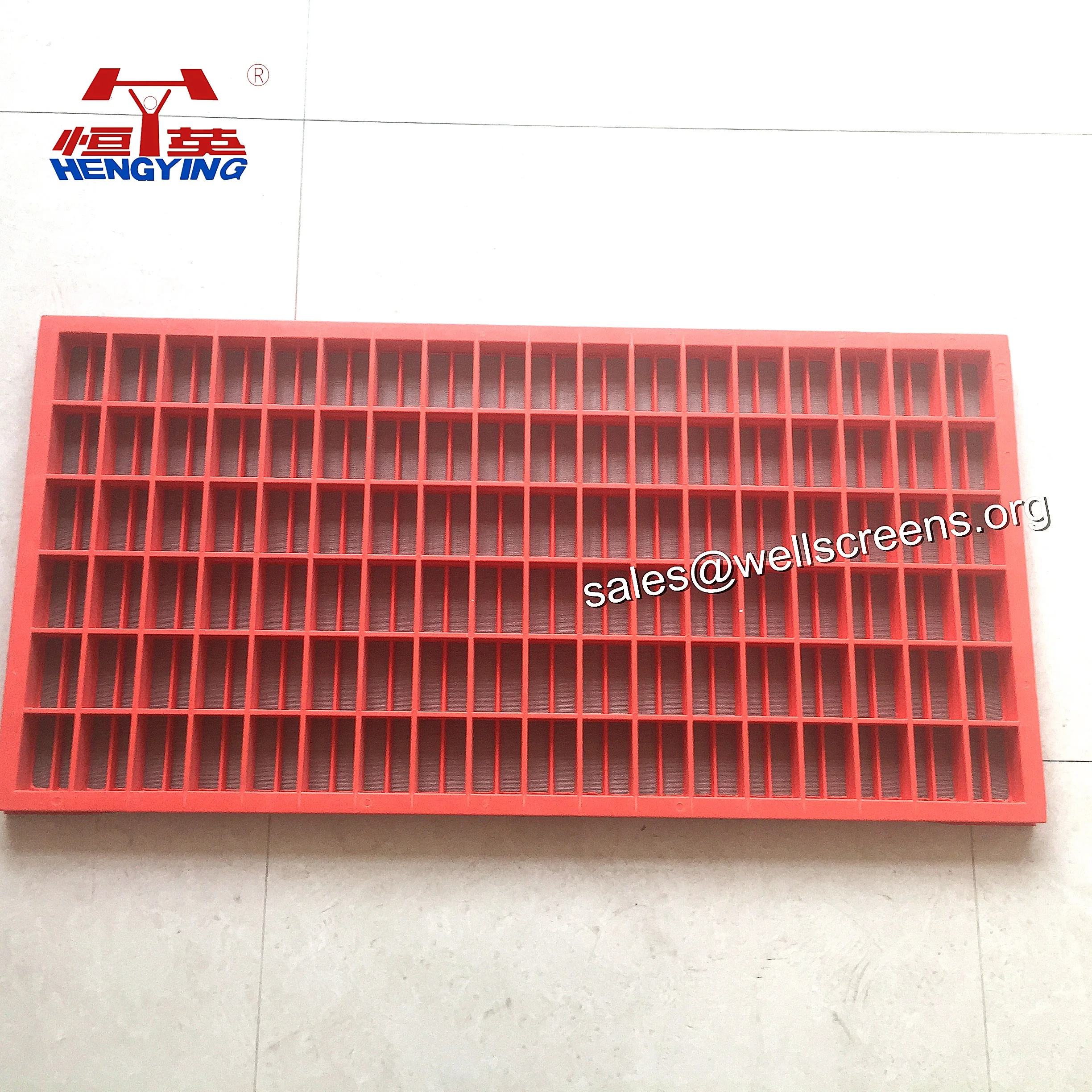

Red Mongoose Shale Shaker Screen

1. Grade: SS304/316

2. Size: 585mm*1165mm*41mm

3. Standard: API Q1,API RP 13C,SY/T5612-2007

4. Certification: ISO9001, ISO/TS 29001, API Q1

High quality

Passed the ISO9001:2008 quality system authentication and API Q1 authentication.

High quality

Passed the ISO9001:2008 quality system authentication and API Q1 authentication.

High quality

Passed the ISO9001:2008 quality system authentication and API Q1 authentication.

Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing Details  : Packing, Mongoose shaker screen, 1480pcs/40' container

Delivery Details : 15-18 days after order

Quality manufactured and API compliant shaker screens
Right screen, Perfect fit, Competitive price.
Exported to over 35 countries and regions.
Free screen samples are available for testing purpose.

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Q:what should I care about when using the shaker screens?

Use finest screens possible Unless specific drilling fluid requirements dictate otherwise, always use the finest screens possible without incurring mud carryover and with the shaker being configured in optimum set-up condition i.e. angle, pool depth etc.

Replace Damaged Screens Never allow torn screens to be used. As holes appear change and repair out at the first opportunity.

Proper Cleaning Never clean screens with brushes or sticks. The poor transportation requiring the use of brushes should be addressed at source. Always use appropriate cleaning solution. Never use water with an oil or synthetic based mud.

Screen Storage Shale shakers are the first and main defense against solids. The screens are fundamental in the operation. Do not store, transport or handle them inappropriately.

Correct supervision Shaker screen can significantly improve solids control efficiency.

Never By Pass Never by-pass the shaker except in an Emergency.

Maintenance Ensure the shaker components are in good order; rubber supports, tensioning mounts etc.

Try and run all the same mesh screens on the shaker.

Clean the shale shaker screens at each connection and inspect for damage.

Always clean the screens with appropriate fluid. Never use water with Oil based or synthetic muds.

Avoid using scrapers or brushes to clean off solids.

When signs of screen wear or holes are seen, remove and replace at the first convenient time. Do not tolerate any screen damage.

Repair shaker screens with the appropriate compound. Use an epoxy resin type for Oil and synthetic based muds.

Repair only until 10% mesh area is lost. Discard after this has been reached.

If you have another question, pls feel free to contact us
