Переключатель коробки

Product Overview

Description

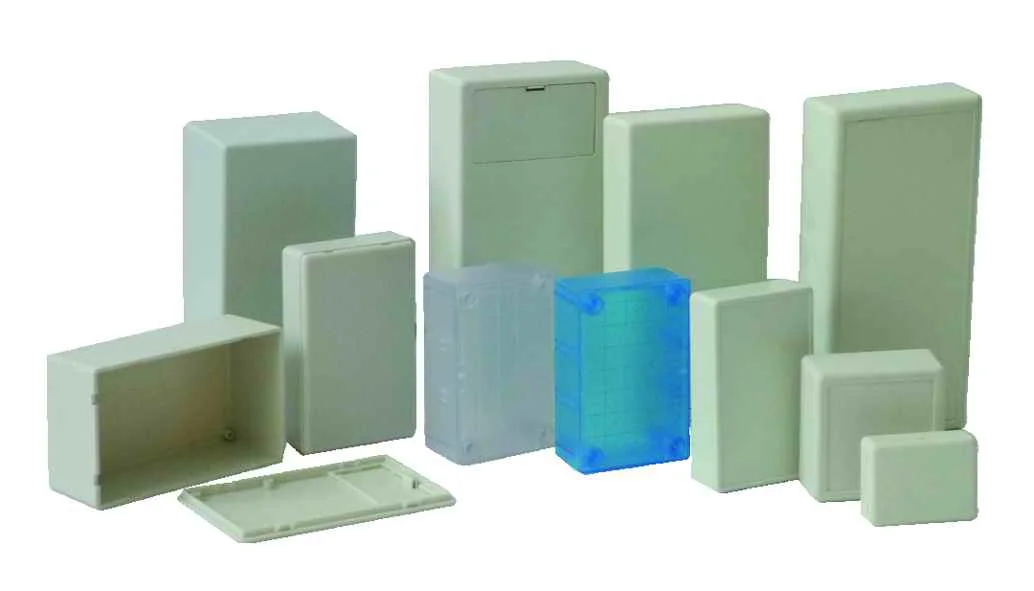

switch boxes





Photo	Parameter
	Brand	Sanhe
	Type	Electrical Junction Box
	Code	20-39/39D
	Material	ABS
	Size	140x70x30 mm

NO.	Part name	Qty	Material
1	Cover	1	ABS
2	Bottom	1	ABS









MODEL		SIZE			Material
		L	W	H
20-31		45	35	18	ABS
20-32		60	35	25	ABS
20-33		70	40	23	ABS
20-34		58	56	28	ABS
20-35	20-35D*	100	60	40	ABS
20-36	20-36D	107	68	40	ABS
20-37	20-37D*	120	60	23	ABS
20-38	20-38D*	102	62	17	ABS
20-39	20-39D	140	70	30	ABS
20-40	20-40D	153	73	28	ABS
20-41	20-41D	153	73	43	ABS

NOTE: "*"means with 2AA A battery housing;and without"*"means with 2AA battery housing.





1. Material and color can be customized.



2. Holes can be added or modified as per your request. And supporting our cable gland.



3. For modification, there will be surcharge.



4. Drawings from website is just for reference.



5. Making toolings cooperative, 50% tooling cost will be undertaken for the standard products.



6. More details you also can visit our company web: www.china-mould.com.











In order to keep supplying high quality products,We imported a serial of advanced production equipments.Such as wire cut machines,EDMs from Mitsubishi Japan;CNCs,grinders from Peak Taiwan;Meanwhile,we have numerical controlling punches,bending machines as well as more than 80 plastic injection machines .The advanced  equipments guarantee the high precision molds and the high level of the products.

What's more ,we also imported the Gasket Foaming Plant from Germany which can reach IP 67.









 Packaging Details:                 Plastic bag for each unit; then a batch packed into export carton
 Delivery time:                          15-20 days after payment
