cast in place foam concrete wall machine

Product Overview

Description

Cast in place foam concrete wall machine

Foam concrete wall machine complete set has two main parts: Foam concrete making machine and Covneying pump.



Foam concrete making machine

Description of foam concrete making machine:

lightweight foam concrete making machine is designed for Cellular light weight concrete, it forces raw materials mixing fast and homogenously by a strong circular motion and impact.

Avantages of foam concrete making machine:

High automation, compact structure, reliable performance, easy operation, convenient maintenance etc.



Valid raw Materials for Foam Concrete:

1- Cement

2- Flyash/Fine sand/Stone dust...(one or more)

3- Chemical foaming agent

4- Water



Specification of foam concrete making machine:

Specification of Foam Concrete Making Machine
Model	SYT-20	Mixing motor	11kw
Output volume	1500L	Winding motor	5.5kw
Input volume	2000L	Water pump motor	1.1kw
Capacity	6-10m3/h(feed by manual) 10-15m3/h (feed by batcher)	Vibrating motor	0.55kw
Main shaft revolution	32r/min	Foam pump	3kw
Hopper lifting speed	22m/min	Air compressor	5.5kw
Overall dimension	2600*2250*2800mm	Max. moved speed	≤15km/h



























Note: SYT-20 Foam concrete making machine, can be matched weighers for weighing foaming agent, cement/sand/flyash ...weight. If you need the weigher, please contact us furtherly.

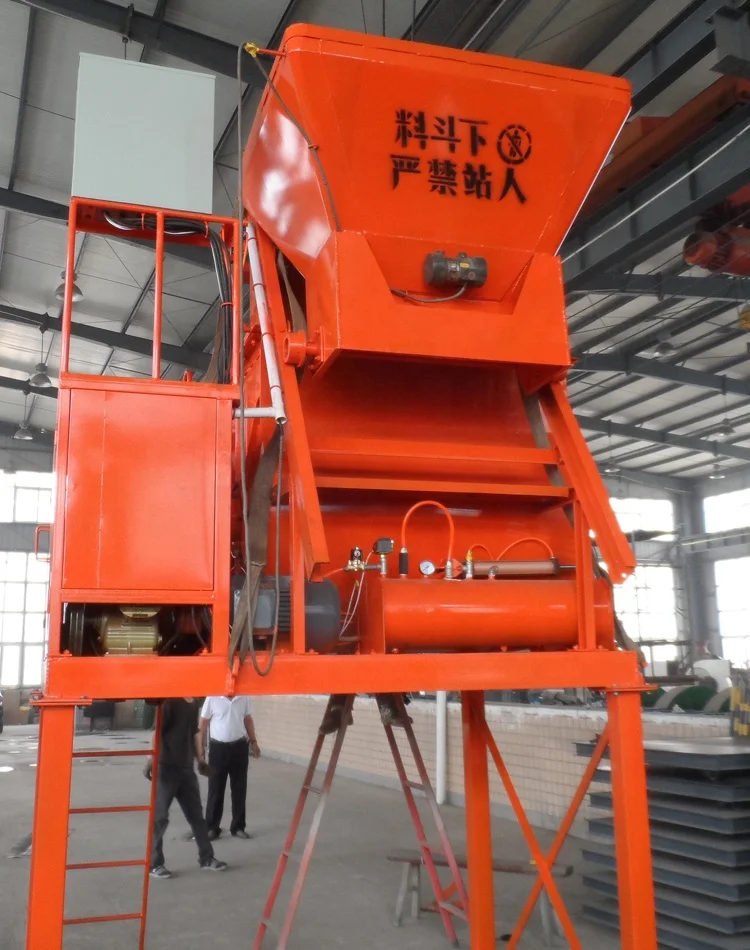

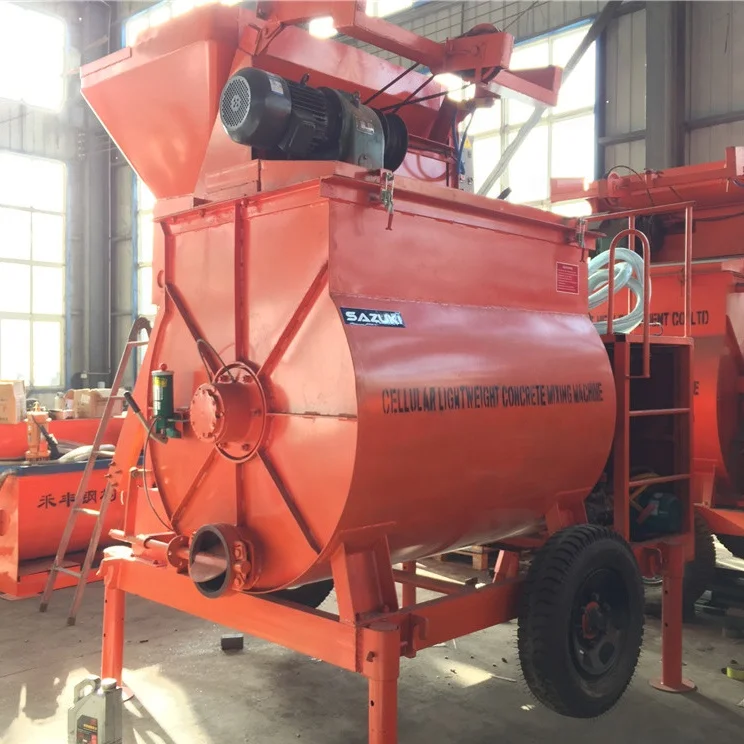

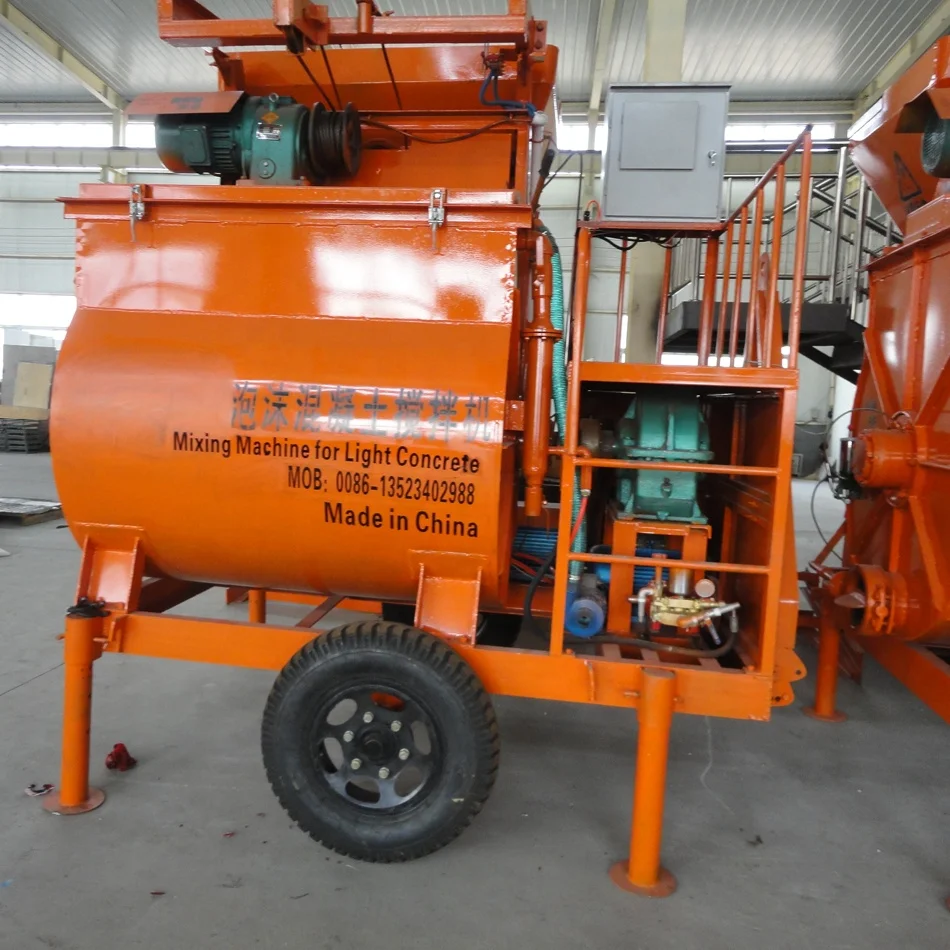

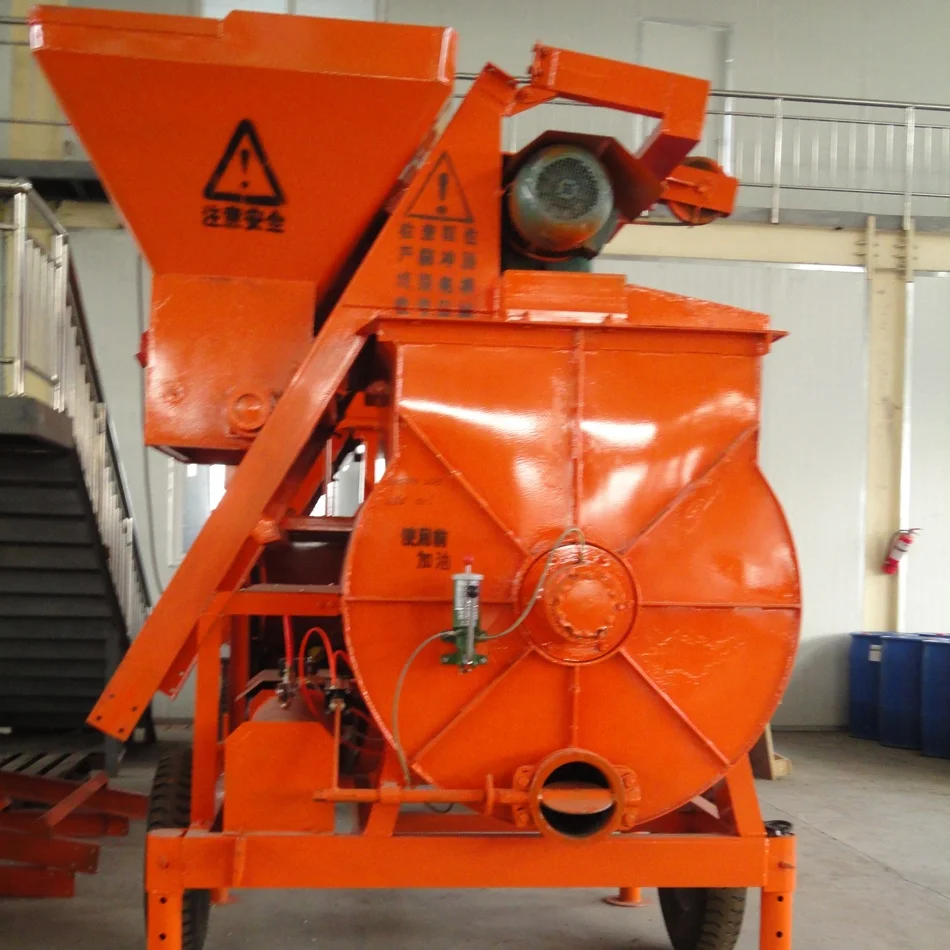

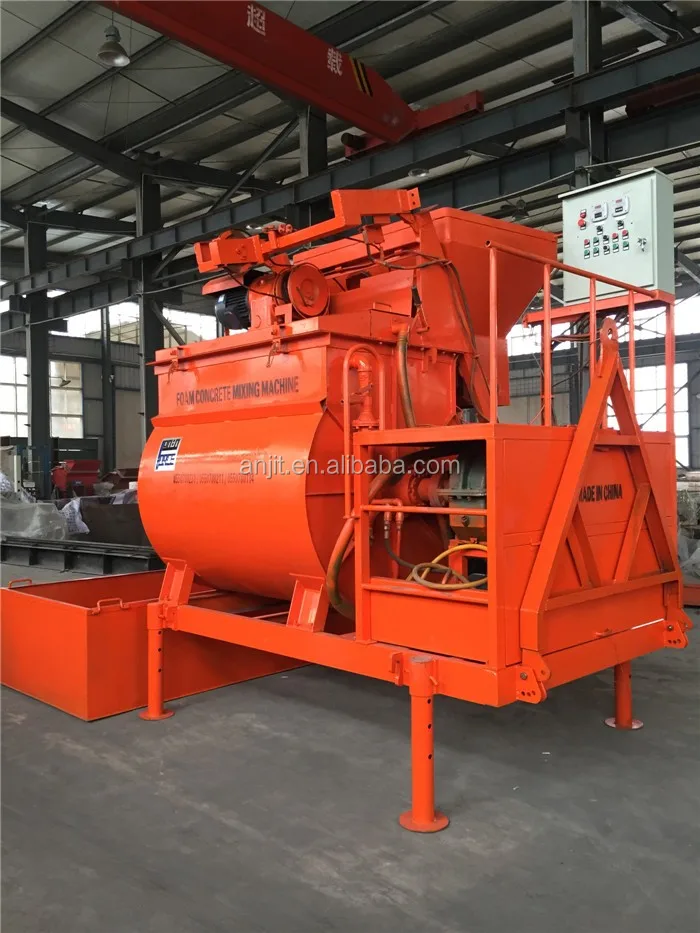

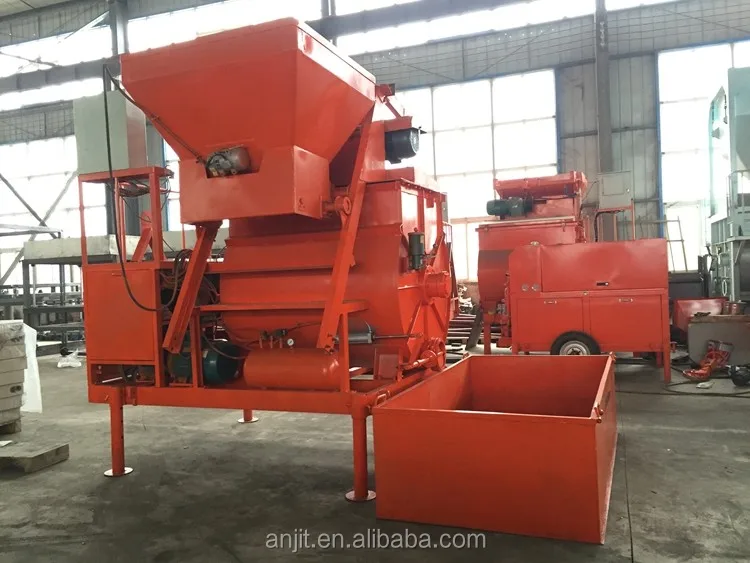

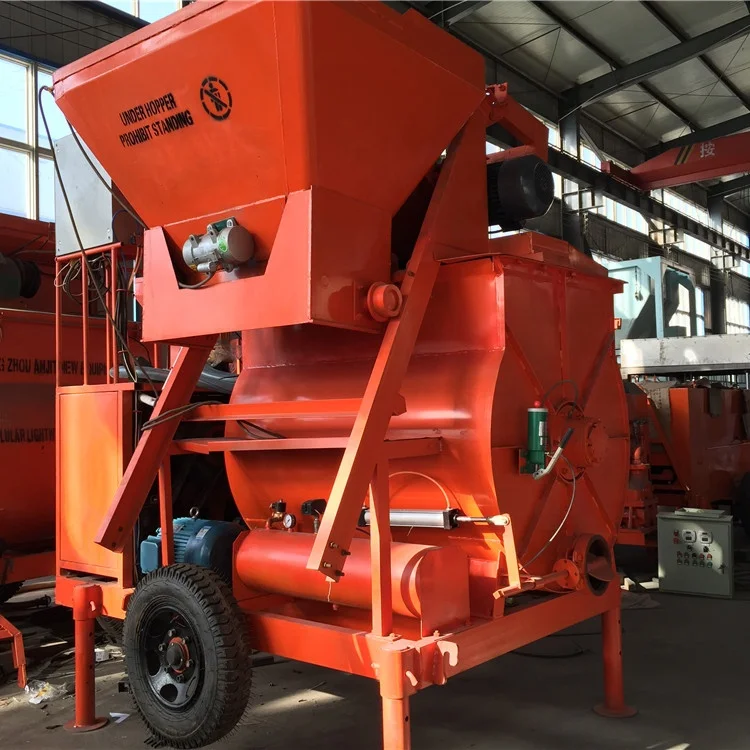

Pictures of foam concrete making machine:

Foam concrete making machine is with lift feeder, mixer, foam genertor, and control cabinet, all in one machine. Besides, adjust water timer and foam timer can get various foam concrete density (400kg/m3 ~1500kg/m3):

 Note: Foam concrete making machine can be matched with cement/sand/flyash weighing silos.



Conveying pump

Description of foam concrete conveying pump:

lightweight foam concrete conveying pump often carry foam concrete slurry/pulp to the designated place/moulds.



Features of foam concrete conveying machine:

• Adopting wear resistant metal, sturdy and durable.


• Full automatic control system, to adjust the foam concrete density easily.


• Adopting the famous brand good quality components, reliable quality.


• Adopting hydraulic two cylinders single conveying way to send the foam concrete to the construction plant on-site.


• Equipped with travelling wheel, easy moving and position.


• Equip the remote control handle with the electric cabinet, convenient operation.


• Max. aggregate size allowed flow: 8mm



 Specification of foam concrete conveying machine:

Specification Of Hydraulic Foam Concrete Conveying Pump Model: SYT-30
Capacity	20 m³/h
Max. theoretical conveying pressure	8 Mpa
Max. theoretical horizontal distance	500 m
Max. theoretical vertical distance	180 m
Conveying pipe inside diameter	Φ70/Φ64
Max. particle size of aggregates	8 mm
Pump head quantity	2 Pcs
Oil cylinder (material cylinder) quantity	2 Pcs
Oil cylinder inside diameter*stroke	Φ80*1000 mm
Material cylinder inside diameter*stroke	Φ140*1000 mm
Max. pressure of hydraulic system	24 Mpa
Oil pressure box volume	320L
Motor power	30 KW
Dimension (L*W*H)	4200*1420*1750 mm
Weight (whole machine)	1900 kg

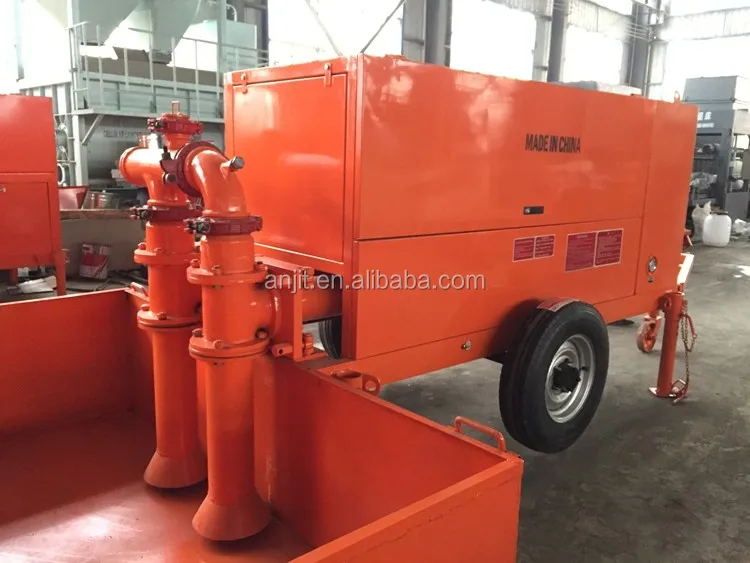

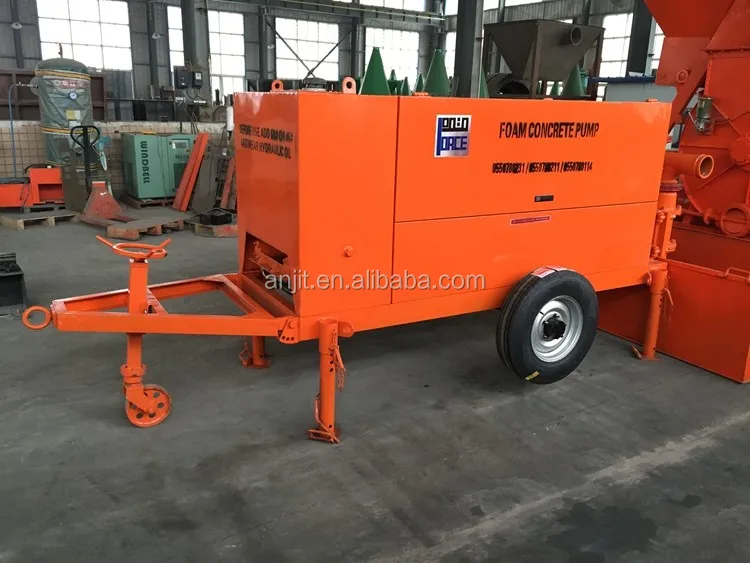

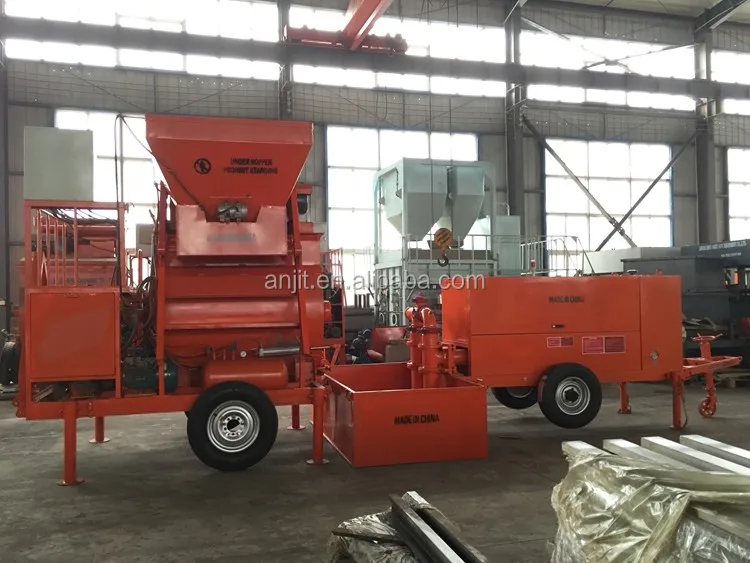

Pictures of foam concrete conveying pump:

Hydraulic foam concrete conveying pump is matched with 84m steel pipe and 35m compress rubber hose.

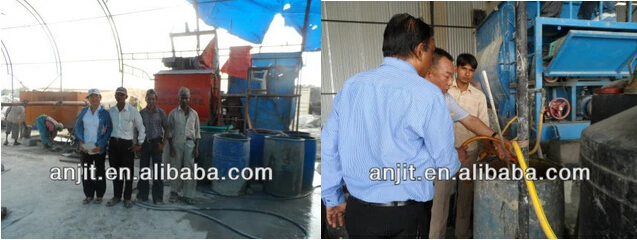

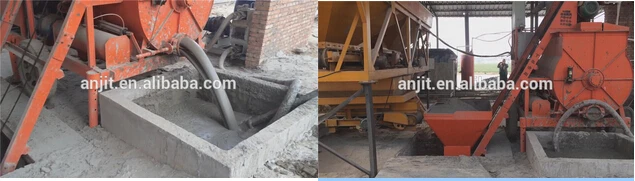

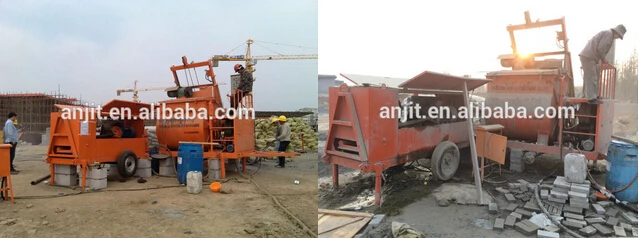

In-site of Foam concrete machine:

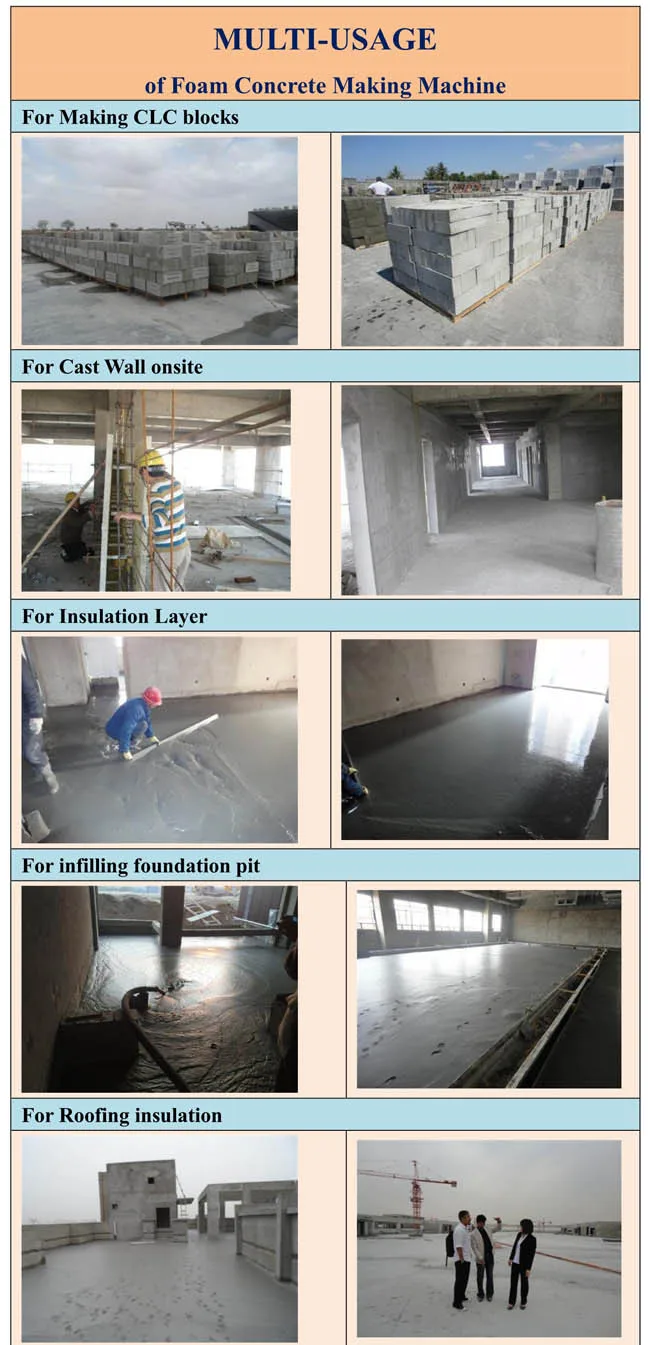

Multi-function of  lightweight foam concrete machine cast wall in place:



Dear friends,

If you want to set up a lightweight foam concrete block factory, we are glad to help you design as long as you tell us your feild size and the required capacity.
