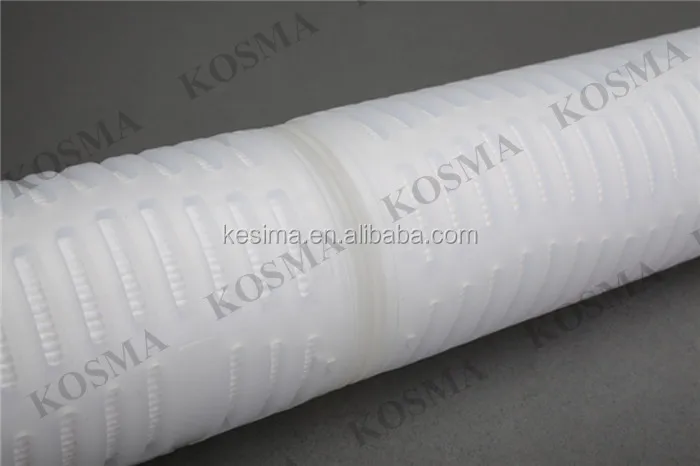

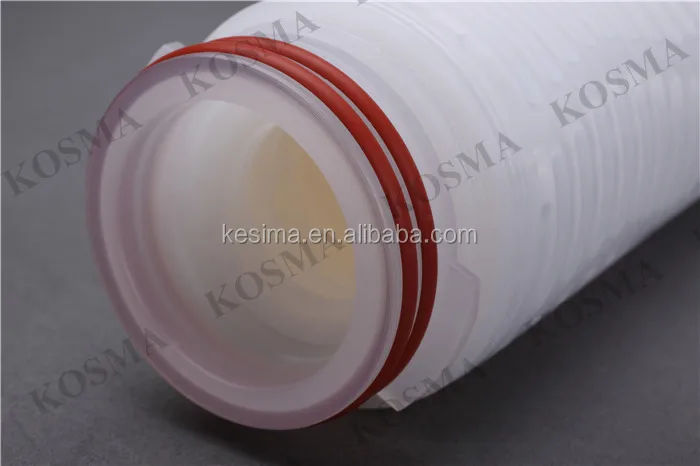

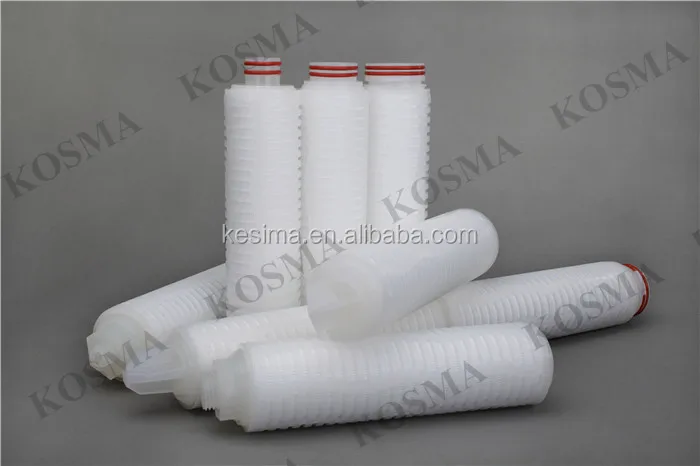

Cobetter filter replacement Absolute Rated Polyethersulfone Membrane (PES) Filter Cartridges Aqueous based chemical processing
- Category: >>>
- Supplier: Hangzhou Kosma Membrane Technology Co. Ltd.Hangzhou Ltd.
Share on (60596631640):
Product Overview
Description
Products Description
PARAMETER INFORMATION
Materials Of Construction | Filter Media | Asymmetric PES Membrane |
Support Layers | Polypropylene | |
Micron Rating | 0.04, 0.1, 0.2, 0.45, 0.65, 0.85, 1.2 um | |
Inner Core | Reinforced Polypropylene | |
Outer Cage, End Cap | Reinforced Polypropylene | |
Seal Method | Thermal Bonded, No Adhesives | |
O-Rings/Gaskets: | Silicone, Nitrile, EPDM, Viton, Teflon | |
Cartridge Dimensions | Outer Diameter | 69mm(2.75'') |
Inner Diameter | 33mm(1.30'') | |
Length(Based On DOE End Cap) | 10”, 20”, 30”, 40” | |
Filtration Area(m2) | 0.65 m2 per 10'' | |
Operating Conditions | Normal Operating Temperature | Up to 60℃ (140 ℉ ) |
Max.operating Temperature | 85℃ (185 ℉ ) at △ P£1.0 bar (14.5psi) | |
Normal Flow Direction | 4.2 bar (60.9 psi) at 25℃ (77 ℉ ) | |
Reverse Flow direction | 2.1 bar (30.5psi) at 25℃ (77 ℉ ) | |
PH Value Compatibility | 2-13 | |
Sterilization | Steam Sterilization for 30 minutes at 121± 2 ℃ , Cumulative Time: 8 hours | |
Cartridge Safety | Endotoxin | ＜ 0.25 EU/ml |
Extractables | 0.03g / 10" |
GRADE | PRODUCT | MICRON | END CAP | LENGTH | O-RING / GASKET |
F-FOOD & BEVERAGE | IPS | 004-0.04um | AA- DOE | 10-10" | S-silicone; N-nitrile |
P-PHARMACEUTICAL | 010-0.1um | CN-226/FIN | 20-20" | E-epdm ; T-teflon (encaptulated) | |
C-CHEMICAL | 020-0.2um | BN-222/FIN | 30-30" | V-viton | |
E-ELECTRONICS | 045-0.45um | BF-222/ FLAT SEAL | 40-40" | How to Order?- Example |
RELATED PRODUCTS
Company Profile
Exhibition
Why Choose Us
PACKING AND SHIPPING
FAQ
1. How can we get the quotation of flter cartridges
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....
2. What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.
3 . How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment
Email:ggh(at)tsjmlc.com
Best wishes!
Kindly please let us know the specifications,such as the material,length,micron,adapter,apply in which industry.....
2. What's the minimal quantity requested?
We do not the requirement on teh minimal demand.Thank you.
3 . How long about your delivery ?
The order is always arranged in 10 working days as soon as receiving the deposit or payment
Email:ggh(at)tsjmlc.com
Best wishes!
