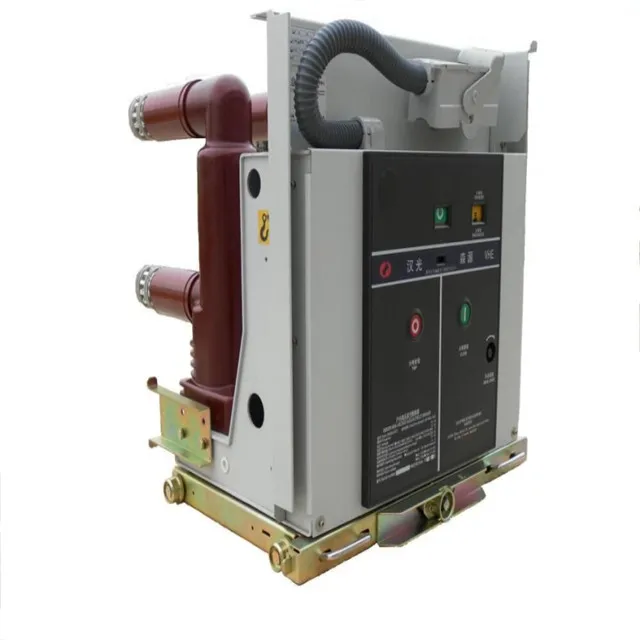

Compact substation RMU lateral VS1 vacuum switch  ZN63A(VS1)-12  indoor

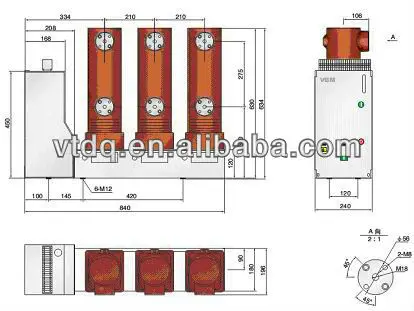

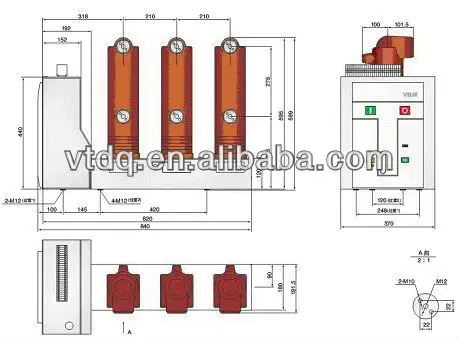

ZN63A(VS1)-12 Side mounting vacuum circuit breaker is a type of high voltage switch

equipment which appropriate to 12kv, 50Hz three phase alternating current system, applicable for protecting and controlling, especially appropriate to frequent operation and short circuit places. This type is mainly used in fixed type switchgear, it can not only use alone, but also in loop network, box-type and other kinds of nonstandard power supply system.



Ambient condition

1 Ambient temperature: max +40°C min -15°C(conveyance under -30°C is allowed)

2 Altitude: ≤1000m

3 Relative humidity: daily average relative humidity: ≤95%; monthly average relative humidity≤90%; daily average saturated vapor pressure ≤2.2*10^-3 MPa; monthly average value   ≤1.8*10^-3 MPa

4 Earthquake intensity: ≤8 degree

5 The installation should be free from fire, explosion, severe vibration, chemical corrosion and serious pollution



Order instruction

Complete model and order quantity of the product

Rated current, rated voltage, distance of each poles

Rated short circuit breaking current

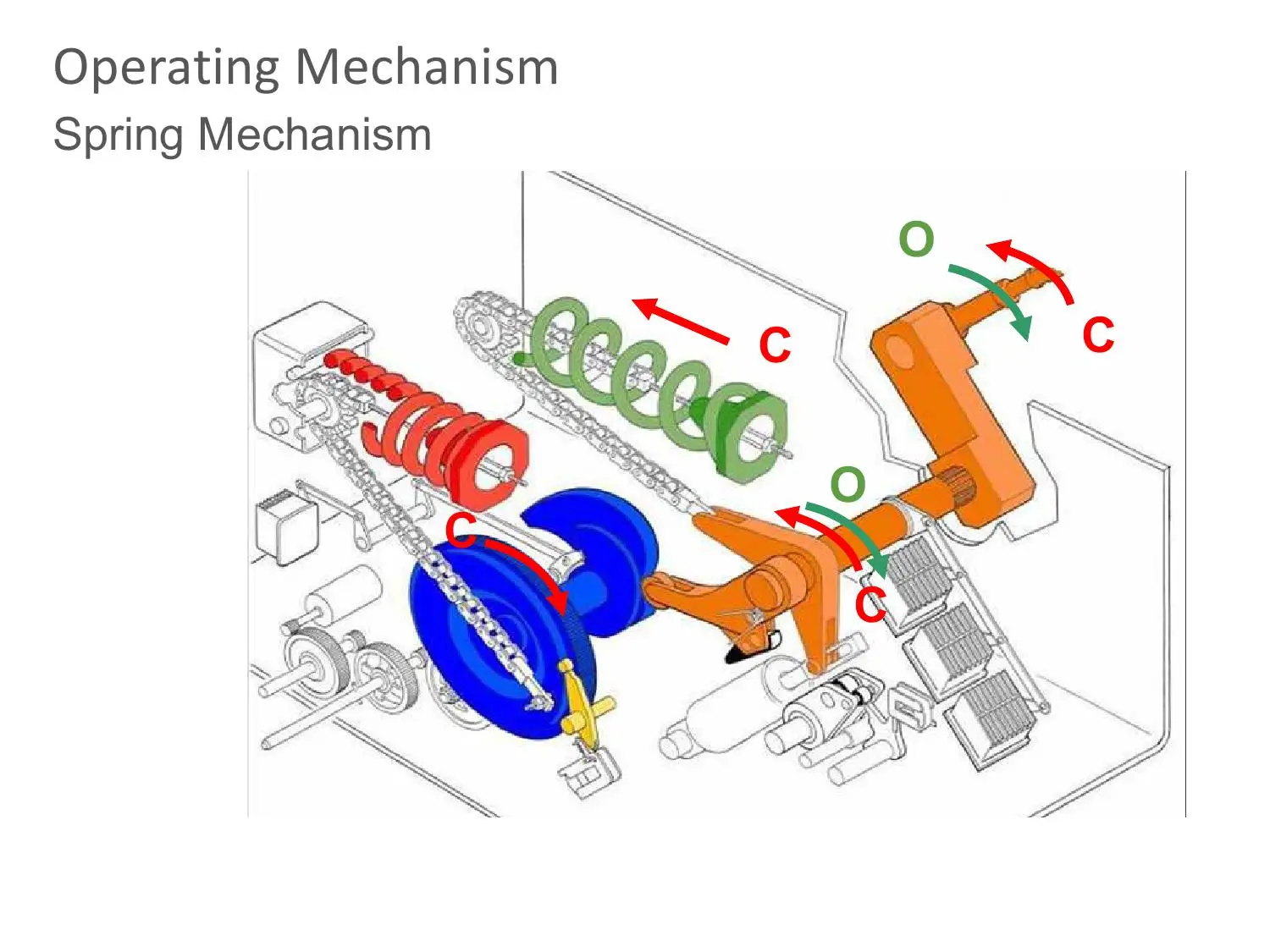

Rated voltage of operation mechanism open and close release, rated voltage of energy saving motor

Required accessory and quantity

Other requirement please contact with us directly



Mechanical Data

No.	Item	Unit	Value
1	Rated voltage	KV	24
2	Rated lighting impulse withstand voltage	KV	Inter phase or to ground 75,fructure 80
3	Rated short-time power frequency withstand voltage	KV	Inter phase or to ground 42,fructure 48
4	Rated short-circuit breaking current	KA	20	25	31.5
5	Rated current	A	630/1250		630/1250/1600
6	Rated thermo stability current(valid)	KA	20	25	31.5
7	Rated dynamic stability current(peak)	KA	63		80
8	Rated short-circuit making current(peak)	KA	63	63	80
9	Rated operations of short-circuit breaking current interruption	Times	50
10	Power frequency withstand voltage of secondary circuit(1 min)	V	2000
11	Rated operating sequence		0-0.3s-CO-180s -CO/0-180s-CO-180s-CO(40KA)
12	Rated thermo stability time	S	4
13	Rated single/back to back capacitor bank breaking current	A	630/400
14	Mechanical life	Times	30000
