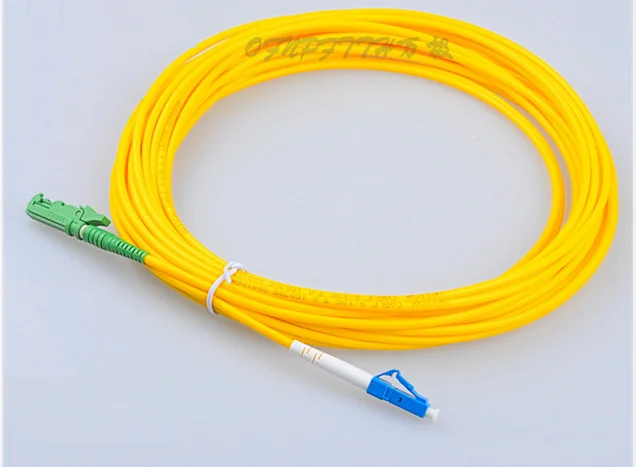

Fiber optic patch cord and pigtail can be classified to FC,SC,LC,MU and ST. With the high-quality ceramic ferrules,it has good conformity and low Insertion Loss. And it iswidely used intheTelecommunication Networks, DataTransmission,Test Equipment and the LAN of CATV etc.
Features:
Low insertion loss and high return loss Good repeatability & interchangeability PC, UPC, APC polishing; FC, SC, ST, LC, MU connector Suitable for high-speed, high-capacity optical fiber transmission system Provide single mode/ multimode patch cord and pigtails Fiber diameter: Φ0.9mm, Φ2.0mm, Φ3.0mm Length/Type: according to customers’ demands
Application:
Ø Optical fiber communications system Ø Optical fiber access networks Ø Optical fiber CATV Ø Optical fiber test equipments Ø Optical fiber data communication
Technical Parameters:
Item
Unit
Single Mode
Multi Mode
Insertion Loss
dB
≤0.3
≤0.3
Return Loss
dB
PC
UPC
APC
/
≥45
≥50
≥55
≥45
Repeatability
dB
0.1
Working Times
Times
≥1000
Operating Temperature
℃
-40~+85
Optical Cable Diameter
mm
φ0.9,φ2.0,φ3.0
Certificate
Company Information
Company Information
Company Profile:
Shanghai Changyue Communications Co.,Ltd was established in 2009. Located in Minhang district, Shanghai, where is very close to the technological frontier area of China Huang Pu River. Changyue is one of the pioneers in the high-tech optical communication industries, who combines development, production, sales and service as a whole, provides operators with comprehensive solutions in optical networks, fixed networks and mobile networks. Our products include FTTH products, optical distribution products, passive optical products, antenna feeder accessories, lightning protection products and smart ODN products, etc.
Certification:
Changyue has a series of strict management system, and has obtained the certificates of ISO9001:2008 in 2009 and ISO14001:2004 and OHSAS18001-2007 in 2014. And we have CE,RoHS,TLC. Meanwhile, Changyue attaches great importance to the products quality and R&D programs, applied for and obtained a number of TLC product certification, invention patents, utility model patents and appearance design patent, copyright of computer software in registration certificate, high-tech achievement transformation project certificate, etc.
Packing & Delivery
Packing & Delivery
Packing: Nomally packing with Polywood.(Can be customized) Delivery: Nomally transporting by courier.(It depends on customers' requirements)
