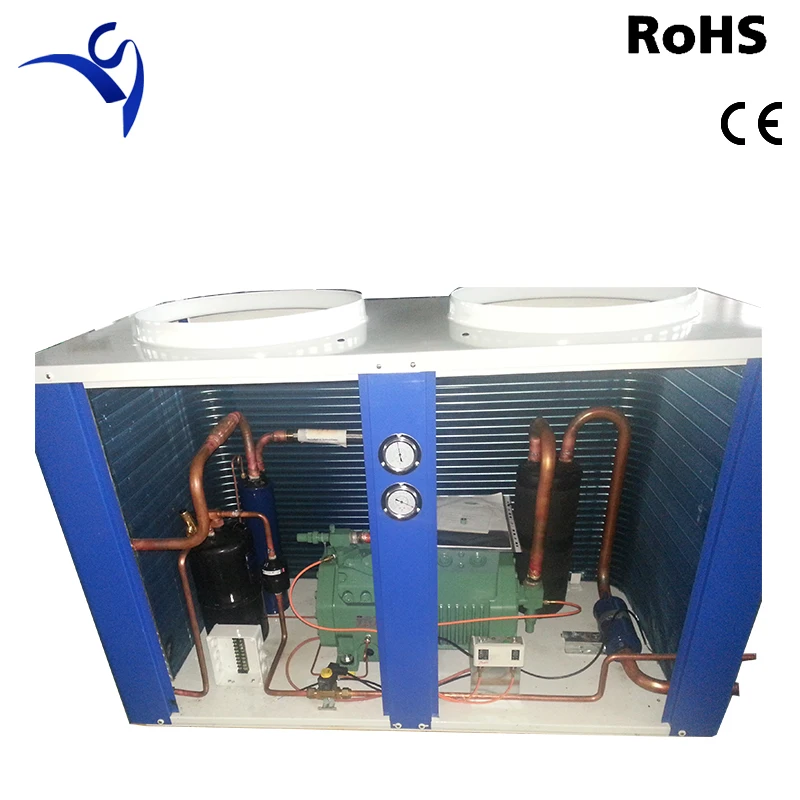

12HP 4TES 12Y Low temperature semi hermetic compressor refrigeration air cooled condensing unit
- Category: >>>
- Supplier: Taizhou Chuangsheng Refrigeration Equipment Manufacturing Co. Ltd.
Share on (60596981365):
Product Overview
Description

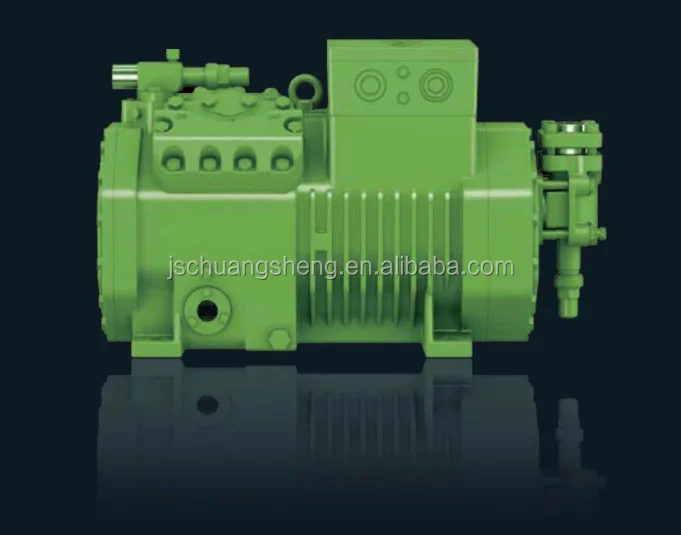

Bitzer semi-hermetic ECOLINE compressor air cooled condensing unit
Medium and high temperature
| Model | HP | Compressor | Condenser Surface | Voltage | Cooling capacity(W) at R404a | Axial Fans | Net Dimensions(mm) | Connection | |||||||
| Evaporating temperature(°C) | |||||||||||||||
| M2 | (V-Ph-Hz) | 5 | 0 | -5 | -10 | -15 | N°x Diameter | L | W | H | suction | discharge | |||
| LKPG300S | 3 | 2DES-3Y | 30 | 380-3-50 | 10720 | 8960 | 7420 | 6070 | 4890 | 1 x 500 | 860 | 710 | 800 | 7/8" | 1/2" |
| LKPG400S | 4 | 2CES-4Y | 40 | 380-3-50 | 13190 | 11060 | 9180 | 7540 | 6120 | 1 x 550 | 860 | 710 | 800 | 7/8" | 1/2" |
| LKPG500S | 5 | 4FES-5Y | 50 | 380-3-50 | 14400 | 12010 | 9940 | 8130 | 6580 | 1 x 550 | 1080 | 780 | 1050 | 7/8" | 1/2" |
| LKPG600S | 6 | 4EES-6Y | 60 | 380-3-50 | 18240 | 15170 | 12510 | 10200 | 8220 | 1 x 550 | 1080 | 780 | 1050 | 1-1/8" | 1/2" |
| LKPG700S | 7 | 4DES-7Y | 70 | 380-3-50 | 22150 | 18430 | 15220 | 12440 | 10040 | 1 x 550 | 1080 | 780 | 1050 | 1-1/8" | 5/8" |
| LKPG900S | 9 | 4CES-9Y | 90 | 380-3-50 | 27100 | 22500 | 18520 | 15080 | 12120 | 2 x 500 | 1500 | 780 | 1050 | 1-1/8" | 5/8" |
| LKPG1200S | 12 | 4TES-12Y | 120 | 380-3-50 | 34450 | 28500 | 23300 | 18810 | 14990 | 2 x 500 | 1500 | 780 | 1050 | 1-3/8" | 5/8" |
| LKPG1500S | 15 | 4PES-15Y | 150 | 380-3-50 | 39450 | 32400 | 26350 | 21150 | 16680 | 2 x 550 | 1500 | 780 | 1050 | 1-5/8" | 7/8" |
| LKPG2000S | 20 | 4NES-20Y | 200 | 380-3-50 | 46800 | 38700 | 31700 | 25650 | 20450 | 3 x 550 | 2000 | 880 | 1050 | 1-5/8" | 7/8" |
| TEST CONDITION: Condensing Temperature: 50°C | |||||||||||||||
