Safewell SSG8842 19inch 42U Server Rack for Data Center Servers

Product Overview

Description

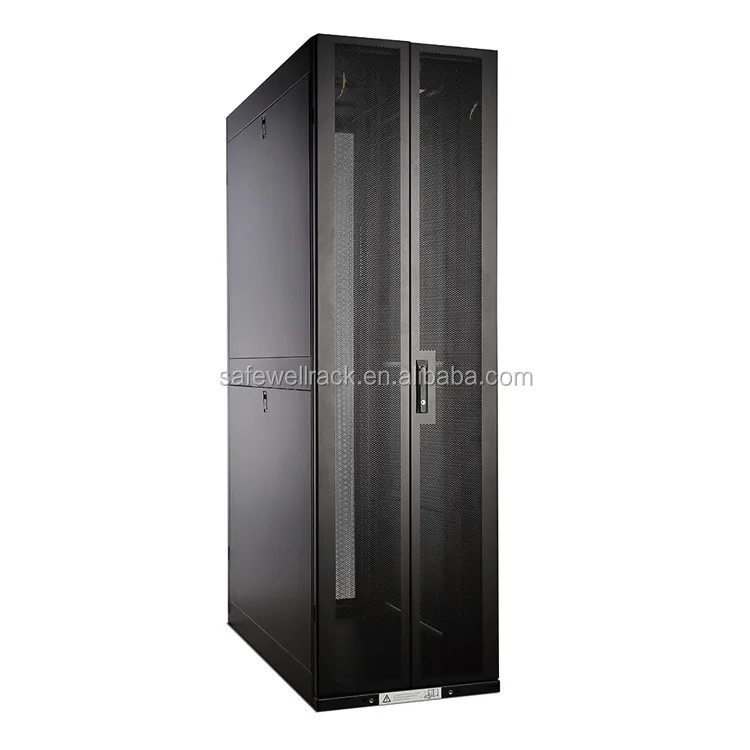

Safewell SSG8842 19inch 42U Server Rack for Data Center Servers



Safewell SSG series server rack is the ultimate rack enclosure solution designed and engineered for demanding data center enviroments.  With accessories of bracket, cable manager,

PDU fixing slot, high quality locks, supply safe place for important IT equipment.



The range comprises standard free standing cabinets, all complying with ANSI/EIA RS-310-D, IEC60297-2 and DIN41494 Part 7.

These free standing server rack are manufactured from 1.5mm steel and have a high static loading capacity up to 1500KG.  The Perforated doors for massive front-to-rear airflow up to 78%. there are popular choices for high-density data centers and server rooms.



• 1.5mm steel construction
• Static loading capacity up to 1500KG (without levelling feet and castors)
• Horizontally divided side panels provide easy access and convenient post-installation maintenance.
• Toolless mounting brackets allow quick installation of compatible PDUs and vertical cable managers.

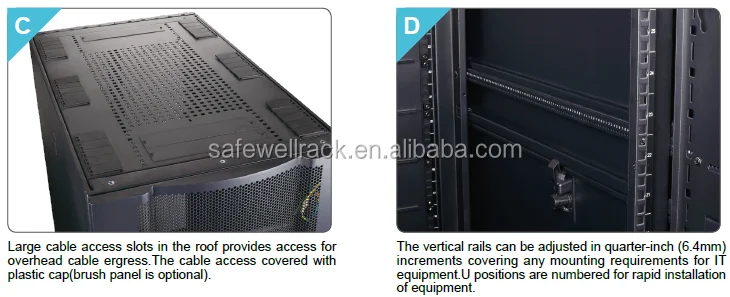

• Best design for cable management with Large cable access slots and cable management rails.

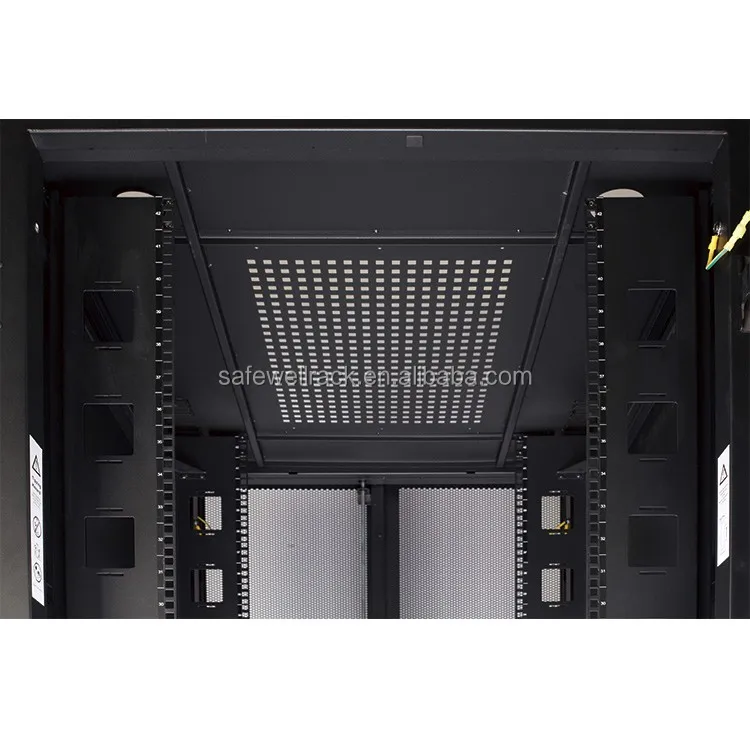

• Top Panel can be removed toollessly in seconds without having to disconnect cables first
• Supplied with general duty castors and feet (3" heavy duty castor is optional )

Technical Parameters:



Model	SSG8842
Standard	Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard
Material	SPCC
Thickness	Mounting profile 2.0mm Mounting angle 1.5mm Others 1.2mm

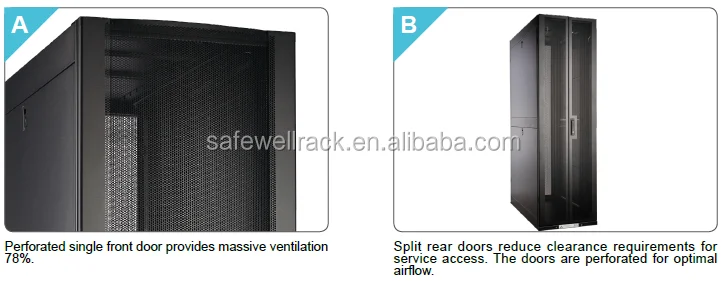

Door	Perforated single front door and Split rear doors  which provides massive ventilation 78%.
Surface Finish	Degreasing, Pickling, Phosphating, Powder coating
Protection Degree	IP20
Loading Capacity	1500KG
Color	Optional:  Black(RAL9005)  GREY(RAL7035)



Product Features:







Product Drawing



Specification

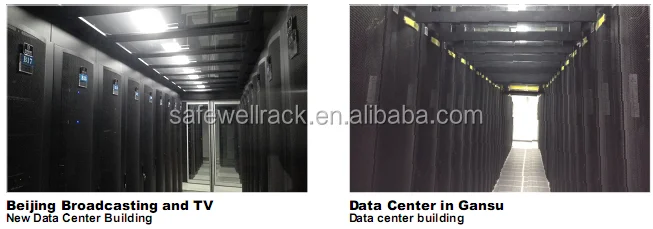

 Applications:  Building new data center ,server rooms.



Compatible Accessories:





Package:BU OR KD packing





FAQ (Frequently Asked Questions):

1.MOQ and sample order?

Safewell rack:  MOQ is 50pcs for each size, and serveral size mixed together for 100pcs. we can help provide samples for you to test before order if really needed. The sample is charged.



2.Do you have all certification?

Safewell rack:ISO9001,ISO14001,CE & RoHS,etc.



3.What's factors will affect the price?

Safewell rack:

A. Size:The larger size, of course,larger size will need much more Material, so the cost would increase. B. Material:Different material will be different price.Any change(include wire,connector,Structure ect)would lead the cost increase. C. OEM:Motor customize a pre-need mold fee. If you just change the appearance, will only produce a little extra cost.   D. Quantity: The more the quantity, price is relatively more cheap .



4.What is your shipping method?

Safewell rack:The shipping way can be DHL,UPS, or by air, depending on your expected cost and delivery time



 5.What's the rack?

Safewell rack:Rack are frame structures designed for mounting standard 19" rack-mount equipment-servers,rounters,UPS systems,switches,audio/Video-regardless od vendor.They provide rackequipment organization,security and cable management while enabling airflow.There are two basic types:rack enclosured(also called rack cabinets) and open-frame racks.



6.What type of rack do you require?

Safewell rack:

Rack Enclosure- Server rack, Network Rack, from 18U-52U.

Open Frame- 2Post  and 4Post open frame rack, from 12U-45U

Walmount cabinet- single section wallmount cabinet and double sectionwallmount cabinet, from 4U-26U

If you need other type racks,please contact us to customized.



7.Where are Racks used?

Safewell rack:

• Server rooms and data centers
• Audio/video installation
• Closets housing telecommunications equipmen
• Industrial environments such as a factory floor

8. Can I use our private packaging, our logo on your products ?

Safewell rack:  Yes .



 9.Which country do you sell?

Safewell rack:  USA , UK , CANADA and worldwide.



 10.How can I get a good price ?

Safewell rack:As you know a quality depend on a price , so we offer a competitive price .
