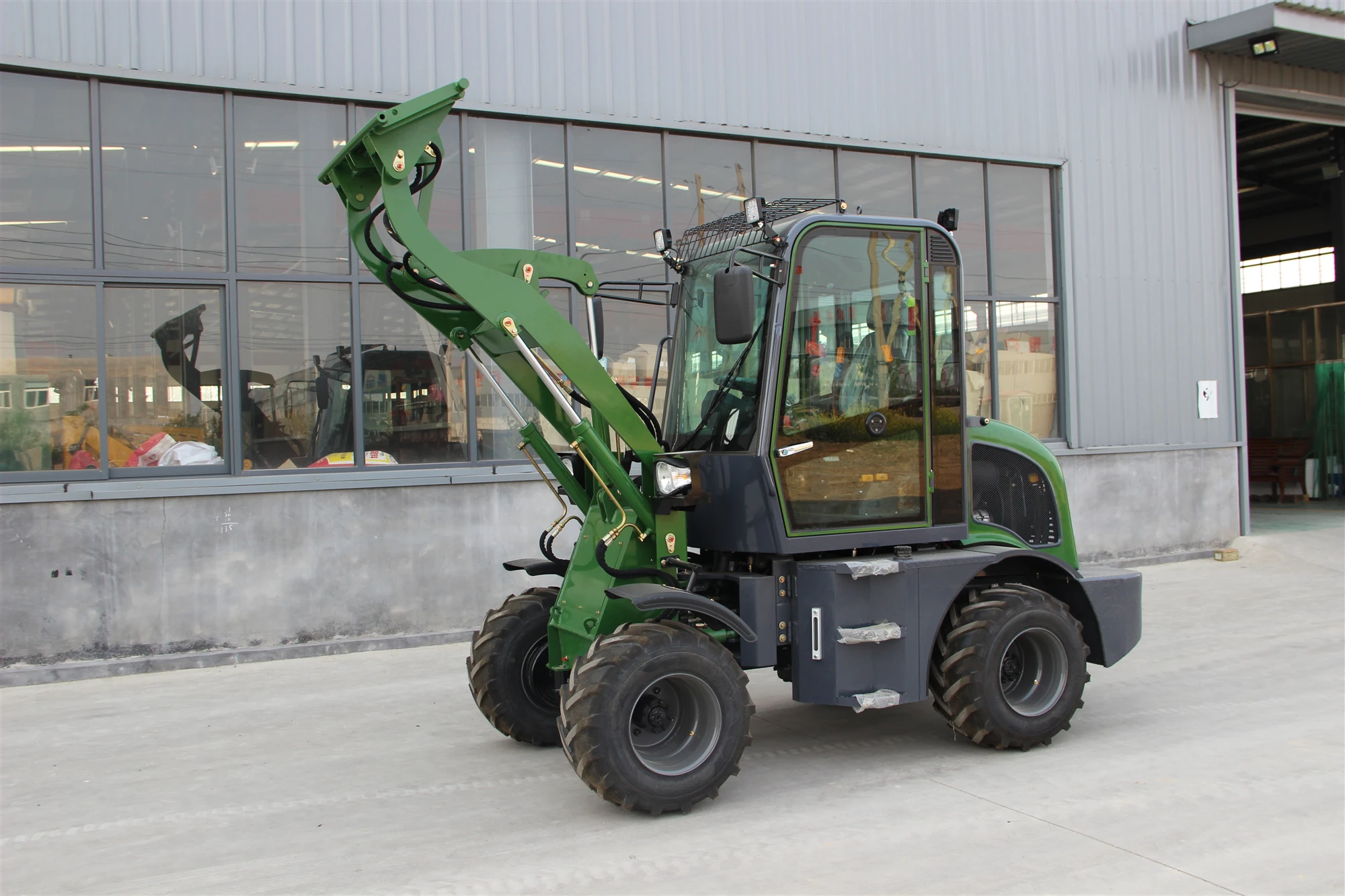

2022 new 0.8ton wheel loader with CE Certificate
- Category: >>>
- Supplier: Qingzhou Hongyuan Vehicles Co. Ltd.
Share on (60597074558):
Product Overview
Description
Product Description
FOCUS ON EUROPE,EXPAND AUSTRALIA,CANADA,AMERICA AND JAPAN MARKET
WE HAVE THE BIGGEST MARKET SHARE IN EUROPE MARKET AND HAVE AN WAREHOUSE IN MIDDLE EUROPE
A Standard Configuration and Feasure
1)Compact body,Narrow wheel base,Low driving seat have a good feeling of ground
2)Standard equip one teeth bucket can be leveled automaticly
3)Chinese famous brand changchai engine zn390Q have lower diesel consume and good quality
4)Mechanical transmission have bigger power convert percentage,Easier service for mechanical gearbox
5)Central articulated frame and load sensing hydraulic steering
6)Four wheel drive,Oscillating gear axles
7)Four wheel hydraulic spread-shoe brake

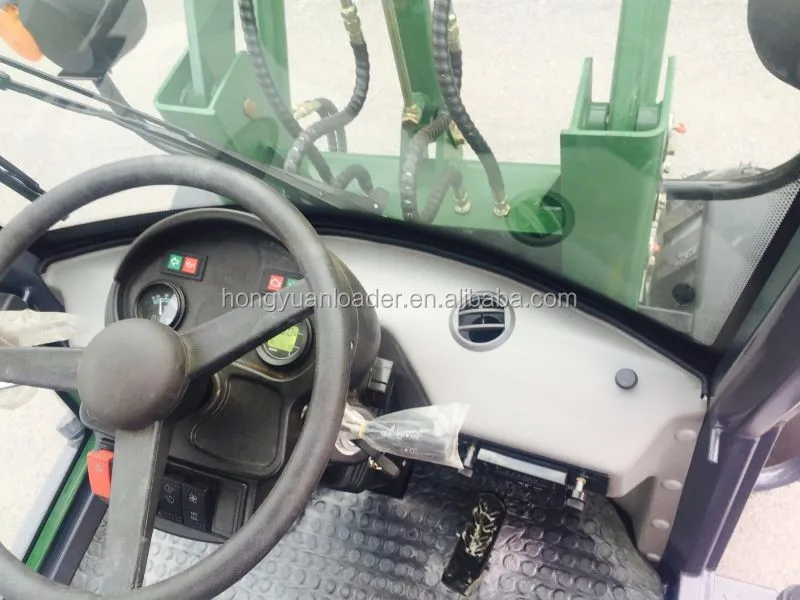

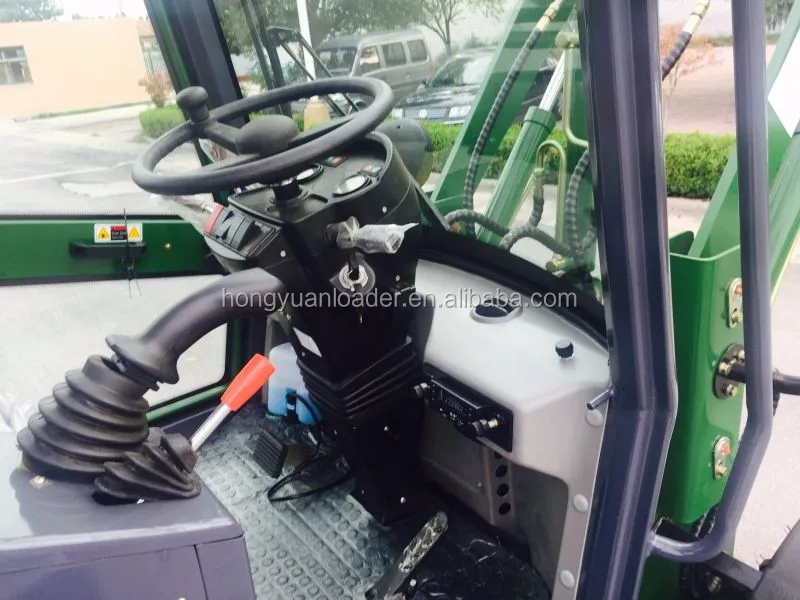

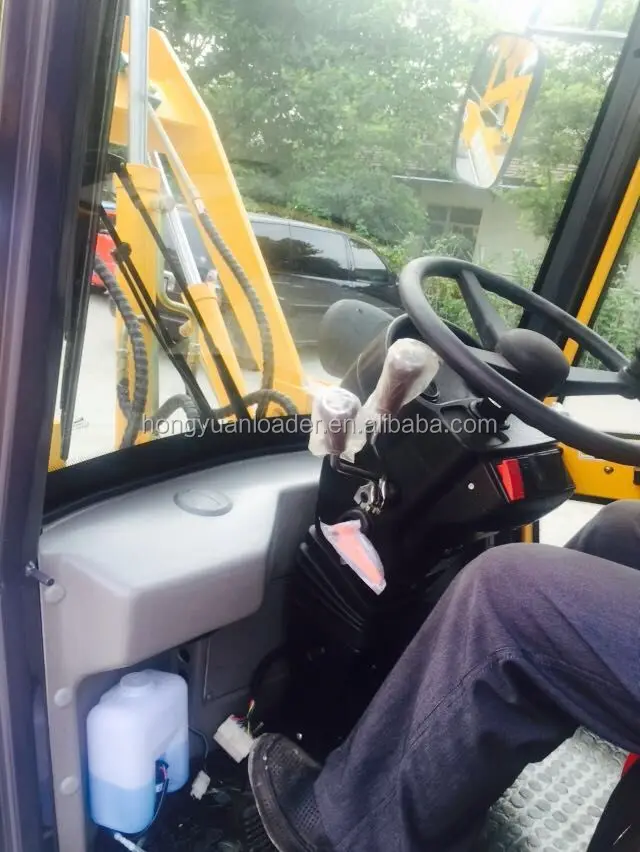

8)Safe and Luxury cabin,adjustable and comfortable seat,adjustable steering wheel,Single handle mechanical joystick control
9)Famous brand Camel battery with Big AH
10)Authentic machinery CE approved by Germany TUV which available by TUV website.Meet the Europe standards of safty,ROPS&FOPS and noisy strictly
Technical parameter
ZL08F CE CERTIFICATE MINI WHEEL LOADER | |||
Item | Specifications | Item | Specifications |
Rated loading weight | 800kg | Operating weight | 2850kg |
Rated bucket capacity | 0.4m3 | Overall dimensions(LxWxH) | 4600x1600x2550mm |
Bucket width | 1400mm | Engine model | CHANGCHAI ZN390Q |
Track base | 1285mm | Engine type | In-line arrangement, water cooled, two-cycle diesel engine |
Wheel base | 2170mm | Engine starting mode | Electric |
Min. turning radius (outside of rear wheels) | 4600mm | Rated power/Rated speed | 25KW/2400rpm |
Min. Ground clearance | 240mm | Brake mode | Four-wheel hydraulic spread-shoed brake |
Dump height fully raised | 2300mm | Warranty | 12 months after received the goods |
Reach fully raised | 750mm | Color | According to the requirements of customers |
Lifting time | 4S | Tyre type | 7.50-16 |
Hydraulic cycle time | 9S | Shipping port | Qingdao port, China |
Max. Tilt angle | 300 | Packing details | Nude package, 1Unit/20' GP, 3Units/40' HQ |
Max. Bucket breakout, lift cylinder | 28KN | Delivery time | 15 days after confirm the order |
Driving mode | Four-wheel drive | Supply ability | 100 units per month |

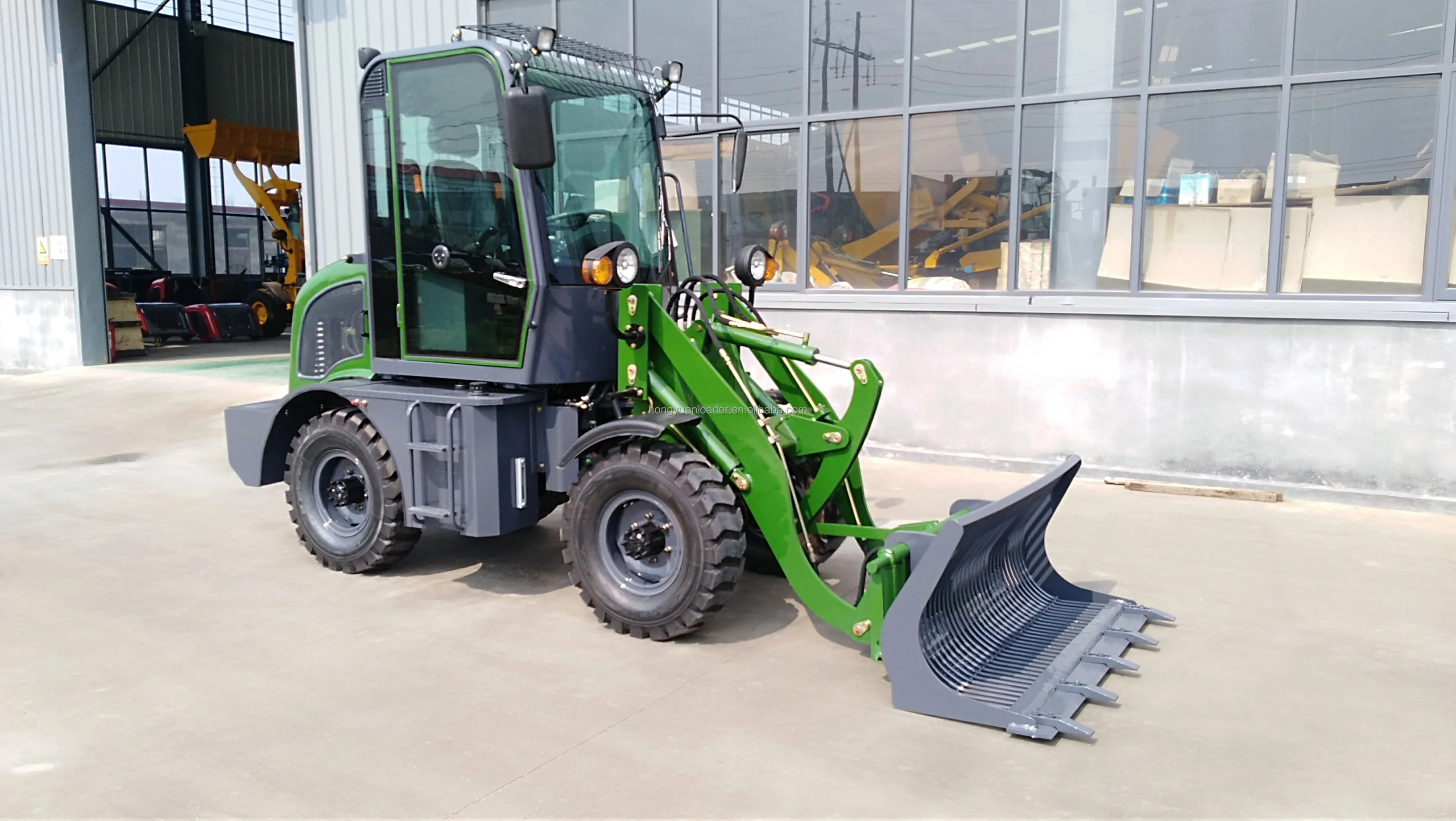

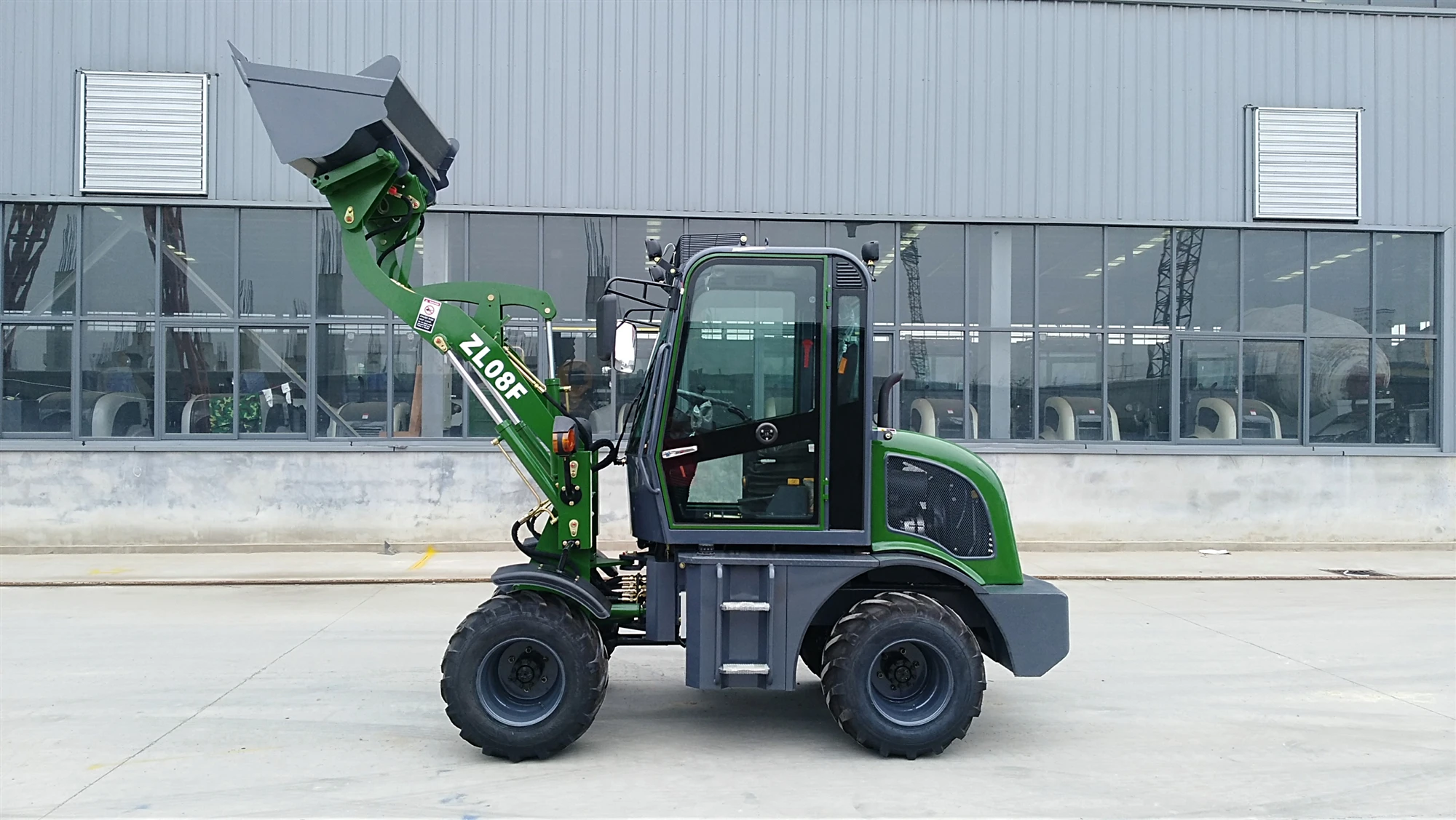

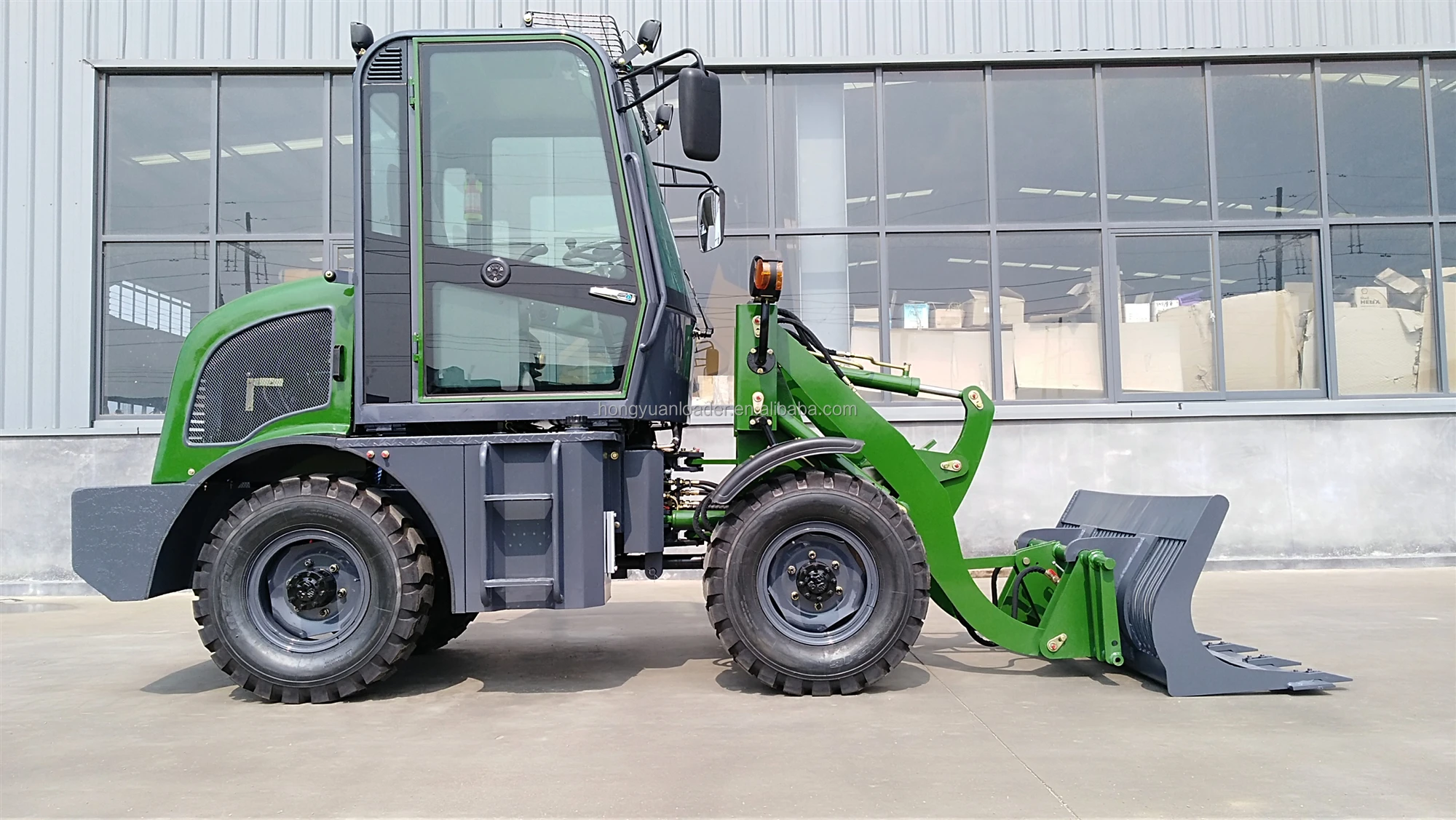

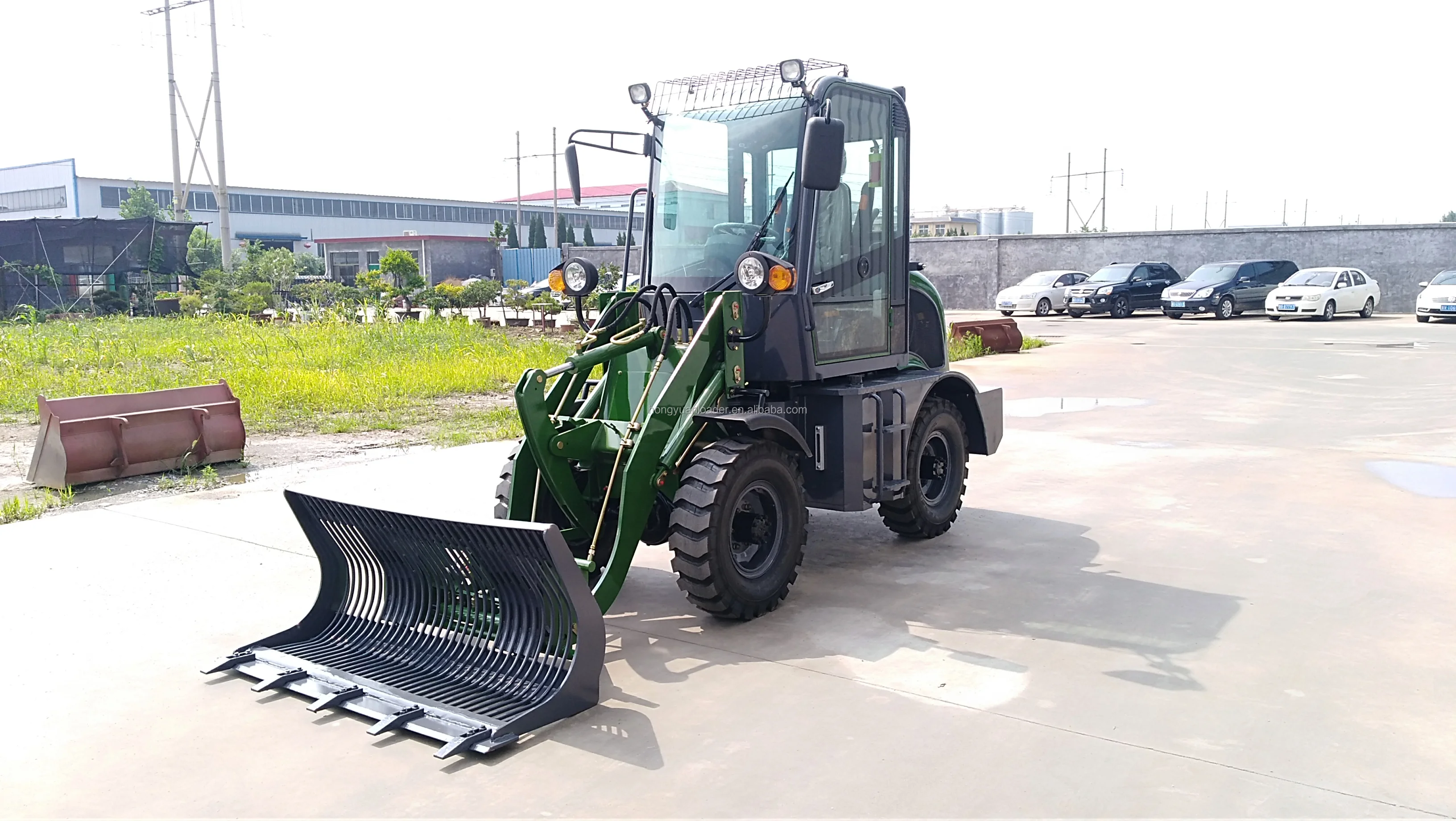

The detailed pictures
Packaging & Shipping
Nude packages, 20' GP container pack 1 unit with the disassemble cabin, 40' HC container pack 3 unit.
