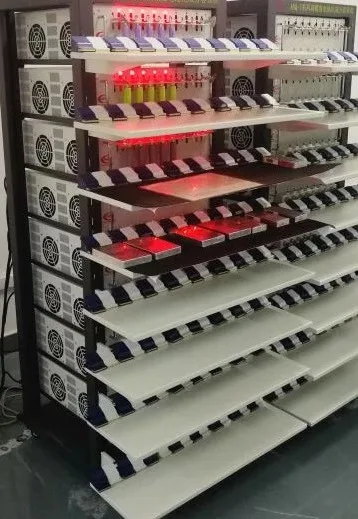

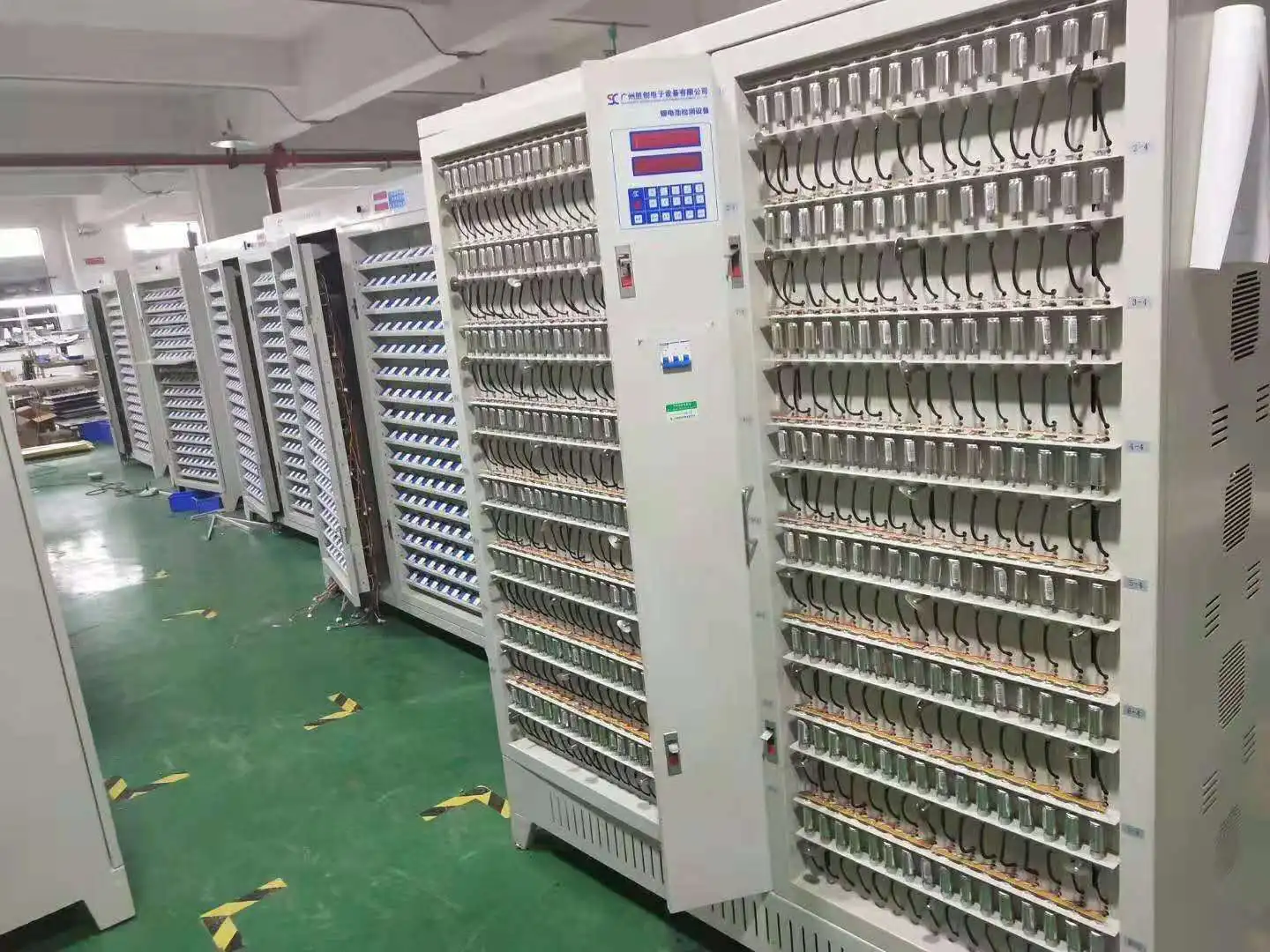

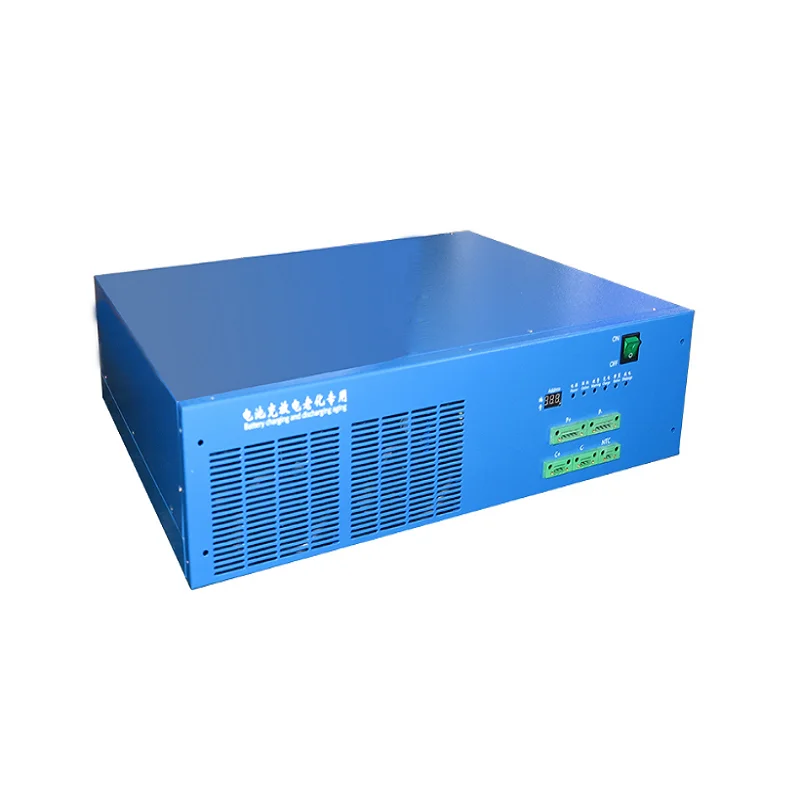

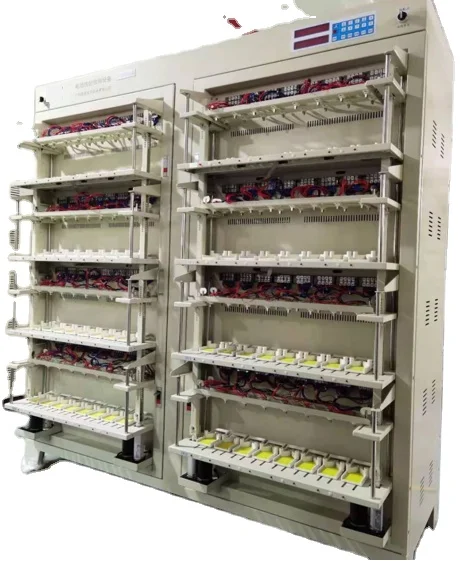

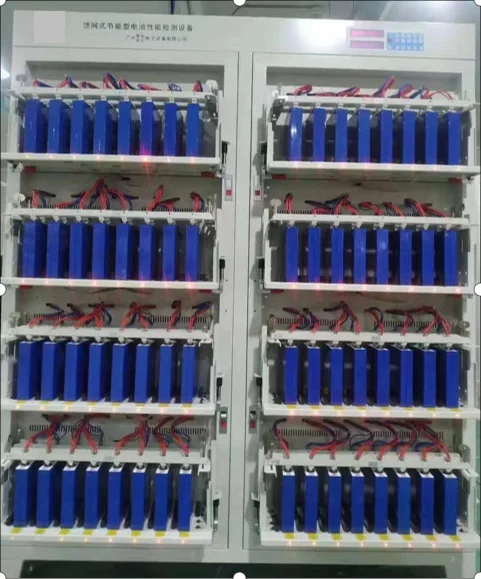

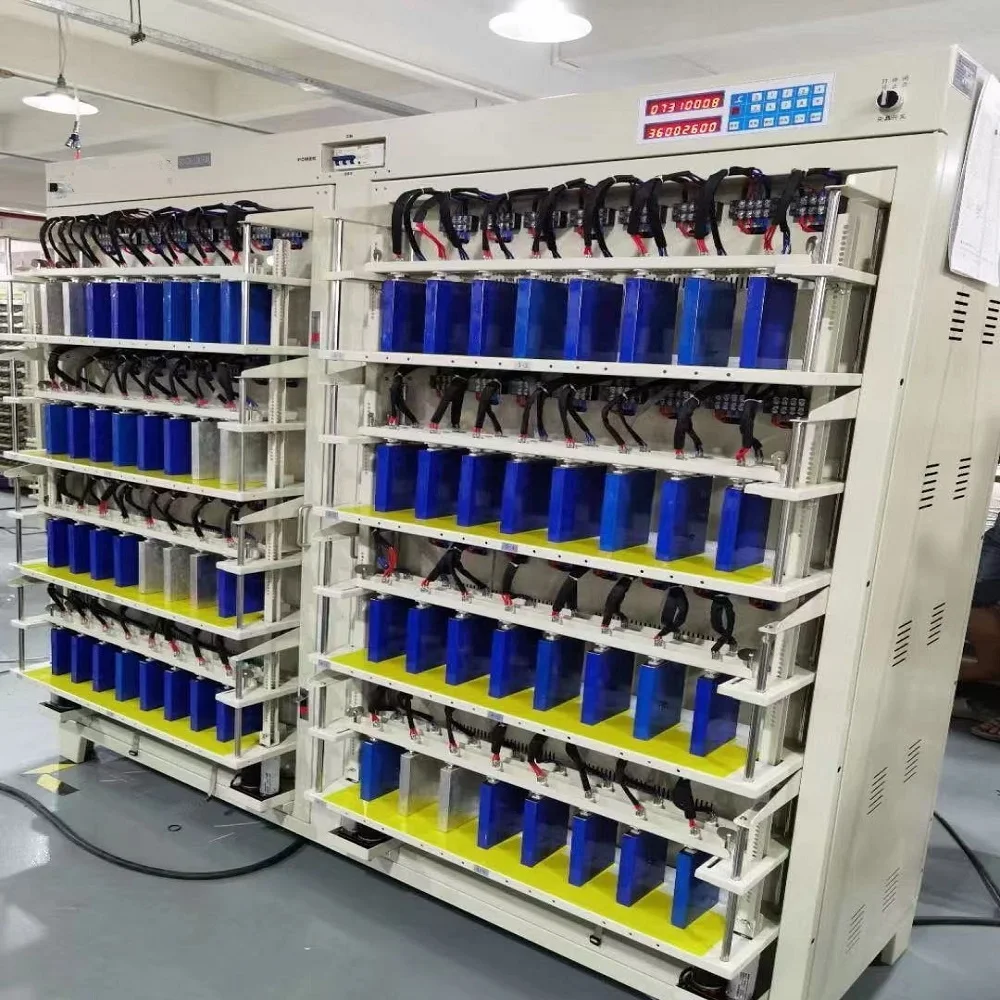

Professional battery testing equipment 32650 18650 lithium ion battery discharge capacity tester with high quality

Number of device channels

512 (Single CPU control)

Constant current range

0.05 ~ 2A, resolution 1mA

Accuracy of current measurement

±0.1%FS

Sampling current accuracy

±0.1%FS

Voltage measurement range

0 ~ 5V, resolution 1mV

Accuracy of voltage measurement

±0.1%FS

Charging and discharging voltage range

Charging: 0 ~ 4.5V, discharging: 4.5 ~ 2V

Constant voltage setting range

3 ~4.5V

Accuracy of constant pressure setting

±0.1%FS

Time range

0-30000 min / step, accuracy: ± 0.1%

Heat dissipation mode

Cold wind

Battery Clamp

Cylinder clamp, polymer clamp

Work loop source

Temperature: 0 ~ 40 ℃,

relative temperature ≤ 85%

(no water condensation)

External size

1600mm (W) × 550mm (L) × 1840mm (H)

Working power supply

Three phase four wire system,

AC380V ± 150%, 50Hz

Power consumption at full load

≤9KW

Minimum configuration of computer system:

Dual core CPU or above,

4G or above memory,

500GB or above hard disk space,

EGA / VGA color display, one CD-ROM, one mouse

Windows XP or above operating system, one 6. RS232 serial communication port available.

7.The computer system shall be self configured by the user, and the number of the computer system shall be determined according to the actual needs.

General equipment configuration and standards

Appearance color of equipment,

Case: silver white,

Cabinet: silver white.

Attach the Chinese operation manual and software U disk.
