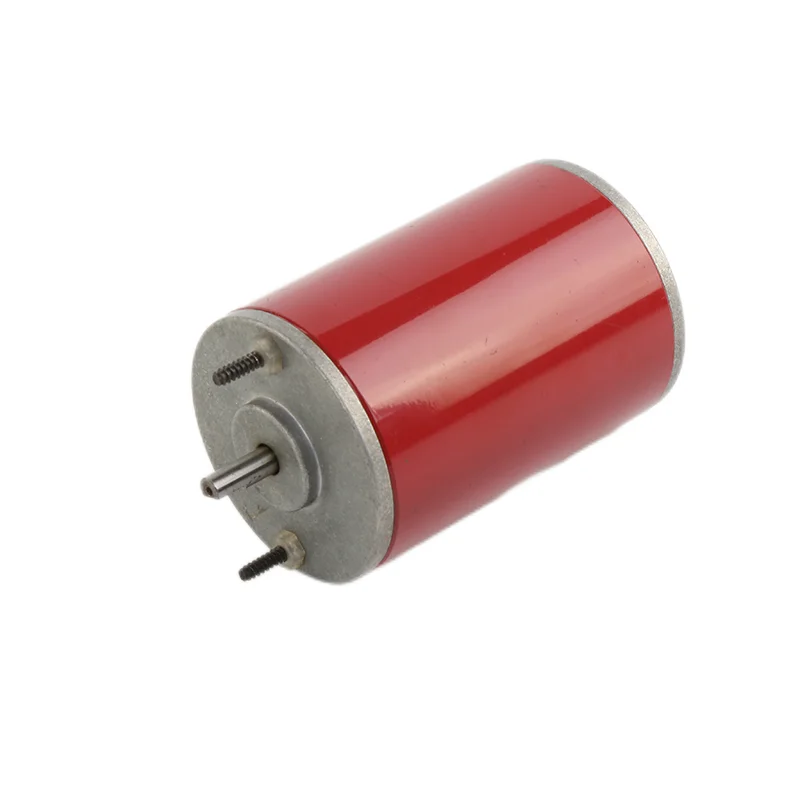

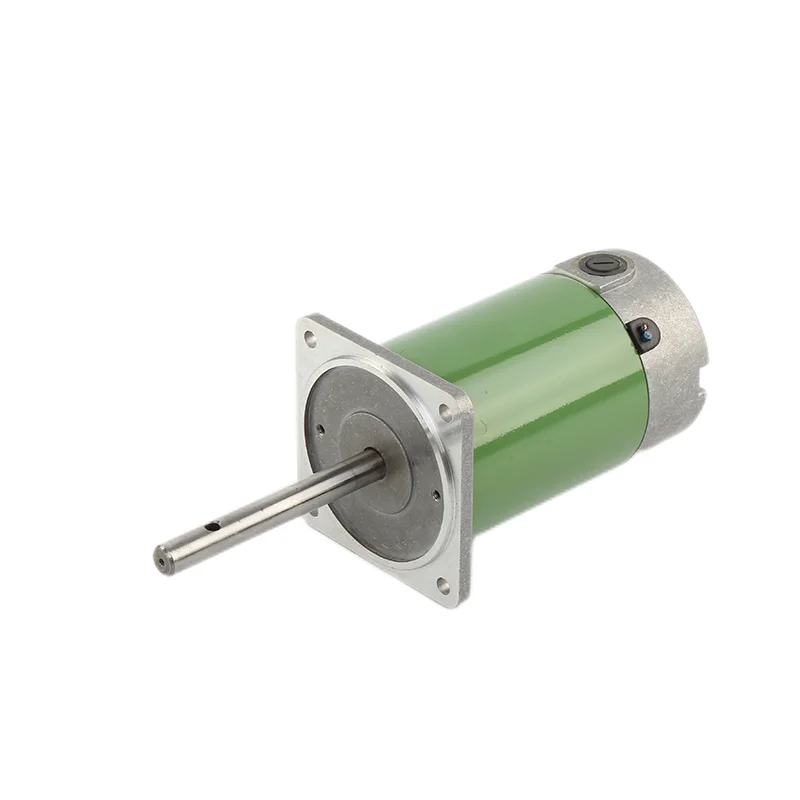

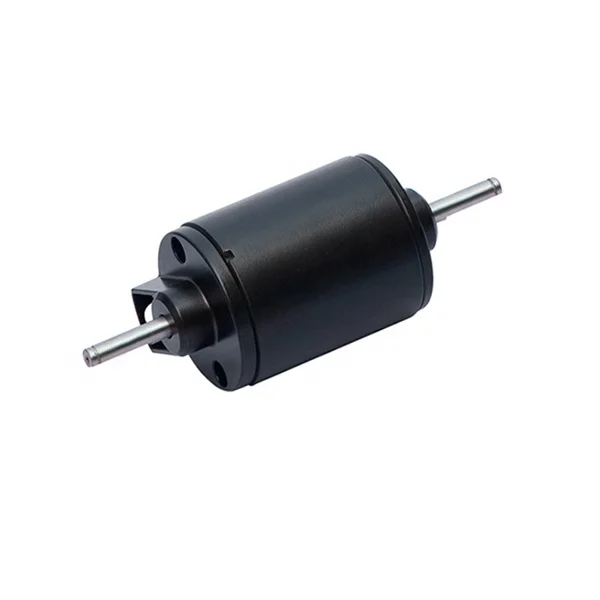

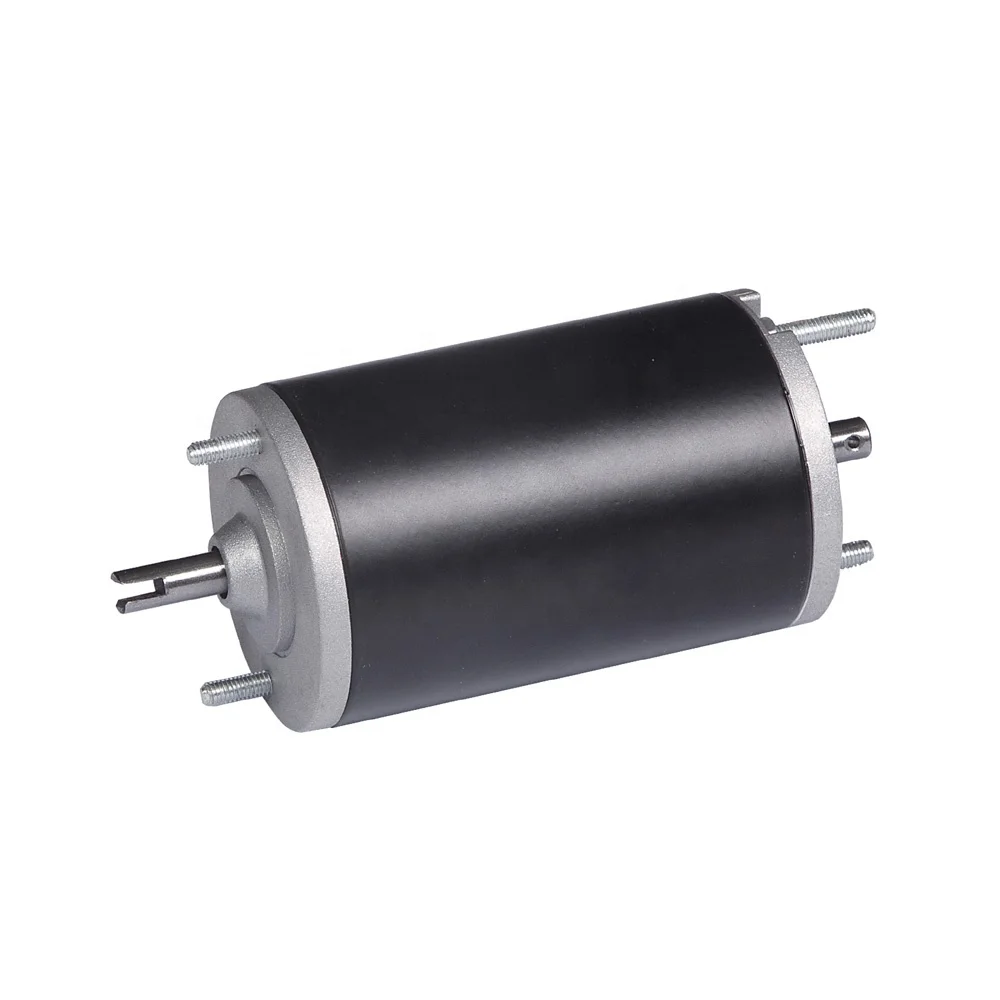

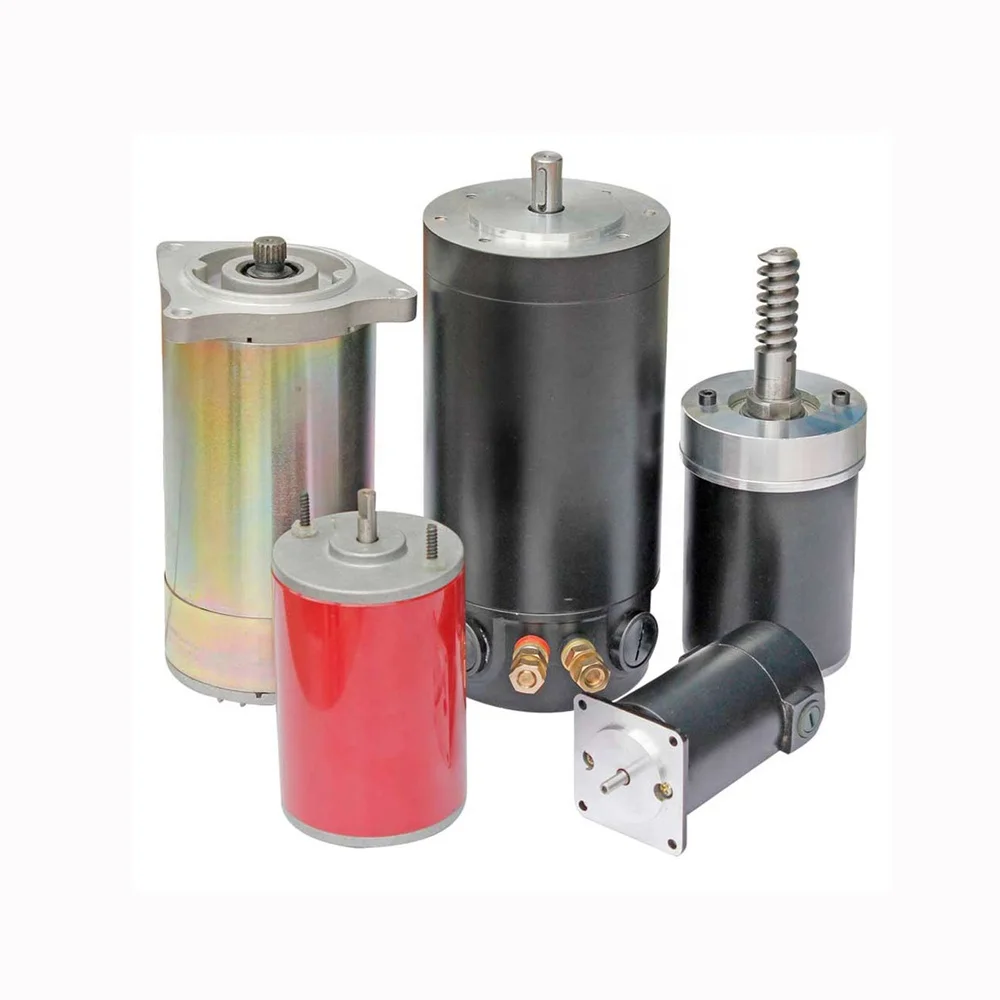

60ZY(60MM) 12V, 24V Permanent Magnet Brushed DC Motor
- Category: >>>
- Supplier: Zhejiang Dongzheng Motor Co. Ltd.
Share on (60597596257):
Product Overview
Description
Product Description
12V, 24V Permanent Magnet Brushed DC Motor
Carbon brush DC motor/ PMDC motor/tubular DC motor/electric DC motor
Model: 60ZY; 63ZY

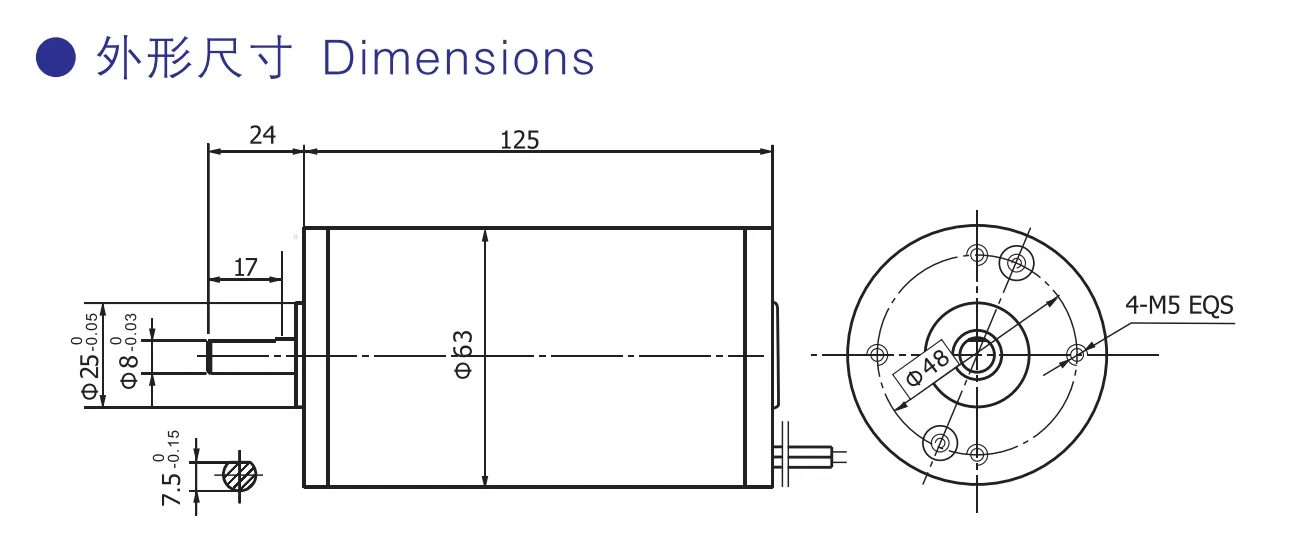

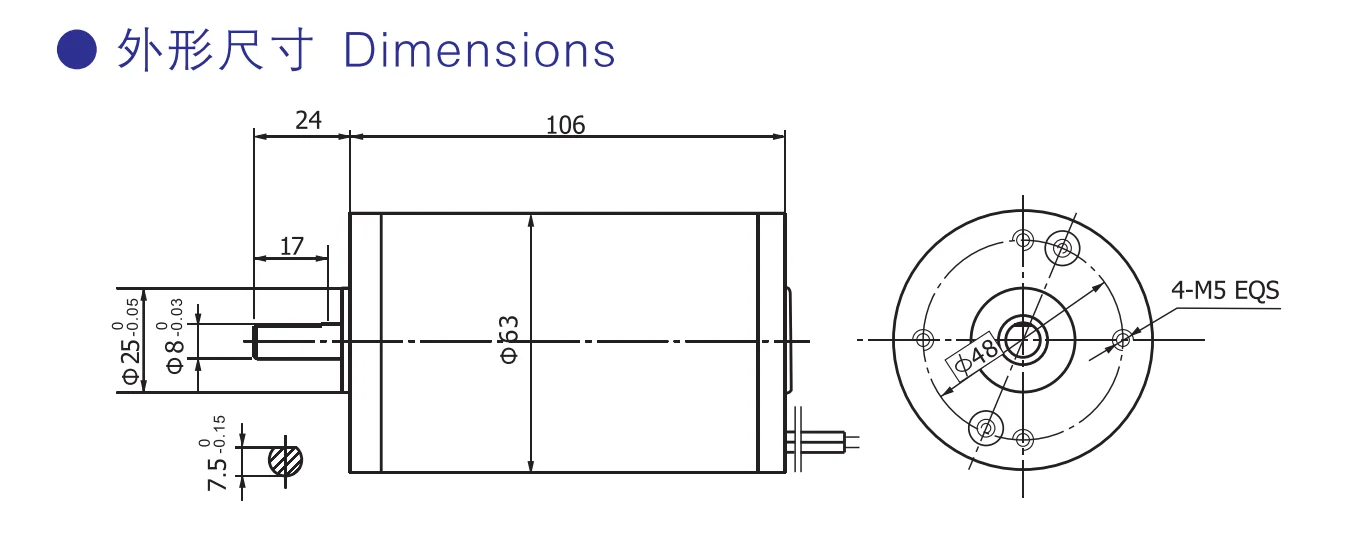

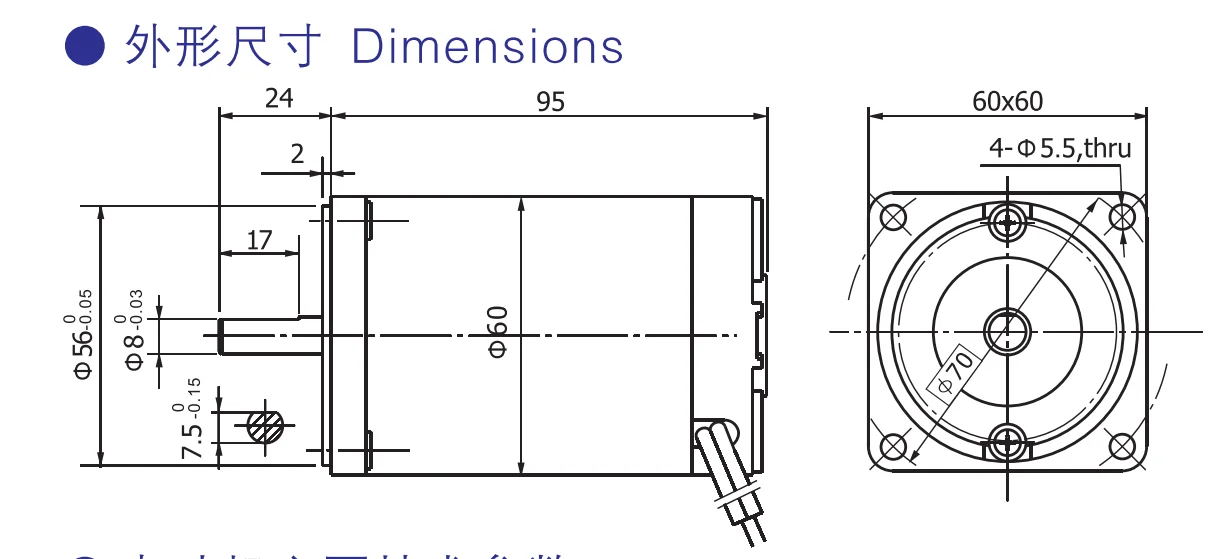

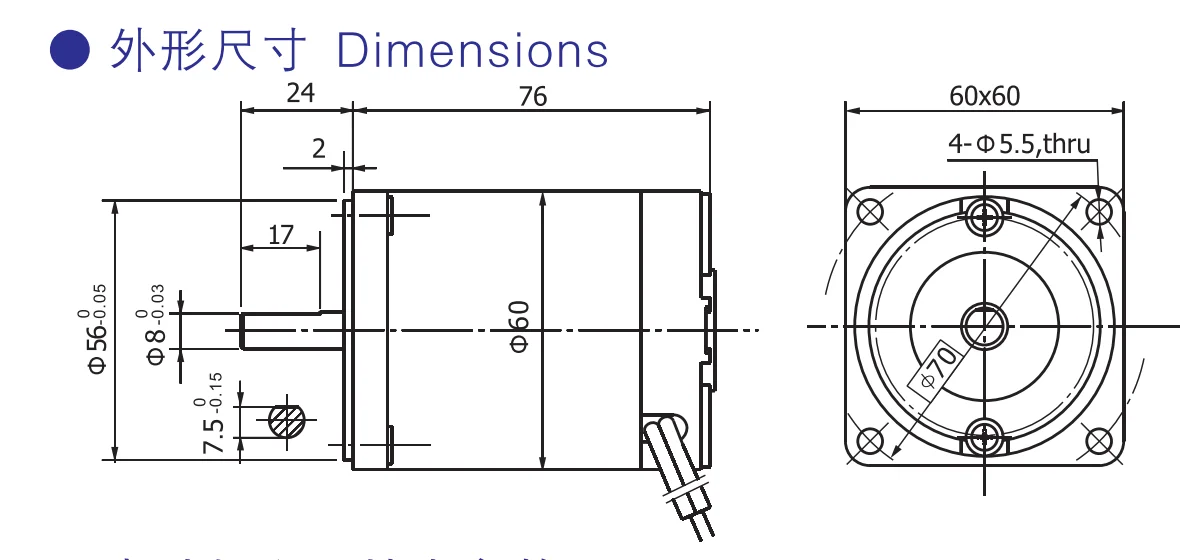

Motor length: 75mm; 95mm; 105mm, 125mm or customer's needs
Voltage: 12 ~ 400V DC
CE, UKCA, Reach and RoHS approval
Optional components: planetary/spur/worm gearbox; magnetic/optical encoder; power-on/power-off brake; cable connector
Customized shaft & flange dimensions and technical specifications are available upon requested.
Motor length: 75mm; 95mm; 105mm, 125mm or customer's needs
Voltage: 12 ~ 400V DC
CE, UKCA, Reach and RoHS approval
Optional components: planetary/spur/worm gearbox; magnetic/optical encoder; power-on/power-off brake; cable connector
Customized shaft & flange dimensions and technical specifications are available upon requested.
Typical application: Key Machine; Animal Game Feeder; Door/Gate/Barrier
Motor Technical Data:
电机型号 Type | 额定电压 Rated voltage (VDC) | 空载转速 No-load speed (r/min) | 空载电流 No-load current (mA) | 额定转速 Rated speed (r/min) | 额定转矩 Rated torque mN.m | 输出功率Output power (W) | 额定电流 Rated current (A) | 堵转力矩 Stall torque (mN.m) | 堵转电流 Stall current (A) |
60ZY75-2420 | 24 | 2000 | 0.3 | 1600 | 50 | 8 | 0.8 | 215 | 2.1 |
60ZY75-2430 | 24 | 3000 | 0.4 | 2400 | 70 | 17 | 1.2 | 296 | 5.0 |
60ZY75-2440 | 24 | 4000 | 0.5 | 3200 | 90 | 30 | 2.2 | 404 | 8.5 |
60ZY95-2420 | 24 | 2000 | 0.40 | 1600 | 150 | 25 | 1.8 | 560 | 6.0 |
60ZY95-2430 | 24 | 3000 | 0.50 | 2400 | 180 | 40 | 3.0 | 690 | 11 |
60ZY105-2420 | 24 | 2000 | 0.25 | 1600 | 165 | 30 | 1.8 | 760 | 7.3 |
60ZY105-2430 | 24 | 3000 | 0.35 | 2400 | 180 | 45 | 2.2 | 790 | 11.2 |
60ZY105-2450 | 24 | 5000 | 0.50 | 4000 | 230 | 90 | 6.0 | 920 | 15.5 |
63ZY105-2420 | 24 | 2000 | 0.25 | 1600 | 165 | 30 | 1.8 | 760 | 7.3 |
63ZY105-2430 | 24 | 3000 | 0.35 | 2400 | 180 | 45 | 2.2 | 790 | 11.2 |
63ZY105-2450 | 24 | 5000 | 0.50 | 3200 | 230 | 90 | 6.0 | 920 | 15.5 |
63ZY125-2430 | 24 | 3000 | 0.5 | 2500 | 265 | 65 | 4.6 | 950 | 15.2 |
63ZY125-2435 | 24 | 3500 | 0.8 | 2800 | 320 | 95 | 6.0 | 1100 | 19.3 |
63ZY125-2440 | 24 | 4000 | 1.2 | 3200 | 450 | 150 | 9.0 | 1200 | 22.6 |
Customized Gear Motors for Typical Applications | ||||||||
Tarp Gear Motors | Slow Juicer Motors | |||||||
Curtain & Window Motors | Robot Pool Cleaner Motors | |||||||
Door & Gate Motors | Robot Lawn Mower Motors | |||||||
Automatic Pool Cover Motors | Solar Tracking System Motors | |||||||
Company Introduction
OVERVIEW
Dongyang City Dongzheng Motor Co., Ltd. is a state-level high-tech enterprises which Professionally involves in research, development, manufacture, and sales of various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
Dongyang City Dongzheng Motor Co., Ltd. is a state-level high-tech enterprises which Professionally involves in research, development, manufacture, and sales of various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
CERTIFICATION & MANAGEMENT
All have passed the REACH, CE & CCC approval, RoHS Compliance, in part pass the UL approval; Adopting the ISO9001: 2015 Quality Management System, ISO14001 Environmental Management System as well as OHSAS18001 Occupational Health and Safety Management System.
All have passed the REACH, CE & CCC approval, RoHS Compliance, in part pass the UL approval; Adopting the ISO9001: 2015 Quality Management System, ISO14001 Environmental Management System as well as OHSAS18001 Occupational Health and Safety Management System.
Our Services & Strength
Sufficient Sales Teams for International Business
Strong R & D Capability
Large Production Capacities
Stable Massive Production Quality
Excellent Pre and after Sales Service
Stable Massive Production Quality
Excellent Pre and after Sales Service
Certifications
Patents
Production and Testing Facilities
FAQ
Q1: Are you a trading company or manufacturer?
A1: We are a professional OEM manufacturer.
Q2: What is your main product range?
A2: We manufacture both motors and gearboxes. Our main products are various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
Q3: How about the MOQ of your motors?
A3: Customized testing samples are available before serial production.
Q4: What is the warranty period of your motors?
A4: We offer free maintenance in warranty period of one year.
Q5: Which shipping ways are available?
A5: DHL, UPS, FedEx, TNT are available for sample shipment. Sea/air/train shipments are available for serial production.
