Price:RUB 3,825,510.00 - RUB 11,476,530.00

Quantity:


Product Overview

Description

Cut to length line
CRC HR PPGI GI steel coil strap cutting cut to length machine
Machine Name: metal coil cut to length production line

SINO POWER High speed flying strap cutting machine is applicable to coils of various specifications. the cut to length machine produced by cut to length line is used for the producing flattened cut to length steel plate through the procedure of uncoiling, flattening and cutting to required width and length.

1: Specification of steel coil cutting machine
Mark: Below are our standard series, we also accept customized. We have 0.2-2.0, 0.3-3.0, 1-8mm, 2-10mm, 2-12mm, 3-16mm, 4-20mm, 5-25mm,etc.
Model
SP0.2-1.8×500
SP0.3-4.0×1250(1600)
SP1.0-6.0×1600
SP3.0-12.0×2000
Coil Material
HR,CR,PPGI,GI, steel coil, copper coil, aluminum coil.
Coil Thickness
0.2~1.8mm
0.3~4.0mm
1.0~6.0mm
3.0~12.0mm
Coil Width
100~500mm
800~1250(1600)mm
800~1600mm
1000~2000mm
Coil Weight
≤15T
≤20T(25T)
≤25T
≤30T
Coil Inner Diameter
φ508mm,φ610mm,φ760mm
φ508mm,φ610mm,φ760mm
φ508mm,φ610mm,φ760mm
φ610mm,φ760mm,φ820mm
Coil Outer Diameter
≤φ1600mm
≤φ2200mm
≤φ2200mm
≤φ2200mm

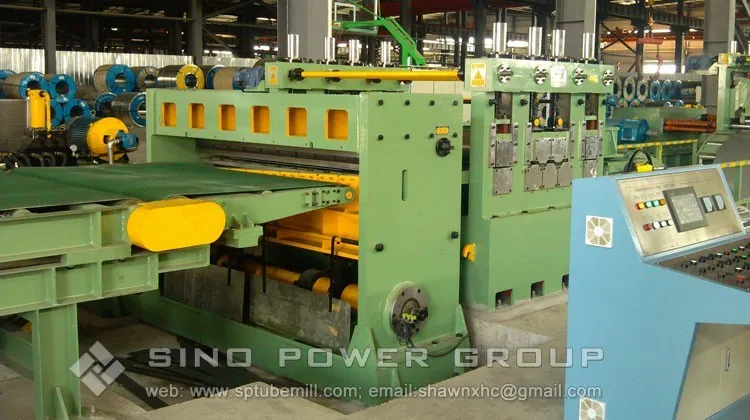

2: Whole review of cut to length machine

High speed used cut to length line for sale for carbon SS galvanized steel AL CU strip

This series of High speed CTL metal strap cutting machine is applicable to coils of various specifications. the High speed cut to length machine produced by cut to length machine manufacturers is used for the producing flattened cut to length steel plate through the procedure of uncoiling, flattening and cutting to required width and length.

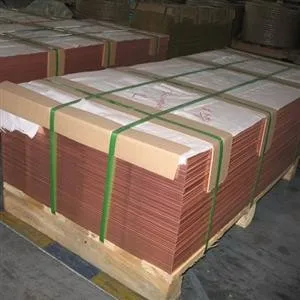

3: Final products produced by our steel coil cutting machine

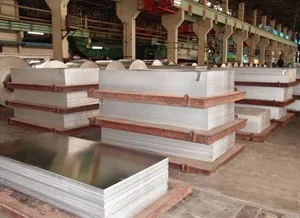

Our cut to length line can cut HR, CR, PPGI, GI, SS, Aluminum Copper coil to plate sheet, the min length can be 1m.

High speed used cut to length line for sale for carbon SS galvanized steel AL CU strip
High speed used cut to length line for sale for carbon SS galvanized steel AL CU strip
High speed used cut to length line for sale for carbon SS galvanized steel AL CU strip
High speed used cut to length line for sale for carbon SS galvanized steel AL CU strip
Flow Chart & Machine
High speed used cut to length line for sale for carbon SS galvanized steel AL CU strip

Standard Flow chart of cut to length machine:

Coil lifter --- hydraulic decoiler --- snubber roller --- pinch roll & pre-leveler --- loop bridge --- side guide roller --- main leveling machine --- encode & measuring device (with tail plate pinching) --- shear --- conveyor --- hydraulic lift platform --- stacker with blower device --- unload cart

If you need video of our steel coil cutting machine: please search keywords "SINO POWER GROUP CUT TO LENGTH LINE" on Youtube website.

Step 1:   Uncoiling of steel metal steel coil cutting machine

High speed used cut to length line for sale for carbon SS galvanized steel AL CU strip

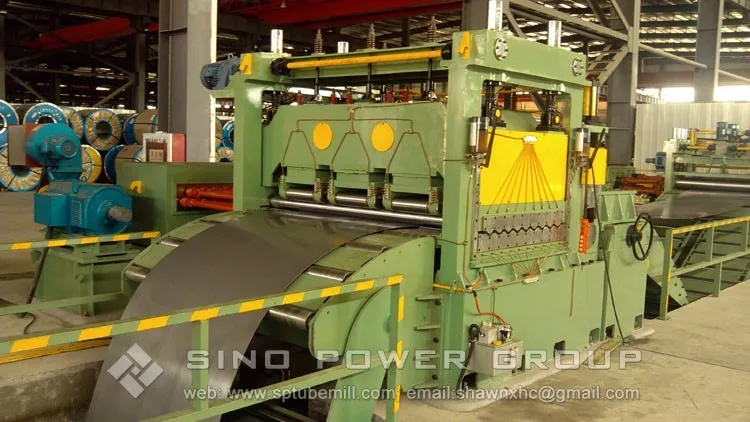

Step 2: Pre-Leveling of strap cutting machine

High speed used cut to length line for sale for carbon SS galvanized steel AL CU strip

Step 3: Leveling of cut to length machine

High speed used cut to length line for sale for carbon SS galvanized steel AL CU strip

Step 4: Cutting of steel coil cutting machine

High speed used cut to length line for sale for carbon SS galvanized steel AL CU strip

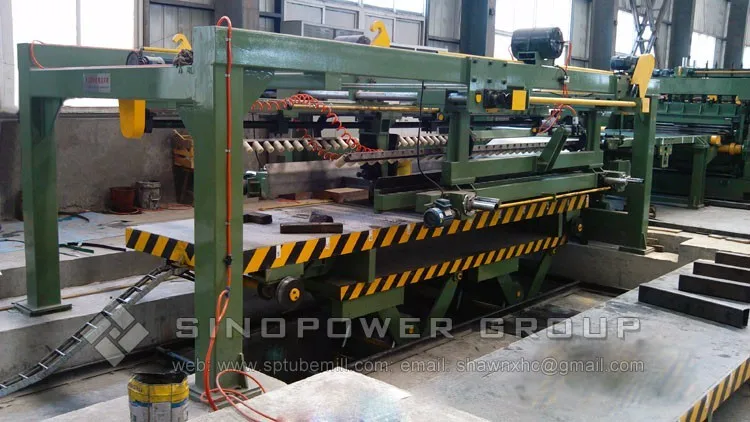

Step 5: Storage of strap cutting machine

High speed used cut to length line for sale for carbon SS galvanized steel AL CU strip
Packing & Delivery

Package by plywood case, Load in containers, and Shipping by Sea/ Truck / Train.

Company Introduce

1: Introduce

Sino Power Group is the professional manufacturer with the factory covers an area of 85,000 Square meters and has more than 200 employees and over 25 years on steel pipe making machine, slitting machine, cut to lenth machine and other metal cold forming machine design, manufacturing, sales and after-sales experience.

SINOPOWER INDUSTRIAL have With the ISO9001 quality control system, ISO1400 management system and CE / SGS standard of European Union,, also presented quite a few patents rights. Besides, we also become a member of the CE warranty system. For this pipe mill line, we added the PLC encoded control by Touchscreen, with intelligent processing method, it can control the exact details of the output pipes in a method that is actual precise.

2: Certifaction

Our cut to length machine remain CE, ISO9001, then SGS passed, that incomes the quality remains same trust-worthy meantime, we as well apply a portion towards recover the procedure then superiority for our patrons.
We have a lot of patents,such as uncoiler patent / cut to length machine patent / leveling machine device patent / decoiler patent etc.
